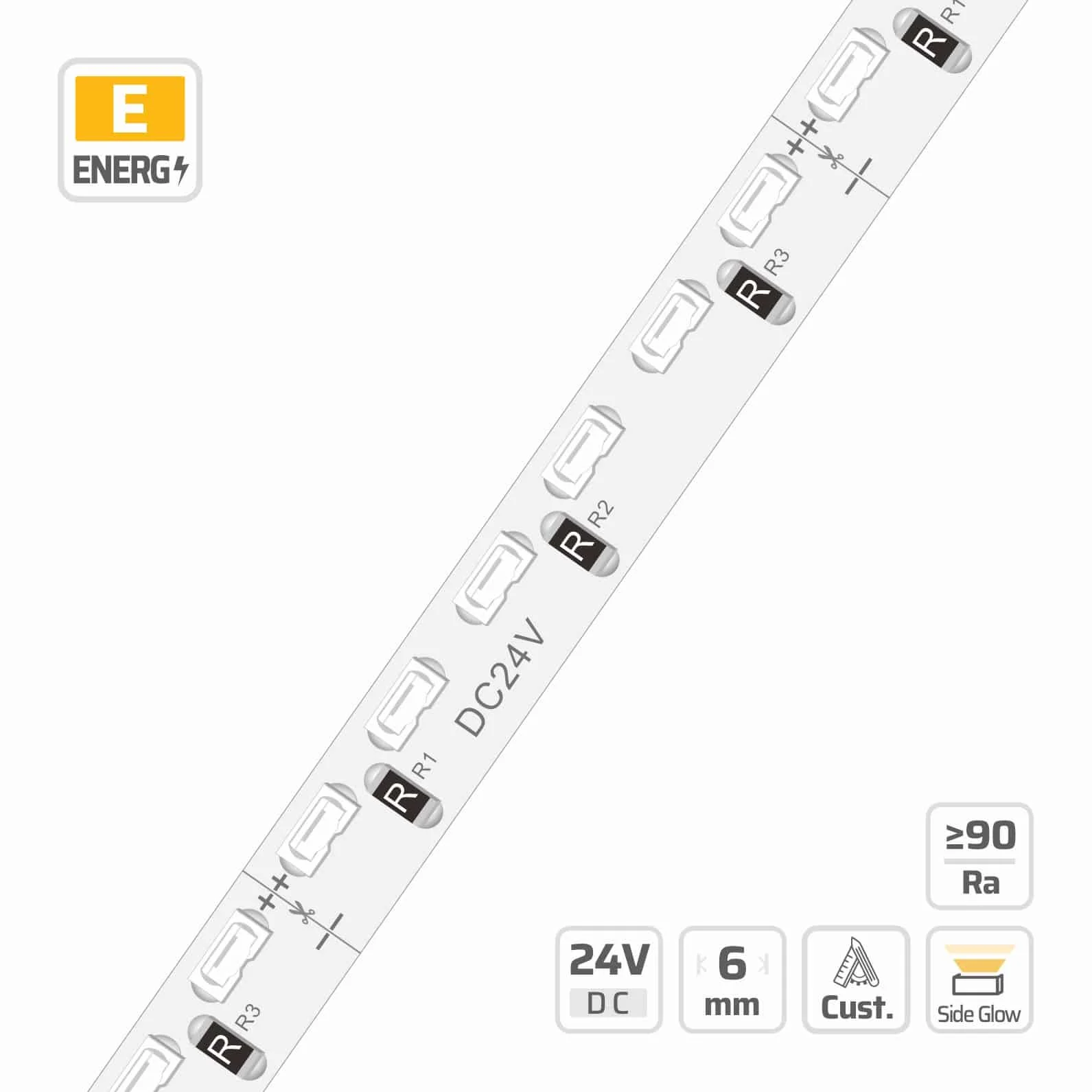

3014 Side View LED Strip Light (#4271)
6mm · 24V · 156LEDs · 38.46cut
Model: 4271
Overview
3014 Side View LED Strip Light | 6mm | 24V | 156LEDs | 38.46cut | #4271 is part of the DENO Side Emitting LED Strips series, engineered around side emitting LED strip. Key specifications: 3014, 156 LEDs/m, 24V, 6 PCB, 2oz copper FPCB, cuttable 6LEDs/38.46mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
Engineered with 156 LEDs per meter, this 3014 side view LED strip light delivers lateral 120-degree illumination ideal for slim cove lighting and edge accents. Operating on constant voltage 24V DC, the circuit supports precise field installation with dedicated cut marks spaced every six LEDs or 38.46mm. DENO provides factory-direct wholesale project supply with dimmable performance, verified 10000 switching cycles, and maximum continuous runs up to 5 meters.
Side Emitting Led Strip built for side emitting led strips projects.
Specifications
| CCT (K) | 2700–6500K |
|---|---|
| CRI | Ra≥80 |
| POWER (W/M) | 15.6 W/m |
| LED QTY | 156 LEDs/m |
| PART NO | DL-F30A78V24-4271-* |
| SMD TYPE | 3014 |
| CUTTABLE UNIT | 6LEDs/38.46mm |
| DIMMABLE | Yes |
| IP RATING | IP20/IP65/IP67 |
| LED PITCH | 6.41mm |
| PCB WIDTH | 6 |
| BEAM ANGLE | 120° |
| RUN LENGTH | 5M |
| COPPER FOIL | 2oz |
| ON OFF TIMES | 10000（test times） |
| POWER RANGE | 3~18W |
| CIRCUIT TYPE | C.V. (Resistor Based) |
| INPUT VOLTAGE | 24V |
| LUMINOUS FLUX | 1605–1870 lm/m |
| MIN BEND DIAMETER | Φ60mm |
| OPERATING TEMPERATURE | -25~40°C; Tc: 75°C (max) |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
Recommended accessories & compatible parts
- DL-1010 — 10x10mm Surface Mount LED Channel — U Shape Aluminum Profile for 6mm Strip: Accepts LED strips up to 6mm wide.
- DL-1010HX-F — 15.2x10.4mm Slim Recessed LED Channel with Flange — Shallow Plaster-in Aluminum Profile: Accepts LED strips up to 6mm wide.
- DL-1013 — 10x13mm Surface Mount LED Channel — Deep U Shape Aluminum Profile: Accepts LED strips up to 6mm wide.
- DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.
Request a quotation for #4271
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 118.1 lm/W at 4000K, Ra 80, ErP energy class E (Grade DL (2nd Tier) · 6.2W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 6.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 90.1 lm/W | 558.3 lm/m | F | 71.8 lm/W | 445.1 lm/m | G | — | — | — |
| 2300 K | 100.2 lm/W | 621.3 lm/m | F | 80 lm/W | 496.1 lm/m | G | — | — | — |
| 2700 K | 104.9 lm/W | 650.4 lm/m | F | 86.5 lm/W | 536.5 lm/m | F | 70.1 lm/W | 434.5 lm/m | G |
| 3000 K | 112.7 lm/W | 698.7 lm/m | E | 91 lm/W | 564.3 lm/m | F | 74 lm/W | 459 lm/m | G |
| 3500 K | 114.5 lm/W | 710 lm/m | E | 92.7 lm/W | 574.9 lm/m | F | 76.3 lm/W | 472.9 lm/m | G |
| 4000 K | 118.1 lm/W | 732.5 lm/m | E | 94.9 lm/W | 588.1 lm/m | F | 78.3 lm/W | 485.5 lm/m | G |
| 5000 K | 118 lm/W | 731.9 lm/m | E | 94.9 lm/W | 588.1 lm/m | F | — | — | — |
| 6500 K | 107.7 lm/W | 667.6 lm/m | F | 91 lm/W | 564.3 lm/m | F | — | — | — |
Grade DL (2nd Tier) · 9.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 88.1 lm/W | 827.7 lm/m | F | 70.2 lm/W | 659.8 lm/m | G | — | — | — |
| 2300 K | 98 lm/W | 921 lm/m | F | 78.2 lm/W | 735.4 lm/m | G | — | — | — |
| 2700 K | 102.6 lm/W | 964.2 lm/m | F | 84.6 lm/W | 795.3 lm/m | G | 68.5 lm/W | 644.1 lm/m | G |
| 3000 K | 110.2 lm/W | 1035.8 lm/m | E | 89 lm/W | 836.5 lm/m | F | 72.4 lm/W | 680.4 lm/m | G |
| 3500 K | 112 lm/W | 1052.5 lm/m | E | 90.7 lm/W | 852.2 lm/m | F | 74.6 lm/W | 701 lm/m | G |
| 4000 K | 115.5 lm/W | 1085.9 lm/m | E | 92.8 lm/W | 871.9 lm/m | F | 76.6 lm/W | 719.7 lm/m | G |
| 5000 K | 115.4 lm/W | 1084.9 lm/m | E | 92.8 lm/W | 871.9 lm/m | F | — | — | — |
| 6500 K | 105.3 lm/W | 989.7 lm/m | F | 89 lm/W | 836.5 lm/m | F | — | — | — |
Grade DL (2nd Tier) · 12.5W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 86.2 lm/W | 1076.9 lm/m | F | 68.7 lm/W | 858.5 lm/m | G | — | — | — |
| 2300 K | 95.9 lm/W | 1198.3 lm/m | F | 76.5 lm/W | 956.9 lm/m | G | — | — | — |
| 2700 K | 100.4 lm/W | 1254.5 lm/m | F | 82.8 lm/W | 1034.8 lm/m | G | 67 lm/W | 838.1 lm/m | G |
| 3000 K | 107.8 lm/W | 1347.8 lm/m | F | 87.1 lm/W | 1088.4 lm/m | F | 70.8 lm/W | 885.3 lm/m | G |
| 3500 K | 109.6 lm/W | 1369.5 lm/m | F | 88.7 lm/W | 1108.9 lm/m | F | 73 lm/W | 912.1 lm/m | G |
| 4000 K | 113 lm/W | 1412.9 lm/m | E | 90.8 lm/W | 1134.4 lm/m | F | 74.9 lm/W | 936.4 lm/m | G |
| 5000 K | 112.9 lm/W | 1411.7 lm/m | E | 90.8 lm/W | 1134.4 lm/m | F | — | — | — |
| 6500 K | 103 lm/W | 1287.7 lm/m | F | 87.1 lm/W | 1088.4 lm/m | F | — | — | — |
Recommended LED Channels
Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.
This strip is 6mm wide, so it needs a channel with at least 8mm inner width (6mm + 2mm clearance). Every profile below meets that.
Related models in this series
- 3014 High Density LED Strip Light (#5590)
- 3014 Classic PU LED Strip Light (#4524-PU)
- 3014 Ultra-Narrow LED Strip Light (#9124)
- 3014 Side View LED Strip Light (#7609)
- 3014 Side View LED Strip Light (#7610)
- 3014 Side View LED Strip Light (#4722)
- 3014 CCT LED Strip Light (#4272)
- 3014 Classic LED Strip Light (#4723)
See every model in SMD LED Strip Series or narrow to 3014. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 4271?
4271: 3014, 156 LEDs/m, 24V, 6 PCB, 2oz copper FPCB, cuttable 6LEDs/38.46mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
What makes the construction of this side emitting LED strip different?
It is built as a side emitting LED strip on 2oz copper FPCB with a cutting unit of 6LEDs/38.46mm and an LED pitch of 6.41mm, so it holds its electrical and mechanical performance where standard strips fail.
Can DENO customise this side emitting LED strip for a project?
Yes. DENO manufactures the Side Emitting LED Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
Where is a side emitting LED strip used?
A side view LED strip fires light out of the edge of the board rather than the face, which suits edge-lit panels, glass shelf edges, handrail slots and shallow reveals where there is no depth to mount a top-firing strip and aim it at the surface.
Which LED driver and run length suit #4271?
3014 Side View LED Strip Light | 6mm | 24V | 156LEDs | 38.46cut | #4271 is a constant-voltage 24V product, so pair it with a CE or UL listed 24V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 5M. 5m Single/10m Dual Input power. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.
