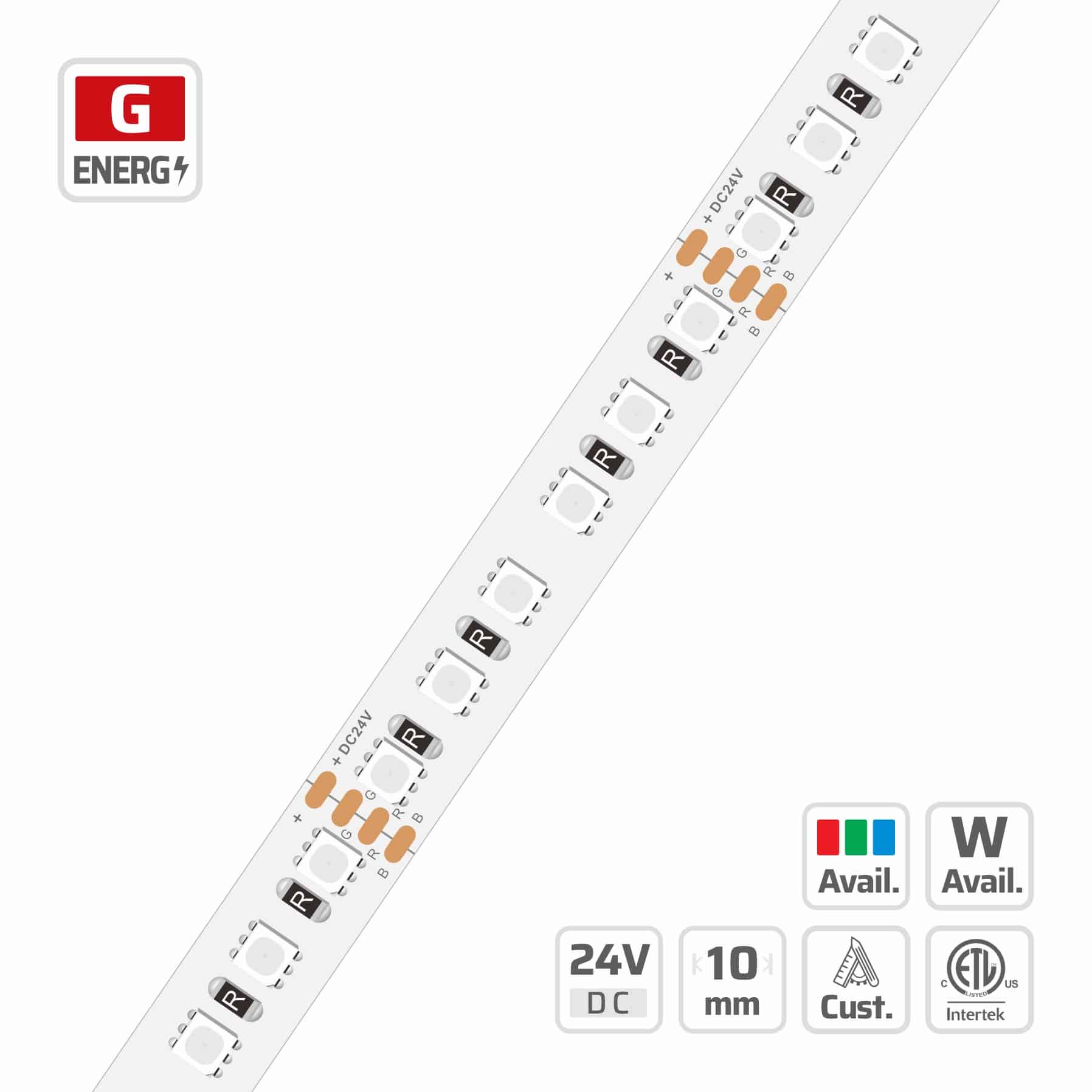

10mm | 24V | 120LEDs | 50mm/cut | #3812U | 3838 RGB LED Strip Light
Model: 3812U
Overview
The DENO LED 3812U model is a versatile 3838 RGB LED strip light, designed for dynamic and vibrant commercial lighting applications. Featuring 120 LEDs per meter on a 10mm PCB with a 24V input, it's cuttable every 50mm for custom lengths and offers dimmable functionality. Encapsulated with a pure copper strong LED frame and 99.9% pure golden wire, this strip ensures exceptional durability and a long 50,000-hour lifespan, backed by a 5-year warranty. It's ideal for architect...
Description
10mm | 24V | 120LEDs | 50mm/cut | #3812U | 3838 RGB LED Strip Light Adopt pure copper strong LED frame, 99.9% purity diameter> 1 mm pure golden wire encapsulation, can reduce the LED damage in different applications.
Specifications
| ledQty | 120 |
|---|---|
| partNo | DL-F38A60V24-3812U-* |
| smdType | 3838 |
| cuttable | 6LEDs/50mm |
| dimmable | Yes |
| ledPitch | 8.3mm |
| lifespan | 50000 |
| pcbWidth | 10 |
| warranty | 5 Years |
| lengthMax | 5m |
| copperFoil | 2oz |
| powerRange | 7.2~28.8W |
| circuitType | CV |
| inputVoltage | 24V |
| operatingTemperature | -25~40°C;Tc：75°C（max） |
Frequently Asked Questions
What are the common applications for the 3838 RGB LED strip light?
This 3838 RGB LED strip light is ideal for accent lighting, cove lighting, display cases, architectural features, and entertainment venues where dynamic color is desired.
Can the 3812U LED strip be controlled for color changing and dimming?
Yes, the 3812U is a 3838 RGB LED strip and is fully dimmable. It can produce a wide spectrum of colors controllable via appropriate RGB controllers.
What is the maximum continuous length of the 3812U_ RGB LED strip light on one power feed?
The maximum recommended continuous length for the 3812U_ 3838 RGB LED strip light is 5 meters (16.4 feet) to ensure consistent brightness and performance.
Does DENO LED offer customization options or bulk discounts for large projects?
Yes, we offer competitive pricing for bulk orders and can discuss customization options to meet specific project requirements for our B2B partners.
