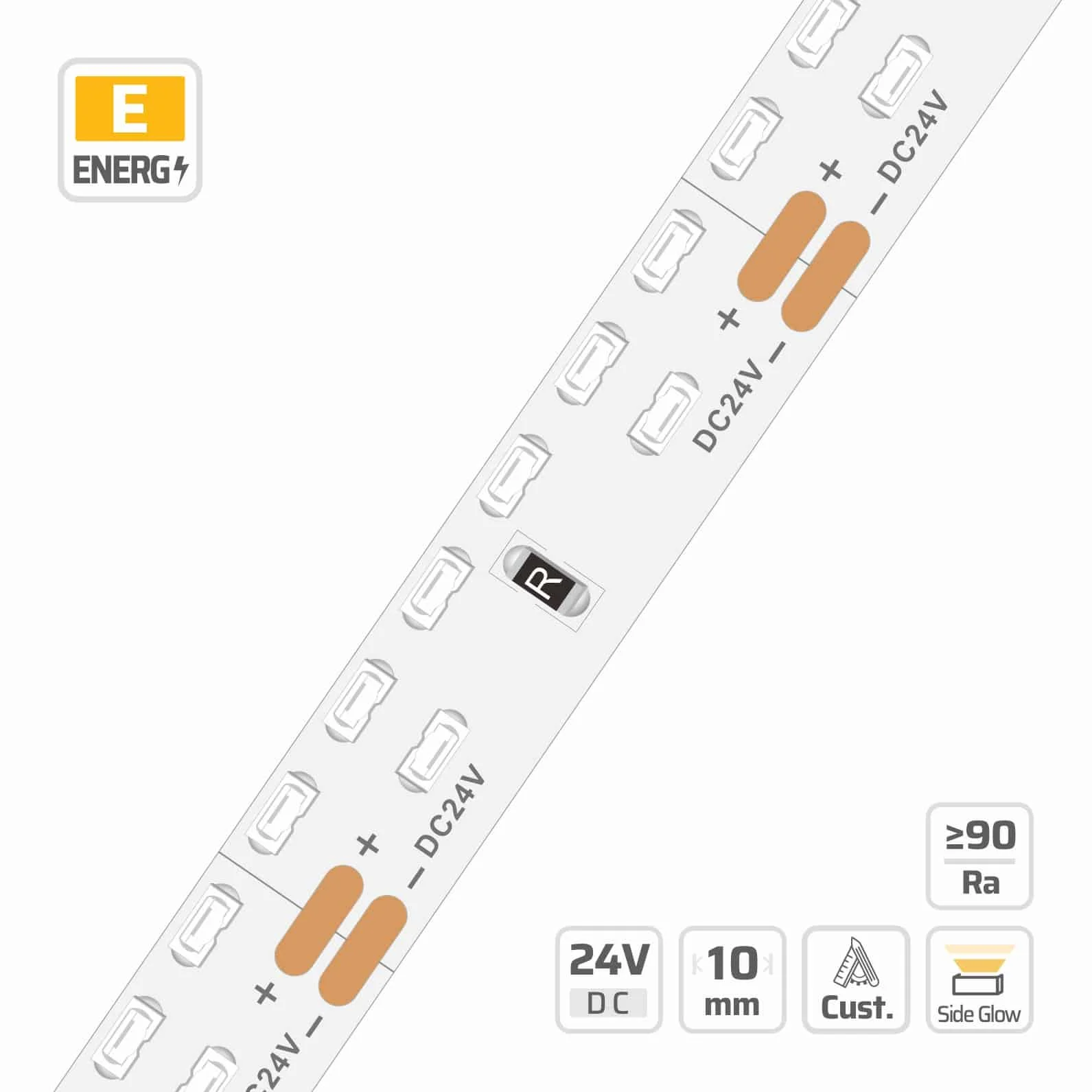

3014 Side View Special LED Strip Light (#3608)
10mm · 24V · 208LEDs · 38.46cut
Model: 3608
Overview
3014 Side View Special LED Strip Light | 10mm | 24V | 208LEDs | 38.46cut | #3608 is part of the DENO Side Emitting LED Strips series, engineered around side emitting LED strip. Key specifications: 3014, 208 LEDs/m, 24V, 10 PCB, 2oz copper FPCB, cuttable 8LEDs/38.46mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
This side view LED strip light features 208 high-density SMD 3014 LEDs per meter on a 10mm PCB for specialized architectural lighting. Built with a robust 2oz copper PCB, the 24V constant voltage circuit ensures lower voltage drop and effective thermal management. The flexible PCB offers an 8-LED cut interval every 38.46mm and supports smooth dimming across a 120-degree beam angle. Deno supports factory-direct wholesale project supply with standard 5m maximum run lengths and strong adhesive backing for easy mounting.
Side Emitting Led Strip built for side emitting led strips projects.
Specifications
| CCT (K) | 2700–6500K |
|---|---|
| CRI | Ra≥80 |
| POWER (W/M) | 16 W/m |
| LED QTY | 208 LEDs/m |
| PART NO | DL-F34A104V24-3608-* |
| SMD TYPE | 3014 |
| CUTTABLE UNIT | 8LEDs/38.46mm |
| DIMMABLE | Yes |
| IP RATING | IP20/IP65/IP67 |
| LED PITCH | 6.41mm |
| PCB WIDTH | 10 |
| BEAM ANGLE | 120° |
| RUN LENGTH | 5M |
| COPPER FOIL | 2oz |
| ON OFF TIMES | 10000（test times） |
| POWER RANGE | 3~18W |
| CIRCUIT TYPE | C.V. (Resistor Based) |
| INPUT VOLTAGE | 24V |
| LUMINOUS FLUX | 1835–2100 lm/m |
| MIN BEND DIAMETER | Φ60mm |
| OPERATING TEMPERATURE | -25~40°C; Tc: 75°C (max) |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
Recommended accessories & compatible parts
- DL-1003 — 19.1x8mm Surface Mount LED Channel — Dotless Aluminum Profile for 240 LEDs/m Strip: Accepts LED strips up to 10mm wide.
- DL-1103-1 — 16x13mm Surface Mount LED Channel — Aluminum Profile for 10mm LED Strip: Accepts LED strips up to 10mm wide.
- DL-1510 HX-F — 15x9.9mm Recessed LED Channel with Flange — Flush Mount Aluminum Profile: Accepts LED strips up to 10mm wide.
- DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.
Request a quotation for #3608
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 167.1 lm/W at 4000K, Ra 80, ErP energy class C (Grade DL (2nd Tier) · 9.4W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 9.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 127.3 lm/W | 1196.4 lm/m | E | 101.9 lm/W | 958.3 lm/m | F | — | — | — |
| 2300 K | 141.7 lm/W | 1332.3 lm/m | D | 113.6 lm/W | 1067.4 lm/m | E | — | — | — |
| 2700 K | 149.5 lm/W | 1405.7 lm/m | D | 122.9 lm/W | 1155.7 lm/m | E | 99.6 lm/W | 936.5 lm/m | F |
| 3000 K | 159.5 lm/W | 1499 lm/m | D | 129.4 lm/W | 1216.2 lm/m | E | 105.2 lm/W | 989.1 lm/m | F |
| 3500 K | 161.9 lm/W | 1521.8 lm/m | C | 131.7 lm/W | 1238.1 lm/m | E | 108.4 lm/W | 1018.8 lm/m | F |
| 4000 K | 167.1 lm/W | 1570.4 lm/m | C | 134.9 lm/W | 1267.8 lm/m | E | 111.3 lm/W | 1046.6 lm/m | E |
| 5000 K | 166.9 lm/W | 1568.4 lm/m | C | 134.8 lm/W | 1266.8 lm/m | E | — | — | — |
| 6500 K | 152.8 lm/W | 1436.5 lm/m | D | 129.3 lm/W | 1215.2 lm/m | E | — | — | — |
Grade DL (2nd Tier) · 12.5W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 124.5 lm/W | 1556.7 lm/m | E | 99.8 lm/W | 1246.9 lm/m | F | — | — | — |
| 2300 K | 138.7 lm/W | 1733.5 lm/m | D | 111.1 lm/W | 1388.9 lm/m | E | — | — | — |
| 2700 K | 146.3 lm/W | 1829 lm/m | D | 120.3 lm/W | 1503.8 lm/m | E | 97.5 lm/W | 1218.5 lm/m | F |
| 3000 K | 156 lm/W | 1950.4 lm/m | D | 126.6 lm/W | 1582.5 lm/m | E | 103 lm/W | 1286.9 lm/m | F |
| 3500 K | 158.4 lm/W | 1980.1 lm/m | D | 128.9 lm/W | 1610.9 lm/m | E | 106.1 lm/W | 1325.6 lm/m | F |
| 4000 K | 163.5 lm/W | 2043.3 lm/m | C | 132 lm/W | 1649.6 lm/m | E | 108.9 lm/W | 1361.8 lm/m | F |
| 5000 K | 163.3 lm/W | 2040.7 lm/m | C | 131.9 lm/W | 1648.3 lm/m | E | — | — | — |
| 6500 K | 149.5 lm/W | 1869 lm/m | D | 126.5 lm/W | 1581.2 lm/m | E | — | — | — |
Grade DL (2nd Tier) · 15.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 121.9 lm/W | 1900.9 lm/m | E | 97.6 lm/W | 1522.6 lm/m | F | — | — | — |
| 2300 K | 135.7 lm/W | 2116.8 lm/m | D | 108.7 lm/W | 1696 lm/m | F | — | — | — |
| 2700 K | 143.2 lm/W | 2233.5 lm/m | D | 117.7 lm/W | 1836.3 lm/m | E | 95.4 lm/W | 1487.9 lm/m | F |
| 3000 K | 152.7 lm/W | 2381.6 lm/m | D | 123.9 lm/W | 1932.4 lm/m | E | 100.7 lm/W | 1571.5 lm/m | F |
| 3500 K | 155 lm/W | 2417.9 lm/m | D | 126.1 lm/W | 1967.1 lm/m | E | 103.8 lm/W | 1618.7 lm/m | F |
| 4000 K | 159.9 lm/W | 2495.1 lm/m | D | 129.1 lm/W | 2014.4 lm/m | E | 106.6 lm/W | 1662.9 lm/m | F |
| 5000 K | 159.7 lm/W | 2492 lm/m | D | 129 lm/W | 2012.8 lm/m | E | — | — | — |
| 6500 K | 146.3 lm/W | 2282.3 lm/m | D | 123.8 lm/W | 1930.8 lm/m | E | — | — | — |
High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide
At up to 15.6W/m, 3608 is a high-power SMD LED strip. Above roughly 14.4W/m the tape can no longer shed its own heat through the FPC alone — an aluminum channel is part of the luminaire, not an accessory.
Why high-wattage strips need a heat sink
- Aluminum conducts heat roughly 30× faster than the plastics, MDF or gypsum a strip is usually stuck to, so a bare high-power run traps heat under the tape.
- LED lifetime (LM-80 / TM-21) is driven by solder-point temperature Tc. Keeping Tc inside the datasheet limit — DENO strips are rated Tc ≤ 75°C — is what preserves the rated L70 lifetime and colour stability.
- Never run 14.4W/m or more coiled on the reel, inside a sealed plastic diffuser, or directly on wood, wallpaper or foam.
Sizing rule: FPC width vs channel inner width
- Channel inner width ≥ FPC width + 2mm. This strip is 10mm wide, so it needs at least 12mm of inner width.
- The 2mm clearance absorbs extrusion tolerance and lets the tape be seated or replaced without scraping the side walls or the wiring.
- A frosted or opal PC cover then diffuses the higher lumen output into an even, dot-free line instead of visible hot spots.
Aluminum channels that fit this strip
- 22x12mm Recessed LED Channel with Flange · fits ≤10mm strip
- 20x15mm Wide Surface Mount LED Channel · fits ≤10mm strip
- 17x15mm Surface Mount LED Channel · fits ≤10mm strip
- 15x15mm Magnetic LED Channel · fits ≤10mm strip
- 19.1x8mm Surface Mount LED Channel · fits ≤10mm strip
- 15x15mm 48V Surface Mount LED Channel · fits ≤10mm strip
Recommended LED Channels
Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.
This strip is 10mm wide, so it needs a channel with at least 12mm inner width (10mm + 2mm clearance). Every profile below meets that.
Related models in this series
- 3014 High Density LED Strip Light (#5590)
- 3014 Classic PU LED Strip Light (#4524-PU)
- 3014 Ultra-Narrow LED Strip Light (#9124)
- 3014 Side View LED Strip Light (#7609)
- 3014 Side View LED Strip Light (#7610)
- 3014 Side View LED Strip Light (#4722)
- 3014 CCT LED Strip Light (#4272)
- 3014 Classic LED Strip Light (#4723)
See every model in SMD LED Strip Series or narrow to 3014. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 3608?
3608: 3014, 208 LEDs/m, 24V, 10 PCB, 2oz copper FPCB, cuttable 8LEDs/38.46mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
What makes the construction of this side emitting LED strip different?
It is built as a side emitting LED strip on 2oz copper FPCB with a cutting unit of 8LEDs/38.46mm and an LED pitch of 6.41mm, so it holds its electrical and mechanical performance where standard strips fail.
Can DENO customise this side emitting LED strip for a project?
Yes. DENO manufactures the Side Emitting LED Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
Where is a side emitting LED strip used?
A side view LED strip fires light out of the edge of the board rather than the face, which suits edge-lit panels, glass shelf edges, handrail slots and shallow reveals where there is no depth to mount a top-firing strip and aim it at the surface.
Which LED driver and run length suit #3608?
3014 Side View Special LED Strip Light | 10mm | 24V | 208LEDs | 38.46cut | #3608 is a constant-voltage 24V product, so pair it with a CE or UL listed 24V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 5M. 5m Single/10m Dual Input power. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.
