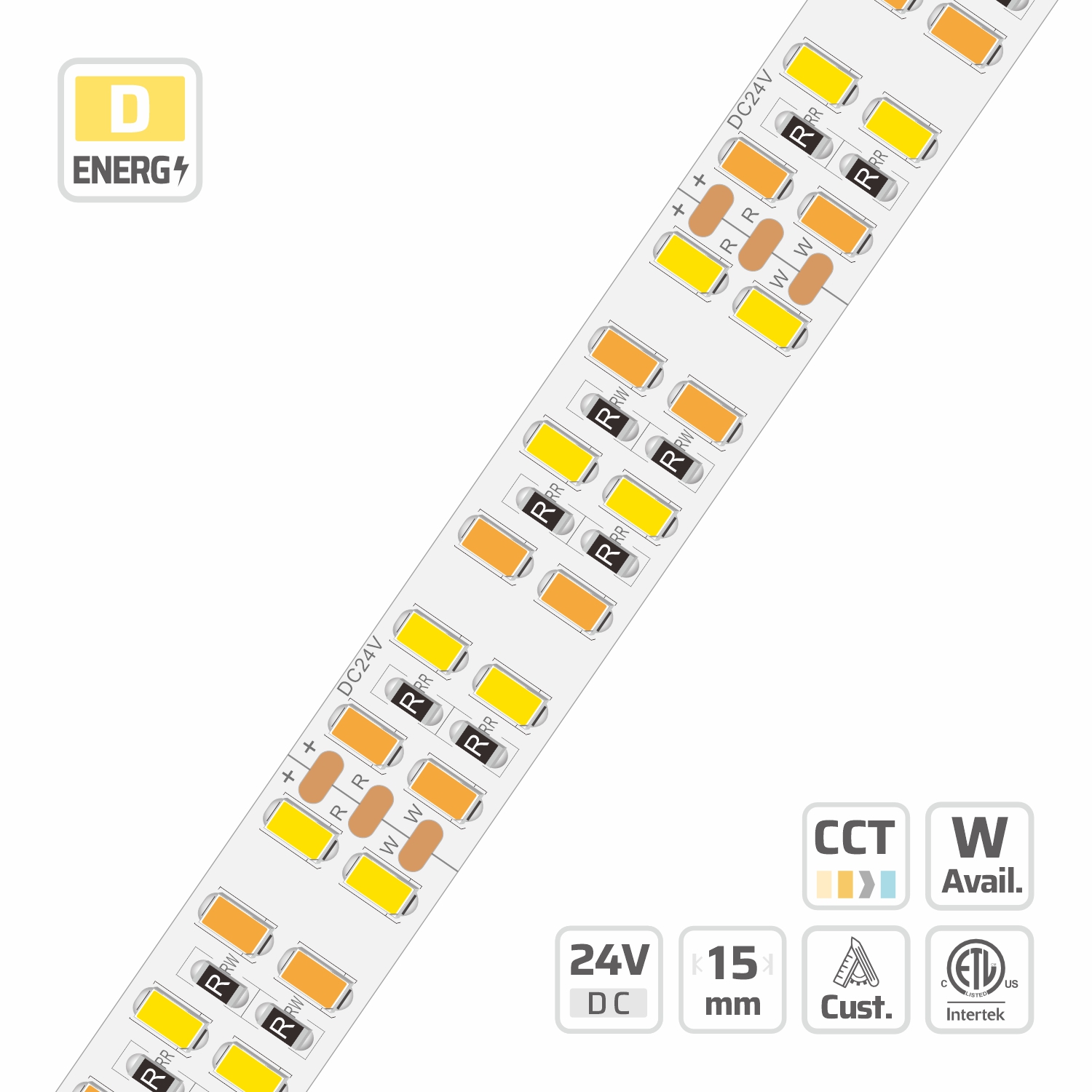

5630 Tunable CCT High Lumen Multi-Line LED Strip Light (#2771)
15mm · 24V · 240LEDs · 50mm/cut
Model: 2771
Overview
5630 Tunable CCT High Lumen Multi-Line LED Strip Light | 15mm | 24V | 240LEDs | 50mm/cut | #2771 is part of the DENO Wide SMD Strips series, engineered around wide PCB LED strip. Key specifications: 5630, 240, 24V, 15 PCB, 3oz copper FPCB, cuttable 12LEDs/50mm, IP20, CRI Ra≥80. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
5630 Tunable CCT High Lumen Multi-Line LED Strip Light | 15mm | 24V | 240LEDs | 50mm/cut | #2771 Adopt pure copper strong LED frame,99.9% purity diameter> 1 mm pure golden wire encapsulation, can reduce the LED damage in different applications.
Tunable White Led Strip built for cct smd strips projects.
Specifications
| CCT (K) | 2700-6500 |
|---|---|
| CRI | Ra≥80 |
| SDCM | < 3 SDCM (Single Bin) |
| LED QTY | 240 |
| PART NO | DL-F56A120V24-CCT-2771-* |
| SMD TYPE | 5630 |
| CUTTABLE UNIT | 12LEDs/50mm |
| DIMMABLE | Yes |
| IP RATING | IP20 |
| LED PITCH | 8.3mm |
| LIFESPAN | 50000 |
| PCB WIDTH | 15 |
| WARRANTY | 5 Years |
| LENGTH MAX | 5m |
| COPPER FOIL | 3oz |
| POWER RANGE | 12~28.8W |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 24V |
| LUMINOUS FLUX | 2880 lm/m |
| OPERATING TEMPERATURE | -20°C ~ +50°C |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Hotel & residential tunable-white scenes — Hotel rooms, residential living areas and meeting spaces where warm evening light and neutral daytime light are both required from one fixture.
Request a quotation for #2771
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 181.6 lm/W at 6500K, Ra 80, ErP energy class C (Grade DL (2nd Tier) · CCT 3-Anchor · 14.4W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · CCT 3-Anchor · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 163.6 lm/W | 1178 lm/m | C | 132.9 lm/W | 957.2 lm/m | E | 103.7 lm/W | 746.7 lm/m | F |
| 4000 K | 165.3 lm/W | 2379.9 lm/m | C | 134.3 lm/W | 1933.5 lm/m | E | 104.7 lm/W | 1507.7 lm/m | F |
| 6500 K | 181.6 lm/W | 1307.5 lm/m | C | 147.6 lm/W | 1062.8 lm/m | D | 115.2 lm/W | 829.3 lm/m | E |
Grade DL (2nd Tier) · CCT 3-Anchor · 19.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 158.2 lm/W | 1518.6 lm/m | D | 128.5 lm/W | 1233.9 lm/m | E | 100.3 lm/W | 962.6 lm/m | F |
| 4000 K | 159.8 lm/W | 3068 lm/m | D | 129.8 lm/W | 2492.5 lm/m | E | 101.2 lm/W | 1943.6 lm/m | F |
| 6500 K | 175.6 lm/W | 1685.5 lm/m | C | 142.7 lm/W | 1370.1 lm/m | D | 111.4 lm/W | 1069.1 lm/m | E |
Grade DL (2nd Tier) · CCT 3-Anchor · 24W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 152.9 lm/W | 1835.3 lm/m | D | 124.3 lm/W | 1491.3 lm/m | E | 96.9 lm/W | 1163.3 lm/m | F |
| 4000 K | 154.5 lm/W | 3707.8 lm/m | D | 125.5 lm/W | 3012.3 lm/m | E | 97.9 lm/W | 2348.9 lm/m | F |
| 6500 K | 169.8 lm/W | 2037.1 lm/m | C | 138 lm/W | 1655.9 lm/m | D | 107.7 lm/W | 1292 lm/m | F |
Grade DL (2nd Tier) · CCT 3-Anchor · 28.8W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 147.9 lm/W | 2129.4 lm/m | D | 120.2 lm/W | 1730.2 lm/m | E | 93.7 lm/W | 1349.7 lm/m | F |
| 4000 K | 149.4 lm/W | 4301.8 lm/m | D | 121.3 lm/W | 3494.9 lm/m | E | 94.6 lm/W | 2725.3 lm/m | F |
| 6500 K | 164.1 lm/W | 2363.4 lm/m | C | 133.4 lm/W | 1921.2 lm/m | E | 104.1 lm/W | 1499 lm/m | F |
Related models in this series
- 5630 Classic LED Strip Light (#3834)
- 5630 High Density LED Strip Light (#5325)
- 5630 Special High Lumen Long Run LED Strip Light (#4925)
- 5630 Classic LED Strip Light (#11664)
- 5630 Classic High Lumen LED Strip Light (#2486)
- 5630 Tunable CCT High Lumen LED Strip Light (#3406)
- 5630 Classic LED Strip Light (#2304)
- 5630 High Lumen Classic Multi-Line LED Strip Light (#2351)
See every model in SMD LED Strip Series or narrow to 5630. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 2771?
2771: 5630, 240, 24V, 15 PCB, 3oz copper FPCB, cuttable 12LEDs/50mm, IP20, CRI Ra≥80. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
How long can a single run of this wide PCB LED strip be?
Maximum single run for this model is 5m. Feeding from both ends or using a mid-point tap halves the effective distance per segment, so a wide PCB LED strip can cover twice that length on one circuit when wired accordingly.
Can DENO customise this wide PCB LED strip for a project?
Yes. DENO manufactures the Wide SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
Why use a wide LED strip PCB?
A 15 or 20 mm LED strip gives more copper area, so it dissipates heat better and carries more current. That is what allows high power builds above 25 W/m to run cooler, keep lumen maintenance high and support longer single feeds than a narrow board.
How does a tunable white LED strip mix colour temperature?
Two LED channels, typically 2700K and 6500K, sit on the same FPCB and are dimmed against each other. Mixing the channels sweeps the white point along the black body line while total output stays even, which is how a CCT LED strip supports circadian and human centric lighting schedules.
Wide PCB LED Strip — Brightest, High Lumen Builds
Why is a wide PCB LED strip the brightest LED strip option?
Brightness is limited by how many dies fit per metre and how much heat the board can shed. A wide PCB LED strip — 18 mm, 20 mm, 36 mm or 64 mm instead of the usual 8–10 mm — carries two, three or four parallel LED rows, up to 960 LEDs/m, and roughly the same multiple of copper area. That is why DENO's widest boards are the brightest LED strip builds in the catalogue: more emitters and enough 2 oz copper to keep junction temperature down at full drive.
How many lumens per metre does a high lumen LED strip deliver?
A standard 10 mm single-row board tops out near 2,000 lm/m. DENO's multi-row wide boards run from roughly 3,000 lm/m on a two-row 18 mm build to over 8,000 lm/m on a four-row 64 mm build at 45 W/m. When a specification asks for a high lumen LED strip in lux rather than watts, size it from the target illuminance and mounting distance first, then pick the board width that reaches it without over-driving the dies.
How much power does a high power LED strip need, and how is the heat handled?
Wide multi-row builds run 16 W/m to 45 W/m, so a 5 m reel can draw over 200 W — size the driver with 20% headroom and feed it from both ends or mid-feed. Thermally, the wide board is the heat sink: the extra copper spreads flux along the strip, and mounting a high power LED strip in an aluminium profile rather than on plasterboard keeps the LEDs inside their rated case temperature and protects lumen maintenance.
Are there super bright LED strip lights in 12V, and when should I use 24V or 48V instead?
12V super bright LED strip lights exist but are limited to short runs: at 20 W/m a 12V board pulls 1.7 A per metre, so voltage drop dims the far end after 2–3 m. For architectural work DENO builds the wide boards in 24V and 48V, where the same wattage draws half or a quarter of the current and one feed covers 5–15 m. Where the fixture is 12V-native, keep the run short and feed each section separately.
- Series Wide PCB LED Strips series
- Related series 48V LED strip lights for long high-output runs
- Related series constant current boards that hold output over distance
- Product 2304 24V super bright LED strip
Do you make super bright LED strip lights that are waterproof for outdoor use?
Yes. Every wide board is available IP65 silicone-coated, IP67 sleeved or IP68 fully potted, plus DENO WAP™ conformal coating that stays clear instead of yellowing under UV. For the brightest outdoor LED strip lights, remember the coating adds thermal resistance: outdoor high-output builds use 2–3 oz copper and are specified one drive step below the same board indoors so lumen maintenance holds over the warranty period.
- Series Wide PCB LED Strips series
- Related series DENO WAP™ waterproof coating explained
- Related series marine grade LED strip for coastal installations
- Product 5325 waterproof high output LED strip
Which is brighter — a wide multi-row board or a high-density single row?
For raw output, the wide multi-row board wins: rows multiply the flux while a single row is capped by LED pitch. For a dot-free line in a shallow reveal, high density wins. The two are combined on DENO's 36 mm and 64 mm boards, which run three or four dense rows at once, giving both an ultra bright LED strip face and an even luminance across the diffuser.
- Series Wide PCB LED Strips series
- Related series narrow boards where width is the constraint
- Related series high efficiency LED strip lights series
Can I order a custom width bright white LED strip?
Yes — board width, row count, LED density, CCT and CRI, copper weight, cut unit, IP class and connector are all configurable. Bright white LED strip lights are usually specified 4000K–6500K at Ra 90+ for workshops, cold rooms and signage; DENO tools these on the existing wide FPCB stack-ups, so a non-standard width is a production setup rather than a new product line.
- Series Wide PCB LED Strips series
- Related series custom LED strip lights built to order
- Guide send a high output specification to DENO
- Product 2486 bright white LED strip
