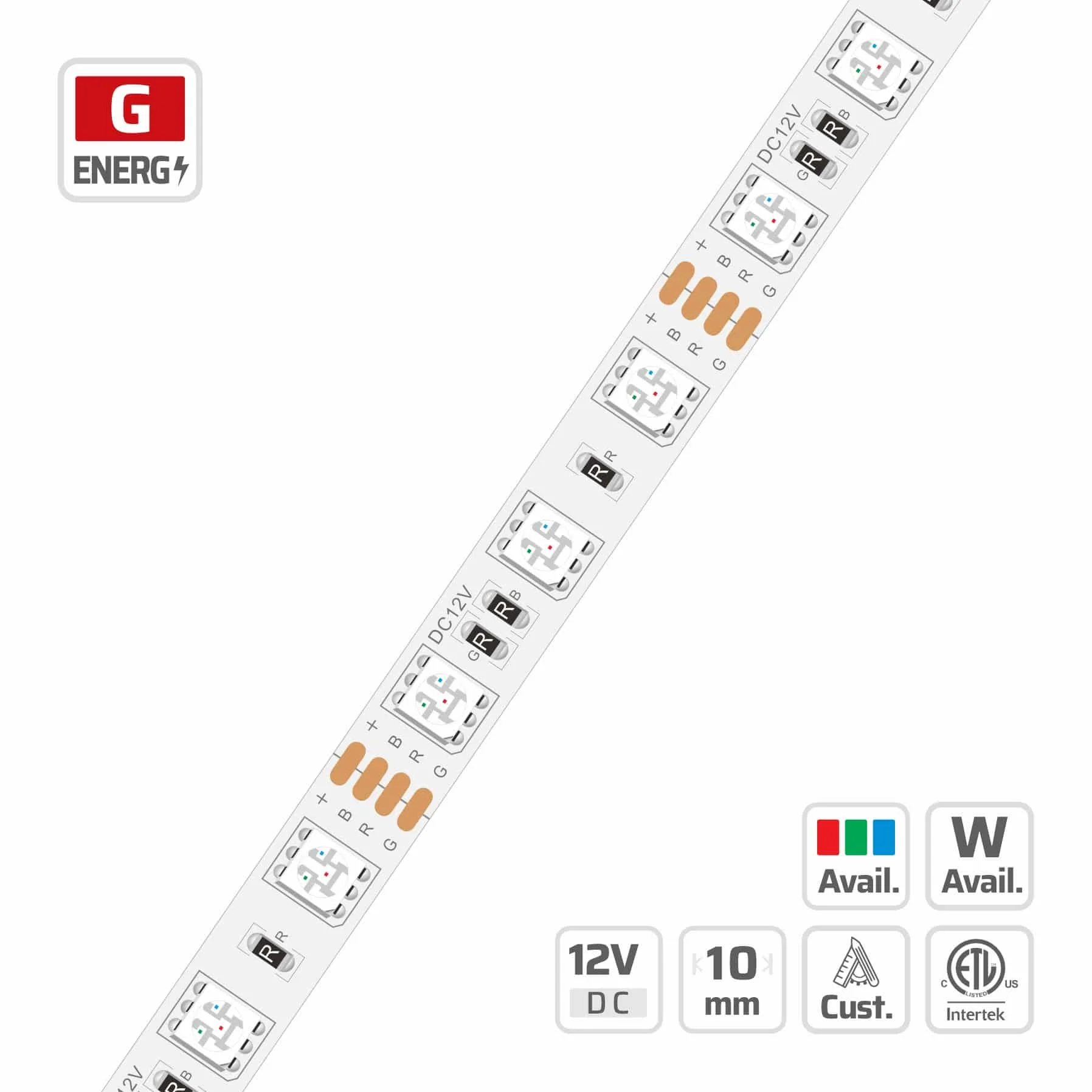

5050 RGB LED Strip Light (#2585)
10mm · 12V · 60LEDs · 50mm/cut
Model: 2585
Overview
5050 RGB LED Strip Light | 10mm | 12V | 60LEDs | 50mm/cut | #2585 is part of the DENO RGB SMD Strips series, engineered around RGB LED strip lights. Key specifications: 5050, 60, 12V, 10 PCB, 2oz copper FPCB, cuttable 3LEDs/50mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
This 12V 5050 RGB LED strip light features a durable 10mm PCB with 2oz copper foil, engineered for reliable wholesale project supply. Equipped with 60 LEDs and a 120-degree beam angle, the constant voltage circuit supports flexible field cutting every 3 LEDs or 50mm. Designed with a 5m maximum run length, this versatile solution excels in decorative backlighting, display cabinets, and architectural cove lighting. Operating reliably between -25°C and 40°C, our factory-direct manufacturing provides OEM custom lengths for professional interior installations.
Rgb Led Strip Lights built for rgb smd strips projects.
Specifications
| CRI | – |
|---|---|
| POWER (W/M) | 14.4 W/m |
| LED QTY | 60 |
| PART NO | DL-F50A30V12-2585-* |
| SMD TYPE | 5050 |
| CUTTABLE UNIT | 3LEDs/50mm |
| DIMMABLE | Yes |
| IP RATING | IP20/IP65/IP67/IP68 |
| LED PITCH | 16.66mm |
| LIFESPAN | 50000 |
| PCB WIDTH | 10 |
| WARRANTY | 5 Years |
| BEAM ANGLE | 120° |
| RUN LENGTH | 5m |
| COPPER FOIL | 2oz |
| POWER RANGE | 3.6~14.4W |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 12V |
| LUMINOUS FLUX | 95–575 lm/m |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Gallery & retail colour-critical work (CRI 97+) — Galleries, retail merchandising, showrooms, studios and dental or medical rooms where colour accuracy drives the buying or working decision.
- Entertainment & media-facade colour scenes — Entertainment venues, media facades, gaming rooms and branded retail installs driven by DMX/SPI or standard RGB controllers.
Recommended accessories & compatible parts
- DL-1003 — 19.1x8mm Surface Mount LED Channel — Dotless Aluminum Profile for 240 LEDs/m Strip: Accepts LED strips up to 10mm wide.
- DL-1103-1 — 16x13mm Surface Mount LED Channel — Aluminum Profile for 10mm LED Strip: Accepts LED strips up to 10mm wide.
- DL-1510 HX-F — 15x9.9mm Recessed LED Channel with Flange — Flush Mount Aluminum Profile: Accepts LED strips up to 10mm wide.
Request a quotation for #2585
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide
At up to 14.4W/m, 2585 is a high-power SMD LED strip. Above roughly 14.4W/m the tape can no longer shed its own heat through the FPC alone — an aluminum channel is part of the luminaire, not an accessory.
Why high-wattage strips need a heat sink
- Aluminum conducts heat roughly 30× faster than the plastics, MDF or gypsum a strip is usually stuck to, so a bare high-power run traps heat under the tape.
- LED lifetime (LM-80 / TM-21) is driven by solder-point temperature Tc. Keeping Tc inside the datasheet limit — DENO strips are rated Tc ≤ 75°C — is what preserves the rated L70 lifetime and colour stability.
- Never run 14.4W/m or more coiled on the reel, inside a sealed plastic diffuser, or directly on wood, wallpaper or foam.
Sizing rule: FPC width vs channel inner width
- Channel inner width ≥ FPC width + 2mm. This strip is 10mm wide, so it needs at least 12mm of inner width.
- The 2mm clearance absorbs extrusion tolerance and lets the tape be seated or replaced without scraping the side walls or the wiring.
- A frosted or opal PC cover then diffuses the higher lumen output into an even, dot-free line instead of visible hot spots.
Aluminum channels that fit this strip
- 22x12mm Recessed LED Channel with Flange · fits ≤10mm strip
- 20x15mm Wide Surface Mount LED Channel · fits ≤10mm strip
- 17x15mm Surface Mount LED Channel · fits ≤10mm strip
- 15x15mm Magnetic LED Channel · fits ≤10mm strip
- 19.1x8mm Surface Mount LED Channel · fits ≤10mm strip
- 15x15mm 48V Surface Mount LED Channel · fits ≤10mm strip
Recommended LED Channels
Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.
This strip is 10mm wide, so it needs a channel with at least 12mm inner width (10mm + 2mm clearance). Every profile below meets that.
Related models in this series
- 5050 RGBW LED Strip Light (#16937)
- 5050 RGBWW LED Strip Light (#11341)
- Super Bright 5050 RGB LED Strip Light (#2496)
- 5050 RGBW LED Strip Light (#7828)
- 5050 RGB LED Strip Light (#16936)
- 5050 RGBW LED Strip Light (#2432)
- 5050 RGBW PU LED Strip Light (#5326-PU)
- 5050 RGB LED Strip Light (#1495)
See every model in SMD LED Strip Series or narrow to 5050. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 2585?
2585: 5050, 60, 12V, 10 PCB, 2oz copper FPCB, cuttable 3LEDs/50mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
What colour temperatures and CRI options does this RGB LED strip lights offer?
This model is supplied as a RGB LED strip lights with high CRI options and the CCT range listed in the datasheet. DENO bins every batch for colour consistency, and custom CCT or spectrum combinations can be produced for project quantities.
Can DENO customise this RGB LED strip lights for a project?
Yes. DENO manufactures the RGB SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
Should you choose RGB or RGBW LED strip lights?
RGB LED strip lights mix colour but produce a weak, tinted white. If the installation also needs usable white light for everyday use, choose RGBW or RGBCCT, which adds a dedicated white chip. Pure RGB is best where the strip is only ever a colour accent.
Which LED driver and run length suit #2585?
5050 RGB LED Strip Light | 10mm | 12V | 60LEDs | 50mm/cut | #2585 is a constant-voltage 12V product, so pair it with a CE or UL listed 12V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 5m. 5m Single / 10m Dual Input power. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.
Engineering & selection guide
Bending limits, IP selection, voltage drop, cutting and the full buyer Q&A for this family are kept on the series page.
