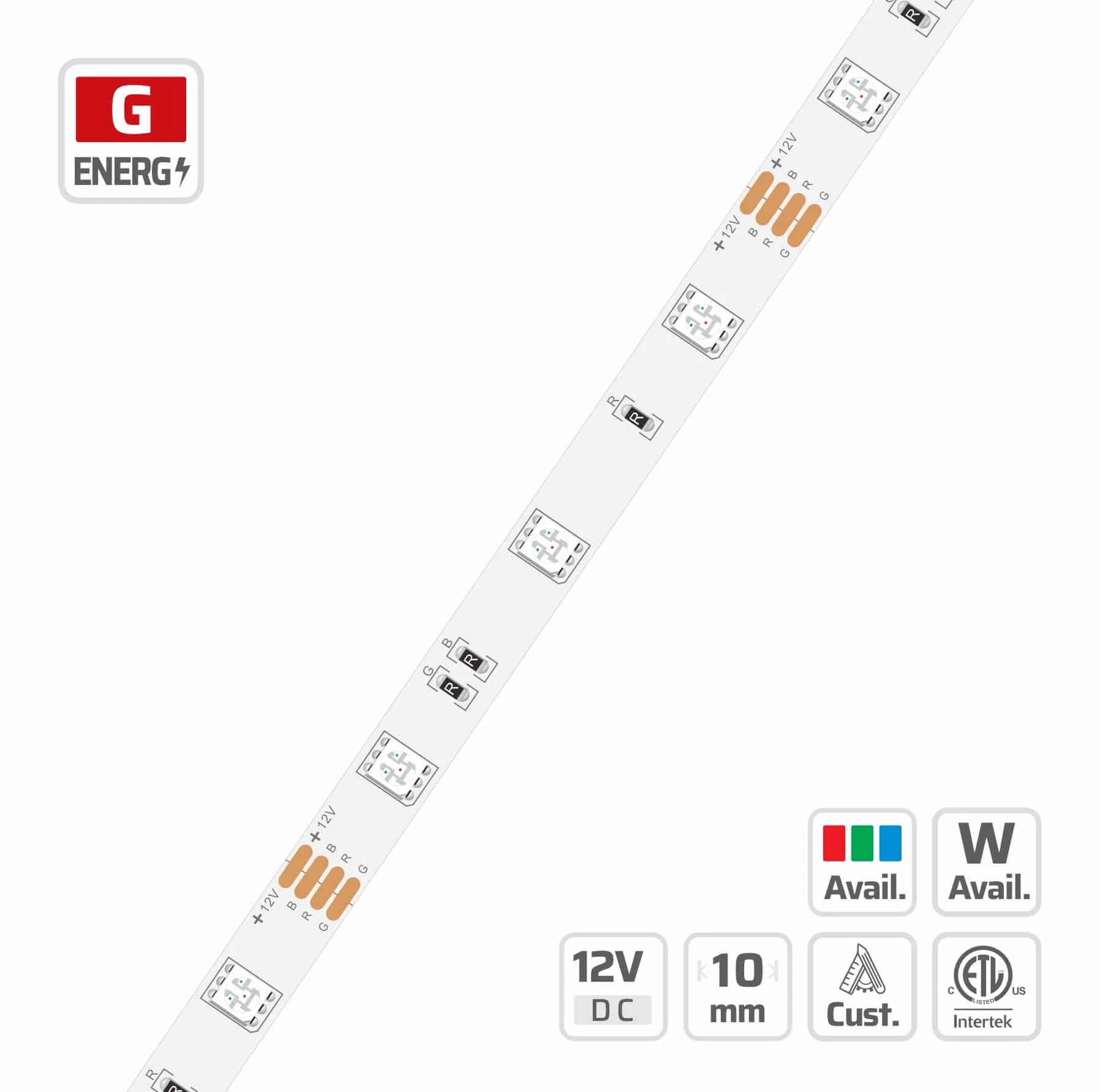

5050 RGB LED Strip Light (#2509)

10mm · 12V · 30LEDs · 100mm/cut

Model: 2509

2509 rgb led strip — 12V, cuttable every 100mm, 10mm FPCB width, 5050 SMD LEDs, 30 LEDs/m, IP20

Overview

5050 RGB LED Strip Light | 10mm | 12V | 30LEDs | 100mm/cut | #2509 is part of the DENO RGB SMD Strips series, engineered around RGB LED strip lights. Key specifications: 5050 SMD, 30, 12V, 10 PCB, 2oz copper FPCB, cuttable 3LEDs/100mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.

Description

Engineered with a 10mm wide 2oz copper PCB, the 12V constant voltage circuit operates efficiently across a power range of 1.8W to 7.2W. This flexible lighting strip features 30 LEDs per meter with a 120-degree beam angle and convenient cutting increments every 3 LEDs or 100mm. The full-color RGB output delivers versatile architectural backlighting, vibrant cove lighting, signage illumination, and dynamic commercial decorative displays. DENO provides factory-direct wholesale supply and OEM custom configurations for professional contractors, electrical distributors, and commercial lighting projects.

Rgb Led Strip Lights built for rgb smd strips projects.

Specifications

CRI–
POWER (W/M)7.2 W/m
LED QTY30
PART NODL-F50A15V12-10mm-2509-*
SMD TYPE5050 SMD
CUTTABLE UNIT3LEDs/100mm
DIMMABLEYes
IP RATINGIP20
LED PITCH33.33mm
LIFESPAN50000
PCB WIDTH10
WARRANTY5 Years
BEAM ANGLE120°
RUN LENGTH5m
COPPER FOIL2oz
POWER RANGE1.8~7.2W
CIRCUIT TYPEC.V.
INPUT VOLTAGE12V
LUMINOUS FLUX50–295 lm/m
OPERATING TEMPERATURE-25~40°C;Tc：75°C（max）

Applications

  • Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
  • Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
  • Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
  • Gallery & retail colour-critical work (CRI 97+) — Galleries, retail merchandising, showrooms, studios and dental or medical rooms where colour accuracy drives the buying or working decision.
  • Entertainment & media-facade colour scenes — Entertainment venues, media facades, gaming rooms and branded retail installs driven by DMX/SPI or standard RGB controllers.

Recommended accessories & compatible parts

  • DL-1003 — 19.1x8mm Surface Mount LED Channel — Dotless Aluminum Profile for 240 LEDs/m Strip: Accepts LED strips up to 10mm wide.
  • DL-1103-1 — 16x13mm Surface Mount LED Channel — Aluminum Profile for 10mm LED Strip: Accepts LED strips up to 10mm wide.
  • DL-1510 HX-F — 15x9.9mm Recessed LED Channel with Flange — Flush Mount Aluminum Profile: Accepts LED strips up to 10mm wide.

Request a quotation for #2509

DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.

  • Warranty: 5 years
  • Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
  • Compliance: CE · UL · RoHS
  • Bonding wire: 99.99% pure gold
  • Copper foil: 99.9% pure copper FPCB

Contact DENO LED engineers · OEM / ODM capability

Recommended LED Channels

Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.

This strip is 10mm wide, so it needs a channel with at least 12mm inner width (10mm + 2mm clearance). Every profile below meets that.

Related models in this series

See every model in SMD LED Strip Series or narrow to Rgb. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.

Frequently Asked Questions

What are the key specifications of 2509?

2509: 5050 SMD, 30, 12V, 10 PCB, 2oz copper FPCB, cuttable 3LEDs/100mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.

What colour temperatures and CRI options does this RGB LED strip lights offer?

This model is supplied as a RGB LED strip lights with high CRI options and the CCT range listed in the datasheet. DENO bins every batch for colour consistency, and custom CCT or spectrum combinations can be produced for project quantities.

Can DENO customise this RGB LED strip lights for a project?

Yes. DENO manufactures the RGB SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.

Should you choose RGB or RGBW LED strip lights?

RGB LED strip lights mix colour but produce a weak, tinted white. If the installation also needs usable white light for everyday use, choose RGBW or RGBCCT, which adds a dedicated white chip. Pure RGB is best where the strip is only ever a colour accent.

Which LED driver and run length suit #2509?

5050 RGB LED Strip Light | 10mm | 12V | 30LEDs | 100mm/cut | #2509 is a constant-voltage 12V product, so pair it with a CE or UL listed 12V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 5m. 5m Single / 10m Dual Input power. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.
