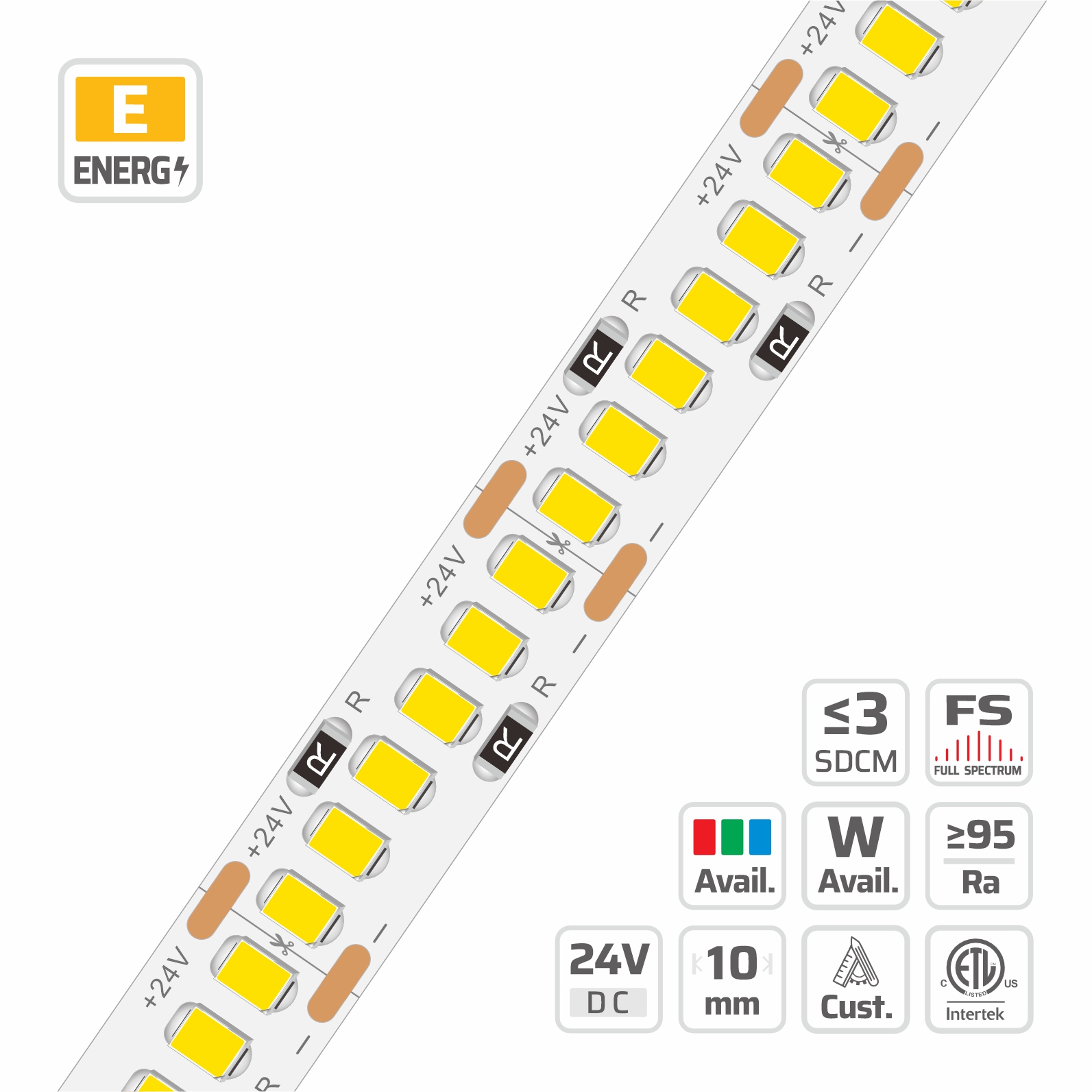

2835 High Lumen High Density LED Strip Light (#2309)
10mm · 24V · 240LEDs · 25mm/cut
Model: 2309
Overview
10mm | 24V | 240LEDs | 25mm/cut | #2309 | 2835 High Lumen High Density LED Strip Light is part of the DENO High Density LED Strips series, engineered around ultra high density LED strip. Key specifications: 2835, 240 LEDs/m, 24V, 10mm PCB, 3oz copper FPCB, cuttable 6LEDs/25mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
High-density 2835 SMD packaging delivers 240 LEDs per meter with a narrow 4.1mm pitch for smooth output in architectural lighting installations. Built on a 10mm PCB with 3oz copper foil, this 24V constant voltage LED strip light ensures stable thermal dissipation and electrical performance. Engineered for versatile installation, each reel is fully dimmable, supports runs up to 5M, and allows precise cutting every 25mm. Pure copper LED lead frames and 99.9%-purity gold wire encapsulation effectively protect the diodes from damage across demanding operating environments. DENO provides this 2835 LED strip light with factory-direct customization to support wholesale project supply and commercial lighting fixtures.
We use 99.99% gold wire, large-size chips, and thickened FPCB, backed by a 5-year warranty.
Specifications
| LED QTY | 240 LEDs/m |
|---|---|
| PART NO | DL-F28A120V24-2309-* |
| SMD TYPE | 2835 |
| CUTTABLE UNIT | 6LEDs/25mm |
| DIMMABLE | Yes |
| IP RATING | IP20 |
| LED PITCH | 4.1mm |
| PCB WIDTH | 10mm |
| BEAM ANGLE | 120° |
| RUN LENGTH | 5M |
| COPPER FOIL | 3oz |
| ON OFF TIMES | 10000（test times） |
| POWER RANGE | 4.8~24W |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 24V |
| MIN BEND DIAMETER | Φ60mm |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
Recommended accessories & compatible parts
- DL-1003 — 19.1x8mm Surface Mount LED Channel — Dotless Aluminum Profile for 240 LEDs/m Strip: Accepts LED strips up to 10mm wide.
- DL-1103-1 — 16x13mm Surface Mount LED Channel — Aluminum Profile for 10mm LED Strip: Accepts LED strips up to 10mm wide.
- DL-1510 HX-F — 15x9.9mm Recessed LED Channel with Flange — Flush Mount Aluminum Profile: Accepts LED strips up to 10mm wide.
- DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.
Request a quotation for #2309
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 177.5 lm/W at 4000K, Ra 80, ErP energy class C (Grade DN (1st Tier) · 9.6W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 127.4 lm/W | 1223.2 lm/m | E | 102.1 lm/W | 979.9 lm/m | F | — | — | — |
| 2300 K | 141.9 lm/W | 1361.9 lm/m | D | 113.6 lm/W | 1091 lm/m | E | 92.1 lm/W | 884.2 lm/m | F |
| 2700 K | 149.6 lm/W | 1435.9 lm/m | D | 123 lm/W | 1180.9 lm/m | E | 99.6 lm/W | 956.6 lm/m | F |
| 3000 K | 159.7 lm/W | 1533.3 lm/m | D | 129.4 lm/W | 1242.3 lm/m | E | 105.3 lm/W | 1010.6 lm/m | F |
| 3500 K | 162 lm/W | 1555.5 lm/m | C | 131.7 lm/W | 1264.5 lm/m | E | 108.5 lm/W | 1041.2 lm/m | F |
| 4000 K | 167.2 lm/W | 1605.2 lm/m | C | 134.9 lm/W | 1295.2 lm/m | E | 111.4 lm/W | 1069.8 lm/m | E |
| 5000 K | 167.1 lm/W | 1604.2 lm/m | C | 134.8 lm/W | 1294.1 lm/m | E | 111.2 lm/W | 1067.5 lm/m | E |
| 6500 K | 152.9 lm/W | 1467.7 lm/m | D | 129.4 lm/W | 1242.3 lm/m | E | 107.4 lm/W | 1031 lm/m | F |
Grade DL (2nd Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 123.2 lm/W | 1774 lm/m | E | 98.7 lm/W | 1421.1 lm/m | F | — | — | — |
| 2300 K | 137.2 lm/W | 1975.1 lm/m | D | 109.9 lm/W | 1582.2 lm/m | F | 89 lm/W | 1281.6 lm/m | F |
| 2700 K | 144.6 lm/W | 2082.5 lm/m | D | 118.9 lm/W | 1712.6 lm/m | E | 96.3 lm/W | 1387.3 lm/m | F |
| 3000 K | 154.4 lm/W | 2223.7 lm/m | D | 125.1 lm/W | 1801.6 lm/m | E | 101.8 lm/W | 1465.6 lm/m | F |
| 3500 K | 156.7 lm/W | 2255.9 lm/m | D | 127.4 lm/W | 1833.9 lm/m | E | 104.9 lm/W | 1510.1 lm/m | F |
| 4000 K | 161.7 lm/W | 2328 lm/m | C | 130.4 lm/W | 1878.4 lm/m | E | 107.7 lm/W | 1551.5 lm/m | F |
| 5000 K | 161.6 lm/W | 2326.5 lm/m | C | 130.3 lm/W | 1876.8 lm/m | E | 107.5 lm/W | 1548 lm/m | F |
| 6500 K | 147.8 lm/W | 2128.5 lm/m | D | 125.1 lm/W | 1801.6 lm/m | E | 103.8 lm/W | 1494.7 lm/m | F |
Grade DL (2nd Tier) · 19.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 119.1 lm/W | 2286.9 lm/m | E | 95.4 lm/W | 1831.9 lm/m | F | — | — | — |
| 2300 K | 132.6 lm/W | 2546.1 lm/m | E | 106.2 lm/W | 2039.7 lm/m | F | 86 lm/W | 1651.2 lm/m | F |
| 2700 K | 139.8 lm/W | 2684.6 lm/m | D | 115 lm/W | 2207.8 lm/m | E | 93.1 lm/W | 1788.4 lm/m | F |
| 3000 K | 149.3 lm/W | 2866.6 lm/m | D | 121 lm/W | 2322.6 lm/m | E | 98.4 lm/W | 1889.3 lm/m | F |
| 3500 K | 151.5 lm/W | 2908.1 lm/m | D | 123.1 lm/W | 2364.1 lm/m | E | 101.4 lm/W | 1946.7 lm/m | F |
| 4000 K | 156.3 lm/W | 3001.1 lm/m | D | 126.1 lm/W | 2421.5 lm/m | E | 104.2 lm/W | 2000.1 lm/m | F |
| 5000 K | 156.2 lm/W | 2999.1 lm/m | D | 126 lm/W | 2419.5 lm/m | E | 104 lm/W | 1996.8 lm/m | F |
| 6500 K | 142.9 lm/W | 2743.9 lm/m | D | 121 lm/W | 2322.6 lm/m | E | 100.4 lm/W | 1927.7 lm/m | F |
Grade DL (2nd Tier) · 24W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 115.2 lm/W | 2763.9 lm/m | E | 92.2 lm/W | 2214 lm/m | F | — | — | — |
| 2300 K | 128.2 lm/W | 3077.1 lm/m | E | 102.7 lm/W | 2465 lm/m | F | 83.2 lm/W | 1996.8 lm/m | G |
| 2700 K | 135.2 lm/W | 3244.5 lm/m | D | 111.2 lm/W | 2668.3 lm/m | E | 90.1 lm/W | 2161.4 lm/m | F |
| 3000 K | 144.4 lm/W | 3464.4 lm/m | D | 117 lm/W | 2806.9 lm/m | E | 95.1 lm/W | 2283.3 lm/m | F |
| 3500 K | 146.4 lm/W | 3514.6 lm/m | D | 119 lm/W | 2857.1 lm/m | E | 98 lm/W | 2352.7 lm/m | F |
| 4000 K | 151.1 lm/W | 3627 lm/m | D | 121.9 lm/W | 2926.5 lm/m | E | 100.7 lm/W | 2417.2 lm/m | F |
| 5000 K | 151 lm/W | 3624.6 lm/m | D | 121.8 lm/W | 2924.1 lm/m | E | 100.5 lm/W | 2412 lm/m | F |
| 6500 K | 138.2 lm/W | 3316.2 lm/m | D | 117 lm/W | 2806.9 lm/m | E | 97.1 lm/W | 2330.4 lm/m | F |
Grade DN (1st Tier) · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 139.1 lm/W | 1335.4 lm/m | E | 117.1 lm/W | 1123.8 lm/m | F | — | — | — |
| 2300 K | 151.7 lm/W | 1456 lm/m | D | 130.6 lm/W | 1253.9 lm/m | E | 105.8 lm/W | 1015.7 lm/m | F |
| 2700 K | 163.5 lm/W | 1569.3 lm/m | D | 141.4 lm/W | 1357.6 lm/m | E | 114.5 lm/W | 1099.4 lm/m | F |
| 3000 K | 171.6 lm/W | 1647.6 lm/m | D | 149.2 lm/W | 1432.8 lm/m | D | 121.4 lm/W | 1165 lm/m | E |
| 3500 K | 174.2 lm/W | 1671.9 lm/m | C | 152.4 lm/W | 1463.4 lm/m | D | 125.5 lm/W | 1205.3 lm/m | E |
| 4000 K | 177.5 lm/W | 1703.7 lm/m | C | 153.3 lm/W | 1471.9 lm/m | D | 126.5 lm/W | 1214.8 lm/m | E |
| 5000 K | 177.2 lm/W | 1701.5 lm/m | C | 154.3 lm/W | 1481.4 lm/m | D | 127.3 lm/W | 1222.1 lm/m | E |
| 6500 K | 169.9 lm/W | 1630.6 lm/m | D | 147.5 lm/W | 1415.8 lm/m | D | 122.4 lm/W | 1175 lm/m | E |
Grade DN (1st Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 134.5 lm/W | 1936.7 lm/m | E | 113.2 lm/W | 1629.8 lm/m | F | — | — | — |
| 2300 K | 146.6 lm/W | 2111.6 lm/m | D | 126.3 lm/W | 1818.5 lm/m | E | 102.3 lm/W | 1473.1 lm/m | F |
| 2700 K | 158 lm/W | 2275.8 lm/m | D | 136.7 lm/W | 1968.9 lm/m | E | 110.7 lm/W | 1594.5 lm/m | F |
| 3000 K | 165.9 lm/W | 2389.4 lm/m | D | 144.3 lm/W | 2077.9 lm/m | E | 117.3 lm/W | 1689.6 lm/m | F |
| 3500 K | 168.4 lm/W | 2424.7 lm/m | D | 147.4 lm/W | 2122.4 lm/m | D | 121.4 lm/W | 1747.9 lm/m | E |
| 4000 K | 171.6 lm/W | 2470.7 lm/m | D | 148.2 lm/W | 2134.7 lm/m | D | 122.3 lm/W | 1761.7 lm/m | E |
| 5000 K | 171.4 lm/W | 2467.7 lm/m | D | 149.2 lm/W | 2148.5 lm/m | D | 123.1 lm/W | 1772.6 lm/m | E |
| 6500 K | 164.2 lm/W | 2364.9 lm/m | D | 142.6 lm/W | 2053.3 lm/m | E | 118.4 lm/W | 1705 lm/m | F |
Grade DN (1st Tier) · 19.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 130 lm/W | 2496.6 lm/m | E | 109.4 lm/W | 2101 lm/m | F | — | — | — |
| 2300 K | 141.8 lm/W | 2722.2 lm/m | E | 122.1 lm/W | 2344.3 lm/m | E | 98.9 lm/W | 1898.9 lm/m | F |
| 2700 K | 152.8 lm/W | 2933.9 lm/m | D | 132.2 lm/W | 2538.2 lm/m | E | 107.1 lm/W | 2055.5 lm/m | F |
| 3000 K | 160.4 lm/W | 3080.3 lm/m | D | 139.5 lm/W | 2678.7 lm/m | E | 113.4 lm/W | 2178.1 lm/m | F |
| 3500 K | 162.8 lm/W | 3125.8 lm/m | D | 142.5 lm/W | 2736 lm/m | E | 117.4 lm/W | 2253.3 lm/m | F |
| 4000 K | 165.9 lm/W | 3185.1 lm/m | D | 143.3 lm/W | 2751.8 lm/m | E | 118.3 lm/W | 2271.1 lm/m | F |
| 5000 K | 165.7 lm/W | 3181.1 lm/m | D | 144.3 lm/W | 2769.7 lm/m | E | 119 lm/W | 2284.8 lm/m | E |
| 6500 K | 158.8 lm/W | 3048.6 lm/m | D | 137.9 lm/W | 2647 lm/m | E | 114.4 lm/W | 2196.5 lm/m | F |
Grade DN (1st Tier) · 24W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 125.7 lm/W | 3017.3 lm/m | E | 105.8 lm/W | 2539.1 lm/m | F | — | — | — |
| 2300 K | 137.1 lm/W | 3289.9 lm/m | E | 118.1 lm/W | 2833.2 lm/m | F | 95.6 lm/W | 2294.4 lm/m | F |
| 2700 K | 147.7 lm/W | 3545.7 lm/m | D | 127.8 lm/W | 3067.5 lm/m | E | 103.5 lm/W | 2484.2 lm/m | F |
| 3000 K | 155.1 lm/W | 3722.7 lm/m | D | 134.9 lm/W | 3237.3 lm/m | E | 109.7 lm/W | 2632.4 lm/m | F |
| 3500 K | 157.4 lm/W | 3777.6 lm/m | D | 137.8 lm/W | 3306.6 lm/m | E | 113.5 lm/W | 2723.3 lm/m | F |
| 4000 K | 160.4 lm/W | 3849.4 lm/m | D | 138.6 lm/W | 3325.8 lm/m | E | 114.4 lm/W | 2744.8 lm/m | F |
| 5000 K | 160.2 lm/W | 3844.6 lm/m | D | 139.5 lm/W | 3347.3 lm/m | E | 115.1 lm/W | 2762.4 lm/m | F |
| 6500 K | 153.5 lm/W | 3684.4 lm/m | D | 133.3 lm/W | 3199 lm/m | E | 110.6 lm/W | 2654.4 lm/m | F |
Grade KE (3rd Tier) · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 105.2 lm/W | 1009.5 lm/m | F | 84 lm/W | 806.3 lm/m | G | — | — | — |
| 2300 K | 117.2 lm/W | 1124.8 lm/m | E | 93.6 lm/W | 898.4 lm/m | F | 75.8 lm/W | 727.7 lm/m | G |
| 2700 K | 126.3 lm/W | 1212.7 lm/m | E | 101.6 lm/W | 975.6 lm/m | F | 82.3 lm/W | 790.5 lm/m | G |
| 3000 K | 132.7 lm/W | 1274 lm/m | E | 107.4 lm/W | 1030.7 lm/m | F | 87.3 lm/W | 838.1 lm/m | F |
| 3500 K | 134.6 lm/W | 1292 lm/m | E | 109.5 lm/W | 1050.8 lm/m | F | 90.1 lm/W | 864.5 lm/m | F |
| 4000 K | 138.6 lm/W | 1330.1 lm/m | D | 111.8 lm/W | 1073 lm/m | E | 92.3 lm/W | 885.7 lm/m | F |
| 5000 K | 138.3 lm/W | 1328 lm/m | D | 111.8 lm/W | 1073 lm/m | E | 92.2 lm/W | 885.1 lm/m | F |
| 6500 K | 132.7 lm/W | 1274 lm/m | E | 107.4 lm/W | 1030.7 lm/m | F | 89.1 lm/W | 855.4 lm/m | F |
Grade KE (3rd Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 101.7 lm/W | 1464 lm/m | F | 81.2 lm/W | 1169.4 lm/m | G | — | — | — |
| 2300 K | 113.3 lm/W | 1631.3 lm/m | E | 90.5 lm/W | 1302.9 lm/m | F | 73.3 lm/W | 1055.5 lm/m | G |
| 2700 K | 122.1 lm/W | 1758.7 lm/m | E | 98.3 lm/W | 1414.9 lm/m | F | 79.6 lm/W | 1146.4 lm/m | G |
| 3000 K | 128.3 lm/W | 1847.7 lm/m | E | 103.8 lm/W | 1494.7 lm/m | F | 84.4 lm/W | 1215.4 lm/m | G |
| 3500 K | 130.1 lm/W | 1873.8 lm/m | E | 105.8 lm/W | 1523.9 lm/m | F | 87.1 lm/W | 1253.8 lm/m | F |
| 4000 K | 134 lm/W | 1929 lm/m | E | 108.1 lm/W | 1556.1 lm/m | F | 89.2 lm/W | 1284.5 lm/m | F |
| 5000 K | 133.7 lm/W | 1926 lm/m | E | 108.1 lm/W | 1556.1 lm/m | F | 89.2 lm/W | 1284.5 lm/m | F |
| 6500 K | 128.3 lm/W | 1847.7 lm/m | E | 103.8 lm/W | 1494.7 lm/m | F | 86.2 lm/W | 1241.3 lm/m | F |
Grade KE (3rd Tier) · 19.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 98.3 lm/W | 1887.3 lm/m | F | 78.5 lm/W | 1507.5 lm/m | G | — | — | — |
| 2300 K | 109.5 lm/W | 2103 lm/m | F | 87.5 lm/W | 1679.6 lm/m | F | 70.9 lm/W | 1361.3 lm/m | G |
| 2700 K | 118.1 lm/W | 2267.2 lm/m | E | 95 lm/W | 1824 lm/m | F | 77 lm/W | 1477.8 lm/m | G |
| 3000 K | 124.1 lm/W | 2381.9 lm/m | E | 100.4 lm/W | 1926.9 lm/m | F | 81.6 lm/W | 1566.8 lm/m | G |
| 3500 K | 125.8 lm/W | 2415.5 lm/m | E | 102.3 lm/W | 1964.5 lm/m | F | 84.2 lm/W | 1616.3 lm/m | G |
| 4000 K | 129.5 lm/W | 2486.8 lm/m | E | 104.5 lm/W | 2006 lm/m | F | 86.2 lm/W | 1655.9 lm/m | F |
| 5000 K | 129.3 lm/W | 2482.8 lm/m | E | 104.5 lm/W | 2006 lm/m | F | 86.2 lm/W | 1655 lm/m | F |
| 6500 K | 124.1 lm/W | 2381.9 lm/m | E | 100.4 lm/W | 1926.9 lm/m | F | 83.3 lm/W | 1599.4 lm/m | G |
Grade KE (3rd Tier) · 24W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 95 lm/W | 2280.9 lm/m | F | 75.9 lm/W | 1821.9 lm/m | G | — | — | — |
| 2300 K | 105.9 lm/W | 2541.5 lm/m | F | 84.6 lm/W | 2029.9 lm/m | G | 68.5 lm/W | 1644 lm/m | G |
| 2700 K | 114.2 lm/W | 2740 lm/m | E | 91.9 lm/W | 2204.4 lm/m | F | 74.4 lm/W | 1786 lm/m | G |
| 3000 K | 119.9 lm/W | 2878.7 lm/m | E | 97 lm/W | 2328.7 lm/m | F | 78.9 lm/W | 1893.6 lm/m | G |
| 3500 K | 121.6 lm/W | 2919.3 lm/m | E | 98.9 lm/W | 2374.2 lm/m | F | 81.4 lm/W | 1953.4 lm/m | G |
| 4000 K | 125.2 lm/W | 3005.4 lm/m | E | 101 lm/W | 2424.4 lm/m | F | 83.4 lm/W | 2001.2 lm/m | G |
| 5000 K | 125 lm/W | 3000.6 lm/m | E | 101 lm/W | 2424.4 lm/m | F | 83.3 lm/W | 1999.2 lm/m | G |
| 6500 K | 119.9 lm/W | 2878.7 lm/m | E | 97 lm/W | 2328.7 lm/m | F | 80.5 lm/W | 1932 lm/m | G |
High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide
At up to 24W/m, 2309 is a high-power SMD LED strip. Above roughly 14.4W/m the tape can no longer shed its own heat through the FPC alone — an aluminum channel is part of the luminaire, not an accessory.
Why high-wattage strips need a heat sink
- Aluminum conducts heat roughly 30× faster than the plastics, MDF or gypsum a strip is usually stuck to, so a bare high-power run traps heat under the tape.
- LED lifetime (LM-80 / TM-21) is driven by solder-point temperature Tc. Keeping Tc inside the datasheet limit — DENO strips are rated Tc ≤ 75°C — is what preserves the rated L70 lifetime and colour stability.
- Never run 14.4W/m or more coiled on the reel, inside a sealed plastic diffuser, or directly on wood, wallpaper or foam.
Sizing rule: FPC width vs channel inner width
- Channel inner width ≥ FPC width + 2mm. This strip is 10mm wide, so it needs at least 12mm of inner width.
- The 2mm clearance absorbs extrusion tolerance and lets the tape be seated or replaced without scraping the side walls or the wiring.
- A frosted or opal PC cover then diffuses the higher lumen output into an even, dot-free line instead of visible hot spots.
Aluminum channels that fit this strip
- 22x12mm Recessed LED Channel with Flange · fits ≤10mm strip
- 20x15mm Wide Surface Mount LED Channel · fits ≤10mm strip
- 17x15mm Surface Mount LED Channel · fits ≤10mm strip
- 15x15mm Magnetic LED Channel · fits ≤10mm strip
- 19.1x8mm Surface Mount LED Channel · fits ≤10mm strip
- 15x15mm 48V Surface Mount LED Channel · fits ≤10mm strip
Recommended LED Channels
Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.
This strip is 10mm wide, so it needs a channel with at least 12mm inner width (10mm + 2mm clearance). Every profile below meets that.
Related models in this series
- Roll-to-Roll Long Reel LED Strip Light (#16773)
- 2835 1 SDCM Classic High Consistency LED Strip Light (#2176-B)
- Roll-to-Roll Long Reel LED Strip Light (#16774)
- 2835 1-Step (1 SDCM) High Consistency LED Strip 128LEDs/m (#3015-B)
- Roll-to-Roll Long Reel LED Strip Light (#16776)
- 2835 Roll-to-Roll Long Reel LED Strip Light (#16771)
- Multi-Line Three-Row High-Density LED LED Strip Light (#16706)
- 2835 S-Bend LED Strip High-Efficiency LED Strip Light (#19071)
See every model in SMD LED Strip Series or narrow to 2835. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 2309?
2309: 2835, 240 LEDs/m, 24V, 10mm PCB, 3oz copper FPCB, cuttable 6LEDs/25mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
How long can a single run of this ultra high density LED strip be?
Maximum single run for this model is 5M. Feeding from both ends or using a mid-point tap halves the effective distance per segment, so a ultra high density LED strip can cover twice that length on one circuit when wired accordingly.
Can DENO customise this ultra high density LED strip for a project?
Yes. DENO manufactures the High Density LED Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
How many LEDs per metre does a dotless LED strip need?
Visible dots depend on LED pitch, diffuser distance and transmittance. Above roughly 480 LEDs/m most diffusers give a continuous line at 10 mm depth, and the 700 LEDs/m high density LED strip stays dot free even behind a shallow, highly transmissive lens.
Which LED driver and run length suit #2309?
10mm | 24V | 240LEDs | 25mm/cut | #2309 | 2835 High Lumen High Density LED Strip Light is a constant-voltage 24V product, so pair it with a CE or UL listed 24V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 5M. 5m Single/10m Dual Input power. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.
Engineering & selection guide
Bending limits, IP selection, voltage drop, cutting and the full buyer Q&A for this family are kept on the series page.
- High Density LED Strips series — High Density LED Strip — Buyer Questions
- LED strip engineering selection handbook
