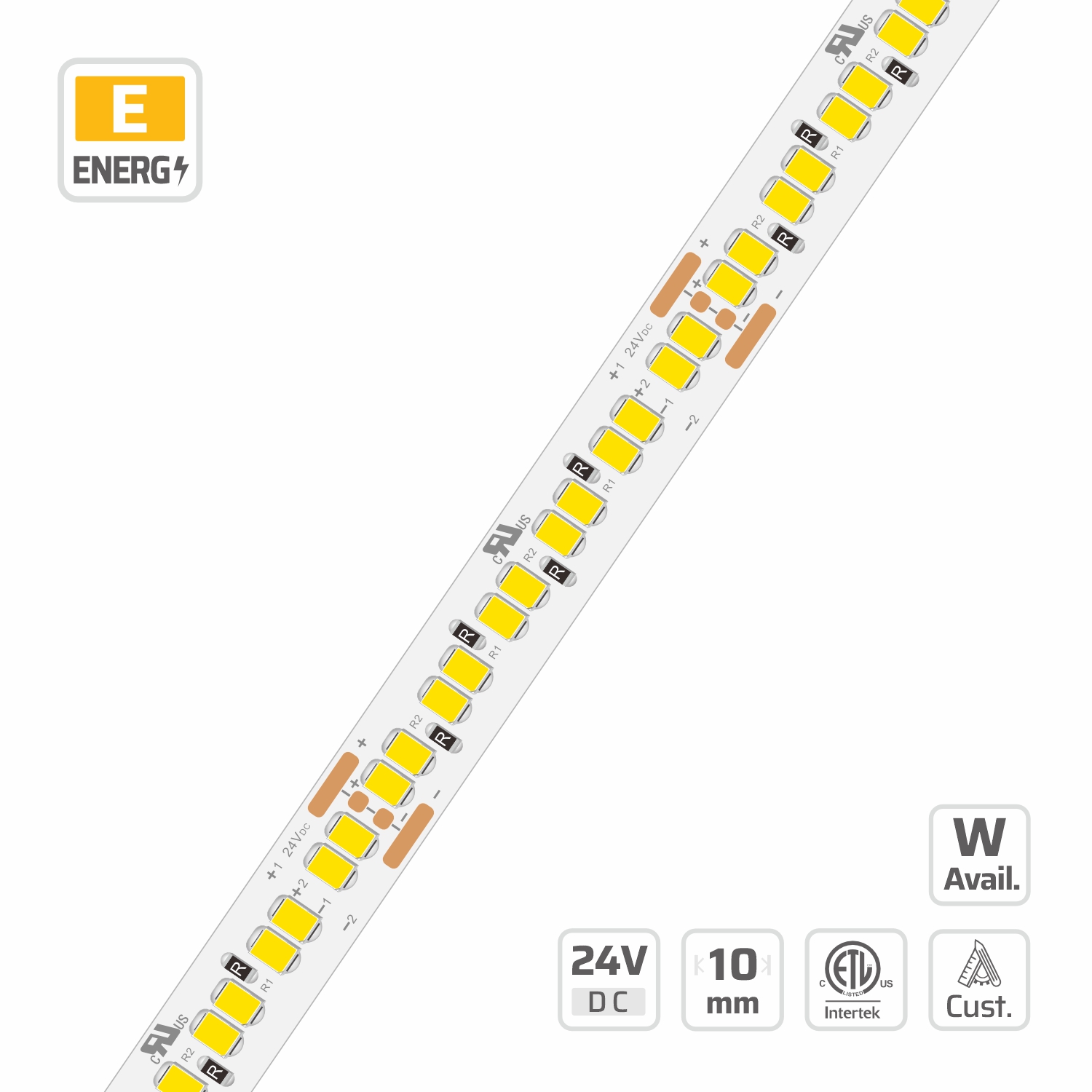

2835 Dual Loop LED Strip 240LEDs/m (#19291)
10mm · 24V · 240LEDs · 50mm/cut
Model: 19291
Overview
2835 Dual Loop LED Strip 240LEDs/m | 10mm | 24V | 240LEDs | 50mm/cut | #19291 is part of the DENO Special SMD Strips series, engineered around special application LED strip. Key specifications: 2835, 240, DC 24V, 10mm PCB, 3oz copper FPCB, cuttable 12LEDs/50mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
2835 Dual Loop LED Strip 240LEDs/m | 10mm | 24V | 240LEDs | 50mm/cut | #19291 Designed with an independent dual-loop architecture, this product allows for separate circuit control and versatile functional switching. By utilizing a shared substrate and integrated protective structure, it eliminates the need for redundant strip installations, significantly optimizing space and reducing both material and labor costs. The system features robust fault tolerance, where a backup circuit ensures continuous illumination even if one loop fails. Furthermore, it supports luminous flux superposition with manageable power consumption; when both channels are active, the combined output delivers high-intensity lighting suitable for demanding professional applications.
Special Application Led Strip built for special smd strips projects.
Specifications
| LED QTY | 240 |
|---|---|
| PART NO | DL-F28A120V24-19291 |
| SMD TYPE | 2835 |
| CUTTABLE UNIT | 12LEDs/50mm |
| DIMMABLE | Yes |
| LED PITCH | 8.333mm |
| PCB WIDTH | 10mm |
| LENGTH MAX | 8.5m |
| COPPER FOIL | 3oz |
| POWER RANGE | 2.4~28.8W |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | DC 24V |
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 153.6 lm/W at 4000K, Ra 80, ErP energy class D (Grade DN (1st Tier) · 9.6W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 109.5 lm/W | 1050.9 lm/m | F | 87.6 lm/W | 840.8 lm/m | F | — | — | — |
| 2300 K | 121.8 lm/W | 1169 lm/m | E | 97.6 lm/W | 936.7 lm/m | F | — | — | — |
| 2700 K | 128.3 lm/W | 1231.4 lm/m | E | 105.6 lm/W | 1013.5 lm/m | F | 85.6 lm/W | 821.6 lm/m | F |
| 3000 K | 137.1 lm/W | 1315.8 lm/m | D | 111.1 lm/W | 1066.3 lm/m | E | 90.4 lm/W | 867.6 lm/m | F |
| 3500 K | 139.2 lm/W | 1336 lm/m | D | 113.1 lm/W | 1085.5 lm/m | E | 93.1 lm/W | 893.5 lm/m | F |
| 4000 K | 143.6 lm/W | 1378.2 lm/m | D | 115.8 lm/W | 1111.4 lm/m | E | 95.6 lm/W | 917.5 lm/m | F |
| 5000 K | 143.5 lm/W | 1377.3 lm/m | D | 115.7 lm/W | 1110.5 lm/m | E | — | — | — |
| 6500 K | 131.3 lm/W | 1260.2 lm/m | E | 111 lm/W | 1065.3 lm/m | E | — | — | — |
Grade DL (2nd Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 105.8 lm/W | 1524.2 lm/m | F | 84.7 lm/W | 1219.3 lm/m | G | — | — | — |
| 2300 K | 117.7 lm/W | 1695.4 lm/m | E | 94.3 lm/W | 1358.5 lm/m | F | — | — | — |
| 2700 K | 124 lm/W | 1785.8 lm/m | E | 102.1 lm/W | 1469.9 lm/m | F | 82.7 lm/W | 1191.5 lm/m | G |
| 3000 K | 132.5 lm/W | 1908.3 lm/m | E | 107.4 lm/W | 1546.4 lm/m | F | 87.4 lm/W | 1258.3 lm/m | F |
| 3500 K | 134.6 lm/W | 1937.6 lm/m | E | 109.3 lm/W | 1574.3 lm/m | F | 90 lm/W | 1295.9 lm/m | F |
| 4000 K | 138.8 lm/W | 1998.8 lm/m | D | 111.9 lm/W | 1611.8 lm/m | E | 92.4 lm/W | 1330.7 lm/m | F |
| 5000 K | 138.7 lm/W | 1997.4 lm/m | D | 111.8 lm/W | 1610.5 lm/m | E | — | — | — |
| 6500 K | 126.9 lm/W | 1827.6 lm/m | E | 107.3 lm/W | 1545 lm/m | F | — | — | — |
Grade DL (2nd Tier) · 19.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 102.3 lm/W | 1964.8 lm/m | F | 81.9 lm/W | 1571.9 lm/m | G | — | — | — |
| 2300 K | 113.8 lm/W | 2185.5 lm/m | E | 91.2 lm/W | 1751.3 lm/m | F | — | — | — |
| 2700 K | 119.9 lm/W | 2302.2 lm/m | E | 98.7 lm/W | 1894.8 lm/m | F | 80 lm/W | 1536 lm/m | G |
| 3000 K | 128.1 lm/W | 2460.1 lm/m | E | 103.8 lm/W | 1993.5 lm/m | F | 84.5 lm/W | 1622.1 lm/m | G |
| 3500 K | 130.1 lm/W | 2497.8 lm/m | E | 105.7 lm/W | 2029.4 lm/m | F | 87 lm/W | 1670.6 lm/m | F |
| 4000 K | 134.2 lm/W | 2576.7 lm/m | E | 108.2 lm/W | 2077.9 lm/m | F | 89.3 lm/W | 1715.4 lm/m | F |
| 5000 K | 134.1 lm/W | 2574.9 lm/m | E | 108.1 lm/W | 2076.1 lm/m | F | — | — | — |
| 6500 K | 122.7 lm/W | 2356 lm/m | E | 103.7 lm/W | 1991.7 lm/m | F | — | — | — |
Grade DN (1st Tier) · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 120.3 lm/W | 1154.6 lm/m | E | 101.3 lm/W | 972.2 lm/m | F | — | — | — |
| 2300 K | 131.2 lm/W | 1259.2 lm/m | E | 113 lm/W | 1084.5 lm/m | E | — | — | — |
| 2700 K | 141.4 lm/W | 1357.1 lm/m | D | 122.3 lm/W | 1173.8 lm/m | E | 99.1 lm/W | 951.1 lm/m | F |
| 3000 K | 148.5 lm/W | 1425.3 lm/m | D | 129.1 lm/W | 1239.1 lm/m | E | 105 lm/W | 1007.8 lm/m | F |
| 3500 K | 150.7 lm/W | 1446.4 lm/m | D | 131.9 lm/W | 1265.9 lm/m | E | 108.6 lm/W | 1042.3 lm/m | F |
| 4000 K | 153.6 lm/W | 1474.2 lm/m | D | 132.6 lm/W | 1272.7 lm/m | E | 109.5 lm/W | 1050.9 lm/m | F |
| 5000 K | 153.4 lm/W | 1472.3 lm/m | D | 133.5 lm/W | 1281.3 lm/m | E | — | — | — |
| 6500 K | 147 lm/W | 1410.9 lm/m | D | 127.6 lm/W | 1224.7 lm/m | E | — | — | — |
Grade DN (1st Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 116.3 lm/W | 1674.5 lm/m | F | 97.9 lm/W | 1410 lm/m | F | — | — | — |
| 2300 K | 126.8 lm/W | 1826.2 lm/m | E | 109.2 lm/W | 1572.9 lm/m | F | — | — | — |
| 2700 K | 136.7 lm/W | 1968.2 lm/m | E | 118.2 lm/W | 1702.3 lm/m | F | 95.8 lm/W | 1379.4 lm/m | F |
| 3000 K | 143.5 lm/W | 2067 lm/m | E | 124.8 lm/W | 1797 lm/m | E | 101.5 lm/W | 1461.5 lm/m | F |
| 3500 K | 145.7 lm/W | 2097.6 lm/m | E | 127.5 lm/W | 1835.9 lm/m | E | 105 lm/W | 1511.6 lm/m | F |
| 4000 K | 148.5 lm/W | 2138 lm/m | D | 128.2 lm/W | 1845.7 lm/m | E | 105.8 lm/W | 1524.2 lm/m | F |
| 5000 K | 148.3 lm/W | 2135.2 lm/m | D | 129 lm/W | 1858.2 lm/m | E | — | — | — |
| 6500 K | 142.1 lm/W | 2046.1 lm/m | E | 123.3 lm/W | 1776.1 lm/m | E | — | — | — |
Grade DN (1st Tier) · 19.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 112.4 lm/W | 2158.6 lm/m | F | 94.7 lm/W | 1817.7 lm/m | F | — | — | — |
| 2300 K | 122.6 lm/W | 2354.2 lm/m | E | 105.6 lm/W | 2027.6 lm/m | F | — | — | — |
| 2700 K | 132.1 lm/W | 2537.2 lm/m | E | 114.3 lm/W | 2194.5 lm/m | F | 92.6 lm/W | 1778.2 lm/m | F |
| 3000 K | 138.8 lm/W | 2664.6 lm/m | E | 120.7 lm/W | 2316.5 lm/m | E | 98.1 lm/W | 1884.1 lm/m | F |
| 3500 K | 140.8 lm/W | 2704.1 lm/m | E | 123.3 lm/W | 2366.8 lm/m | E | 101.5 lm/W | 1948.7 lm/m | F |
| 4000 K | 143.5 lm/W | 2756.1 lm/m | E | 123.9 lm/W | 2379.3 lm/m | E | 102.3 lm/W | 1964.8 lm/m | F |
| 5000 K | 143.4 lm/W | 2752.6 lm/m | E | 124.8 lm/W | 2395.5 lm/m | E | — | — | — |
| 6500 K | 137.4 lm/W | 2637.7 lm/m | E | 119.3 lm/W | 2289.6 lm/m | E | — | — | — |
Grade KE (3rd Tier) · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 89.3 lm/W | 857.1 lm/m | F | 71.3 lm/W | 684.3 lm/m | G | — | — | — |
| 2300 K | 99.5 lm/W | 955 lm/m | F | 79.4 lm/W | 762.1 lm/m | G | — | — | — |
| 2700 K | 107.3 lm/W | 1029.8 lm/m | F | 86.2 lm/W | 827.3 lm/m | F | 69.9 lm/W | 670.9 lm/m | G |
| 3000 K | 112.7 lm/W | 1081.7 lm/m | E | 91.1 lm/W | 874.4 lm/m | F | 74.1 lm/W | 711.2 lm/m | G |
| 3500 K | 114.3 lm/W | 1097 lm/m | E | 92.9 lm/W | 891.6 lm/m | F | 76.5 lm/W | 734.2 lm/m | G |
| 4000 K | 117.7 lm/W | 1129.7 lm/m | E | 94.9 lm/W | 910.8 lm/m | F | 78.3 lm/W | 751.5 lm/m | G |
| 5000 K | 117.5 lm/W | 1127.7 lm/m | E | 94.9 lm/W | 910.8 lm/m | F | — | — | — |
| 6500 K | 112.7 lm/W | 1081.7 lm/m | E | 91.1 lm/W | 874.4 lm/m | F | — | — | — |
Grade KE (3rd Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 86.3 lm/W | 1243 lm/m | F | 68.9 lm/W | 992.4 lm/m | G | — | — | — |
| 2300 K | 96.2 lm/W | 1385 lm/m | F | 76.7 lm/W | 1105.2 lm/m | G | — | — | — |
| 2700 K | 103.7 lm/W | 1493.5 lm/m | F | 83.3 lm/W | 1199.8 lm/m | G | 67.6 lm/W | 973 lm/m | G |
| 3000 K | 108.9 lm/W | 1568.7 lm/m | F | 88.1 lm/W | 1268 lm/m | F | 71.6 lm/W | 1031.4 lm/m | G |
| 3500 K | 110.5 lm/W | 1591 lm/m | E | 89.8 lm/W | 1293.1 lm/m | F | 73.9 lm/W | 1064.8 lm/m | G |
| 4000 K | 113.8 lm/W | 1638.3 lm/m | E | 91.7 lm/W | 1320.9 lm/m | F | 75.7 lm/W | 1089.9 lm/m | G |
| 5000 K | 113.6 lm/W | 1635.5 lm/m | E | 91.7 lm/W | 1320.9 lm/m | F | — | — | — |
| 6500 K | 108.9 lm/W | 1568.7 lm/m | F | 88.1 lm/W | 1268 lm/m | F | — | — | — |
Grade KE (3rd Tier) · 19.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 83.5 lm/W | 1602.4 lm/m | G | 66.6 lm/W | 1279.4 lm/m | G | — | — | — |
| 2300 K | 93 lm/W | 1785.4 lm/m | F | 74.2 lm/W | 1424.7 lm/m | G | — | — | — |
| 2700 K | 100.3 lm/W | 1925.4 lm/m | F | 80.6 lm/W | 1546.7 lm/m | G | 65.3 lm/W | 1254.3 lm/m | G |
| 3000 K | 105.3 lm/W | 2022.2 lm/m | F | 85.1 lm/W | 1634.7 lm/m | F | 69.3 lm/W | 1329.6 lm/m | G |
| 3500 K | 106.8 lm/W | 2051 lm/m | F | 86.8 lm/W | 1667 lm/m | F | 71.5 lm/W | 1372.7 lm/m | G |
| 4000 K | 110 lm/W | 2112 lm/m | F | 88.7 lm/W | 1702.9 lm/m | F | 73.2 lm/W | 1405 lm/m | G |
| 5000 K | 109.8 lm/W | 2108.4 lm/m | F | 88.7 lm/W | 1702.9 lm/m | F | — | — | — |
| 6500 K | 105.3 lm/W | 2022.2 lm/m | F | 85.1 lm/W | 1634.7 lm/m | F | — | — | — |
Frequently Asked Questions
What are the key specifications of 19291?
19291: 2835, 240, DC 24V, 10mm PCB, 3oz copper FPCB, cuttable 12LEDs/50mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
Which environments is this special application LED strip rated for?
Ingress protection for this model is listed in the datasheet. As a special application LED strip it is specified for the duty listed in the datasheet, and DENO can supply alternative coatings, sleeves or IP68 potting for harsher installations.
Can DENO customise this special application LED strip for a project?
Yes. DENO manufactures the Special SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
What can be customised on an OEM LED strip order?
FPCB width and copper weight, LED type and density, CCT and CRI bin, cut interval, reel length, connector and encapsulation can all be specified. As a direct LED strip manufacturer, DENO builds to drawing, including non-standard shapes and project-specific labelling.
