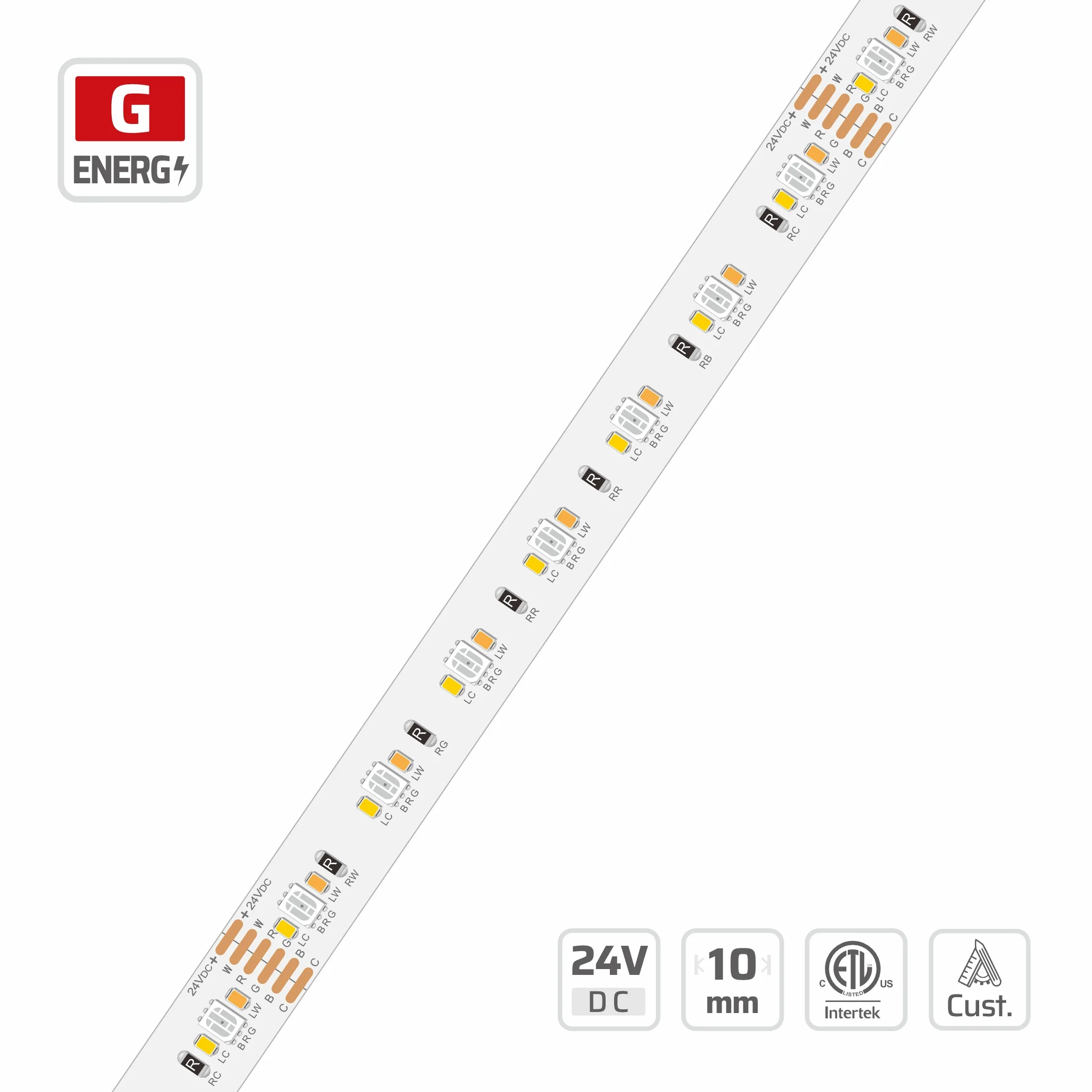

10mm | 24V | 210LEDs | 20W | 100mm/cut | #17305 | 2835+2216 Mixes RGB+W+C Color LED strip light
Model: 17305
Overview
The DENO LED Model 17305 is a versatile RGB+W+C LED strip light designed for advanced dynamic lighting solutions. Featuring a 10mm PCB and operating at 24V, it integrates RGB with both warm white and cool white, allowing for a broad spectrum of colors and tunable white options. With a high CRI of Ra≥90 and a luminous flux of 1575 lm/m, it delivers excellent color rendition and brightness. Its slim profile and 100mm cut points ensure flexible installation in various B2B sett...
Description
10mm | 24V | 210LEDs | 20W | 100mm/cut | #17305 | 2835+2216 Mixes RGB+W+C Color LED strip light 5-in-1 color integration combines RGB, Warm White, and Cool White LEDs for versatile lighting modes. Lighting effects can be switched between colorful RGB and adjustable white tones via compatible controllers. Unified color output enhances visual consistency and overall lighting performance. Slim 10mm PCB width ensures better installation adaptability and compatibility with various profiles. Ldeal for dynamic lighting setups in residential, hospitality, and retail environments.
Specifications
| cct | 1600-6500 |
|---|---|
| cri | Ra≥80 , Ra≥90 , Ra≥95 |
| sdcm | < 3 SDCM (Single Bin) |
| ledQty | 210 |
| partNo | DL-F28+22A105V24-17305-* |
| smdType | 2216+2835 |
| cuttable | 21LEDs/100mm |
| dimmable | Yes |
| ipRating | IP20/IP54/IP65/IP66/IP67 |
| ledPitch | 14.286mm |
| lifespan | 50000h |
| pcbWidth | 10 |
| warranty | 3 Years |
| beamAngle | 120° |
| lengthMax | 5m |
| copperFoil | 3oz |
| powerRange | 6~24W |
| circuitType | CV |
| inputVoltage | 24V |
| luminousFlux | 1575 lm/m |
| operatingTemperature | -25~40°C;Tc：75°C（max） |
Frequently Asked Questions
What kind of controller do I need for the RGB+W+C LED strip Model 17305?
This 5-in-1 RGB+W+C LED strip (Model 17305) requires a compatible multi-channel controller to access all color modes, including RGB and tunable white functions. DENO LED offers a range of suitable controllers.
Can the 17305 LED strip be used in outdoor or damp locations?
Yes, the 17305 LED strip is available with various IP ratings, including IP65, IP66, and IP67, making it suitable for outdoor or damp environments, depending on the specific product variant chosen.
What is the primary benefit of the 5-in-1 RGB+W+C configuration for B2B clients?
The 5-in-1 RGB+W+C configuration allows for unparalleled lighting versatility, combining vibrant RGB colors with adjustable warm to cool white tones. This enables businesses to create diverse ambiances, from energetic and colorful to sophisticated and functional white lighting, all from a single strip.
What are the customization options for the 17305 LED strip beyond standard lengths?
Beyond standard 5m lengths, the 17305 LED strip can be cut every 100mm (21 LEDs) for precise sizing. We also offer customization options for specific project needs, including different IP ratings and CCT ranges. Contact our sales team for details.
