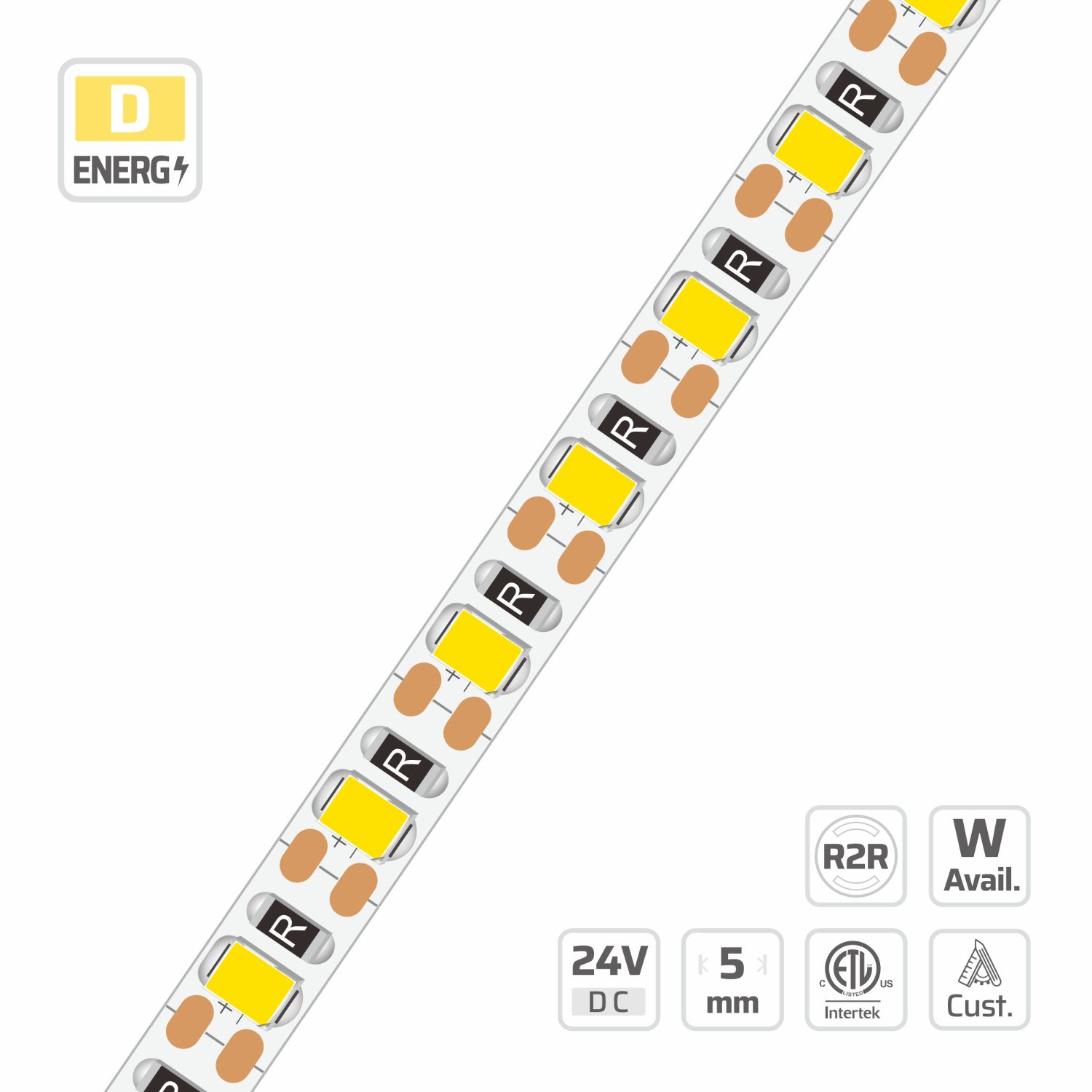

Roll-to-Roll Long Reel LED Strip Light (#16779)
5mm · 24V · 120LEDs · 8.333mm/cut
Model: 16779
Overview
Roll-to-Roll Long Reel LED Strip Light | 5mm | 24V | 120LEDs | 8.333mm/cut | #16779 is part of the DENO Roll-to-Roll SMD Strips series, engineered around roll to roll LED strip. Key specifications: 2835, 120 LEDs/m, 24V, 5 PCB, 2oz copper FPCB, cuttable 1LED/8.333mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request. This model uses DENO's electroplated, non-die-cut R2R FPCB, with no intermediate PCB splice joints inside the specified continuous length. Cutting interval, rated run length and planned feed positions remain model-specific.
Description
Built on DENO's electroplated, non-die-cut R2R FPCB, this model has no intermediate PCB splice joints within its specified continuous length. Cutting interval, rated run length and feed positions remain model-specific.\nThis long reel LED strip light is built on a continuous roll-to-roll FPCB, so the reel contains no intermediate PCB splice joints or mid-run connection points. The ultra-narrow 5mm PCB integrates 120 SMD 2835 LEDs per meter with an 8.333mm cut increment, allowing precise fitting in tight architectural spaces. Designed with a 2oz copper circuit board, the 24V constant-voltage strip provides effective thermal management and supports PWM, DALI, and 0-10V dimming protocols. The very fine 8.333mm cut pitch is achieved through one continuous placement run, keeping spacing accurate along the entire roll. Optimized for retail displays and commercial cove lighting, our factory-direct manufacturing delivers consistent illumination for wholesale project supply.
Roll To Roll Led Strip built for roll-to-roll smd strips projects.
Specifications
| LED QTY | 120 LEDs/m |
|---|---|
| PART NO | DL-F28A60V24-16779-* |
| SMD TYPE | 2835 |
| CUTTABLE UNIT | 1LED/8.333mm |
| DIMMABLE | Yes |
| IP RATING | IP20 |
| LED PITCH | 8.333mm |
| PCB WIDTH | 5 |
| BEAM ANGLE | 120° |
| RUN LENGTH | 5m |
| COPPER FOIL | 2oz |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 24V |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Ultra-narrow 5mm channels & shadow gaps — Fits shadow-gap details, slim profiles and joinery grooves that cannot take a standard 8–10mm strip.
Recommended accessories & compatible parts
- DL-0809HX-F — 8.89x7.79mm Mini Recessed LED Channel with Flange — Trimless Aluminum Profile for 5mm Strip: Accepts LED strips up to 5mm wide.
- DL-0909HX-M — 9x9mm Magnetic LED Channel — Tool-Free Aluminum Profile for Shelf Lighting: Accepts LED strips up to 5mm wide.
- DL-1010HX-V — 10x10mm V Shape Corner LED Channel — 45 Degree Aluminum Profile for Cabinets: Accepts LED strips up to 5mm wide.
- DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.
Request a quotation for #16779
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 195.7 lm/W at 4000K, Ra 80, ErP energy class C (Grade DN (1st Tier) · 6W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 143.6 lm/W | 861.4 lm/m | D | 115.3 lm/W | 691.5 lm/m | E | — | — | — |
| 2300 K | 159.9 lm/W | 959.4 lm/m | D | 128.4 lm/W | 770.3 lm/m | E | 104.4 lm/W | 626.5 lm/m | E |
| 2700 K | 169.1 lm/W | 1014.6 lm/m | C | 138.9 lm/W | 833.5 lm/m | D | 112.6 lm/W | 675.4 lm/m | E |
| 3000 K | 180 lm/W | 1079.7 lm/m | C | 146.2 lm/W | 876.9 lm/m | D | 118.9 lm/W | 713.2 lm/m | E |
| 3500 K | 182.6 lm/W | 1095.9 lm/m | C | 148.7 lm/W | 892.4 lm/m | D | 122.5 lm/W | 734.9 lm/m | E |
| 4000 K | 188.4 lm/W | 1130.6 lm/m | B | 152.4 lm/W | 914.2 lm/m | D | 125.8 lm/W | 754.8 lm/m | E |
| 5000 K | 188.2 lm/W | 1129.4 lm/m | B | 152.3 lm/W | 913.5 lm/m | D | 124.5 lm/W | 747.2 lm/m | E |
| 6500 K | 172.6 lm/W | 1035.7 lm/m | C | 146.1 lm/W | 876.3 lm/m | D | 120.8 lm/W | 724.6 lm/m | E |
Grade DL (2nd Tier) · 8.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 141.2 lm/W | 1185.8 lm/m | D | 113.3 lm/W | 951.9 lm/m | E | — | — | — |
| 2300 K | 157.2 lm/W | 1320.7 lm/m | D | 126.2 lm/W | 1060.3 lm/m | E | 102.7 lm/W | 862.4 lm/m | E |
| 2700 K | 166.3 lm/W | 1396.7 lm/m | C | 136.6 lm/W | 1147.4 lm/m | D | 110.7 lm/W | 929.7 lm/m | E |
| 3000 K | 176.9 lm/W | 1486.4 lm/m | C | 143.7 lm/W | 1207.2 lm/m | D | 116.9 lm/W | 981.8 lm/m | E |
| 3500 K | 179.6 lm/W | 1508.6 lm/m | C | 146.3 lm/W | 1228.5 lm/m | D | 120.4 lm/W | 1011.7 lm/m | E |
| 4000 K | 185.3 lm/W | 1556.4 lm/m | B | 149.8 lm/W | 1258.4 lm/m | D | 123.7 lm/W | 1039 lm/m | E |
| 5000 K | 185.1 lm/W | 1554.7 lm/m | B | 149.7 lm/W | 1257.6 lm/m | D | 122.5 lm/W | 1028.6 lm/m | E |
| 6500 K | 169.7 lm/W | 1425.7 lm/m | C | 143.6 lm/W | 1206.3 lm/m | D | 118.7 lm/W | 997.4 lm/m | E |
Grade DL (2nd Tier) · 10.8W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 138.8 lm/W | 1499.2 lm/m | D | 111.4 lm/W | 1203.4 lm/m | E | — | — | — |
| 2300 K | 154.6 lm/W | 1669.7 lm/m | D | 124.1 lm/W | 1340.5 lm/m | E | 100.9 lm/W | 1090.2 lm/m | E |
| 2700 K | 163.5 lm/W | 1765.8 lm/m | C | 134.3 lm/W | 1450.6 lm/m | E | 108.8 lm/W | 1175.4 lm/m | F |
| 3000 K | 174 lm/W | 1879.1 lm/m | C | 141.3 lm/W | 1526.2 lm/m | D | 114.9 lm/W | 1241.2 lm/m | E |
| 3500 K | 176.6 lm/W | 1907.2 lm/m | C | 143.8 lm/W | 1553.1 lm/m | D | 118.4 lm/W | 1279 lm/m | E |
| 4000 K | 182.2 lm/W | 1967.6 lm/m | C | 147.3 lm/W | 1590.9 lm/m | D | 121.6 lm/W | 1313.5 lm/m | E |
| 5000 K | 182 lm/W | 1965.4 lm/m | C | 147.2 lm/W | 1589.8 lm/m | D | 120.4 lm/W | 1300.4 lm/m | E |
| 6500 K | 166.9 lm/W | 1802.5 lm/m | C | 141.2 lm/W | 1525.1 lm/m | D | 116.8 lm/W | 1261 lm/m | E |
Grade DL (2nd Tier) · 12W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 137.6 lm/W | 1651.8 lm/m | D | 110.5 lm/W | 1325.9 lm/m | E | — | — | — |
| 2300 K | 153.3 lm/W | 1839.7 lm/m | D | 123.1 lm/W | 1477 lm/m | E | 100.1 lm/W | 1201.2 lm/m | E |
| 2700 K | 162.1 lm/W | 1945.5 lm/m | C | 133.2 lm/W | 1598.3 lm/m | E | 107.9 lm/W | 1295 lm/m | F |
| 3000 K | 172.5 lm/W | 2070.4 lm/m | C | 140.1 lm/W | 1681.5 lm/m | D | 114 lm/W | 1367.6 lm/m | E |
| 3500 K | 175.1 lm/W | 2101.3 lm/m | C | 142.6 lm/W | 1711.2 lm/m | D | 117.4 lm/W | 1409.2 lm/m | E |
| 4000 K | 180.7 lm/W | 2167.9 lm/m | C | 146.1 lm/W | 1752.8 lm/m | D | 120.6 lm/W | 1447.2 lm/m | E |
| 5000 K | 180.5 lm/W | 2165.5 lm/m | C | 146 lm/W | 1751.7 lm/m | D | 119.4 lm/W | 1432.8 lm/m | E |
| 6500 K | 165.5 lm/W | 1985.9 lm/m | C | 140 lm/W | 1680.3 lm/m | D | 115.8 lm/W | 1389.3 lm/m | E |
Grade DL (2nd Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 135.3 lm/W | 1949 lm/m | D | 108.6 lm/W | 1564.5 lm/m | F | — | — | — |
| 2300 K | 150.7 lm/W | 2170.7 lm/m | D | 121 lm/W | 1742.7 lm/m | E | 98.4 lm/W | 1417.3 lm/m | E |
| 2700 K | 159.4 lm/W | 2295.6 lm/m | D | 131 lm/W | 1885.8 lm/m | E | 106.1 lm/W | 1528 lm/m | F |
| 3000 K | 169.6 lm/W | 2442.9 lm/m | C | 137.8 lm/W | 1984.1 lm/m | D | 112.1 lm/W | 1613.6 lm/m | E |
| 3500 K | 172.2 lm/W | 2479.4 lm/m | C | 140.2 lm/W | 2019.1 lm/m | D | 115.5 lm/W | 1662.7 lm/m | E |
| 4000 K | 177.6 lm/W | 2557.9 lm/m | C | 143.6 lm/W | 2068.2 lm/m | D | 118.6 lm/W | 1707.6 lm/m | E |
| 5000 K | 177.4 lm/W | 2555.1 lm/m | C | 143.5 lm/W | 2066.8 lm/m | D | 117.4 lm/W | 1690.6 lm/m | E |
| 6500 K | 162.7 lm/W | 2343.3 lm/m | C | 137.7 lm/W | 1982.7 lm/m | D | 113.8 lm/W | 1639.3 lm/m | E |
Grade DN (1st Tier) · 6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 153.3 lm/W | 919.7 lm/m | D | 129.3 lm/W | 775.8 lm/m | E | — | — | — |
| 2300 K | 167.1 lm/W | 1002.8 lm/m | D | 144.2 lm/W | 865.2 lm/m | E | 116 lm/W | 695.9 lm/m | E |
| 2700 K | 180.2 lm/W | 1081 lm/m | C | 156.1 lm/W | 936.5 lm/m | D | 126.5 lm/W | 759.1 lm/m | E |
| 3000 K | 189.3 lm/W | 1135.6 lm/m | C | 164.8 lm/W | 988.6 lm/m | D | 134 lm/W | 803.8 lm/m | E |
| 3500 K | 192.1 lm/W | 1152.3 lm/m | C | 168.4 lm/W | 1010.3 lm/m | D | 138.5 lm/W | 831 lm/m | E |
| 4000 K | 195.7 lm/W | 1174 lm/m | C | 169.3 lm/W | 1015.9 lm/m | D | 139.7 lm/W | 838.5 lm/m | E |
| 5000 K | 195.4 lm/W | 1172.1 lm/m | C | 170.3 lm/W | 1022.1 lm/m | D | 138.4 lm/W | 830.1 lm/m | E |
| 6500 K | 187.3 lm/W | 1123.8 lm/m | C | 162.8 lm/W | 976.8 lm/m | D | 134.2 lm/W | 804.9 lm/m | E |
Grade DN (1st Tier) · 8.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 150.7 lm/W | 1266.1 lm/m | D | 127.1 lm/W | 1068 lm/m | E | — | — | — |
| 2300 K | 164.3 lm/W | 1380.5 lm/m | D | 141.8 lm/W | 1191 lm/m | E | 114.1 lm/W | 958 lm/m | E |
| 2700 K | 177.2 lm/W | 1488.1 lm/m | C | 153.5 lm/W | 1289.2 lm/m | D | 124.4 lm/W | 1045 lm/m | E |
| 3000 K | 186.1 lm/W | 1563.2 lm/m | C | 162 lm/W | 1360.9 lm/m | D | 131.7 lm/W | 1106.4 lm/m | E |
| 3500 K | 188.8 lm/W | 1586.3 lm/m | C | 165.6 lm/W | 1390.7 lm/m | D | 136.2 lm/W | 1144 lm/m | E |
| 4000 K | 192.4 lm/W | 1616.1 lm/m | C | 166.5 lm/W | 1398.4 lm/m | D | 137.4 lm/W | 1154.3 lm/m | E |
| 5000 K | 192.1 lm/W | 1613.6 lm/m | C | 167.5 lm/W | 1407 lm/m | D | 136 lm/W | 1142.7 lm/m | E |
| 6500 K | 184.2 lm/W | 1547 lm/m | C | 160.1 lm/W | 1344.6 lm/m | D | 131.9 lm/W | 1108.1 lm/m | E |
Grade DN (1st Tier) · 10.8W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 148.2 lm/W | 1600.6 lm/m | D | 125 lm/W | 1350.2 lm/m | E | — | — | — |
| 2300 K | 161.6 lm/W | 1745.3 lm/m | D | 139.4 lm/W | 1505.6 lm/m | E | 112.1 lm/W | 1211.2 lm/m | E |
| 2700 K | 174.2 lm/W | 1881.3 lm/m | C | 150.9 lm/W | 1629.8 lm/m | D | 122.3 lm/W | 1321.1 lm/m | E |
| 3000 K | 183 lm/W | 1976.2 lm/m | C | 159.3 lm/W | 1720.4 lm/m | D | 129.5 lm/W | 1398.8 lm/m | E |
| 3500 K | 185.7 lm/W | 2005.4 lm/m | C | 162.8 lm/W | 1758.2 lm/m | D | 133.9 lm/W | 1446.3 lm/m | E |
| 4000 K | 189.2 lm/W | 2043.1 lm/m | C | 163.7 lm/W | 1767.9 lm/m | D | 135.1 lm/W | 1459.2 lm/m | E |
| 5000 K | 188.9 lm/W | 2039.9 lm/m | C | 164.7 lm/W | 1778.7 lm/m | D | 133.8 lm/W | 1444.6 lm/m | E |
| 6500 K | 181.1 lm/W | 1955.7 lm/m | C | 157.4 lm/W | 1699.9 lm/m | D | 129.7 lm/W | 1400.9 lm/m | E |
Grade DN (1st Tier) · 12W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 147 lm/W | 1763.5 lm/m | D | 124 lm/W | 1487.7 lm/m | E | — | — | — |
| 2300 K | 160.2 lm/W | 1922.9 lm/m | D | 138.2 lm/W | 1658.9 lm/m | E | 111.2 lm/W | 1334.4 lm/m | E |
| 2700 K | 172.7 lm/W | 2072.7 lm/m | D | 149.6 lm/W | 1795.7 lm/m | D | 121.3 lm/W | 1455.6 lm/m | E |
| 3000 K | 181.4 lm/W | 2177.4 lm/m | C | 158 lm/W | 1895.5 lm/m | D | 128.4 lm/W | 1541.2 lm/m | E |
| 3500 K | 184.1 lm/W | 2209.5 lm/m | C | 161.4 lm/W | 1937.2 lm/m | D | 132.8 lm/W | 1593.5 lm/m | E |
| 4000 K | 187.6 lm/W | 2251.1 lm/m | C | 162.3 lm/W | 1947.9 lm/m | D | 134 lm/W | 1607.8 lm/m | E |
| 5000 K | 187.3 lm/W | 2247.5 lm/m | C | 163.3 lm/W | 1959.8 lm/m | D | 132.6 lm/W | 1591.7 lm/m | E |
| 6500 K | 179.6 lm/W | 2154.8 lm/m | C | 156.1 lm/W | 1873 lm/m | D | 128.6 lm/W | 1543.5 lm/m | E |
Grade DN (1st Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 144.5 lm/W | 2080.9 lm/m | E | 121.9 lm/W | 1755.3 lm/m | E | — | — | — |
| 2300 K | 157.6 lm/W | 2268.9 lm/m | D | 135.9 lm/W | 1957.4 lm/m | E | 109.3 lm/W | 1574.6 lm/m | E |
| 2700 K | 169.8 lm/W | 2445.7 lm/m | D | 147.1 lm/W | 2118.8 lm/m | D | 119.3 lm/W | 1717.5 lm/m | E |
| 3000 K | 178.4 lm/W | 2569.2 lm/m | C | 155.3 lm/W | 2236.6 lm/m | D | 126.3 lm/W | 1818.5 lm/m | E |
| 3500 K | 181 lm/W | 2607.1 lm/m | C | 158.7 lm/W | 2285.7 lm/m | D | 130.6 lm/W | 1880.2 lm/m | E |
| 4000 K | 184.5 lm/W | 2656.2 lm/m | C | 159.6 lm/W | 2298.4 lm/m | D | 131.7 lm/W | 1897.1 lm/m | E |
| 5000 K | 184.2 lm/W | 2652 lm/m | C | 160.6 lm/W | 2312.4 lm/m | D | 130.4 lm/W | 1878.1 lm/m | E |
| 6500 K | 176.6 lm/W | 2542.5 lm/m | C | 153.5 lm/W | 2210 lm/m | D | 126.5 lm/W | 1821.2 lm/m | E |
Grade KE (3rd Tier) · 6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 122.6 lm/W | 735.5 lm/m | E | 98.2 lm/W | 589.2 lm/m | F | — | — | — |
| 2300 K | 136.6 lm/W | 819.9 lm/m | D | 109.5 lm/W | 656.8 lm/m | F | 89.6 lm/W | 537.4 lm/m | F |
| 2700 K | 147.3 lm/W | 883.8 lm/m | D | 118.8 lm/W | 712.6 lm/m | E | 96.3 lm/W | 578 lm/m | F |
| 3000 K | 154.6 lm/W | 927.8 lm/m | D | 125.5 lm/W | 752.9 lm/m | E | 102 lm/W | 612.1 lm/m | F |
| 3500 K | 157 lm/W | 942.1 lm/m | D | 128 lm/W | 767.8 lm/m | E | 105.3 lm/W | 632 lm/m | F |
| 4000 K | 161.6 lm/W | 969.3 lm/m | C | 130.7 lm/W | 783.9 lm/m | E | 107.9 lm/W | 647.5 lm/m | F |
| 5000 K | 161.4 lm/W | 968.1 lm/m | C | 130.7 lm/W | 783.9 lm/m | E | 106.8 lm/W | 641 lm/m | F |
| 6500 K | 154.6 lm/W | 927.8 lm/m | D | 125.5 lm/W | 752.9 lm/m | E | 103.6 lm/W | 621.6 lm/m | F |
Grade KE (3rd Tier) · 8.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 120.5 lm/W | 1012.5 lm/m | E | 96.6 lm/W | 811.1 lm/m | F | — | — | — |
| 2300 K | 134.4 lm/W | 1128.6 lm/m | E | 107.6 lm/W | 904.1 lm/m | F | 88.1 lm/W | 739.8 lm/m | F |
| 2700 K | 144.8 lm/W | 1216.6 lm/m | D | 116.8 lm/W | 980.9 lm/m | E | 94.7 lm/W | 795.7 lm/m | F |
| 3000 K | 152 lm/W | 1277.2 lm/m | D | 123.4 lm/W | 1036.4 lm/m | E | 100.3 lm/W | 842.6 lm/m | F |
| 3500 K | 154.4 lm/W | 1296.8 lm/m | D | 125.8 lm/W | 1056.9 lm/m | E | 103.6 lm/W | 870 lm/m | F |
| 4000 K | 158.9 lm/W | 1334.4 lm/m | D | 128.5 lm/W | 1079.1 lm/m | E | 106.1 lm/W | 891.3 lm/m | F |
| 5000 K | 158.7 lm/W | 1332.7 lm/m | D | 128.5 lm/W | 1079.1 lm/m | E | 105 lm/W | 882.4 lm/m | F |
| 6500 K | 152 lm/W | 1277.2 lm/m | D | 123.4 lm/W | 1036.4 lm/m | E | 101.9 lm/W | 855.7 lm/m | F |
Grade KE (3rd Tier) · 10.8W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 118.5 lm/W | 1280.1 lm/m | E | 94.9 lm/W | 1025.4 lm/m | F | — | — | — |
| 2300 K | 132.1 lm/W | 1426.9 lm/m | E | 105.8 lm/W | 1143 lm/m | F | 86.6 lm/W | 935.3 lm/m | F |
| 2700 K | 142.4 lm/W | 1538 lm/m | D | 114.8 lm/W | 1240.1 lm/m | E | 93.1 lm/W | 1005.9 lm/m | F |
| 3000 K | 149.5 lm/W | 1614.7 lm/m | D | 121.3 lm/W | 1310.3 lm/m | E | 98.6 lm/W | 1065.3 lm/m | F |
| 3500 K | 151.8 lm/W | 1639.5 lm/m | D | 123.7 lm/W | 1336.2 lm/m | E | 101.8 lm/W | 1099.8 lm/m | F |
| 4000 K | 156.2 lm/W | 1687 lm/m | D | 126.3 lm/W | 1364.3 lm/m | E | 104.3 lm/W | 1126.8 lm/m | F |
| 5000 K | 156 lm/W | 1684.8 lm/m | D | 126.3 lm/W | 1364.3 lm/m | E | 103.3 lm/W | 1115.5 lm/m | F |
| 6500 K | 149.5 lm/W | 1614.7 lm/m | D | 121.3 lm/W | 1310.3 lm/m | E | 100.2 lm/W | 1081.7 lm/m | F |
Grade KE (3rd Tier) · 12W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 117.5 lm/W | 1410.4 lm/m | E | 94.1 lm/W | 1129.7 lm/m | F | — | — | — |
| 2300 K | 131 lm/W | 1572.1 lm/m | E | 104.9 lm/W | 1259.3 lm/m | F | 85.9 lm/W | 1030.4 lm/m | F |
| 2700 K | 141.2 lm/W | 1694.6 lm/m | D | 113.9 lm/W | 1366.4 lm/m | E | 92.4 lm/W | 1108.3 lm/m | F |
| 3000 K | 148.3 lm/W | 1779 lm/m | D | 120.3 lm/W | 1443.7 lm/m | E | 97.8 lm/W | 1173.7 lm/m | F |
| 3500 K | 150.5 lm/W | 1806.4 lm/m | D | 122.7 lm/W | 1472.2 lm/m | E | 101 lm/W | 1211.8 lm/m | F |
| 4000 K | 154.9 lm/W | 1858.7 lm/m | D | 125.3 lm/W | 1503.1 lm/m | E | 103.5 lm/W | 1241.5 lm/m | F |
| 5000 K | 154.7 lm/W | 1856.3 lm/m | D | 125.3 lm/W | 1503.1 lm/m | E | 102.4 lm/W | 1229.1 lm/m | F |
| 6500 K | 148.3 lm/W | 1779 lm/m | D | 120.3 lm/W | 1443.7 lm/m | E | 99.3 lm/W | 1191.8 lm/m | F |
Grade KE (3rd Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 115.6 lm/W | 1664.1 lm/m | E | 92.6 lm/W | 1333 lm/m | F | — | — | — |
| 2300 K | 128.8 lm/W | 1855 lm/m | E | 103.2 lm/W | 1485.9 lm/m | F | 84.4 lm/W | 1215.9 lm/m | F |
| 2700 K | 138.9 lm/W | 1999.5 lm/m | D | 112 lm/W | 1612.2 lm/m | E | 90.8 lm/W | 1307.7 lm/m | F |
| 3000 K | 145.8 lm/W | 2099.1 lm/m | D | 118.3 lm/W | 1703.4 lm/m | E | 96.2 lm/W | 1384.9 lm/m | F |
| 3500 K | 148 lm/W | 2131.4 lm/m | D | 120.6 lm/W | 1737.1 lm/m | E | 99.3 lm/W | 1429.8 lm/m | F |
| 4000 K | 152.3 lm/W | 2193.1 lm/m | D | 123.2 lm/W | 1773.6 lm/m | E | 101.7 lm/W | 1464.9 lm/m | F |
| 5000 K | 152.1 lm/W | 2190.3 lm/m | D | 123.2 lm/W | 1773.6 lm/m | E | 100.7 lm/W | 1450.2 lm/m | F |
| 6500 K | 145.8 lm/W | 2099.1 lm/m | D | 118.3 lm/W | 1703.4 lm/m | E | 97.7 lm/W | 1406.3 lm/m | F |
High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide
At up to 14.4W/m, 16779 is a high-power SMD LED strip. Above roughly 14.4W/m the tape can no longer shed its own heat through the FPC alone — an aluminum channel is part of the luminaire, not an accessory.
Why high-wattage strips need a heat sink
- Aluminum conducts heat roughly 30× faster than the plastics, MDF or gypsum a strip is usually stuck to, so a bare high-power run traps heat under the tape.
- LED lifetime (LM-80 / TM-21) is driven by solder-point temperature Tc. Keeping Tc inside the datasheet limit — DENO strips are rated Tc ≤ 75°C — is what preserves the rated L70 lifetime and colour stability.
- Never run 14.4W/m or more coiled on the reel, inside a sealed plastic diffuser, or directly on wood, wallpaper or foam.
Sizing rule: FPC width vs channel inner width
- Channel inner width ≥ FPC width + 2mm. This strip is 5mm wide, so it needs at least 7mm of inner width.
- The 2mm clearance absorbs extrusion tolerance and lets the tape be seated or replaced without scraping the side walls or the wiring.
- A frosted or opal PC cover then diffuses the higher lumen output into an even, dot-free line instead of visible hot spots.
Aluminum channels that fit this strip
- 8.89x7.79mm Mini Recessed LED Channel with Flange · fits ≤5mm strip
- 9x9mm Magnetic LED Channel · fits ≤5mm strip
- 10x10mm V Shape Corner LED Channel · fits ≤5mm strip
- 13x13mm V Shape Corner LED Channel · fits ≤5mm strip
- 10x10mm Surface Mount LED Channel · fits ≤6mm strip
- 12x8mm Surface Mount LED Channel · fits ≤6mm strip
Recommended LED Channels
Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.
This strip is 5mm wide, so it needs a channel with at least 7mm inner width (5mm + 2mm clearance). Every profile below meets that.
Related models in this series
- Roll-to-Roll Long Reel LED Strip Light (#16773)
- 2835 1 SDCM Classic High Consistency LED Strip Light (#2176-B)
- Roll-to-Roll Long Reel LED Strip Light (#16774)
- 2835 1-Step (1 SDCM) High Consistency LED Strip 128LEDs/m (#3015-B)
- Roll-to-Roll Long Reel LED Strip Light (#16776)
- 2835 Roll-to-Roll Long Reel LED Strip Light (#16771)
- Multi-Line Three-Row High-Density LED LED Strip Light (#16706)
- 2835 S-Bend LED Strip High-Efficiency LED Strip Light (#19071)
See every model in SMD LED Strip Series or narrow to 2835. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 16779?
16779: 2835, 120 LEDs/m, 24V, 5 PCB, 2oz copper FPCB, cuttable 1LED/8.333mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
What makes the construction of this roll to roll LED strip different?
It is built as a roll to roll LED strip on 2oz copper FPCB with a cutting unit of 1LED/8.333mm and an LED pitch of 8.333mm, so it holds its electrical and mechanical performance where standard strips fail.
Can DENO customise this roll to roll LED strip for a project?
Yes. DENO manufactures the Roll-to-Roll SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
How long can this LED strip roll run in one continuous piece?
This model ships as a continuous roll-to-roll reel with no mid-reel solder joints, so custom single runs beyond the standard 5 m are available. Keep the run within a 3% voltage drop: lower power densities support up to 20 m single-end, higher densities need a both-ends or mid-feed connection. Use the DENO ProCalc voltage-drop tool to confirm the exact limit for your length.
Why choose a roll-to-roll strip over a standard 5 m LED strip reel?
The electroplated continuous FPCB keeps copper thickness uniform along the whole reel, so resistance stays low, brightness stays even end to end, and there are no pieced solder points that can fail during bending or long-run installation.
Engineering & selection guide
Bending limits, IP selection, voltage drop, cutting and the full buyer Q&A for this family are kept on the series page.
- Roll-to-Roll LED strip rolls series — Roll-to-Roll (R2R) LED Strip — Buyer Questions
- LED strip engineering selection handbook
