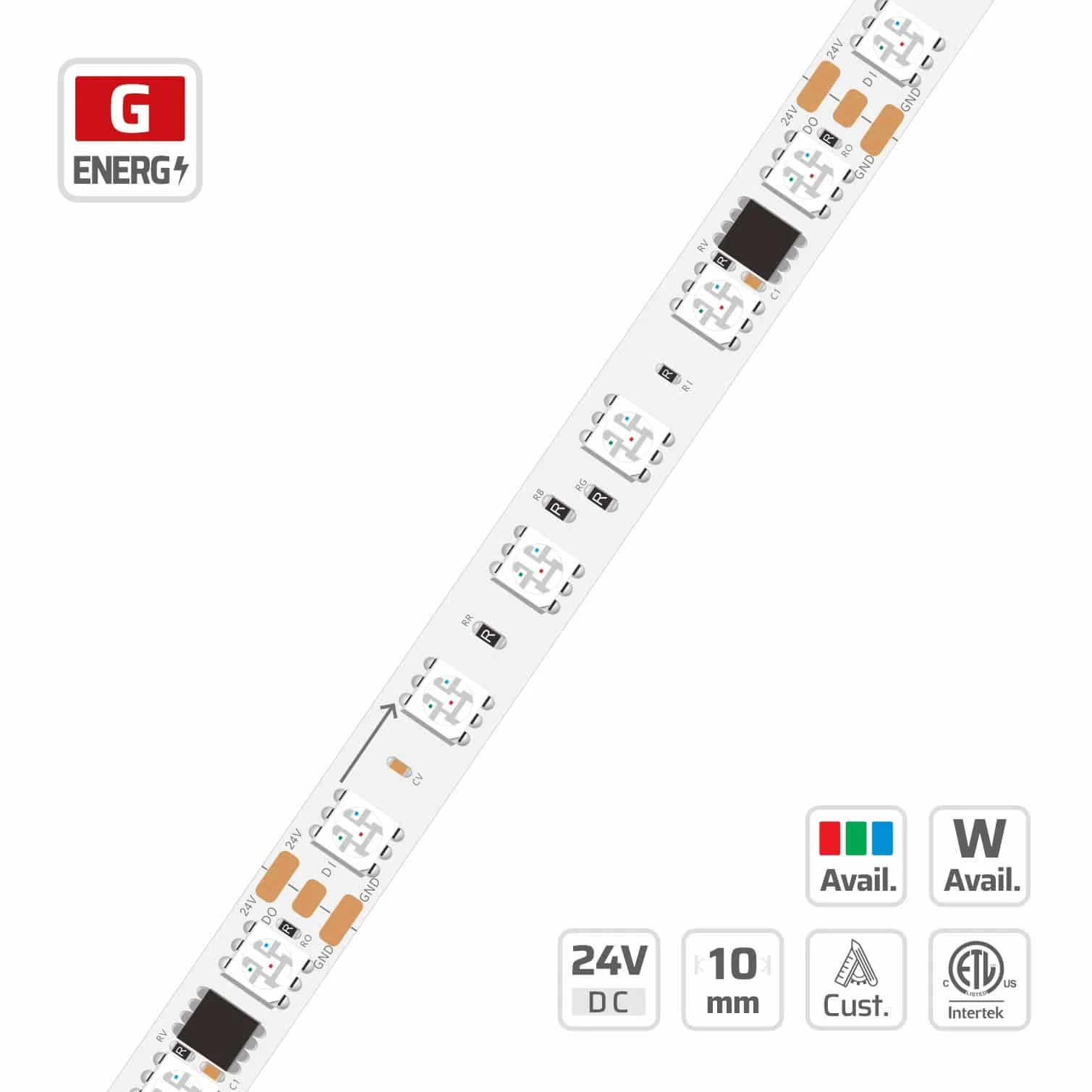

5050 Digital RGB LED Strip Light. (#16029)
10mm · 24V · 72LEDs · 83.333mm/cut
Model: 16029
Overview
5050 Digital RGB LED Strip Light. | 10mm | 24V | 72LEDs | 83.333mm/cut | #16029 is part of the DENO Pixel SMD Strips series, engineered around pixel addressable LED strip. Key specifications: 5050, 72, 24V, 10 PCB, 3oz copper FPCB, cuttable 6LEDs/83.333mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
5050 Digital RGB LED Strip Light. | 10mm | 24V | 72LEDs | 83.333mm/cut | #16029 6 LEDs/pixel, 12 pixels per meter. Wide range of RGB SPI signal controllers on the market. As long as the depth of the installation area reaches 15mm, with the diffuser, it can realize the flowing light tracing. Easy installation and multiple control methods. Color, brightness, mode can be remotely controlled by remote control.
Rgb Led Strip Lights built for rgb smd strips projects.
Specifications
| LED QTY | 72 |
|---|---|
| PART NO | DL-F50A36V24-16029-* |
| SMD TYPE | 5050 |
| CUTTABLE UNIT | 6LEDs/83.333mm |
| DIMMABLE | Yes |
| LED PITCH | 13.889mm |
| LIFESPAN | 50000 |
| PCB WIDTH | 10 |
| WARRANTY | 3 Years |
| BEAM ANGLE | 120° |
| LENGTH MAX | 5m |
| COPPER FOIL | 3oz |
| POWER RANGE | 3~18W |
| CIRCUIT TYPE | C.C. |
| INPUT VOLTAGE | 24V |
| OPERATING TEMPERATURE | -25~40°C;Tc: 75°C (max) |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Entertainment & media-facade colour scenes — Entertainment venues, media facades, gaming rooms and branded retail installs driven by DMX/SPI or standard RGB controllers.
Request a quotation for #16029
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Related models in this series
- 5050 RGBW LED Strip Light (#7828)
- 5050 RGB LED Strip Light (#16936)
- 5050 RGBWW LED Strip Light (#11341)
- 5050 RGB LED Strip Light (#1495)
- 5050 RGBW LED Strip Light (#2432)
- 5050 RGBW LED Strip Light (#16937)
- Super Bright 5050 RGB LED Strip Light (#2496)
- 5050 RGBW PU LED Strip Light (#5326-PU)
See every model in SMD LED Strip Series or narrow to 5050. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 16029?
16029: 5050, 72, 24V, 10 PCB, 3oz copper FPCB, cuttable 6LEDs/83.333mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
What colour temperatures and CRI options does this pixel addressable LED strip offer?
This model is supplied as a pixel addressable LED strip with high CRI options and the CCT range listed in the datasheet. DENO bins every batch for colour consistency, and custom CCT or spectrum combinations can be produced for project quantities.
Can DENO customise this pixel addressable LED strip for a project?
Yes. DENO manufactures the Pixel SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
Should you choose RGB or RGBW LED strip lights?
RGB LED strip lights mix colour but produce a weak, tinted white. If the installation also needs usable white light for everyday use, choose RGBW or RGBCCT, which adds a dedicated white chip. Pure RGB is best where the strip is only ever a colour accent.
What pixel pitch should an addressable LED strip use?
Pixel pitch sets how smooth an animation looks. For video-style content behind a diffuser, 60 to 144 pixels per metre is typical; for architectural chase effects seen from a distance, 30 pixels per metre is enough. DENO supplies WS2812B, SK6812 and DMX-compatible ICs on 5V, 12V and 24V.
Addressable LED Strip — Buyer Questions
What is an addressable LED strip?
An addressable (pixel) LED strip carries a driver IC for each LED or short segment, so every pixel can be set to its own colour and brightness over a single data line. It is used for signage, media facades, stair effects, studio and stage lighting where a plain RGB run cannot produce movement or gradients.
- Series pixel addressable LED strip series
- Related series standard RGB LED strip lights for single-colour zones
- Related series built-in IC LED strip with per-segment drive
WS2812B vs WS2815 vs SK6812 — which addressable LED strip should I use?
WS2812B is the 5V baseline, cheapest and best for short USB or prop runs. WS2815 is 12V with a backup data line, so a failed pixel does not kill the rest of the run — the usual choice for architectural installs. SK6812 adds a real white die (RGBW) for projects that also need clean ambient white.
How many pixels per metre can an addressable LED strip have?
DENO builds addressable layouts from 30 pixels/m up to 700 pixels/m. Above roughly 240 pixels/m the tape reads as a continuous animated line rather than individual points, which is what signage and media-facade work needs at close viewing distance.
- Series pixel addressable LED strip series
- Related series high density LED strip densities up to 700 LEDs/m
- Related series narrow pixel boards for slim reveals
How long can an addressable LED strip run be?
The limit is data timing and current, not the tape itself. Keep an SPI data segment under about 5 m before re-amplifying, inject power every 2–5 m depending on voltage and density, and prefer 12V or 24V pixel builds for long architectural runs. DENO adds breakout points at every cut unit so power and data injection do not require cutting the run apart.
- Series pixel addressable LED strip series
- Guide plan power injection for long pixel runs
- Related series long LED strip lights for 20 m+ runs
- Product 11341 24V addressable LED strip
Can an addressable LED strip be driven by DMX?
Yes, through an SPI decoder that converts DMX512 or Art-Net into the strip's clockless protocol, or by specifying a DMX-native pixel IC on an OEM build. For architectural control systems DENO usually recommends a 12V/24V pixel board plus a DMX-to-SPI decoder per zone.
Can I order a custom addressable LED strip?
Yes — pixel pitch, IC type, voltage, segment length, PCB width, copper weight and IP class are all configurable. DENO tools custom pixel layouts, including mixed pixel/static zones on one board, from its existing FPCB stack-ups.
RGB LED Strip Lights — Buyer Questions
What is the difference between RGB and RGBW LED strip lights?
An RGB LED strip mixes red, green and blue dies to produce colour, and its 'white' is a mix that always carries a colour cast. RGBW LED strip lights add a dedicated white die — 2700K to 6500K, Ra 90+ — so the same run can deliver usable architectural white and saturated colour scenes without a second channel of tape.
- Series RGB LED strip lights series
- Related series RGBW LED strip lights with dedicated white channel
- Related series full spectrum LED strip for high-CRI white
- Product 16937 RGBW LED strip
Should I use a 12V or 24V RGB LED strip?
24V is the default for architectural work: at the same wattage it draws half the current of 12V, so a single feed covers 5–10 m without visible colour shift at the far end. 12V RGB LED strip is reserved for short cabinet, furniture and vehicle runs where the driver or controller is 12V-native.
- Series RGB LED strip lights series
- Guide check voltage drop on a 12V vs 24V RGB run
- Related series constant current RGB boards for long feeds
- Product 1495 24V RGB LED strip
How is an RGB LED strip controlled — DMX, DALI or a standard controller?
Common RGB tape is a 4-pin constant-voltage load, so it works with any PWM controller: standard RF/Wi-Fi controllers, 0–10V, DALI DT8 or DMX512 decoders. Choose a driver and decoder with at least 1 kHz PWM (16 kHz for camera-facing work) to keep the run flicker-free on video.
- Series RGB LED strip lights series
- Related series pixel addressable LED strip for per-LED control
- Guide flicker, Pst LM and SVM reference data
- Product 16936 RGB LED strip
