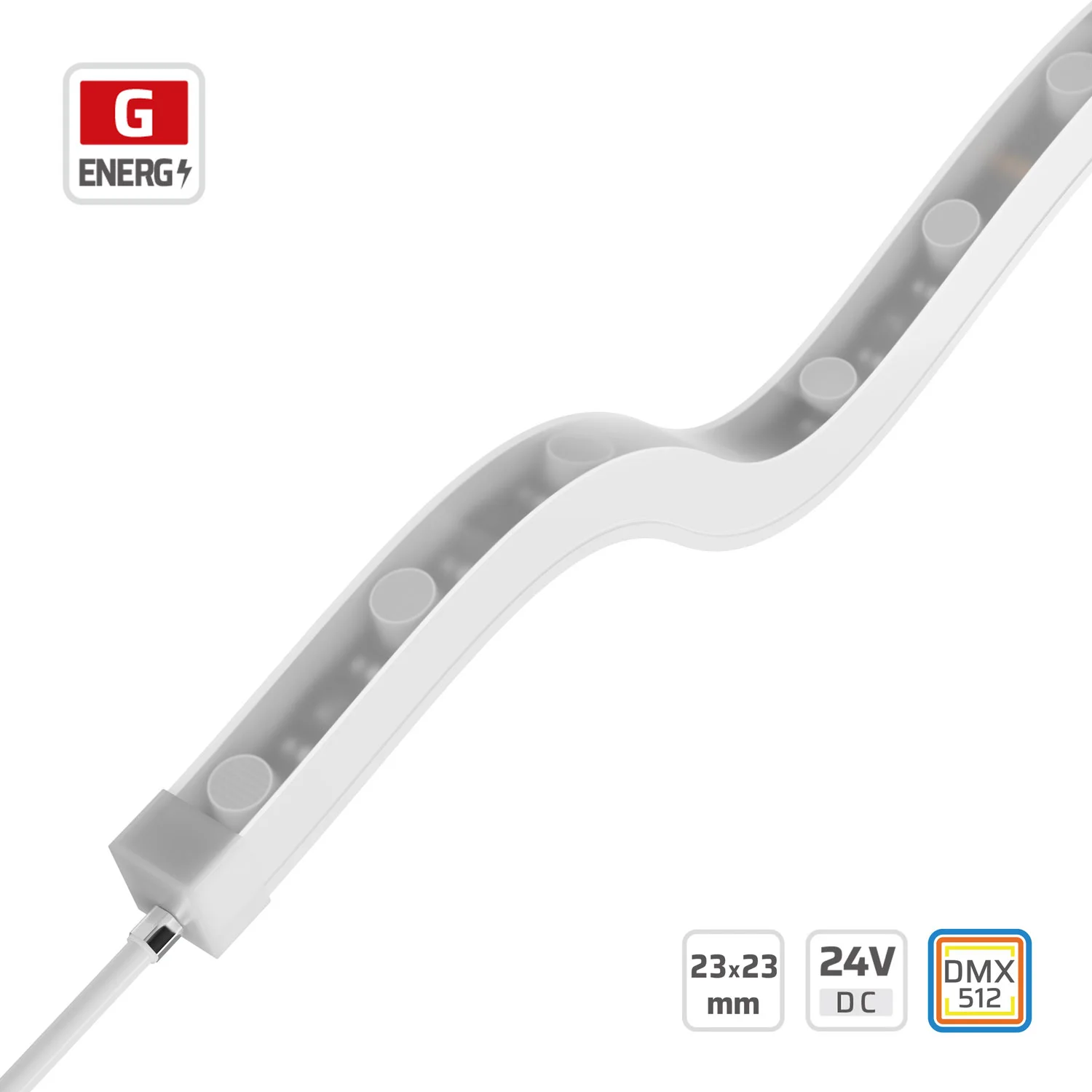

2323 DMX512 RGBW Flexible Wall Washer Light (#15558)
24V · 24LEDs · 270mm/cut · 23*23mm
Model: 15558
Overview
The DENO LED model 15558 is a high-performance 23x23mm flexible wall washer designed for architectural and commercial lighting applications. Featuring DMX512 UCS512C4 addressable control, it enables intricate and dynamic lighting effects. Its innovative 3D flexible silicon-extruded design ensures easy concealment and resilience against environmental factors like UV, salt spray, and corrosion. With a 24V input and a lifespan of 50,000 hours, it offers reliable and long-lasti...
Description
Featuring addressable UCS512C4 IC control, this DMX512 RGBW flexible wall washer light creates dynamic color-changing effects for demanding architectural lighting installations. High-output 5054 LEDs deliver precise optical distributions with 35°, 45°, or 40*50° beam angle options for uniform surface illumination. Engineered with food-grade silicone extrusion, the 23x23mm profile resists UV radiation, salt spray, and environmental corrosion in harsh outdoor conditions. The 24V flexible wall washer light offers 270mm cutting increments alongside aluminum clips, channels, and keel frame accessories for wholesale project supply.
Specifications
| POWER (W/M) | 22 W/m |
|---|---|
| LED QTY | 24 |
| PART NO | DL-F50C12V24-15558-* |
| SMD TYPE | 5054 |
| CUTTABLE UNIT | 6LEDs/270mm |
| DIMMABLE | Yes |
| IP RATING | IP65 |
| LED PITCH | 45mm |
| LIFESPAN | 50000 |
| PCB WIDTH | 15mm |
| WARRANTY | 3 Years |
| BEAM ANGLE | 35° , 45° , 40*50° |
| RUN LENGTH | 5m |
| COPPER FOIL | 2oz |
| POWER RANGE | 22 W/m |
| CIRCUIT TYPE | C.C. |
| INPUT VOLTAGE | 24V |
| LUMINOUS FLUX | 61–1101 lm/m |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Damp and splash-prone areas (IP65) — IP65 protection covers covered outdoor soffits, bathrooms and kitchens where occasional water contact is expected.
- Entertainment & media-facade colour scenes — Entertainment venues, media facades, gaming rooms and branded retail installs driven by DMX/SPI or standard RGB controllers.
Request a quotation for #15558
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Related models in this series
See every model in Flexible Wall Washer Series or narrow to Rgbw. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the common applications for this DMX512 flexible wall washer?
This flexible wall washer is ideal for architectural lighting, facade illumination, retail displays, creative installations, and entertainment venues requiring dynamic, addressable RGBW effects.
Is this DMX512 flexible wall washer compatible with standard lighting control systems?
Yes, it uses DMX512 UCS512C4 protocol, ensuring broad compatibility with industry-standard DMX controllers and advanced lighting management systems.
What are the customization options available for project-specific requirements?
We offer customization for length, beam angle, and mounting solutions. Our sales team can assist with specific project needs and large-volume orders.
What certifications does this flexible wall washer hold, ensuring its quality and safety?
Our products meet international quality and safety standards. Specific certifications like CE and RoHS are available upon request to meet project compliance needs.
What are the key specifications of #15558?
2323 DMX512 RGBW Flexible Wall Washer Light | 23*23mm | 24V | 24LEDs | 270mm/cut | #15558: 5054 LEDs, 24, 24V, 15mm FPCB, 2oz copper foil, cut unit 6LEDs/270mm. Photometric files, wiring diagrams and test reports are available in the downloads block on this page.
