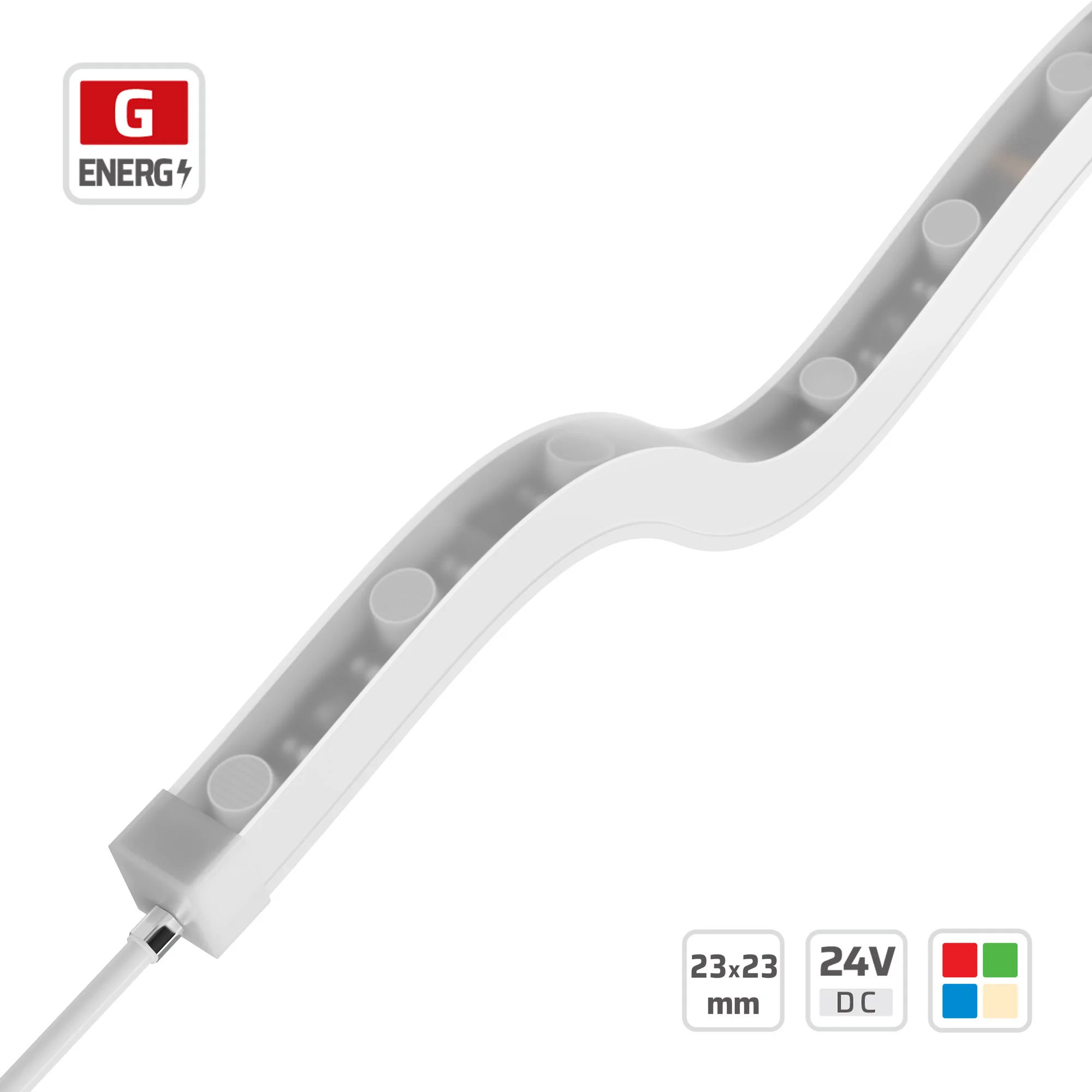

2323 RGBW Flexible Wall Washer LED (#15557)
24V · 24LEDs · 270mm/cut · 23*23mm
Model: 15557
Overview
The DENO LED model 15557 is a 23x23mm RGBW Flexible Wall Washer LED, designed for vibrant and dynamic lighting effects. Operating at 24V with 24 LEDs per cuttable segment, it's perfect for architectural, commercial, and decorative applications. Its 3D flexible design allows for easy concealment, while the lensed optics ensure uniform light distribution and superior wall-washing performance. With a maximum production length of 5 meters and a 3-year warranty, it's a reliable...
Description
2323 RGBW Flexible Wall Washer LED | 23*23mm | 24V | 24LEDs | 270mm/cut | #15557 Provides vibrant RGBW lighting effects, suitable for various decorative needs. 3D flexible design with comfortable dimension 23x23mm, allowing easy concealment. Lensed design ensures uniform light distribution and effective wall-washing. Proprietary optics deliver superior wall-washing performance, ensuring uniform illumination Maximum production length of 5000mm reduces connection frequency, improving installation efficiency. Applications: Ideal for parks, commercial spaces, stage lighting, exhibitions, and indoor decoration.
Specifications
| LED QTY | 24 |
|---|---|
| PART NO | DL-F50C12V24-15557-* |
| SMD TYPE | 5054 |
| CUTTABLE UNIT | 6LEDs/270mm |
| DIMMABLE | Yes |
| LED PITCH | 45mm |
| LIFESPAN | 50000 |
| PCB WIDTH | 15mm |
| WARRANTY | 3 Years |
| BEAM ANGLE | 35° , 45° , 45*50° |
| LENGTH MAX | 5m |
| COPPER FOIL | 2oz |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 24V |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Entertainment & media-facade colour scenes — Entertainment venues, media facades, gaming rooms and branded retail installs driven by DMX/SPI or standard RGB controllers.
Request a quotation for #15557
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Related models in this series
See every model in Flexible Wall Washer Series or narrow to Rgbw. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the common applications for the 15557 RGBW Flexible Wall Washer LED?
This flexible LED is ideal for parks, commercial spaces, stage lighting, exhibitions, and indoor decoration, providing vivid RGBW effects.
What input voltage does this flexible wall washer require and how is it cuttable?
The product operates on 24V input voltage. It is conveniently cuttable every 270mm, or 6 LEDs, making it adaptable for various project lengths.
What is the beam angle and maximum length for the 15557 model?
It offers versatile beam angles including 35°, 45°, and 45*50°. The maximum single production length is 5 meters, reducing installation time.
Are there customization options available for this flexible wall washer LED?
DENO LED offers customization for project-specific requirements, including lengths and optics, ensuring seamless integration into diverse B2B lighting designs.
What does the W channel add on an RGBW LED strip?
The fourth chip is a real white LED, so the strip delivers a clean 2700K to 6500K white at full efficacy instead of the pale tint produced by mixing red, green and blue. RGBCCT versions add a second white channel for tunable white control alongside colour.
What are the key specifications of #15557?
2323 RGBW Flexible Wall Washer LED | 23*23mm | 24V | 24LEDs | 270mm/cut | #15557: 5054 LEDs, 24, 24V, 15mm FPCB, 2oz copper foil, cut unit 6LEDs/270mm. Photometric files, wiring diagrams and test reports are available in the downloads block on this page.
RGBW LED Strip — Buyer Questions
What is an RGBW LED strip?
An RGBW LED strip carries a fourth, dedicated white die alongside the red, green and blue ones. The colour channels handle scenes and accents while the white channel delivers real architectural light — 2700K to 6500K at Ra 90+ — so one run covers both jobs instead of mixing a bluish pseudo-white from RGB alone.
- Series RGBW LED strip lights series
- Related series three-channel RGB LED strip lights for colour-only zones
- Related series full spectrum boards behind the white channel
- Product 14903 RGBW LED strip
How do you connect and wire an RGBW LED strip?
RGBW tape is a five-pin constant-voltage load: one shared V+ and four PWM negatives (R, G, B, W). Match the pin order printed on the board to the decoder, keep the run on a single controller output, and wire multiple runs in parallel from the driver — never in series, which starves the far run and shifts its colour.
- Series RGBW LED strip lights series
- Guide plan parallel feeds for an RGBW run
- Related series constant current boards that hold colour over distance
- Product 15558 24V RGBW LED strip
Should I use 12V or 24V RGBW LED strip lights?
24V is the default for architectural work — at equal wattage it draws half the current, so a feed reaches 5–10 m before the white channel visibly warms and the colour mix drifts. 12V is kept for short cabinet, furniture and vehicle runs where the controller is 12V-native. For anything past 10 m, use a mid-feed or constant-current build.
- Series RGBW LED strip lights series
- Guide check voltage drop on a 12V vs 24V colour run
- Related series long-run layouts for continuous coves
What is the difference between 10mm and 12mm RGBW LED strips?
Width follows the package and the copper. A 10 mm board fits standard slim profiles and suits 4-in-1 packages such as 5050 RGBW; 12 mm gives room for wider copper pours or side-by-side RGB + white dies, which raises usable output and lowers junction temperature. DENO builds both, and narrower 8 mm versions where the channel demands it.
- Series RGBW LED strip lights series
- Related series narrow LED strip boards for slim reveals
- Guide copper weight, width and heat spreading
What are the brightest RGBW LED tape light options?
Output is set by die count and thermal headroom, not by the controller. DENO's high-output colour builds reach 24 W/m with 2 oz copper on 12 mm boards; 4-in-1 packages keep the four channels on one optical centre, while separate RGB + white layouts trade a small colour-mixing penalty for more white lumens.
Are there waterproof RGBW strip lights for outdoor use?
Yes — IP65 silicone-coated, IP67 sleeved and IP68 fully potted, plus DENO WAP™ conformal coating that stays clear and flexible rather than yellowing over UV exposure. Marine-grade terminations are available for dock, pool and yacht work where salt spray attacks the solder joints first.
- Series RGBW LED strip lights series
- Related series marine grade LED strip for exposed installations
- Related series DENO WAP™ conformal coating explained
Can I order a custom RGBW or RGB+CCT LED strip?
Yes. Channel layout (RGBW, RGBWW, RGB+CCT five-channel), white CCT and CRI, LED density, PCB width from 8 mm, copper weight, cut unit, IP class and connector are all configurable. DENO is the manufacturer, so a non-standard colour build is tooled from an existing FPCB stack-up instead of being quoted as a new product line.
- Series RGBW LED strip lights series
- Related series custom LED strip lights built to order
- Guide send a colour-channel specification to DENO
