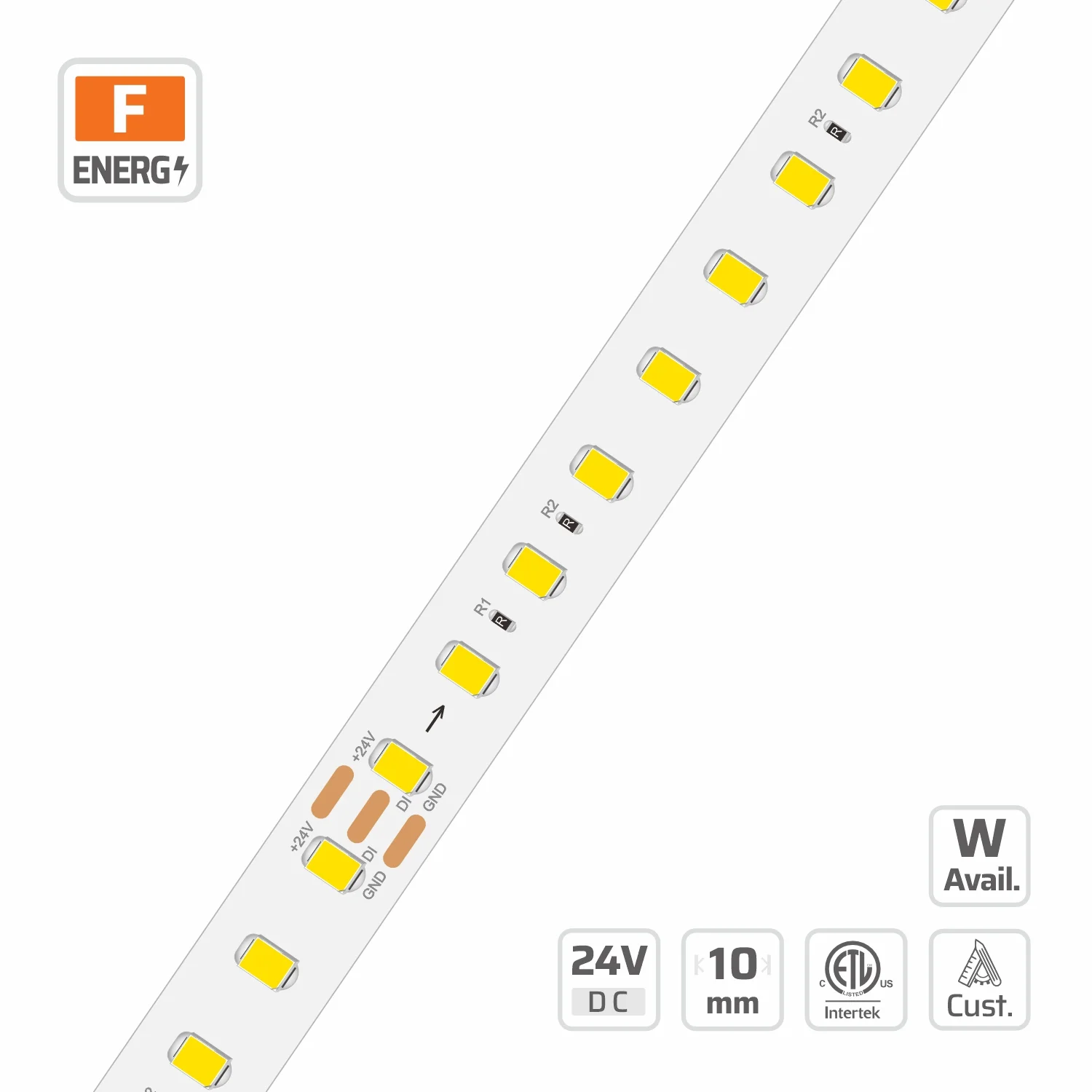

2835 Chasing Flow LED Strip Light (#10474)
10mm · 24V · 120LEDs · 125cut
Model: 10474
Overview
2835 Chasing Flow LED Strip Light | 10mm | 24V | 120LEDs | 125cut | #10474 is part of the DENO Pixel SMD Strips series, engineered around pixel addressable LED strip. Key specifications: 2835, 120, 24V, 10mm PCB, 3 oz copper FPCB, cuttable 15LEDs/125mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
This 2835 chasing flow LED strip light features integrated IC control to create smooth running water, curtain, and dynamic wave lighting effects. Engineered with 120 LEDs per meter and single-bin color consistency under 3 SDCM, it delivers uniform illumination with a 120-degree beam angle. The heavy-duty 3 oz copper 10mm PCB and 24V constant-current circuit support single-feed continuous run lengths up to 10m. Precise cutting increments of 125mm and a 60mm minimum bend diameter ensure adaptable mounting in custom architectural and cove lighting profiles. Built for stage, hospitality, and entertainment venue lighting, we offer reliable factory-direct production and wholesale project supply for global contractors.
We use 99.99% gold wire, large-size chips, and thickened FPCB, backed by a 5-year warranty.
Specifications
| CCT (K) | 1800–6500K |
|---|---|
| CRI | FS / Ra≥90 |
| SDCM | < 3 SDCM (Single Bin) |
| POWER (W/M) | 10 W/m |
| LED QTY | 120 |
| PART NO | DL-F28A60V24-10474-* |
| SMD TYPE | 2835 |
| CUTTABLE UNIT | 15LEDs/125mm |
| DIMMABLE | Yes |
| IP RATING | IP20 |
| LED PITCH | 8.3mm |
| PCB WIDTH | 10mm |
| WARRANTY | 5 Years |
| BEAM ANGLE | 120° |
| RUN LENGTH | 10m |
| COPPER FOIL | 3 oz |
| ON OFF TIMES | 10000 (test times) |
| POWER RANGE | 2~11.5W |
| CIRCUIT TYPE | C.C. |
| INPUT VOLTAGE | 24V |
| LUMINOUS FLUX | 657–889 lm/m |
| MIN BEND DIAMETER | Φ60mm |
| OPERATING TEMPERATURE | -25~40°C;Tc: 75°C (max) |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Entertainment & media-facade colour scenes — Entertainment venues, media facades, gaming rooms and branded retail installs driven by DMX/SPI or standard RGB controllers.
Recommended accessories & compatible parts
- DL-1003 — 19.1x8mm Surface Mount LED Channel — Dotless Aluminum Profile for 240 LEDs/m Strip: Accepts LED strips up to 10mm wide.
- DL-1103-1 — 16x13mm Surface Mount LED Channel — Aluminum Profile for 10mm LED Strip: Accepts LED strips up to 10mm wide.
- DL-1510 HX-F — 15x9.9mm Recessed LED Channel with Flange — Flush Mount Aluminum Profile: Accepts LED strips up to 10mm wide.
- DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.
Request a quotation for #10474
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 114.3 lm/W at 4000K, Ra 80, ErP energy class E (Grade DL (2nd Tier) · 5.8W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 5.8W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 87.2 lm/W | 505.6 lm/m | F | 69.5 lm/W | 403.3 lm/m | G | — | — | — |
| 2300 K | 97 lm/W | 562.7 lm/m | F | 77.4 lm/W | 449.1 lm/m | G | 62.7 lm/W | 363.7 lm/m | G |
| 2700 K | 101.5 lm/W | 588.8 lm/m | F | 83.8 lm/W | 485.9 lm/m | G | 67.9 lm/W | 393.7 lm/m | G |
| 3000 K | 109.1 lm/W | 632.9 lm/m | F | 88.2 lm/W | 511.5 lm/m | F | 71.7 lm/W | 415.8 lm/m | G |
| 3500 K | 110.9 lm/W | 643 lm/m | E | 89.7 lm/W | 520.4 lm/m | F | 73.8 lm/W | 428.2 lm/m | G |
| 4000 K | 114.3 lm/W | 663.2 lm/m | E | 91.9 lm/W | 532.9 lm/m | F | 75.9 lm/W | 440.1 lm/m | G |
| 5000 K | 114.2 lm/W | 662.6 lm/m | E | 91.8 lm/W | 532.3 lm/m | F | 75.7 lm/W | 439.1 lm/m | G |
| 6500 K | 104.3 lm/W | 604.9 lm/m | F | 88.1 lm/W | 510.9 lm/m | F | 73.1 lm/W | 424 lm/m | G |
Grade DL (2nd Tier) · 7.7W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 86 lm/W | 662.3 lm/m | F | 68.6 lm/W | 528.3 lm/m | G | — | — | — |
| 2300 K | 95.7 lm/W | 737.1 lm/m | F | 76.4 lm/W | 588.3 lm/m | G | 61.9 lm/W | 476.6 lm/m | G |
| 2700 K | 100.2 lm/W | 771.4 lm/m | F | 82.7 lm/W | 636.6 lm/m | G | 67 lm/W | 515.8 lm/m | G |
| 3000 K | 107.7 lm/W | 829 lm/m | F | 87 lm/W | 670.1 lm/m | F | 70.7 lm/W | 544.6 lm/m | G |
| 3500 K | 109.4 lm/W | 842.3 lm/m | F | 88.5 lm/W | 681.8 lm/m | F | 72.9 lm/W | 561 lm/m | G |
| 4000 K | 112.8 lm/W | 868.8 lm/m | E | 90.7 lm/W | 698.1 lm/m | F | 74.9 lm/W | 576.6 lm/m | G |
| 5000 K | 112.7 lm/W | 868 lm/m | E | 90.6 lm/W | 697.4 lm/m | F | 74.7 lm/W | 575.2 lm/m | G |
| 6500 K | 102.9 lm/W | 792.4 lm/m | F | 86.9 lm/W | 669.3 lm/m | F | 72.1 lm/W | 555.2 lm/m | G |
Grade DL (2nd Tier) · 10W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 84.6 lm/W | 846.3 lm/m | G | 67.5 lm/W | 675.1 lm/m | G | — | — | — |
| 2300 K | 94.2 lm/W | 941.9 lm/m | F | 75.2 lm/W | 751.7 lm/m | G | 60.9 lm/W | 609 lm/m | G |
| 2700 K | 98.6 lm/W | 985.7 lm/m | F | 81.3 lm/W | 813.5 lm/m | G | 65.9 lm/W | 659.1 lm/m | G |
| 3000 K | 105.9 lm/W | 1059.4 lm/m | F | 85.6 lm/W | 856.3 lm/m | F | 69.6 lm/W | 696 lm/m | G |
| 3500 K | 107.6 lm/W | 1076.3 lm/m | F | 87.1 lm/W | 871.2 lm/m | F | 71.7 lm/W | 716.9 lm/m | G |
| 4000 K | 111 lm/W | 1110.2 lm/m | E | 89.2 lm/W | 892.1 lm/m | F | 73.7 lm/W | 736.8 lm/m | G |
| 5000 K | 110.9 lm/W | 1109.2 lm/m | E | 89.1 lm/W | 891.1 lm/m | F | 73.5 lm/W | 735 lm/m | G |
| 6500 K | 101.3 lm/W | 1012.6 lm/m | F | 85.5 lm/W | 855.3 lm/m | F | 71 lm/W | 710 lm/m | G |
Grade DL (2nd Tier) · 11.5W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 83.7 lm/W | 963.1 lm/m | G | 66.8 lm/W | 768.2 lm/m | G | — | — | — |
| 2300 K | 93.2 lm/W | 1071.8 lm/m | F | 74.4 lm/W | 855.4 lm/m | G | 60.3 lm/W | 693.5 lm/m | G |
| 2700 K | 97.5 lm/W | 1121.7 lm/m | F | 80.5 lm/W | 925.7 lm/m | G | 65.2 lm/W | 750.1 lm/m | G |
| 3000 K | 104.8 lm/W | 1205.5 lm/m | F | 84.7 lm/W | 974.4 lm/m | G | 68.9 lm/W | 792 lm/m | G |
| 3500 K | 106.5 lm/W | 1224.8 lm/m | F | 86.2 lm/W | 991.4 lm/m | F | 70.9 lm/W | 815.8 lm/m | G |
| 4000 K | 109.9 lm/W | 1263.3 lm/m | F | 88.3 lm/W | 1015.2 lm/m | F | 72.9 lm/W | 838.4 lm/m | G |
| 5000 K | 109.8 lm/W | 1262.2 lm/m | F | 88.2 lm/W | 1014.1 lm/m | F | 72.7 lm/W | 836.1 lm/m | G |
| 6500 K | 100.2 lm/W | 1152.3 lm/m | F | 84.6 lm/W | 973.3 lm/m | G | 70.2 lm/W | 807.3 lm/m | G |
Grade KE (3rd Tier) · 5.8W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 86.4 lm/W | 501.4 lm/m | F | 68.9 lm/W | 399.7 lm/m | G | — | — | — |
| 2300 K | 96.4 lm/W | 559.1 lm/m | F | 76.8 lm/W | 445.5 lm/m | G | 62.2 lm/W | 360.8 lm/m | G |
| 2700 K | 103.9 lm/W | 602.5 lm/m | F | 83.4 lm/W | 483.6 lm/m | G | 67.6 lm/W | 392 lm/m | G |
| 3000 K | 109.1 lm/W | 632.9 lm/m | F | 88.2 lm/W | 511.5 lm/m | F | 71.7 lm/W | 415.8 lm/m | G |
| 3500 K | 110.8 lm/W | 642.4 lm/m | E | 89.9 lm/W | 521.6 lm/m | F | 73.9 lm/W | 428.8 lm/m | G |
| 4000 K | 113.9 lm/W | 660.8 lm/m | E | 91.8 lm/W | 532.3 lm/m | F | 75.8 lm/W | 439.5 lm/m | G |
| 5000 K | 113.8 lm/W | 660.2 lm/m | E | 91.8 lm/W | 532.3 lm/m | F | 75.7 lm/W | 439.1 lm/m | G |
| 6500 K | 109.1 lm/W | 632.9 lm/m | F | 88.1 lm/W | 510.9 lm/m | F | 73.1 lm/W | 424 lm/m | G |
Grade KE (3rd Tier) · 7.7W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 85.3 lm/W | 656.8 lm/m | F | 68 lm/W | 523.6 lm/m | G | — | — | — |
| 2300 K | 95.1 lm/W | 732.4 lm/m | F | 75.8 lm/W | 583.6 lm/m | G | 61.4 lm/W | 472.8 lm/m | G |
| 2700 K | 102.5 lm/W | 789.3 lm/m | F | 82.3 lm/W | 633.5 lm/m | G | 66.7 lm/W | 513.5 lm/m | G |
| 3000 K | 107.7 lm/W | 829 lm/m | F | 87 lm/W | 670.1 lm/m | F | 70.7 lm/W | 544.6 lm/m | G |
| 3500 K | 109.3 lm/W | 841.5 lm/m | F | 88.7 lm/W | 683.3 lm/m | F | 73 lm/W | 561.8 lm/m | G |
| 4000 K | 112.4 lm/W | 865.6 lm/m | E | 90.6 lm/W | 697.4 lm/m | F | 74.8 lm/W | 575.8 lm/m | G |
| 5000 K | 112.3 lm/W | 864.9 lm/m | E | 90.6 lm/W | 697.4 lm/m | F | 74.7 lm/W | 575.2 lm/m | G |
| 6500 K | 107.7 lm/W | 829 lm/m | F | 86.9 lm/W | 669.3 lm/m | F | 72.1 lm/W | 555.2 lm/m | G |
Grade KE (3rd Tier) · 10W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 83.9 lm/W | 839.4 lm/m | G | 66.9 lm/W | 669.1 lm/m | G | — | — | — |
| 2300 K | 93.6 lm/W | 935.9 lm/m | F | 74.6 lm/W | 745.8 lm/m | G | 60.4 lm/W | 604 lm/m | G |
| 2700 K | 100.9 lm/W | 1008.6 lm/m | F | 80.9 lm/W | 809.5 lm/m | G | 65.6 lm/W | 656.2 lm/m | G |
| 3000 K | 105.9 lm/W | 1059.4 lm/m | F | 85.6 lm/W | 856.3 lm/m | F | 69.6 lm/W | 696 lm/m | G |
| 3500 K | 107.5 lm/W | 1075.3 lm/m | F | 87.3 lm/W | 873.2 lm/m | F | 71.8 lm/W | 717.9 lm/m | G |
| 4000 K | 110.6 lm/W | 1106.2 lm/m | E | 89.1 lm/W | 891.1 lm/m | F | 73.6 lm/W | 735.8 lm/m | G |
| 5000 K | 110.5 lm/W | 1105.2 lm/m | E | 89.1 lm/W | 891.1 lm/m | F | 73.5 lm/W | 735 lm/m | G |
| 6500 K | 105.9 lm/W | 1059.4 lm/m | F | 85.5 lm/W | 855.3 lm/m | F | 71 lm/W | 710 lm/m | G |
Grade KE (3rd Tier) · 11.5W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 83.1 lm/W | 955.1 lm/m | G | 66.2 lm/W | 761.4 lm/m | G | — | — | — |
| 2300 K | 92.6 lm/W | 1065.1 lm/m | F | 73.8 lm/W | 848.6 lm/m | G | 59.8 lm/W | 687.7 lm/m | G |
| 2700 K | 99.8 lm/W | 1147.8 lm/m | F | 80.1 lm/W | 921.2 lm/m | G | 64.9 lm/W | 746.7 lm/m | G |
| 3000 K | 104.8 lm/W | 1205.5 lm/m | F | 84.7 lm/W | 974.4 lm/m | G | 68.9 lm/W | 792 lm/m | G |
| 3500 K | 106.4 lm/W | 1223.7 lm/m | F | 86.4 lm/W | 993.7 lm/m | F | 71 lm/W | 816.9 lm/m | G |
| 4000 K | 109.5 lm/W | 1258.8 lm/m | F | 88.2 lm/W | 1014.1 lm/m | F | 72.8 lm/W | 837.3 lm/m | G |
| 5000 K | 109.4 lm/W | 1257.7 lm/m | F | 88.2 lm/W | 1014.1 lm/m | F | 72.7 lm/W | 836.1 lm/m | G |
| 6500 K | 104.8 lm/W | 1205.5 lm/m | F | 84.6 lm/W | 973.3 lm/m | G | 70.2 lm/W | 807.3 lm/m | G |
Grade DN (1st Tier) · 5.8W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 82.6 lm/W | 478.8 lm/m | G | 69.1 lm/W | 400.9 lm/m | G | — | — | — |
| 2300 K | 90 lm/W | 522.2 lm/m | G | 77.1 lm/W | 447.3 lm/m | G | 62.5 lm/W | 362.5 lm/m | G |
| 2700 K | 97 lm/W | 562.7 lm/m | F | 83.4 lm/W | 483.6 lm/m | G | 67.6 lm/W | 392 lm/m | G |
| 3000 K | 101.9 lm/W | 591.2 lm/m | F | 88.2 lm/W | 511.5 lm/m | G | 71.7 lm/W | 415.8 lm/m | G |
| 3500 K | 103.4 lm/W | 599.5 lm/m | F | 90 lm/W | 522.2 lm/m | G | 74.1 lm/W | 430 lm/m | G |
| 4000 K | 105.3 lm/W | 610.8 lm/m | F | 90.6 lm/W | 525.2 lm/m | G | 74.8 lm/W | 433.6 lm/m | G |
| 5000 K | 105.2 lm/W | 610.3 lm/m | F | 91.2 lm/W | 528.8 lm/m | G | 75.2 lm/W | 436.2 lm/m | G |
| 6500 K | 100.8 lm/W | 584.7 lm/m | F | 87.1 lm/W | 505 lm/m | G | 72.3 lm/W | 419.3 lm/m | G |
Grade DN (1st Tier) · 7.7W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 81.5 lm/W | 627.2 lm/m | G | 68.2 lm/W | 525.2 lm/m | G | — | — | — |
| 2300 K | 88.8 lm/W | 684.1 lm/m | G | 76.1 lm/W | 585.9 lm/m | G | 61.6 lm/W | 474.3 lm/m | G |
| 2700 K | 95.7 lm/W | 737.1 lm/m | F | 82.3 lm/W | 633.5 lm/m | G | 66.7 lm/W | 513.5 lm/m | G |
| 3000 K | 100.6 lm/W | 774.5 lm/m | F | 87 lm/W | 670.1 lm/m | G | 70.7 lm/W | 544.6 lm/m | G |
| 3500 K | 102 lm/W | 785.4 lm/m | F | 88.8 lm/W | 684.1 lm/m | G | 73.2 lm/W | 563.3 lm/m | G |
| 4000 K | 103.9 lm/W | 800.2 lm/m | F | 89.4 lm/W | 688 lm/m | G | 73.8 lm/W | 568 lm/m | G |
| 5000 K | 103.8 lm/W | 799.4 lm/m | F | 90 lm/W | 692.7 lm/m | G | 74.2 lm/W | 571.3 lm/m | G |
| 6500 K | 99.5 lm/W | 765.9 lm/m | F | 85.9 lm/W | 661.5 lm/m | G | 71.3 lm/W | 549 lm/m | G |
Grade DN (1st Tier) · 10W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 80.2 lm/W | 801.5 lm/m | G | 67.1 lm/W | 671.1 lm/m | G | — | — | — |
| 2300 K | 87.4 lm/W | 874.2 lm/m | G | 74.9 lm/W | 748.8 lm/m | G | 60.6 lm/W | 606 lm/m | G |
| 2700 K | 94.2 lm/W | 941.9 lm/m | F | 80.9 lm/W | 809.5 lm/m | G | 65.6 lm/W | 656.2 lm/m | G |
| 3000 K | 99 lm/W | 989.7 lm/m | F | 85.6 lm/W | 856.3 lm/m | G | 69.6 lm/W | 696 lm/m | G |
| 3500 K | 100.4 lm/W | 1003.6 lm/m | F | 87.4 lm/W | 874.2 lm/m | G | 72 lm/W | 719.9 lm/m | G |
| 4000 K | 102.3 lm/W | 1022.6 lm/m | F | 87.9 lm/W | 879.2 lm/m | G | 72.6 lm/W | 725.9 lm/m | G |
| 5000 K | 102.2 lm/W | 1021.6 lm/m | F | 88.5 lm/W | 885.2 lm/m | G | 73 lm/W | 730 lm/m | G |
| 6500 K | 97.9 lm/W | 978.8 lm/m | F | 84.5 lm/W | 845.3 lm/m | G | 70.2 lm/W | 702 lm/m | G |
Grade DN (1st Tier) · 11.5W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 79.3 lm/W | 912.1 lm/m | G | 66.4 lm/W | 763.7 lm/m | G | — | — | — |
| 2300 K | 86.5 lm/W | 994.8 lm/m | G | 74.1 lm/W | 852 lm/m | G | 60 lm/W | 690 lm/m | G |
| 2700 K | 93.2 lm/W | 1071.8 lm/m | F | 80.1 lm/W | 921.2 lm/m | G | 64.9 lm/W | 746.7 lm/m | G |
| 3000 K | 97.9 lm/W | 1126.2 lm/m | F | 84.7 lm/W | 974.4 lm/m | G | 68.9 lm/W | 792 lm/m | G |
| 3500 K | 99.3 lm/W | 1142.1 lm/m | F | 86.5 lm/W | 994.8 lm/m | G | 71.2 lm/W | 819.2 lm/m | G |
| 4000 K | 101.2 lm/W | 1163.6 lm/m | F | 87 lm/W | 1000.5 lm/m | G | 71.8 lm/W | 826 lm/m | G |
| 5000 K | 101.1 lm/W | 1162.5 lm/m | F | 87.6 lm/W | 1007.3 lm/m | G | 72.3 lm/W | 831.5 lm/m | G |
| 6500 K | 96.8 lm/W | 1113.8 lm/m | F | 83.6 lm/W | 961.9 lm/m | G | 69.4 lm/W | 798.1 lm/m | G |
Recommended LED Channels
Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.
This strip is 10mm wide, so it needs a channel with at least 12mm inner width (10mm + 2mm clearance). Every profile below meets that.
Frequently Asked Questions
What are the key specifications of 10474?
10474: 2835, 120, 24V, 10mm PCB, 3 oz copper FPCB, cuttable 15LEDs/125mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
What colour temperatures and CRI options does this pixel addressable LED strip offer?
This model is supplied as a pixel addressable LED strip with high CRI options and the CCT range listed in the datasheet. DENO bins every batch for colour consistency, and custom CCT or spectrum combinations can be produced for project quantities.
Can DENO customise this pixel addressable LED strip for a project?
Yes. DENO manufactures the Pixel SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
What pixel pitch should an addressable LED strip use?
Pixel pitch sets how smooth an animation looks. For video-style content behind a diffuser, 60 to 144 pixels per metre is typical; for architectural chase effects seen from a distance, 30 pixels per metre is enough. DENO supplies WS2812B, SK6812 and DMX-compatible ICs on 5V, 12V and 24V.
Which LED driver and run length suit #10474?
2835 Chasing Flow LED Strip Light | 10mm | 24V | 120LEDs | 125cut | #10474 is a constant-voltage 24V product, so pair it with a CE or UL listed 24V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 10m. 10m Single/20m Dual Input power. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.
