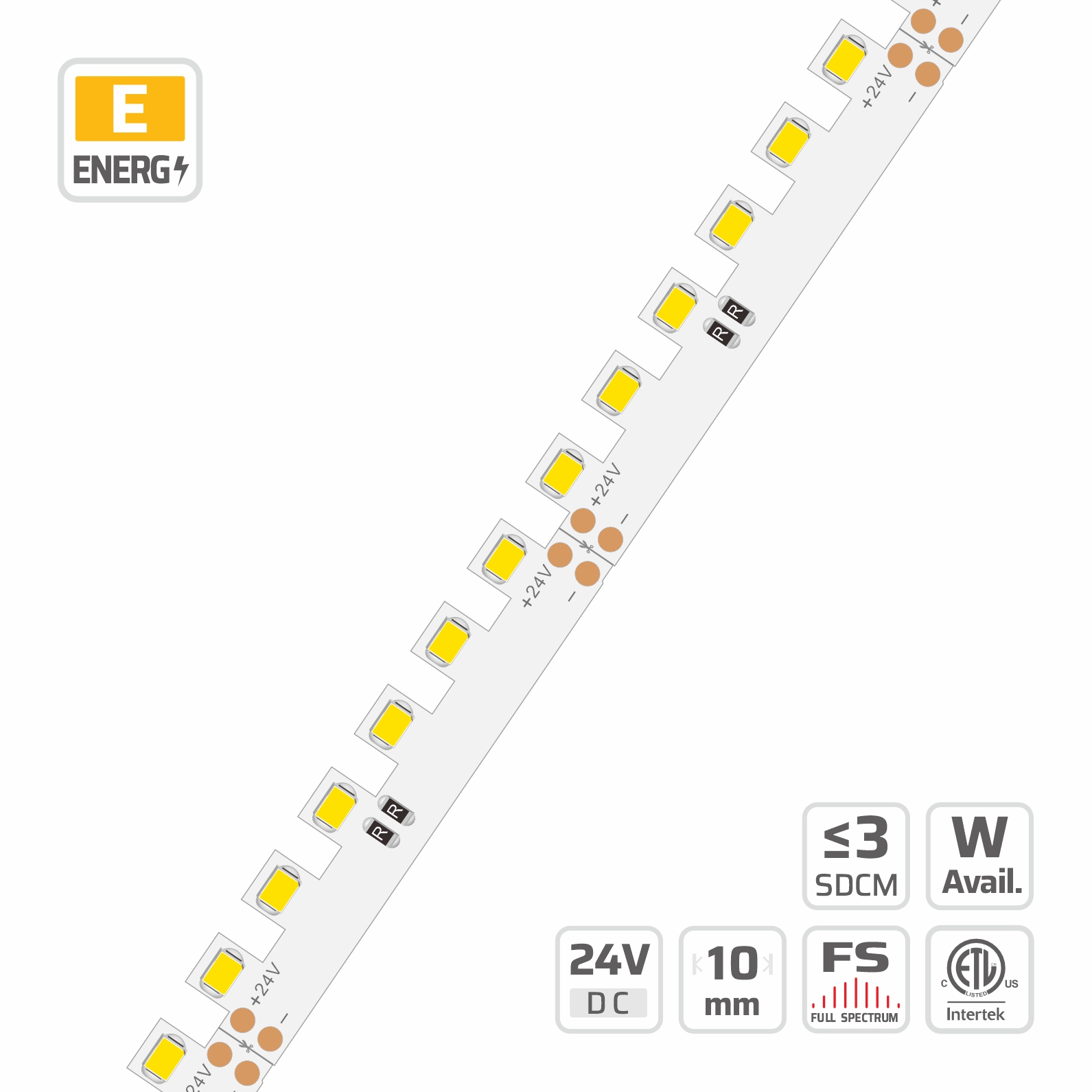

2835 S-Bend LED Strip Light (#10457)
10mm · 24V · 120LEDs · 50cut
Model: 10457
Overview
2835 S-Bend LED Strip Light | 10mm | 24V | 120LEDs | 50cut | #10457 is part of the DENO S-Bend SMD Strips series, engineered around S-bend flexible LED strip. Key specifications: 2835, 120 LEDs/m, 24V, 10mm PCB, 3 oz copper FPCB, cuttable 6LEDs/50mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
2835 S-Bend LED Strip Light | 10mm | 24V | 120LEDs | 50cut | #10457 Adopt pure copper strong LED frame, 99.9% purity diameter> 1 mm pure golden wire encapsulation, can reduce the LED damage in different applications.
S-Bend Flexible Led Strip built for s-bend smd strips projects.
Specifications
| LED QTY | 120 LEDs/m |
|---|---|
| PART NO | DL-F28A60V24-10457-* |
| SMD TYPE | 2835 |
| CUTTABLE UNIT | 6LEDs/50mm |
| DIMMABLE | Yes |
| LED PITCH | 8.33mm |
| PCB WIDTH | 10mm |
| BEAM ANGLE | 120° |
| LENGTH MAX | 5m |
| COPPER FOIL | 3 oz |
| ON OFF TIMES | 10000（test times） |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 24V |
| MIN BEND DIAMETER | Φ60mm |
| OPERATING TEMPERATURE | -25~40°C;Tc: 75°C (max) |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
Request a quotation for #10457
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 152.3 lm/W at 4000K, Ra 80, ErP energy class D (Grade DN (1st Tier)).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 108.6 lm/W | 1564.2 lm/m | F | 86.9 lm/W | 1251.9 lm/m | F | — | — | — |
| 2300 K | 120.8 lm/W | 1740.2 lm/m | E | 96.8 lm/W | 1393.9 lm/m | F | 78.4 lm/W | 1129 lm/m | G |
| 2700 K | 127.4 lm/W | 1833.9 lm/m | E | 104.8 lm/W | 1508.8 lm/m | F | 84.9 lm/W | 1222.1 lm/m | G |
| 3000 K | 136 lm/W | 1958.8 lm/m | D | 110.3 lm/W | 1588.3 lm/m | E | 89.7 lm/W | 1291.7 lm/m | F |
| 3500 K | 138.1 lm/W | 1988.6 lm/m | D | 112.3 lm/W | 1616.7 lm/m | E | 92.4 lm/W | 1330 lm/m | F |
| 4000 K | 142.5 lm/W | 2052.5 lm/m | D | 114.9 lm/W | 1655 lm/m | E | 94.8 lm/W | 1365.5 lm/m | F |
| 5000 K | 142.4 lm/W | 2051.1 lm/m | D | 114.8 lm/W | 1653.6 lm/m | E | 94.7 lm/W | 1363.7 lm/m | F |
| 6500 K | 130.3 lm/W | 1876.5 lm/m | E | 110.2 lm/W | 1586.9 lm/m | E | 91.5 lm/W | 1317.6 lm/m | F |
Grade DL (2nd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 105 lm/W | 2016.4 lm/m | F | 84.1 lm/W | 1613.9 lm/m | G | — | — | — |
| 2300 K | 116.8 lm/W | 2243.3 lm/m | E | 93.6 lm/W | 1796.9 lm/m | F | 75.8 lm/W | 1455.4 lm/m | G |
| 2700 K | 123.1 lm/W | 2364.1 lm/m | E | 101.3 lm/W | 1945.1 lm/m | F | 82.1 lm/W | 1575.5 lm/m | G |
| 3000 K | 131.5 lm/W | 2525.1 lm/m | E | 106.6 lm/W | 2047.5 lm/m | F | 86.7 lm/W | 1665.1 lm/m | F |
| 3500 K | 133.5 lm/W | 2563.5 lm/m | E | 108.5 lm/W | 2084.1 lm/m | F | 89.3 lm/W | 1714.5 lm/m | F |
| 4000 K | 137.8 lm/W | 2645.9 lm/m | D | 111.1 lm/W | 2133.5 lm/m | E | 91.7 lm/W | 1760.3 lm/m | F |
| 5000 K | 137.7 lm/W | 2644.1 lm/m | D | 111 lm/W | 2131.7 lm/m | E | 91.6 lm/W | 1758.7 lm/m | F |
| 6500 K | 126 lm/W | 2419 lm/m | E | 106.5 lm/W | 2045.7 lm/m | F | 88.4 lm/W | 1697.3 lm/m | F |
Grade DL (2nd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 103.3 lm/W | 2230.6 lm/m | F | 82.7 lm/W | 1785.3 lm/m | G | — | — | — |
| 2300 K | 114.9 lm/W | 2481.6 lm/m | E | 92 lm/W | 1987.7 lm/m | F | 74.5 lm/W | 1609.2 lm/m | G |
| 2700 K | 121.1 lm/W | 2615.2 lm/m | E | 99.6 lm/W | 2151.6 lm/m | F | 80.7 lm/W | 1742.8 lm/m | G |
| 3000 K | 129.3 lm/W | 2793.3 lm/m | E | 104.9 lm/W | 2265 lm/m | F | 85.3 lm/W | 1841.9 lm/m | F |
| 3500 K | 131.3 lm/W | 2835.8 lm/m | E | 106.7 lm/W | 2305.5 lm/m | F | 87.8 lm/W | 1896.6 lm/m | F |
| 4000 K | 135.5 lm/W | 2926.9 lm/m | D | 109.3 lm/W | 2360.1 lm/m | F | 90.1 lm/W | 1947.2 lm/m | F |
| 5000 K | 135.4 lm/W | 2924.8 lm/m | D | 109.2 lm/W | 2358.1 lm/m | F | 90.1 lm/W | 1946.2 lm/m | F |
| 6500 K | 123.9 lm/W | 2675.9 lm/m | E | 104.8 lm/W | 2263 lm/m | F | 87 lm/W | 1879.2 lm/m | F |
Grade DL (2nd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 101.5 lm/W | 2437 lm/m | F | 81.3 lm/W | 1950.5 lm/m | G | — | — | — |
| 2300 K | 113 lm/W | 2711.2 lm/m | E | 90.5 lm/W | 2171.6 lm/m | F | 73.3 lm/W | 1759.2 lm/m | G |
| 2700 K | 119 lm/W | 2857.1 lm/m | E | 97.9 lm/W | 2350.7 lm/m | F | 79.3 lm/W | 1904 lm/m | G |
| 3000 K | 127.2 lm/W | 3051.8 lm/m | E | 103.1 lm/W | 2474.6 lm/m | F | 83.8 lm/W | 2012.4 lm/m | G |
| 3500 K | 129.1 lm/W | 3098.2 lm/m | E | 105 lm/W | 2518.8 lm/m | F | 86.3 lm/W | 2072.1 lm/m | F |
| 4000 K | 133.2 lm/W | 3197.7 lm/m | E | 107.4 lm/W | 2578.5 lm/m | F | 88.6 lm/W | 2127.4 lm/m | F |
| 5000 K | 133.1 lm/W | 3195.5 lm/m | E | 107.3 lm/W | 2576.3 lm/m | F | 88.6 lm/W | 2126.4 lm/m | F |
| 6500 K | 121.8 lm/W | 2923.5 lm/m | E | 103 lm/W | 2472.4 lm/m | F | 85.5 lm/W | 2052 lm/m | F |
Grade DN (1st Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 119.4 lm/W | 1718.9 lm/m | E | 100.4 lm/W | 1446.4 lm/m | F | — | — | — |
| 2300 K | 130.1 lm/W | 1873.6 lm/m | E | 112.1 lm/W | 1613.9 lm/m | F | 90.8 lm/W | 1307.5 lm/m | G |
| 2700 K | 140.3 lm/W | 2019.8 lm/m | E | 121.2 lm/W | 1745.9 lm/m | E | 98.3 lm/W | 1415.2 lm/m | F |
| 3000 K | 147.3 lm/W | 2120.6 lm/m | D | 128 lm/W | 1843.8 lm/m | E | 104.1 lm/W | 1498.9 lm/m | F |
| 3500 K | 149.5 lm/W | 2153.2 lm/m | D | 130.8 lm/W | 1883.6 lm/m | E | 107.6 lm/W | 1550 lm/m | F |
| 4000 K | 152.3 lm/W | 2193 lm/m | D | 131.6 lm/W | 1894.9 lm/m | E | 108.6 lm/W | 1564.2 lm/m | F |
| 5000 K | 152.1 lm/W | 2190.2 lm/m | D | 132.4 lm/W | 1906.3 lm/m | E | 109.2 lm/W | 1572.5 lm/m | F |
| 6500 K | 145.8 lm/W | 2099.3 lm/m | E | 126.6 lm/W | 1822.5 lm/m | E | 105 lm/W | 1512 lm/m | F |
Grade DN (1st Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 115.4 lm/W | 2215.9 lm/m | F | 97.1 lm/W | 1864.6 lm/m | F | — | — | — |
| 2300 K | 125.8 lm/W | 2415.3 lm/m | E | 108.4 lm/W | 2080.5 lm/m | F | 87.8 lm/W | 1685.8 lm/m | G |
| 2700 K | 135.6 lm/W | 2603.8 lm/m | E | 117.2 lm/W | 2250.7 lm/m | F | 95 lm/W | 1824.3 lm/m | F |
| 3000 K | 142.4 lm/W | 2733.7 lm/m | E | 123.8 lm/W | 2376.9 lm/m | E | 100.6 lm/W | 1932.3 lm/m | F |
| 3500 K | 144.6 lm/W | 2775.8 lm/m | E | 126.5 lm/W | 2428.1 lm/m | E | 104.1 lm/W | 1998.1 lm/m | F |
| 4000 K | 147.2 lm/W | 2827 lm/m | D | 127.2 lm/W | 2442.8 lm/m | E | 105 lm/W | 2016.4 lm/m | F |
| 5000 K | 147.1 lm/W | 2823.4 lm/m | D | 128 lm/W | 2457.4 lm/m | E | 105.6 lm/W | 2027.5 lm/m | F |
| 6500 K | 141 lm/W | 2706.3 lm/m | E | 122.4 lm/W | 2349.5 lm/m | E | 101.6 lm/W | 1950.7 lm/m | F |
Grade DN (1st Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 113.5 lm/W | 2451.2 lm/m | F | 95.5 lm/W | 2062.6 lm/m | F | — | — | — |
| 2300 K | 123.7 lm/W | 2671.8 lm/m | E | 106.5 lm/W | 2301.4 lm/m | F | 86.3 lm/W | 1864.1 lm/m | G |
| 2700 K | 133.3 lm/W | 2880.3 lm/m | E | 115.3 lm/W | 2489.7 lm/m | F | 93.4 lm/W | 2018 lm/m | F |
| 3000 K | 140 lm/W | 3024 lm/m | E | 121.7 lm/W | 2629.3 lm/m | E | 99 lm/W | 2137.5 lm/m | F |
| 3500 K | 142.2 lm/W | 3070.6 lm/m | E | 124.4 lm/W | 2686 lm/m | E | 102.3 lm/W | 2210.3 lm/m | F |
| 4000 K | 144.8 lm/W | 3127.3 lm/m | E | 125.1 lm/W | 2702.2 lm/m | E | 103.3 lm/W | 2230.6 lm/m | F |
| 5000 K | 144.6 lm/W | 3123.2 lm/m | E | 125.9 lm/W | 2718.4 lm/m | E | 103.8 lm/W | 2242.1 lm/m | F |
| 6500 K | 138.6 lm/W | 2993.7 lm/m | E | 120.3 lm/W | 2599 lm/m | E | 99.9 lm/W | 2157.8 lm/m | F |
Grade DN (1st Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 111.6 lm/W | 2678 lm/m | F | 93.9 lm/W | 2253.4 lm/m | F | — | — | — |
| 2300 K | 121.6 lm/W | 2919.1 lm/m | E | 104.8 lm/W | 2514.4 lm/m | F | 84.9 lm/W | 2037.6 lm/m | G |
| 2700 K | 131.1 lm/W | 3146.8 lm/m | E | 113.3 lm/W | 2720 lm/m | F | 91.9 lm/W | 2204.8 lm/m | F |
| 3000 K | 137.7 lm/W | 3303.9 lm/m | E | 119.7 lm/W | 2872.6 lm/m | E | 97.3 lm/W | 2335.3 lm/m | F |
| 3500 K | 139.8 lm/W | 3354.7 lm/m | E | 122.3 lm/W | 2934.5 lm/m | E | 100.6 lm/W | 2414.9 lm/m | F |
| 4000 K | 142.4 lm/W | 3416.6 lm/m | E | 123 lm/W | 2952.2 lm/m | E | 101.5 lm/W | 2437 lm/m | F |
| 5000 K | 142.2 lm/W | 3412.2 lm/m | E | 123.7 lm/W | 2969.9 lm/m | E | 102.1 lm/W | 2450.4 lm/m | F |
| 6500 K | 136.3 lm/W | 3270.7 lm/m | E | 118.3 lm/W | 2839.5 lm/m | F | 98.2 lm/W | 2356.8 lm/m | F |
Grade KE (3rd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 88.8 lm/W | 1278.9 lm/m | F | 70.9 lm/W | 1020.6 lm/m | G | — | — | — |
| 2300 K | 99 lm/W | 1425.1 lm/m | F | 79 lm/W | 1136.9 lm/m | G | 64 lm/W | 921.6 lm/m | G |
| 2700 K | 106.7 lm/W | 1535.8 lm/m | F | 85.7 lm/W | 1233.5 lm/m | F | 69.5 lm/W | 1000.7 lm/m | G |
| 3000 K | 112 lm/W | 1612.5 lm/m | E | 90.6 lm/W | 1304.4 lm/m | F | 73.6 lm/W | 1060.3 lm/m | G |
| 3500 K | 113.7 lm/W | 1636.6 lm/m | E | 92.4 lm/W | 1330 lm/m | F | 76 lm/W | 1094.4 lm/m | G |
| 4000 K | 117 lm/W | 1684.8 lm/m | E | 94.3 lm/W | 1358.4 lm/m | F | 77.9 lm/W | 1121.3 lm/m | G |
| 5000 K | 116.8 lm/W | 1682 lm/m | E | 94.3 lm/W | 1358.4 lm/m | F | 77.8 lm/W | 1120.3 lm/m | G |
| 6500 K | 112 lm/W | 1612.5 lm/m | E | 90.6 lm/W | 1304.4 lm/m | F | 75.2 lm/W | 1082.9 lm/m | G |
Grade KE (3rd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 85.9 lm/W | 1648.6 lm/m | F | 68.5 lm/W | 1315.6 lm/m | G | — | — | — |
| 2300 K | 95.7 lm/W | 1837.1 lm/m | F | 76.3 lm/W | 1465.7 lm/m | G | 61.8 lm/W | 1186.6 lm/m | G |
| 2700 K | 103.1 lm/W | 1979.8 lm/m | F | 82.8 lm/W | 1590.1 lm/m | G | 67.2 lm/W | 1290 lm/m | G |
| 3000 K | 108.3 lm/W | 2078.7 lm/m | F | 87.6 lm/W | 1681.6 lm/m | F | 71.2 lm/W | 1366.9 lm/m | G |
| 3500 K | 109.9 lm/W | 2109.8 lm/m | F | 89.3 lm/W | 1714.5 lm/m | F | 73.5 lm/W | 1410.8 lm/m | G |
| 4000 K | 113.1 lm/W | 2172 lm/m | E | 91.2 lm/W | 1751.1 lm/m | F | 75.3 lm/W | 1445.5 lm/m | G |
| 5000 K | 112.9 lm/W | 2168.3 lm/m | E | 91.2 lm/W | 1751.1 lm/m | F | 75.2 lm/W | 1443.8 lm/m | G |
| 6500 K | 108.3 lm/W | 2078.7 lm/m | F | 87.6 lm/W | 1681.6 lm/m | F | 72.7 lm/W | 1395.8 lm/m | G |
Grade KE (3rd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 84.4 lm/W | 1823.7 lm/m | G | 67.4 lm/W | 1455.3 lm/m | G | — | — | — |
| 2300 K | 94.1 lm/W | 2032.2 lm/m | F | 75.1 lm/W | 1621.3 lm/m | G | 60.8 lm/W | 1313.3 lm/m | G |
| 2700 K | 101.4 lm/W | 2190.1 lm/m | F | 81.4 lm/W | 1759 lm/m | G | 66.1 lm/W | 1427 lm/m | G |
| 3000 K | 106.5 lm/W | 2299.4 lm/m | F | 86.1 lm/W | 1860.2 lm/m | F | 70 lm/W | 1512 lm/m | G |
| 3500 K | 108 lm/W | 2333.8 lm/m | F | 87.8 lm/W | 1896.6 lm/m | F | 72.2 lm/W | 1560.6 lm/m | G |
| 4000 K | 111.2 lm/W | 2402.6 lm/m | E | 89.7 lm/W | 1937.1 lm/m | F | 74 lm/W | 1599 lm/m | G |
| 5000 K | 111 lm/W | 2398.6 lm/m | E | 89.7 lm/W | 1937.1 lm/m | F | 74 lm/W | 1598.4 lm/m | G |
| 6500 K | 106.5 lm/W | 2299.4 lm/m | F | 86.1 lm/W | 1860.2 lm/m | F | 71.5 lm/W | 1544.4 lm/m | G |
Grade KE (3rd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 83 lm/W | 1992.5 lm/m | G | 66.3 lm/W | 1590 lm/m | G | — | — | — |
| 2300 K | 92.5 lm/W | 2220.3 lm/m | F | 73.8 lm/W | 1771.3 lm/m | G | 59.8 lm/W | 1435.2 lm/m | G |
| 2700 K | 99.7 lm/W | 2392.7 lm/m | F | 80.1 lm/W | 1921.7 lm/m | G | 65 lm/W | 1559 lm/m | G |
| 3000 K | 104.7 lm/W | 2512.2 lm/m | F | 84.7 lm/W | 2032.3 lm/m | G | 68.8 lm/W | 1651.9 lm/m | G |
| 3500 K | 106.2 lm/W | 2549.8 lm/m | F | 86.3 lm/W | 2072.1 lm/m | F | 71 lm/W | 1705 lm/m | G |
| 4000 K | 109.4 lm/W | 2624.9 lm/m | F | 88.2 lm/W | 2116.3 lm/m | F | 72.8 lm/W | 1747 lm/m | G |
| 5000 K | 109.2 lm/W | 2620.5 lm/m | F | 88.2 lm/W | 2116.3 lm/m | F | 72.7 lm/W | 1744.8 lm/m | G |
| 6500 K | 104.7 lm/W | 2512.2 lm/m | F | 84.7 lm/W | 2032.3 lm/m | G | 70.3 lm/W | 1687.2 lm/m | G |
Related models in this series
See every model in SMD LED Strip Series or narrow to S Bend. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 10457?
10457: 2835, 120 LEDs/m, 24V, 10mm PCB, 3 oz copper FPCB, cuttable 6LEDs/50mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
What makes the construction of this S-bend flexible LED strip different?
It is built as a S-bend flexible LED strip on 3 oz copper FPCB with a cutting unit of 6LEDs/50mm and an LED pitch of 8.33mm, so it holds its electrical and mechanical performance where standard strips fail.
Can DENO customise this S-bend flexible LED strip for a project?
Yes. DENO manufactures the S-Bend SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
How tightly can a bendable LED strip turn a corner?
The S-shaped FPCB pattern lets the strip curve in the plane of the board, so it follows a radius of about 30 mm horizontally instead of needing a cut and a solder joint. Curved coves, circular ceilings and signage letters stay as one continuous run of flexible LED strip lights.
Which LED driver and run length suit #10457?
