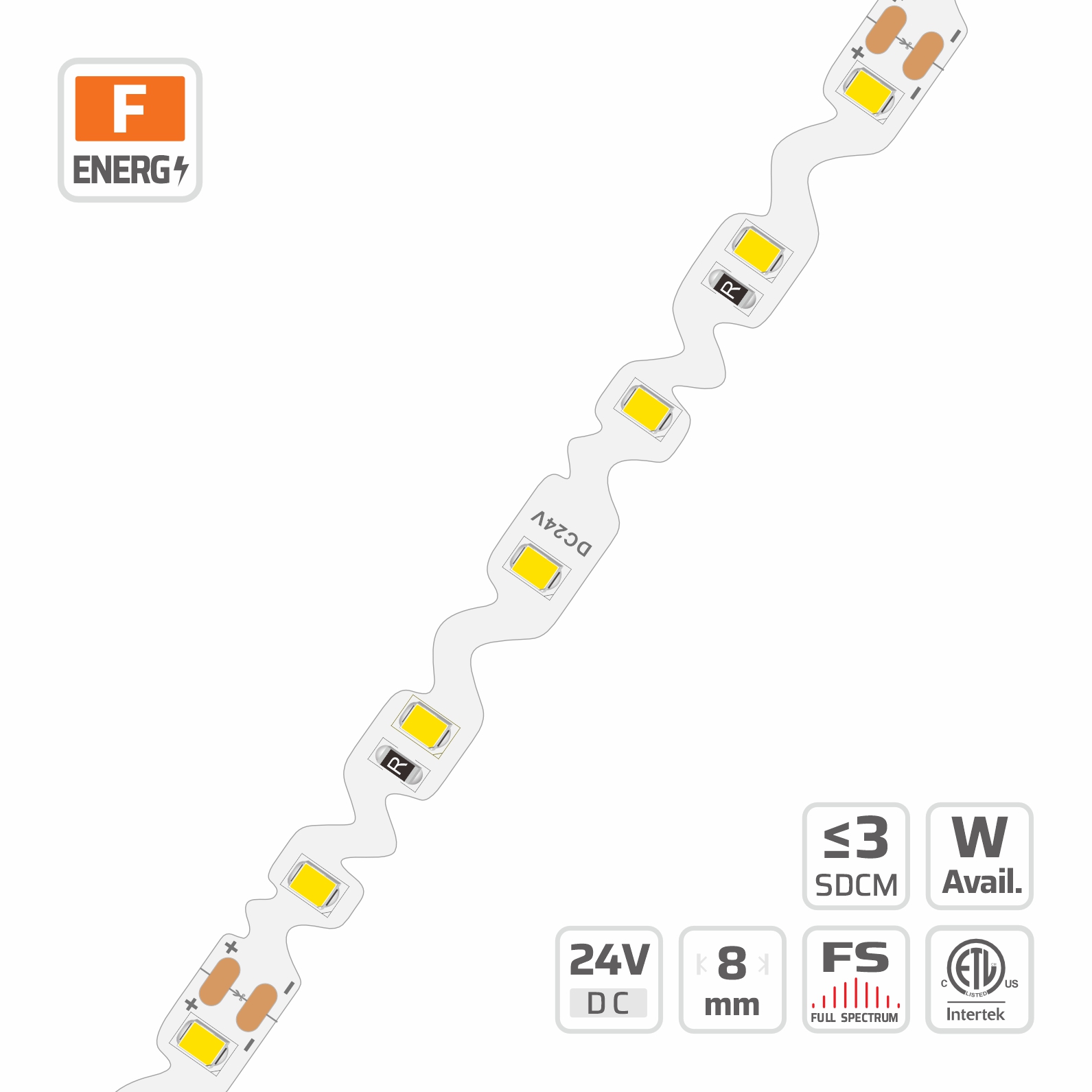

2835 S-Bend LED Strip Light (#6323)

Name: 8mm | 24V | 60LEDs | 100cut | #6323 | 2835 S-Bend LED Strip Light
Brand: DENO LED
SKU: 6323
Availability: InStock

8mm · 24V · 60LEDs · 100cut

Model: 6323

6323 2835 S-Bend LED Strip Light | 8mm | 24V | 60LEDs | 100cut | #6323 — 24V, cuttable every 100mm, 8mm FPCB width, 2835 LEDs, 60 LEDs/m

Overview

2835 S-Bend LED Strip Light | 8mm | 24V | 60LEDs | 100cut | #6323 is part of the DENO S-Bend SMD Strips series, engineered around S-bend flexible LED strip. Key specifications: 2835, 60LEDs/m, 24V, 8mm PCB, 3oz copper FPCB, cuttable 6LEDs/100mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.

Description

2835 S-Bend LED Strip Light | 8mm | 24V | 60LEDs | 100cut | #6323 Adopt pure copper strong LED frame, 99.9% purity diameter> 1 mm pure golden wire encapsulation, can reduce the LED damage in different applications.

S-Bend Flexible Led Strip built for s-bend smd strips projects.

Specifications

LED QTY	60LEDs/m
PART NO	DL-F28A30V24-6323-*
SMD TYPE	2835
CUTTABLE UNIT	6LEDs/100mm
DIMMABLE	Yes
LED PITCH	16.6mm
PCB WIDTH	8mm
BEAM ANGLE	120°
LENGTH MAX	5m
COPPER FOIL	3oz
CIRCUIT TYPE	C.V.
INPUT VOLTAGE	24V

Applications

Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.

Request a quotation for #6323

DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.

Warranty: 5 years
Compliance: CE · UL · RoHS
Bonding wire: 99.99% pure gold
Copper foil: 99.9% pure copper FPCB

Contact DENO LED engineers · OEM / ODM capability

Photometric Performance — CCT × CRI Efficacy Matrix

Peak measured luminous efficacy: 121.2 lm/W at 4000K, Ra 80, ErP energy class E (Grade DN (1st Tier)).

All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.

Grade DL (2nd Tier)

Grade DL (2nd Tier) — measured at 4.8 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	81.8 lm/W	392.7 lm/m	G	65.1 lm/W	312.6 lm/m	G	—	—	—
2300 K	91.1 lm/W	437.1 lm/m	F	72.6 lm/W	348.4 lm/m	G	58.8 lm/W	282.2 lm/m	G
2700 K	95.2 lm/W	456.8 lm/m	F	78.6 lm/W	377.1 lm/m	G	63.6 lm/W	305.5 lm/m	G
3000 K	102.4 lm/W	491.6 lm/m	F	82.7 lm/W	396.8 lm/m	G	67.2 lm/W	322.7 lm/m	G
3500 K	104.1 lm/W	499.6 lm/m	F	84.1 lm/W	403.8 lm/m	G	69.2 lm/W	332.2 lm/m	G
4000 K	107.4 lm/W	515.8 lm/m	F	86.1 lm/W	413.4 lm/m	F	71.1 lm/W	341.3 lm/m	G
5000 K	107.3 lm/W	515.2 lm/m	F	86.1 lm/W	413.4 lm/m	F	71.1 lm/W	341.3 lm/m	G
6500 K	97.8 lm/W	469.4 lm/m	F	82.6 lm/W	396.3 lm/m	G	68.5 lm/W	328.8 lm/m	G

Grade DL (2nd Tier)

Grade DL (2nd Tier) — measured at 7.2 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	80.5 lm/W	579.3 lm/m	G	64 lm/W	461 lm/m	G	—	—	—
2300 K	89.5 lm/W	644.7 lm/m	F	71.4 lm/W	513.8 lm/m	G	57.8 lm/W	416.2 lm/m	G
2700 K	93.6 lm/W	673.7 lm/m	F	77.3 lm/W	556.2 lm/m	G	62.6 lm/W	450.6 lm/m	G
3000 K	100.7 lm/W	725 lm/m	F	81.3 lm/W	585.2 lm/m	G	66.1 lm/W	475.9 lm/m	G
3500 K	102.3 lm/W	736.9 lm/m	F	82.7 lm/W	595.6 lm/m	G	68.1 lm/W	490 lm/m	G
4000 K	105.7 lm/W	760.7 lm/m	F	84.7 lm/W	609.7 lm/m	G	69.9 lm/W	503.4 lm/m	G
5000 K	105.5 lm/W	760 lm/m	F	84.7 lm/W	609.7 lm/m	G	69.9 lm/W	503.3 lm/m	G
6500 K	96.2 lm/W	692.3 lm/m	F	81.2 lm/W	584.5 lm/m	G	67.4 lm/W	485.3 lm/m	G

Grade DL (2nd Tier)

Grade DL (2nd Tier) — measured at 9.6 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	79.1 lm/W	759.4 lm/m	G	63 lm/W	604.4 lm/m	G	—	—	—
2300 K	88 lm/W	845.2 lm/m	F	70.2 lm/W	673.6 lm/m	G	56.8 lm/W	545.3 lm/m	G
2700 K	92 lm/W	883.2 lm/m	F	76 lm/W	729.2 lm/m	G	61.5 lm/W	590.8 lm/m	G
3000 K	99 lm/W	950.5 lm/m	F	79.9 lm/W	767.2 lm/m	G	65 lm/W	623.9 lm/m	G
3500 K	100.6 lm/W	966.1 lm/m	F	81.3 lm/W	780.9 lm/m	G	66.9 lm/W	642.4 lm/m	G
4000 K	103.9 lm/W	997.3 lm/m	F	83.3 lm/W	799.4 lm/m	G	68.7 lm/W	660 lm/m	G
5000 K	103.8 lm/W	996.3 lm/m	F	83.3 lm/W	799.4 lm/m	G	68.7 lm/W	659.5 lm/m	G
6500 K	94.5 lm/W	907.6 lm/m	F	79.8 lm/W	766.3 lm/m	G	66.2 lm/W	635.5 lm/m	G

Grade DL (2nd Tier)

Grade DL (2nd Tier) — measured at 12 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	77.8 lm/W	933.4 lm/m	G	61.9 lm/W	742.9 lm/m	G	—	—	—
2300 K	86.6 lm/W	1038.9 lm/m	F	69 lm/W	828 lm/m	G	55.9 lm/W	670.8 lm/m	G
2700 K	90.5 lm/W	1085.6 lm/m	F	74.7 lm/W	896.3 lm/m	G	60.5 lm/W	726.1 lm/m	G
3000 K	97.4 lm/W	1168.3 lm/m	F	78.6 lm/W	943 lm/m	G	63.9 lm/W	766.9 lm/m	G
3500 K	99 lm/W	1187.4 lm/m	F	80 lm/W	959.8 lm/m	G	65.8 lm/W	789.6 lm/m	G
4000 K	102.1 lm/W	1225.8 lm/m	F	81.9 lm/W	982.5 lm/m	G	67.6 lm/W	811.2 lm/m	G
5000 K	102 lm/W	1224.6 lm/m	F	81.9 lm/W	982.5 lm/m	G	67.6 lm/W	811.2 lm/m	G
6500 K	93 lm/W	1115.6 lm/m	F	78.5 lm/W	941.8 lm/m	G	65.1 lm/W	781.2 lm/m	G

Grade DN (1st Tier)

Grade DN (1st Tier) — measured at 4.8 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	94.9 lm/W	455.8 lm/m	F	79.6 lm/W	382.2 lm/m	G	—	—	—
2300 K	103.6 lm/W	497.1 lm/m	F	88.9 lm/W	426.5 lm/m	G	72 lm/W	345.6 lm/m	G
2700 K	111.6 lm/W	535.9 lm/m	F	96.1 lm/W	461.3 lm/m	F	77.9 lm/W	374.1 lm/m	G
3000 K	117.2 lm/W	562.6 lm/m	F	101.6 lm/W	487.5 lm/m	F	82.6 lm/W	396.3 lm/m	G
3500 K	119 lm/W	571.2 lm/m	E	103.8 lm/W	498.1 lm/m	F	85.4 lm/W	409.9 lm/m	G
4000 K	121.2 lm/W	581.8 lm/m	E	104.4 lm/W	501.1 lm/m	F	86.1 lm/W	413.4 lm/m	G
5000 K	121 lm/W	580.8 lm/m	E	105 lm/W	504.2 lm/m	F	86.7 lm/W	416.2 lm/m	G
6500 K	116.1 lm/W	557.1 lm/m	F	100.4 lm/W	482 lm/m	F	83.3 lm/W	399.8 lm/m	G

Grade DN (1st Tier)

Grade DN (1st Tier) — measured at 7.2 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	93.4 lm/W	672.2 lm/m	F	78.3 lm/W	563.6 lm/m	G	—	—	—
2300 K	101.8 lm/W	733.2 lm/m	F	87.4 lm/W	629.1 lm/m	G	70.8 lm/W	509.8 lm/m	G
2700 K	109.8 lm/W	790.4 lm/m	F	94.5 lm/W	680.4 lm/m	F	76.6 lm/W	551.7 lm/m	G
3000 K	115.3 lm/W	829.9 lm/m	F	99.9 lm/W	719.1 lm/m	F	81.2 lm/W	584.5 lm/m	G
3500 K	117 lm/W	842.5 lm/m	F	102 lm/W	734.7 lm/m	F	84 lm/W	604.5 lm/m	G
4000 K	119.2 lm/W	858.1 lm/m	E	102.7 lm/W	739.1 lm/m	F	84.7 lm/W	609.7 lm/m	G
5000 K	119 lm/W	856.6 lm/m	E	103.3 lm/W	743.6 lm/m	F	85.2 lm/W	613.4 lm/m	G
6500 K	114.1 lm/W	821.7 lm/m	F	98.7 lm/W	710.9 lm/m	F	81.9 lm/W	589.7 lm/m	G

Grade DN (1st Tier)

Grade DN (1st Tier) — measured at 9.6 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	91.8 lm/W	881.3 lm/m	F	77 lm/W	739 lm/m	G	—	—	—
2300 K	100.1 lm/W	961.2 lm/m	F	85.9 lm/W	824.8 lm/m	G	69.6 lm/W	668.2 lm/m	G
2700 K	107.9 lm/W	1036.3 lm/m	F	92.9 lm/W	892 lm/m	F	75.4 lm/W	723.4 lm/m	G
3000 K	113.3 lm/W	1088 lm/m	F	98.2 lm/W	942.7 lm/m	F	79.8 lm/W	766.3 lm/m	G
3500 K	115.1 lm/W	1104.5 lm/m	F	100.3 lm/W	963.2 lm/m	F	82.6 lm/W	792.6 lm/m	G
4000 K	117.2 lm/W	1125 lm/m	F	100.9 lm/W	969 lm/m	F	83.3 lm/W	799.4 lm/m	G
5000 K	117 lm/W	1123.1 lm/m	F	101.6 lm/W	974.9 lm/m	F	83.8 lm/W	804.5 lm/m	G
6500 K	112.2 lm/W	1077.2 lm/m	F	97.1 lm/W	932 lm/m	F	80.6 lm/W	773.8 lm/m	G

Grade DN (1st Tier)

Grade DN (1st Tier) — measured at 12 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	90.3 lm/W	1083.2 lm/m	G	75.7 lm/W	908.3 lm/m	G	—	—	—
2300 K	98.5 lm/W	1181.5 lm/m	F	84.5 lm/W	1013.7 lm/m	G	68.4 lm/W	820.8 lm/m	G
2700 K	106.1 lm/W	1273.7 lm/m	F	91.4 lm/W	1096.4 lm/m	G	74.1 lm/W	889.1 lm/m	G
3000 K	111.4 lm/W	1337.2 lm/m	F	96.6 lm/W	1158.7 lm/m	F	78.5 lm/W	941.8 lm/m	G
3500 K	113.1 lm/W	1357.6 lm/m	F	98.7 lm/W	1183.9 lm/m	F	81.2 lm/W	974.2 lm/m	G
4000 K	115.2 lm/W	1382.8 lm/m	F	99.3 lm/W	1191 lm/m	F	81.9 lm/W	982.5 lm/m	G
5000 K	115 lm/W	1380.4 lm/m	F	99.9 lm/W	1198.2 lm/m	F	82.4 lm/W	988.8 lm/m	G
6500 K	110.3 lm/W	1324 lm/m	F	95.5 lm/W	1145.5 lm/m	F	79.2 lm/W	950.4 lm/m	G

Grade KE (3rd Tier)

Grade KE (3rd Tier) — measured at 4.8 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1900 K	60.8 lm/W	291.9 lm/m	G	48.2 lm/W	231.4 lm/m	G	—	—	—
2300 K	67.9 lm/W	325.7 lm/m	G	53.7 lm/W	257.6 lm/m	G	43.5 lm/W	208.8 lm/m	G
2700 K	73.1 lm/W	350.9 lm/m	G	58.2 lm/W	279.3 lm/m	G	47.2 lm/W	226.4 lm/m	G
3000 K	76.8 lm/W	368.5 lm/m	G	61.7 lm/W	295.9 lm/m	G	50.1 lm/W	240.5 lm/m	G
3500 K	77.9 lm/W	374.1 lm/m	G	62.9 lm/W	302 lm/m	G	51.8 lm/W	248.5 lm/m	G
4000 K	80.2 lm/W	385.2 lm/m	G	64.3 lm/W	308.5 lm/m	G	53 lm/W	254.6 lm/m	G
5000 K	80.1 lm/W	384.7 lm/m	G	64.2 lm/W	308 lm/m	G	52.9 lm/W	253.9 lm/m	G
6500 K	76.8 lm/W	368.5 lm/m	G	61.7 lm/W	295.9 lm/m	G	51.2 lm/W	245.8 lm/m	G

Grade KE (3rd Tier)

Grade KE (3rd Tier) — measured at 7.2 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1900 K	59.8 lm/W	430.5 lm/m	G	47.4 lm/W	341.3 lm/m	G	—	—	—
2300 K	66.7 lm/W	480.4 lm/m	G	52.8 lm/W	380 lm/m	G	42.7 lm/W	307.4 lm/m	G
2700 K	71.9 lm/W	517.5 lm/m	G	57.2 lm/W	412 lm/m	G	46.4 lm/W	333.9 lm/m	G
3000 K	75.5 lm/W	543.6 lm/m	G	60.6 lm/W	436.5 lm/m	G	49.3 lm/W	354.7 lm/m	G
3500 K	76.6 lm/W	551.7 lm/m	G	61.9 lm/W	445.4 lm/m	G	50.9 lm/W	366.6 lm/m	G
4000 K	78.9 lm/W	568.1 lm/m	G	63.2 lm/W	455.1 lm/m	G	52.2 lm/W	375.5 lm/m	G
5000 K	78.8 lm/W	567.4 lm/m	G	63.1 lm/W	454.3 lm/m	G	52.1 lm/W	375.1 lm/m	G
6500 K	75.5 lm/W	543.6 lm/m	G	60.6 lm/W	436.5 lm/m	G	50.3 lm/W	362.2 lm/m	G

Grade KE (3rd Tier)

Grade KE (3rd Tier) — measured at 9.6 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1900 K	58.8 lm/W	564.5 lm/m	G	46.6 lm/W	447.5 lm/m	G	—	—	—
2300 K	65.6 lm/W	629.8 lm/m	G	51.9 lm/W	498.2 lm/m	G	42 lm/W	403.2 lm/m	G
2700 K	70.7 lm/W	678.5 lm/m	G	56.3 lm/W	540.1 lm/m	G	45.6 lm/W	437.7 lm/m	G
3000 K	74.2 lm/W	712.6 lm/m	G	59.6 lm/W	572.3 lm/m	G	48.4 lm/W	465 lm/m	G
3500 K	75.4 lm/W	723.4 lm/m	G	60.8 lm/W	584 lm/m	G	50.1 lm/W	480.6 lm/m	G
4000 K	77.6 lm/W	744.8 lm/m	G	62.1 lm/W	596.6 lm/m	G	51.3 lm/W	492.3 lm/m	G
5000 K	77.5 lm/W	743.8 lm/m	G	62 lm/W	595.7 lm/m	G	51.2 lm/W	491.5 lm/m	G
6500 K	74.2 lm/W	712.6 lm/m	G	59.6 lm/W	572.3 lm/m	G	49.5 lm/W	475.2 lm/m	G

Grade KE (3rd Tier)

Grade KE (3rd Tier) — measured at 12 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1900 K	57.8 lm/W	693.8 lm/m	G	45.8 lm/W	550 lm/m	G	—	—	—
2300 K	64.5 lm/W	774.1 lm/m	G	51 lm/W	612.3 lm/m	G	41.3 lm/W	495.6 lm/m	G
2700 K	69.5 lm/W	834 lm/m	G	55.3 lm/W	663.8 lm/m	G	44.8 lm/W	538 lm/m	G
3000 K	73 lm/W	875.9 lm/m	G	58.6 lm/W	703.4 lm/m	G	47.6 lm/W	571.6 lm/m	G
3500 K	74.1 lm/W	889.1 lm/m	G	59.8 lm/W	717.7 lm/m	G	49.2 lm/W	590.7 lm/m	G
4000 K	76.3 lm/W	915.4 lm/m	G	61.1 lm/W	733.3 lm/m	G	50.4 lm/W	605.1 lm/m	G
5000 K	76.2 lm/W	914.3 lm/m	G	61 lm/W	732.1 lm/m	G	50.3 lm/W	603.6 lm/m	G
6500 K	73 lm/W	875.9 lm/m	G	58.6 lm/W	703.4 lm/m	G	48.6 lm/W	583.2 lm/m	G

Related models in this series

2835 S-Bend LED Strip Light (#10457)

See every model in SMD LED Strip Series or narrow to S Bend. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.

Frequently Asked Questions

What are the key specifications of 6323?

6323: 2835, 60LEDs/m, 24V, 8mm PCB, 3oz copper FPCB, cuttable 6LEDs/100mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.

What makes the construction of this S-bend flexible LED strip different?

It is built as a S-bend flexible LED strip on 3oz copper FPCB with a cutting unit of 6LEDs/100mm and an LED pitch of 16.6mm, so it holds its electrical and mechanical performance where standard strips fail.

Can DENO customise this S-bend flexible LED strip for a project?

Yes. DENO manufactures the S-Bend SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.

How tightly can a bendable LED strip turn a corner?

The S-shaped FPCB pattern lets the strip curve in the plane of the board, so it follows a radius of about 30 mm horizontally instead of needing a cut and a solder joint. Curved coves, circular ceilings and signage letters stay as one continuous run of flexible LED strip lights.

Which LED driver and run length suit #6323?

2835 S-Bend LED Strip Light | 8mm | 24V | 60LEDs | 100cut | #6323 is a constant-voltage 24V product, so pair it with a CE or UL listed 24V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 5m. 5m Single / 10m Dual Input power. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.
