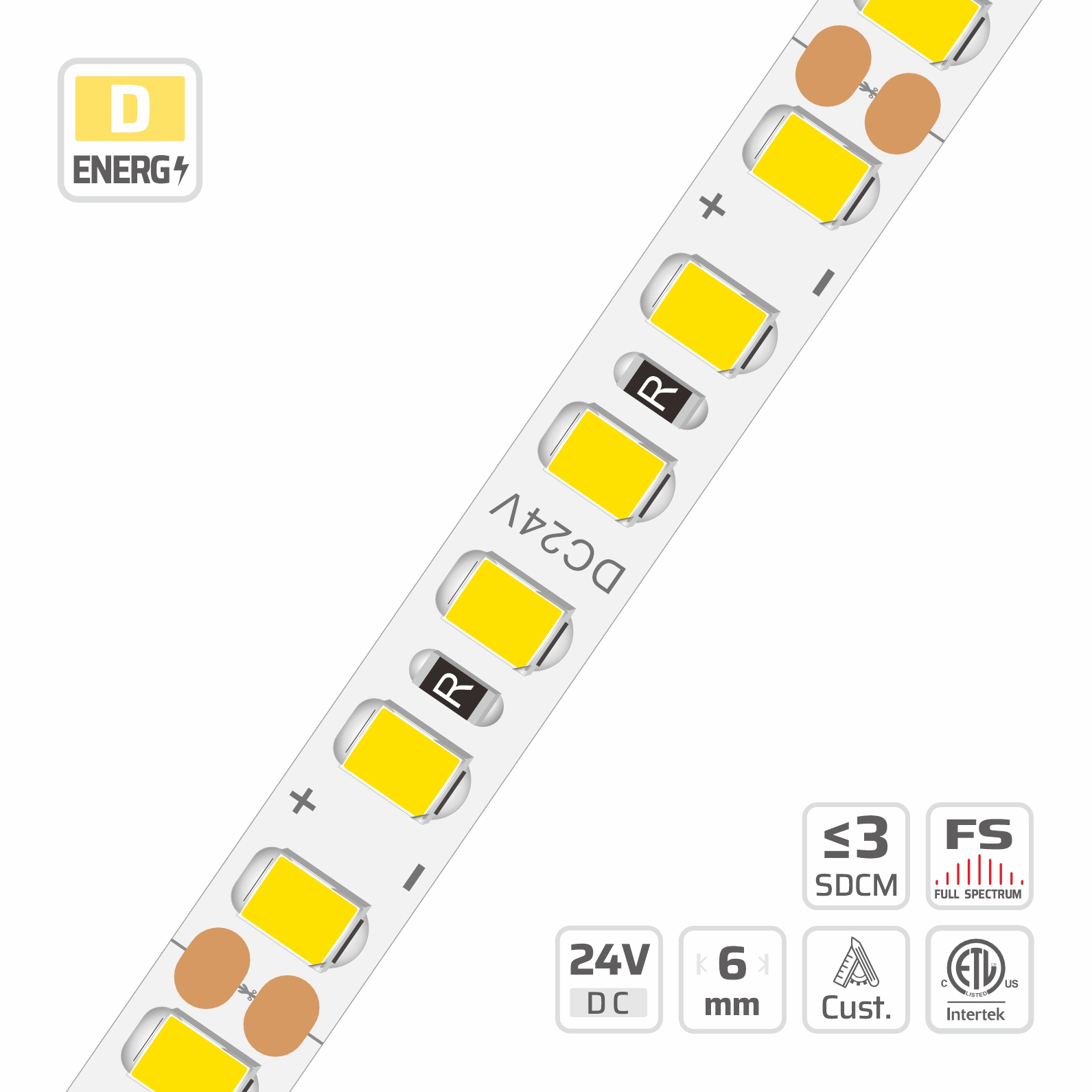

2835 Classic LED Strip Light (#8199)
6mm · 24V · 168LEDs · 35.71mm/cut
Model: 8199
Overview
2835 Classic LED Strip Light | 6mm | 24V | 168LEDs | 35.71mm/cut | #8199 is part of the DENO Classic SMD Strips series, engineered around 24V SMD LED strip lights. Key specifications: 2835, 168 LEDs/m, DC 24V, 6mm PCB, 3oz copper FPCB, cuttable 6LEDs/35.71mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
Built with a narrow 6mm PCB and 168 LEDs per meter, this 2835 classic LED strip light fits tight spaces for slim architectural lighting designs. Robust pure copper LED frames with 99.9%-purity gold wire encapsulation reduce component damage across demanding commercial and residential installations. The constant voltage DC 24V circuit features heavy 3oz copper foil and delivers smooth dimmable performance between 6.7W and 14.4W per meter. Precise cut points every 35.71mm and continuous runs up to 5m provide flexible configurations for factory-direct wholesale project supply.
We use 99.99% gold wire, large-size chips, and thickened FPCB, backed by a 5-year warranty.
Specifications
| LED QTY | 168 LEDs/m |
|---|---|
| PART NO | DL-F28A84V24-8199-* |
| SMD TYPE | 2835 |
| CUTTABLE UNIT | 6LEDs/35.71mm |
| DIMMABLE | Yes |
| IP RATING | IP20 |
| LED PITCH | 5.9mm |
| PCB WIDTH | 6mm |
| BEAM ANGLE | 120° |
| RUN LENGTH | 5m |
| COPPER FOIL | 3oz |
| POWER RANGE | 6.7~14.4W |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | DC 24V |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
Recommended accessories & compatible parts
- DL-1010 — 10x10mm Surface Mount LED Channel — U Shape Aluminum Profile for 6mm Strip: Accepts LED strips up to 6mm wide.
- DL-1010HX-F — 15.2x10.4mm Slim Recessed LED Channel with Flange — Shallow Plaster-in Aluminum Profile: Accepts LED strips up to 6mm wide.
- DL-1013 — 10x13mm Surface Mount LED Channel — Deep U Shape Aluminum Profile: Accepts LED strips up to 6mm wide.
- DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.
Request a quotation for #8199
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 171.6 lm/W at 4000K, Ra 80, ErP energy class D (Grade DN (1st Tier) · 6.7W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 6.7W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 123.9 lm/W | 830.2 lm/m | E | 99.3 lm/W | 665 lm/m | F | — | — | — |
| 2300 K | 137.9 lm/W | 924.2 lm/m | D | 110.6 lm/W | 741.1 lm/m | E | 89.6 lm/W | 600.3 lm/m | F |
| 2700 K | 145.6 lm/W | 975.6 lm/m | D | 119.7 lm/W | 802.1 lm/m | E | 97 lm/W | 649.9 lm/m | F |
| 3000 K | 155.2 lm/W | 1040 lm/m | D | 126 lm/W | 843.9 lm/m | E | 102.4 lm/W | 686.3 lm/m | F |
| 3500 K | 157.6 lm/W | 1055.8 lm/m | D | 128.2 lm/W | 859 lm/m | E | 105.5 lm/W | 706.8 lm/m | F |
| 4000 K | 162.6 lm/W | 1089.4 lm/m | C | 131.3 lm/W | 879.6 lm/m | E | 108.4 lm/W | 726 lm/m | F |
| 5000 K | 162.5 lm/W | 1088.7 lm/m | C | 131.2 lm/W | 878.9 lm/m | E | 108.2 lm/W | 724.9 lm/m | F |
| 6500 K | 148.8 lm/W | 996.8 lm/m | D | 125.9 lm/W | 843.3 lm/m | E | 104.5 lm/W | 700.2 lm/m | F |
Grade DL (2nd Tier) · 8W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 122.8 lm/W | 982.3 lm/m | E | 98.4 lm/W | 786.8 lm/m | F | — | — | — |
| 2300 K | 136.7 lm/W | 1093.4 lm/m | D | 109.6 lm/W | 876.9 lm/m | F | 88.8 lm/W | 710.4 lm/m | F |
| 2700 K | 144.3 lm/W | 1154.3 lm/m | D | 118.6 lm/W | 949.1 lm/m | E | 96.1 lm/W | 769 lm/m | F |
| 3000 K | 153.8 lm/W | 1230.5 lm/m | D | 124.8 lm/W | 998.5 lm/m | E | 101.5 lm/W | 812 lm/m | F |
| 3500 K | 156.1 lm/W | 1249.2 lm/m | D | 127 lm/W | 1016.4 lm/m | E | 104.5 lm/W | 836.3 lm/m | F |
| 4000 K | 161.1 lm/W | 1288.9 lm/m | C | 130.1 lm/W | 1040.7 lm/m | E | 107.4 lm/W | 859 lm/m | F |
| 5000 K | 161 lm/W | 1288.1 lm/m | C | 130 lm/W | 1039.9 lm/m | E | 107.2 lm/W | 857.6 lm/m | F |
| 6500 K | 147.4 lm/W | 1179.4 lm/m | D | 124.7 lm/W | 997.7 lm/m | E | 103.5 lm/W | 828 lm/m | F |
Grade DL (2nd Tier) · 10W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 121.1 lm/W | 1210.8 lm/m | E | 97 lm/W | 969.8 lm/m | F | — | — | — |
| 2300 K | 134.8 lm/W | 1347.7 lm/m | E | 108.1 lm/W | 1080.8 lm/m | F | 87.5 lm/W | 875 lm/m | F |
| 2700 K | 142.3 lm/W | 1422.7 lm/m | D | 117 lm/W | 1169.8 lm/m | E | 94.8 lm/W | 947.8 lm/m | F |
| 3000 K | 151.7 lm/W | 1516.7 lm/m | D | 123.1 lm/W | 1230.8 lm/m | E | 100.1 lm/W | 1000.8 lm/m | F |
| 3500 K | 154 lm/W | 1539.7 lm/m | D | 125.3 lm/W | 1252.8 lm/m | E | 103.1 lm/W | 1030.8 lm/m | F |
| 4000 K | 158.9 lm/W | 1588.7 lm/m | D | 128.3 lm/W | 1282.7 lm/m | E | 105.9 lm/W | 1058.8 lm/m | F |
| 5000 K | 158.8 lm/W | 1587.7 lm/m | D | 128.2 lm/W | 1281.7 lm/m | E | 105.7 lm/W | 1057 lm/m | F |
| 6500 K | 145.4 lm/W | 1453.7 lm/m | D | 123 lm/W | 1229.8 lm/m | E | 102.1 lm/W | 1021 lm/m | F |
Grade DL (2nd Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 117.4 lm/W | 1690.4 lm/m | E | 94 lm/W | 1354 lm/m | F | — | — | — |
| 2300 K | 130.7 lm/W | 1881.7 lm/m | E | 104.8 lm/W | 1509 lm/m | F | 84.9 lm/W | 1222.6 lm/m | G |
| 2700 K | 137.9 lm/W | 1986.4 lm/m | D | 113.4 lm/W | 1633.2 lm/m | E | 91.9 lm/W | 1323.3 lm/m | F |
| 3000 K | 147.1 lm/W | 2117.6 lm/m | D | 119.3 lm/W | 1718.4 lm/m | E | 97 lm/W | 1397.3 lm/m | F |
| 3500 K | 149.3 lm/W | 2149.7 lm/m | D | 121.5 lm/W | 1749.1 lm/m | E | 99.9 lm/W | 1439.2 lm/m | F |
| 4000 K | 154 lm/W | 2218.1 lm/m | D | 124.4 lm/W | 1790.9 lm/m | E | 102.7 lm/W | 1478.3 lm/m | F |
| 5000 K | 153.9 lm/W | 2216.7 lm/m | D | 124.3 lm/W | 1789.5 lm/m | E | 102.5 lm/W | 1476 lm/m | F |
| 6500 K | 140.9 lm/W | 2029.6 lm/m | D | 119.2 lm/W | 1717 lm/m | E | 99 lm/W | 1425.6 lm/m | F |
Grade DN (1st Tier) · 6.7W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 134.5 lm/W | 900.8 lm/m | E | 113.3 lm/W | 758.9 lm/m | F | — | — | — |
| 2300 K | 146.6 lm/W | 982.4 lm/m | D | 126.4 lm/W | 846.7 lm/m | E | 102.4 lm/W | 686.1 lm/m | F |
| 2700 K | 158 lm/W | 1058.5 lm/m | D | 136.8 lm/W | 916.6 lm/m | E | 110.8 lm/W | 742.5 lm/m | F |
| 3000 K | 166 lm/W | 1112 lm/m | D | 144.4 lm/W | 967.4 lm/m | E | 117.4 lm/W | 786.4 lm/m | F |
| 3500 K | 168.4 lm/W | 1128.5 lm/m | D | 147.6 lm/W | 988.6 lm/m | D | 121.5 lm/W | 813.8 lm/m | E |
| 4000 K | 171.6 lm/W | 1149.7 lm/m | D | 148.4 lm/W | 994.1 lm/m | D | 122.5 lm/W | 820.6 lm/m | E |
| 5000 K | 171.4 lm/W | 1148.3 lm/m | D | 149.3 lm/W | 1000.3 lm/m | D | 123.2 lm/W | 825.4 lm/m | E |
| 6500 K | 164.3 lm/W | 1101 lm/m | D | 142.6 lm/W | 955.7 lm/m | E | 118.4 lm/W | 793.3 lm/m | F |
Grade DN (1st Tier) · 8W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 133.2 lm/W | 1065.9 lm/m | E | 112.2 lm/W | 898 lm/m | F | — | — | — |
| 2300 K | 145.3 lm/W | 1162.4 lm/m | E | 125.2 lm/W | 1001.8 lm/m | E | 101.4 lm/W | 811.2 lm/m | F |
| 2700 K | 156.6 lm/W | 1252.4 lm/m | D | 135.6 lm/W | 1084.5 lm/m | E | 109.8 lm/W | 878.5 lm/m | F |
| 3000 K | 164.5 lm/W | 1315.7 lm/m | D | 143.1 lm/W | 1144.5 lm/m | E | 116.3 lm/W | 930.4 lm/m | F |
| 3500 K | 166.9 lm/W | 1335.2 lm/m | D | 146.2 lm/W | 1169.7 lm/m | D | 120.4 lm/W | 962.8 lm/m | E |
| 4000 K | 170 lm/W | 1360.3 lm/m | D | 147 lm/W | 1176.2 lm/m | D | 121.4 lm/W | 971 lm/m | E |
| 5000 K | 169.8 lm/W | 1358.7 lm/m | D | 147.9 lm/W | 1183.5 lm/m | D | 122 lm/W | 976 lm/m | E |
| 6500 K | 162.8 lm/W | 1302.7 lm/m | D | 141.3 lm/W | 1130.8 lm/m | E | 117.3 lm/W | 938.4 lm/m | F |
Grade DN (1st Tier) · 10W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 131.4 lm/W | 1313.7 lm/m | E | 110.7 lm/W | 1106.8 lm/m | F | — | — | — |
| 2300 K | 143.3 lm/W | 1432.7 lm/m | E | 123.5 lm/W | 1234.8 lm/m | E | 100 lm/W | 1000 lm/m | F |
| 2700 K | 154.4 lm/W | 1543.7 lm/m | D | 133.7 lm/W | 1336.7 lm/m | E | 108.3 lm/W | 1082.8 lm/m | F |
| 3000 K | 162.2 lm/W | 1621.7 lm/m | D | 141.1 lm/W | 1410.7 lm/m | E | 114.7 lm/W | 1146.8 lm/m | F |
| 3500 K | 164.6 lm/W | 1645.7 lm/m | D | 144.2 lm/W | 1441.7 lm/m | E | 118.7 lm/W | 1186.8 lm/m | F |
| 4000 K | 167.7 lm/W | 1676.7 lm/m | D | 145 lm/W | 1449.7 lm/m | E | 119.7 lm/W | 1196.8 lm/m | E |
| 5000 K | 167.5 lm/W | 1674.7 lm/m | D | 145.9 lm/W | 1458.7 lm/m | D | 120.3 lm/W | 1203 lm/m | E |
| 6500 K | 160.6 lm/W | 1605.7 lm/m | D | 139.4 lm/W | 1393.7 lm/m | E | 115.7 lm/W | 1157 lm/m | F |
Grade DN (1st Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 127.4 lm/W | 1834.2 lm/m | E | 107.3 lm/W | 1545.3 lm/m | F | — | — | — |
| 2300 K | 138.9 lm/W | 2000.3 lm/m | E | 119.7 lm/W | 1723.9 lm/m | E | 97 lm/W | 1396.8 lm/m | F |
| 2700 K | 149.7 lm/W | 2155.3 lm/m | D | 129.6 lm/W | 1866.3 lm/m | E | 105 lm/W | 1511.8 lm/m | F |
| 3000 K | 157.2 lm/W | 2264.1 lm/m | D | 136.8 lm/W | 1969.6 lm/m | E | 111.2 lm/W | 1601.1 lm/m | F |
| 3500 K | 159.6 lm/W | 2297.6 lm/m | D | 139.8 lm/W | 2012.9 lm/m | E | 115.1 lm/W | 1656.9 lm/m | F |
| 4000 K | 162.6 lm/W | 2340.9 lm/m | D | 140.6 lm/W | 2024.1 lm/m | E | 116 lm/W | 1670.9 lm/m | F |
| 5000 K | 162.4 lm/W | 2338.1 lm/m | D | 141.4 lm/W | 2036.6 lm/m | E | 116.7 lm/W | 1680.5 lm/m | F |
| 6500 K | 155.7 lm/W | 2241.8 lm/m | D | 135.1 lm/W | 1945.9 lm/m | E | 112.2 lm/W | 1615.7 lm/m | F |
Grade KE (3rd Tier) · 6.7W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 103.2 lm/W | 691.7 lm/m | F | 82.6 lm/W | 553.3 lm/m | G | — | — | — |
| 2300 K | 115.1 lm/W | 771.3 lm/m | E | 92 lm/W | 616.3 lm/m | F | 74.5 lm/W | 499.2 lm/m | G |
| 2700 K | 124 lm/W | 830.9 lm/m | E | 99.9 lm/W | 669.1 lm/m | F | 80.9 lm/W | 542.3 lm/m | G |
| 3000 K | 130.3 lm/W | 872.7 lm/m | E | 105.5 lm/W | 706.8 lm/m | F | 85.7 lm/W | 574.5 lm/m | F |
| 3500 K | 132.2 lm/W | 885.8 lm/m | E | 107.5 lm/W | 720.5 lm/m | F | 88.5 lm/W | 593 lm/m | F |
| 4000 K | 136.1 lm/W | 911.8 lm/m | D | 109.9 lm/W | 736.3 lm/m | F | 90.7 lm/W | 607.4 lm/m | F |
| 5000 K | 135.9 lm/W | 910.4 lm/m | D | 109.9 lm/W | 736.3 lm/m | F | 90.7 lm/W | 607.7 lm/m | F |
| 6500 K | 130.3 lm/W | 872.7 lm/m | E | 105.5 lm/W | 706.8 lm/m | F | 87.6 lm/W | 586.9 lm/m | F |
Grade KE (3rd Tier) · 8W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 102.3 lm/W | 818.5 lm/m | F | 81.8 lm/W | 654.6 lm/m | G | — | — | — |
| 2300 K | 114.1 lm/W | 912.6 lm/m | E | 91.2 lm/W | 729.2 lm/m | F | 73.8 lm/W | 590.4 lm/m | G |
| 2700 K | 122.9 lm/W | 983.1 lm/m | E | 99 lm/W | 791.7 lm/m | F | 80.2 lm/W | 641.6 lm/m | G |
| 3000 K | 129.1 lm/W | 1032.6 lm/m | E | 104.5 lm/W | 836.3 lm/m | F | 85 lm/W | 679.8 lm/m | G |
| 3500 K | 131 lm/W | 1048 lm/m | E | 106.6 lm/W | 852.5 lm/m | F | 87.7 lm/W | 701.7 lm/m | F |
| 4000 K | 134.9 lm/W | 1078.8 lm/m | E | 108.9 lm/W | 871.2 lm/m | F | 89.8 lm/W | 718.7 lm/m | F |
| 5000 K | 134.7 lm/W | 1077.2 lm/m | E | 108.9 lm/W | 871.2 lm/m | F | 89.8 lm/W | 718.4 lm/m | F |
| 6500 K | 129.1 lm/W | 1032.6 lm/m | E | 104.5 lm/W | 836.3 lm/m | F | 86.8 lm/W | 694.4 lm/m | F |
Grade KE (3rd Tier) · 10W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 100.9 lm/W | 1008.8 lm/m | F | 80.7 lm/W | 806.8 lm/m | G | — | — | — |
| 2300 K | 112.5 lm/W | 1124.8 lm/m | E | 89.9 lm/W | 898.8 lm/m | F | 72.8 lm/W | 728 lm/m | G |
| 2700 K | 121.2 lm/W | 1211.8 lm/m | E | 97.6 lm/W | 975.8 lm/m | F | 79.1 lm/W | 790.8 lm/m | G |
| 3000 K | 127.3 lm/W | 1272.7 lm/m | E | 103.1 lm/W | 1030.8 lm/m | F | 83.8 lm/W | 837.8 lm/m | G |
| 3500 K | 129.2 lm/W | 1291.7 lm/m | E | 105.1 lm/W | 1050.8 lm/m | F | 86.5 lm/W | 864.8 lm/m | F |
| 4000 K | 133 lm/W | 1329.7 lm/m | E | 107.4 lm/W | 1073.8 lm/m | F | 88.6 lm/W | 885.8 lm/m | F |
| 5000 K | 132.8 lm/W | 1327.7 lm/m | E | 107.4 lm/W | 1073.8 lm/m | F | 88.6 lm/W | 886 lm/m | F |
| 6500 K | 127.3 lm/W | 1272.7 lm/m | E | 103.1 lm/W | 1030.8 lm/m | F | 85.6 lm/W | 856 lm/m | F |
Grade KE (3rd Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 97.8 lm/W | 1408.5 lm/m | F | 78.2 lm/W | 1126.5 lm/m | G | — | — | — |
| 2300 K | 109.1 lm/W | 1570.4 lm/m | F | 87.1 lm/W | 1254.9 lm/m | F | 70.6 lm/W | 1016.6 lm/m | G |
| 2700 K | 117.5 lm/W | 1691.8 lm/m | E | 94.6 lm/W | 1362.4 lm/m | F | 76.7 lm/W | 1104.2 lm/m | G |
| 3000 K | 123.4 lm/W | 1777 lm/m | E | 99.9 lm/W | 1439.2 lm/m | F | 81.2 lm/W | 1169.8 lm/m | G |
| 3500 K | 125.2 lm/W | 1803.5 lm/m | E | 101.9 lm/W | 1467.1 lm/m | F | 83.9 lm/W | 1207.5 lm/m | G |
| 4000 K | 128.9 lm/W | 1856.5 lm/m | E | 104.1 lm/W | 1499.2 lm/m | F | 85.9 lm/W | 1236.8 lm/m | F |
| 5000 K | 128.7 lm/W | 1853.8 lm/m | E | 104.1 lm/W | 1499.2 lm/m | F | 85.9 lm/W | 1237 lm/m | F |
| 6500 K | 123.4 lm/W | 1777 lm/m | E | 99.9 lm/W | 1439.2 lm/m | F | 83 lm/W | 1195.2 lm/m | G |
High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide
At up to 14.4W/m, 8199 is a high-power SMD LED strip. Above roughly 14.4W/m the tape can no longer shed its own heat through the FPC alone — an aluminum channel is part of the luminaire, not an accessory.
Why high-wattage strips need a heat sink
- Aluminum conducts heat roughly 30× faster than the plastics, MDF or gypsum a strip is usually stuck to, so a bare high-power run traps heat under the tape.
- LED lifetime (LM-80 / TM-21) is driven by solder-point temperature Tc. Keeping Tc inside the datasheet limit — DENO strips are rated Tc ≤ 75°C — is what preserves the rated L70 lifetime and colour stability.
- Never run 14.4W/m or more coiled on the reel, inside a sealed plastic diffuser, or directly on wood, wallpaper or foam.
Sizing rule: FPC width vs channel inner width
- Channel inner width ≥ FPC width + 2mm. This strip is 6mm wide, so it needs at least 8mm of inner width.
- The 2mm clearance absorbs extrusion tolerance and lets the tape be seated or replaced without scraping the side walls or the wiring.
- A frosted or opal PC cover then diffuses the higher lumen output into an even, dot-free line instead of visible hot spots.
Aluminum channels that fit this strip
- 10x10mm Surface Mount LED Channel · fits ≤6mm strip
- 12x8mm Surface Mount LED Channel · fits ≤6mm strip
- 15.2x10.4mm Slim Recessed LED Channel with Flange · fits ≤6mm strip
- 16x16mm V Shape Corner LED Channel · fits ≤6mm strip
- 10x13mm Surface Mount LED Channel · fits ≤6mm strip
- 14x8mm Magnetic LED Channel · fits ≤8mm strip
Recommended LED Channels
Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.
This strip is 6mm wide, so it needs a channel with at least 8mm inner width (6mm + 2mm clearance). Every profile below meets that.
Related models in this series
- Roll-to-Roll Long Reel LED Strip Light (#16773)
- 2835 1 SDCM Classic High Consistency LED Strip Light (#2176-B)
- Roll-to-Roll Long Reel LED Strip Light (#16774)
- 2835 1-Step (1 SDCM) High Consistency LED Strip 128LEDs/m (#3015-B)
- Roll-to-Roll Long Reel LED Strip Light (#16776)
- 2835 Roll-to-Roll Long Reel LED Strip Light (#16771)
- Multi-Line Three-Row High-Density LED LED Strip Light (#16706)
- 2835 S-Bend LED Strip High-Efficiency LED Strip Light (#19071)
See every model in SMD LED Strip Series or narrow to 2835. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 8199?
8199: 2835, 168 LEDs/m, DC 24V, 6mm PCB, 3oz copper FPCB, cuttable 6LEDs/35.71mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
How long can a single run of this 24V SMD LED strip lights be?
Maximum single run for this model is 5m. Feeding from both ends or using a mid-point tap halves the effective distance per segment, so a 24V SMD LED strip lights can cover twice that length on one circuit when wired accordingly.
Can DENO customise this 24V SMD LED strip lights for a project?
Yes. DENO manufactures the Classic SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
Which SMD LED strip density should you specify?
For general cove and shelf lighting, 120 LEDs/m on a 24V LED strip is the usual baseline. Move to 180 or 240 LEDs/m when the strip sits close to a diffuser or is seen at a shallow angle, since higher density is what removes visible dots on a 2835 LED strip.
Which LED driver and run length suit #8199?
2835 Classic LED Strip Light | 6mm | 24V | 168LEDs | 35.71mm/cut | #8199 is a constant-voltage DC 24V product, so pair it with a CE or UL listed DC 24V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 5m. 5m Single / 10m Dual Input power. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.
