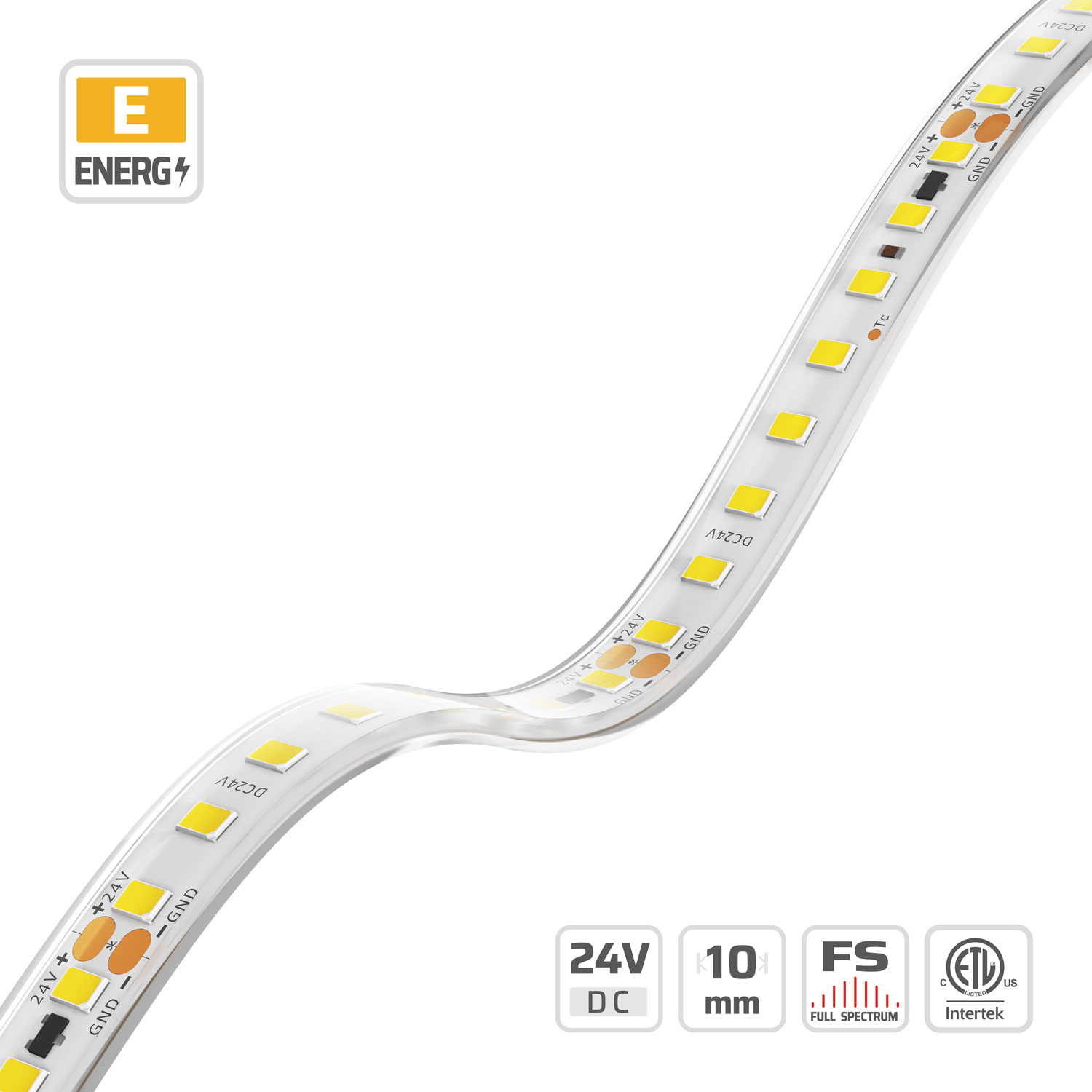

2835 High Light Efficacy PU LED Strip Light (#7923-PU)
10mm · 24V · 128LEDs · 62.5mm/cut
Model: 7923-PU
Overview
2835 High Light Efficacy PU LED Strip Light | 10mm | 24V | 128LEDs | 62.5mm/cut | #7923-PU is part of the DENO Marine Grade SMD Strips series, engineered around marine grade LED strip. Key specifications: 2835, 128, 24V, 10mm PCB, 3 oz copper FPCB, cuttable 8LEDs/62.5mm, IP68PU, CRI Ra≥80 , Ra≥90 , Ra≥95 , FS. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
2835 High Light Efficacy PU LED Strip Light | 10mm | 24V | 128LEDs | 62.5mm/cut | #7923-PU
High-efficiency LEDs, providing professional linear lighting effect.
PU potting RGB LED Strip utilizes polyurethane potting as a waterproofing method, offering excellent waterproof performance.
PU material is resistant to UV rays, high and low temperatures, ensuring the strip’s durability.
High sealing capability, completely filling gaps to prevent water and dust ingress.
Suitable for a wide range of applications including facade lighting, landscape illumination, pathway lighting, and accentuating cultural landmarks.
We use 99.99% gold wire, large-size chips, and thickened FPCB, backed by a 5-year warranty.
Specifications
| CCT (K) | 1800-6500 |
|---|
| CRI | Ra≥80 , Ra≥90 , Ra≥95 , FS |
|---|
| SDCM | < 3 SDCM (Single Bin) |
|---|
| LED QTY | 128 |
|---|
| PART NO | DL-F28D64V24-7923-PU* |
|---|
| SMD TYPE | 2835 |
|---|
| CUTTABLE UNIT | 8LEDs/62.5mm |
|---|
| DIMMABLE | Yes |
|---|
| IP RATING | IP68PU |
|---|
| LED PITCH | 7.8mm |
|---|
| LIFESPAN | 50000h |
|---|
| PCB WIDTH | 10mm |
|---|
| WARRANTY | 5 Years |
|---|
| BEAM ANGLE | 120° |
|---|
| LENGTH MAX | 5m |
|---|
| COPPER FOIL | 3 oz |
|---|
| ON OFF TIMES | 10000 (test times) |
|---|
| CIRCUIT TYPE | C.C. |
|---|
| INPUT VOLTAGE | 24V |
|---|
| LUMINOUS FLUX | 1929 lm/m |
|---|
| MIN BEND DIAMETER | Φ60mm |
|---|
| OPERATING TEMPERATURE | -25~40°C;Tc: 75°C (max) |
|---|
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Facade, landscape & bathroom runs (IP68PU) — IP68PU sealing suits facades, landscape lighting, bathrooms and other locations exposed to rain, splashing or wash-down cleaning.
Request a quotation for #7923-PU
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Contact DENO LED engineers · OEM / ODM capability
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 167.9 lm/W at 4000K, Ra 80, ErP energy class C (Grade DL (2nd Tier) · 7.8W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 7.8W/m
Grade DL (2nd Tier) · 7.8W/m — measured at 7.8 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|
| 1800 K | 127.9 lm/W | 997.7 lm/m | E | 102.5 lm/W | 799.5 lm/m | F | — | — | — |
|---|
| 2300 K | 142.5 lm/W | 1111.3 lm/m | D | 114.2 lm/W | 890.8 lm/m | E | 92.5 lm/W | 721.5 lm/m | F |
|---|
| 2700 K | 150.3 lm/W | 1172.1 lm/m | D | 123.6 lm/W | 964 lm/m | E | 100.2 lm/W | 781.4 lm/m | F |
|---|
| 3000 K | 160.3 lm/W | 1250.3 lm/m | C | 130 lm/W | 1014.2 lm/m | E | 105.8 lm/W | 825 lm/m | F |
|---|
| 3500 K | 162.7 lm/W | 1269.2 lm/m | C | 132.3 lm/W | 1032.3 lm/m | E | 108.9 lm/W | 849.7 lm/m | F |
|---|
| 4000 K | 167.9 lm/W | 1309.5 lm/m | C | 135.5 lm/W | 1057 lm/m | D | 111.9 lm/W | 872.7 lm/m | E |
|---|
| 5000 K | 167.8 lm/W | 1308.7 lm/m | C | 135.5 lm/W | 1057 lm/m | D | 111.8 lm/W | 872 lm/m | E |
|---|
| 6500 K | 153.6 lm/W | 1198.4 lm/m | D | 129.9 lm/W | 1013.4 lm/m | E | 107.8 lm/W | 840.8 lm/m | F |
|---|
Grade DL (2nd Tier) · 9.6W/m
Grade DL (2nd Tier) · 9.6W/m — measured at 9.6 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|
| 1800 K | 126.3 lm/W | 1212.6 lm/m | E | 101.2 lm/W | 971.6 lm/m | F | — | — | — |
|---|
| 2300 K | 140.7 lm/W | 1350.5 lm/m | D | 112.8 lm/W | 1082.6 lm/m | E | 91.3 lm/W | 876.5 lm/m | F |
|---|
| 2700 K | 148.4 lm/W | 1424.5 lm/m | D | 122 lm/W | 1171.6 lm/m | E | 98.9 lm/W | 949.7 lm/m | F |
|---|
| 3000 K | 158.3 lm/W | 1519.5 lm/m | D | 128.4 lm/W | 1232.6 lm/m | E | 104.4 lm/W | 1002.6 lm/m | F |
|---|
| 3500 K | 160.7 lm/W | 1542.4 lm/m | C | 130.7 lm/W | 1254.5 lm/m | E | 107.6 lm/W | 1032.6 lm/m | F |
|---|
| 4000 K | 165.8 lm/W | 1591.4 lm/m | C | 133.8 lm/W | 1284.5 lm/m | E | 110.5 lm/W | 1060.6 lm/m | E |
|---|
| 5000 K | 165.7 lm/W | 1590.4 lm/m | C | 133.8 lm/W | 1284.5 lm/m | E | 110.4 lm/W | 1059.8 lm/m | E |
|---|
| 6500 K | 151.7 lm/W | 1456.5 lm/m | D | 128.3 lm/W | 1231.6 lm/m | E | 106.5 lm/W | 1022.4 lm/m | F |
|---|
Grade DL (2nd Tier) · 12W/m
Grade DL (2nd Tier) · 12W/m — measured at 12 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|
| 1800 K | 124.2 lm/W | 1490.4 lm/m | E | 99.5 lm/W | 1194.3 lm/m | F | — | — | — |
|---|
| 2300 K | 138.3 lm/W | 1659.9 lm/m | D | 110.9 lm/W | 1330.6 lm/m | E | 89.8 lm/W | 1077.6 lm/m | F |
|---|
| 2700 K | 145.9 lm/W | 1750.8 lm/m | D | 120 lm/W | 1440 lm/m | E | 97.3 lm/W | 1167.2 lm/m | F |
|---|
| 3000 K | 155.6 lm/W | 1867.6 lm/m | D | 126.2 lm/W | 1514.9 lm/m | E | 102.7 lm/W | 1232.3 lm/m | F |
|---|
| 3500 K | 158 lm/W | 1895.8 lm/m | D | 128.5 lm/W | 1542 lm/m | E | 105.8 lm/W | 1269.2 lm/m | F |
|---|
| 4000 K | 163 lm/W | 1956 lm/m | C | 131.6 lm/W | 1578.8 lm/m | E | 108.6 lm/W | 1303.6 lm/m | F |
|---|
| 5000 K | 162.9 lm/W | 1954.8 lm/m | C | 131.6 lm/W | 1578.8 lm/m | E | 108.5 lm/W | 1302 lm/m | F |
|---|
| 6500 K | 149.2 lm/W | 1790.2 lm/m | D | 126.1 lm/W | 1513.7 lm/m | E | 104.7 lm/W | 1256.4 lm/m | F |
|---|
Grade DL (2nd Tier) · 15W/m
Grade DL (2nd Tier) · 15W/m — measured at 15 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|
| 1800 K | 121.6 lm/W | 1824.1 lm/m | E | 97.4 lm/W | 1461.7 lm/m | F | — | — | — |
|---|
| 2300 K | 135.4 lm/W | 2031.6 lm/m | D | 108.6 lm/W | 1628.6 lm/m | F | 87.9 lm/W | 1318.5 lm/m | F |
|---|
| 2700 K | 142.9 lm/W | 2142.9 lm/m | D | 117.5 lm/W | 1762.5 lm/m | E | 95.2 lm/W | 1428.6 lm/m | F |
|---|
| 3000 K | 152.4 lm/W | 2285.8 lm/m | D | 123.6 lm/W | 1854.2 lm/m | E | 100.6 lm/W | 1508.3 lm/m | F |
|---|
| 3500 K | 154.7 lm/W | 2320.4 lm/m | D | 125.8 lm/W | 1887.3 lm/m | E | 103.6 lm/W | 1553.4 lm/m | F |
|---|
| 4000 K | 159.6 lm/W | 2394 lm/m | D | 128.8 lm/W | 1932.4 lm/m | E | 106.4 lm/W | 1595.5 lm/m | F |
|---|
| 5000 K | 159.5 lm/W | 2392.5 lm/m | D | 128.8 lm/W | 1932.4 lm/m | E | 106.3 lm/W | 1594.5 lm/m | F |
|---|
| 6500 K | 146.1 lm/W | 2191 lm/m | D | 123.5 lm/W | 1852.7 lm/m | E | 102.5 lm/W | 1537.5 lm/m | F |
|---|
Grade DL (2nd Tier) · 19.2W/m
Grade DL (2nd Tier) · 19.2W/m — measured at 19.2 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|
| 1800 K | 118.1 lm/W | 2267 lm/m | E | 94.6 lm/W | 1816.6 lm/m | F | — | — | — |
|---|
| 2300 K | 131.5 lm/W | 2524.9 lm/m | E | 105.4 lm/W | 2024 lm/m | F | 85.4 lm/W | 1639.7 lm/m | F |
|---|
| 2700 K | 138.7 lm/W | 2663.2 lm/m | D | 114.1 lm/W | 2190.4 lm/m | E | 92.5 lm/W | 1775.5 lm/m | F |
|---|
| 3000 K | 148 lm/W | 2840.7 lm/m | D | 120 lm/W | 2304.4 lm/m | E | 97.6 lm/W | 1874.5 lm/m | F |
|---|
| 3500 K | 150.2 lm/W | 2883.7 lm/m | D | 122.2 lm/W | 2345.5 lm/m | E | 100.6 lm/W | 1930.6 lm/m | F |
|---|
| 4000 K | 155 lm/W | 2975.3 lm/m | D | 125.1 lm/W | 2401.5 lm/m | E | 103.3 lm/W | 1982.9 lm/m | F |
|---|
| 5000 K | 154.9 lm/W | 2973.4 lm/m | D | 125.1 lm/W | 2401.5 lm/m | E | 103.2 lm/W | 1981.4 lm/m | F |
|---|
| 6500 K | 141.8 lm/W | 2723 lm/m | D | 119.9 lm/W | 2302.5 lm/m | E | 99.5 lm/W | 1910.4 lm/m | F |
|---|
Grade DN (1st Tier) · 7.8W/m
Grade DN (1st Tier) · 7.8W/m — measured at 7.8 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|
| 1800 K | 122.1 lm/W | 952.5 lm/m | E | 102.7 lm/W | 801.2 lm/m | F | — | — | — |
|---|
| 2300 K | 133.2 lm/W | 1038.9 lm/m | E | 114.6 lm/W | 894.1 lm/m | F | 92.8 lm/W | 723.8 lm/m | F |
|---|
| 2700 K | 143.5 lm/W | 1119.5 lm/m | E | 124 lm/W | 967.3 lm/m | E | 100.5 lm/W | 783.9 lm/m | F |
|---|
| 3000 K | 150.8 lm/W | 1176.2 lm/m | D | 131 lm/W | 1021.6 lm/m | E | 106.5 lm/W | 830.8 lm/m | F |
|---|
| 3500 K | 153 lm/W | 1193.5 lm/m | D | 133.8 lm/W | 1043.8 lm/m | E | 110.2 lm/W | 859.6 lm/m | F |
|---|
| 4000 K | 155.9 lm/W | 1215.7 lm/m | D | 134.6 lm/W | 1049.6 lm/m | E | 111 lm/W | 866.1 lm/m | F |
|---|
| 5000 K | 155.7 lm/W | 1214.1 lm/m | D | 135.5 lm/W | 1057 lm/m | E | 111.8 lm/W | 872 lm/m | F |
|---|
| 6500 K | 149.2 lm/W | 1163.9 lm/m | D | 129.5 lm/W | 1010.1 lm/m | E | 107.5 lm/W | 838.5 lm/m | F |
|---|
Grade DN (1st Tier) · 9.6W/m
Grade DN (1st Tier) · 9.6W/m — measured at 9.6 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|
| 1800 K | 120.6 lm/W | 1157.6 lm/m | E | 101.4 lm/W | 973.6 lm/m | F | — | — | — |
|---|
| 2300 K | 131.5 lm/W | 1262.5 lm/m | E | 113.2 lm/W | 1086.6 lm/m | F | 91.7 lm/W | 880.3 lm/m | G |
|---|
| 2700 K | 141.7 lm/W | 1360.5 lm/m | E | 122.5 lm/W | 1175.6 lm/m | E | 99.2 lm/W | 952.7 lm/m | F |
|---|
| 3000 K | 148.9 lm/W | 1429.5 lm/m | D | 129.3 lm/W | 1241.6 lm/m | E | 105.2 lm/W | 1009.6 lm/m | F |
|---|
| 3500 K | 151.1 lm/W | 1450.5 lm/m | D | 132.1 lm/W | 1268.5 lm/m | E | 108.8 lm/W | 1044.6 lm/m | F |
|---|
| 4000 K | 153.9 lm/W | 1477.5 lm/m | D | 132.9 lm/W | 1275.5 lm/m | E | 109.6 lm/W | 1052.6 lm/m | F |
|---|
| 5000 K | 153.7 lm/W | 1475.5 lm/m | D | 133.8 lm/W | 1284.5 lm/m | E | 110.4 lm/W | 1059.8 lm/m | F |
|---|
| 6500 K | 147.3 lm/W | 1414.5 lm/m | D | 127.9 lm/W | 1227.6 lm/m | E | 106.1 lm/W | 1018.6 lm/m | F |
|---|
Grade DN (1st Tier) · 12W/m
Grade DN (1st Tier) · 12W/m — measured at 12 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|
| 1800 K | 118.6 lm/W | 1422.8 lm/m | F | 99.7 lm/W | 1196.7 lm/m | F | — | — | — |
|---|
| 2300 K | 129.3 lm/W | 1551.8 lm/m | E | 111.3 lm/W | 1335.6 lm/m | F | 90.1 lm/W | 1081.2 lm/m | G |
|---|
| 2700 K | 139.4 lm/W | 1672.2 lm/m | E | 120.4 lm/W | 1444.9 lm/m | E | 97.6 lm/W | 1170.9 lm/m | F |
|---|
| 3000 K | 146.4 lm/W | 1757 lm/m | D | 127.2 lm/W | 1526 lm/m | E | 103.4 lm/W | 1240.9 lm/m | F |
|---|
| 3500 K | 148.6 lm/W | 1782.8 lm/m | D | 129.9 lm/W | 1559.2 lm/m | E | 107 lm/W | 1283.9 lm/m | F |
|---|
| 4000 K | 151.3 lm/W | 1816 lm/m | D | 130.6 lm/W | 1567.8 lm/m | E | 107.8 lm/W | 1293.8 lm/m | F |
|---|
| 5000 K | 151.1 lm/W | 1813.5 lm/m | D | 131.6 lm/W | 1578.8 lm/m | E | 108.5 lm/W | 1302 lm/m | F |
|---|
| 6500 K | 144.9 lm/W | 1738.6 lm/m | E | 125.7 lm/W | 1508.8 lm/m | E | 104.4 lm/W | 1252.8 lm/m | F |
|---|
Grade DN (1st Tier) · 15W/m
Grade DN (1st Tier) · 15W/m — measured at 15 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|
| 1800 K | 116.1 lm/W | 1741.4 lm/m | F | 97.6 lm/W | 1464.7 lm/m | F | — | — | — |
|---|
| 2300 K | 126.6 lm/W | 1899.3 lm/m | E | 109 lm/W | 1634.6 lm/m | F | 88.3 lm/W | 1324.5 lm/m | G |
|---|
| 2700 K | 136.4 lm/W | 2046.7 lm/m | E | 117.9 lm/W | 1768.5 lm/m | F | 95.5 lm/W | 1433.1 lm/m | F |
|---|
| 3000 K | 143.4 lm/W | 2150.4 lm/m | E | 124.5 lm/W | 1867.7 lm/m | E | 101.3 lm/W | 1518.8 lm/m | F |
|---|
| 3500 K | 145.5 lm/W | 2182 lm/m | E | 127.2 lm/W | 1908.3 lm/m | E | 104.8 lm/W | 1571.5 lm/m | F |
|---|
| 4000 K | 148.2 lm/W | 2222.6 lm/m | D | 127.9 lm/W | 1918.8 lm/m | E | 105.6 lm/W | 1583.5 lm/m | F |
|---|
| 5000 K | 148 lm/W | 2219.6 lm/m | D | 128.8 lm/W | 1932.4 lm/m | E | 106.3 lm/W | 1594.5 lm/m | F |
|---|
| 6500 K | 141.9 lm/W | 2127.9 lm/m | E | 123.1 lm/W | 1846.7 lm/m | E | 102.2 lm/W | 1533 lm/m | F |
|---|
Grade DN (1st Tier) · 19.2W/m
Grade DN (1st Tier) · 19.2W/m — measured at 19.2 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|
| 1800 K | 112.7 lm/W | 2164.2 lm/m | F | 94.8 lm/W | 1820.3 lm/m | F | — | — | — |
|---|
| 2300 K | 122.9 lm/W | 2360.4 lm/m | E | 105.8 lm/W | 2031.5 lm/m | F | 85.7 lm/W | 1645.4 lm/m | G |
|---|
| 2700 K | 132.5 lm/W | 2543.6 lm/m | E | 114.5 lm/W | 2197.8 lm/m | F | 92.8 lm/W | 1781.1 lm/m | F |
|---|
| 3000 K | 139.2 lm/W | 2672.5 lm/m | E | 120.9 lm/W | 2321.2 lm/m | E | 98.3 lm/W | 1887.6 lm/m | F |
|---|
| 3500 K | 141.2 lm/W | 2711.8 lm/m | E | 123.5 lm/W | 2371.6 lm/m | E | 101.7 lm/W | 1953 lm/m | F |
|---|
| 4000 K | 143.9 lm/W | 2762.2 lm/m | E | 124.2 lm/W | 2384.7 lm/m | E | 102.5 lm/W | 1968 lm/m | F |
|---|
| 5000 K | 143.7 lm/W | 2758.5 lm/m | E | 125.1 lm/W | 2401.5 lm/m | E | 103.2 lm/W | 1981.4 lm/m | F |
|---|
| 6500 K | 137.7 lm/W | 2644.5 lm/m | E | 119.5 lm/W | 2295 lm/m | E | 99.2 lm/W | 1904.6 lm/m | F |
|---|
Grade KE (3rd Tier) · 7.8W/m
Grade KE (3rd Tier) · 7.8W/m — measured at 7.8 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|
| 1900 K | 127.1 lm/W | 991.2 lm/m | E | 101.9 lm/W | 794.6 lm/m | F | — | — | — |
|---|
| 2300 K | 141.6 lm/W | 1104.7 lm/m | D | 113.5 lm/W | 885.1 lm/m | E | 91.9 lm/W | 716.8 lm/m | F |
|---|
| 2700 K | 152.7 lm/W | 1191 lm/m | D | 123.2 lm/W | 960.7 lm/m | E | 99.9 lm/W | 778.9 lm/m | F |
|---|
| 3000 K | 160.4 lm/W | 1251.1 lm/m | C | 130.1 lm/W | 1015 lm/m | E | 105.8 lm/W | 825 lm/m | F |
|---|
| 3500 K | 162.7 lm/W | 1269.2 lm/m | C | 132.7 lm/W | 1034.8 lm/m | E | 109.1 lm/W | 851.3 lm/m | F |
|---|
| 4000 K | 167.5 lm/W | 1306.2 lm/m | C | 135.5 lm/W | 1057 lm/m | D | 111.9 lm/W | 872.7 lm/m | E |
|---|
| 5000 K | 167.3 lm/W | 1304.6 lm/m | C | 135.5 lm/W | 1057 lm/m | D | 111.8 lm/W | 872 lm/m | E |
|---|
| 6500 K | 160.4 lm/W | 1251.1 lm/m | C | 130 lm/W | 1014.2 lm/m | E | 107.9 lm/W | 841.6 lm/m | F |
|---|
Grade KE (3rd Tier) · 9.6W/m
Grade KE (3rd Tier) · 9.6W/m — measured at 9.6 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|
| 1900 K | 125.5 lm/W | 1204.6 lm/m | E | 100.6 lm/W | 965.7 lm/m | F | — | — | — |
|---|
| 2300 K | 139.8 lm/W | 1342.5 lm/m | D | 112 lm/W | 1075.6 lm/m | E | 90.8 lm/W | 871.7 lm/m | F |
|---|
| 2700 K | 150.8 lm/W | 1447.5 lm/m | D | 121.6 lm/W | 1167.6 lm/m | E | 98.6 lm/W | 946.7 lm/m | F |
|---|
| 3000 K | 158.4 lm/W | 1520.5 lm/m | D | 128.5 lm/W | 1233.6 lm/m | E | 104.4 lm/W | 1002.6 lm/m | F |
|---|
| 3500 K | 160.7 lm/W | 1542.4 lm/m | C | 131 lm/W | 1257.5 lm/m | E | 107.8 lm/W | 1034.6 lm/m | F |
|---|
| 4000 K | 165.4 lm/W | 1587.4 lm/m | C | 133.8 lm/W | 1284.5 lm/m | E | 110.5 lm/W | 1060.6 lm/m | E |
|---|
| 5000 K | 165.1 lm/W | 1585.4 lm/m | C | 133.8 lm/W | 1284.5 lm/m | E | 110.4 lm/W | 1059.8 lm/m | E |
|---|
| 6500 K | 158.4 lm/W | 1520.5 lm/m | D | 128.4 lm/W | 1232.6 lm/m | E | 106.6 lm/W | 1023.4 lm/m | F |
|---|
Grade KE (3rd Tier) · 12W/m
Grade KE (3rd Tier) · 12W/m — measured at 12 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|
| 1900 K | 123.4 lm/W | 1480.5 lm/m | E | 98.9 lm/W | 1186.9 lm/m | F | — | — | — |
|---|
| 2300 K | 137.5 lm/W | 1650.1 lm/m | D | 110.2 lm/W | 1322 lm/m | E | 89.2 lm/W | 1070.4 lm/m | F |
|---|
| 2700 K | 148.3 lm/W | 1779.1 lm/m | D | 119.6 lm/W | 1435.1 lm/m | E | 97 lm/W | 1163.5 lm/m | F |
|---|
| 3000 K | 155.7 lm/W | 1868.8 lm/m | D | 126.3 lm/W | 1516.2 lm/m | E | 102.7 lm/W | 1232.3 lm/m | F |
|---|
| 3500 K | 158 lm/W | 1895.8 lm/m | D | 128.8 lm/W | 1545.7 lm/m | E | 106 lm/W | 1271.7 lm/m | F |
|---|
| 4000 K | 162.6 lm/W | 1951.1 lm/m | C | 131.6 lm/W | 1578.8 lm/m | E | 108.6 lm/W | 1303.6 lm/m | F |
|---|
| 5000 K | 162.4 lm/W | 1948.7 lm/m | C | 131.6 lm/W | 1578.8 lm/m | E | 108.5 lm/W | 1302 lm/m | F |
|---|
| 6500 K | 155.7 lm/W | 1868.8 lm/m | D | 126.2 lm/W | 1514.9 lm/m | E | 104.8 lm/W | 1257.6 lm/m | F |
|---|
Grade KE (3rd Tier) · 15W/m
Grade KE (3rd Tier) · 15W/m — measured at 15 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|
| 1900 K | 120.8 lm/W | 1812.1 lm/m | E | 96.8 lm/W | 1452.7 lm/m | F | — | — | — |
|---|
| 2300 K | 134.6 lm/W | 2019.6 lm/m | E | 107.9 lm/W | 1618.1 lm/m | F | 87.4 lm/W | 1311 lm/m | F |
|---|
| 2700 K | 145.2 lm/W | 2177.5 lm/m | D | 117.1 lm/W | 1756.4 lm/m | E | 94.9 lm/W | 1424.1 lm/m | F |
|---|
| 3000 K | 152.5 lm/W | 2287.3 lm/m | D | 123.7 lm/W | 1855.7 lm/m | E | 100.6 lm/W | 1508.3 lm/m | F |
|---|
| 3500 K | 154.7 lm/W | 2320.4 lm/m | D | 126.1 lm/W | 1891.8 lm/m | E | 103.8 lm/W | 1556.4 lm/m | F |
|---|
| 4000 K | 159.2 lm/W | 2388 lm/m | D | 128.8 lm/W | 1932.4 lm/m | E | 106.4 lm/W | 1595.5 lm/m | F |
|---|
| 5000 K | 159 lm/W | 2385 lm/m | D | 128.8 lm/W | 1932.4 lm/m | E | 106.3 lm/W | 1594.5 lm/m | F |
|---|
| 6500 K | 152.5 lm/W | 2287.3 lm/m | D | 123.6 lm/W | 1854.2 lm/m | E | 102.6 lm/W | 1539 lm/m | F |
|---|
Grade KE (3rd Tier) · 19.2W/m
Grade KE (3rd Tier) · 19.2W/m — measured at 19.2 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|
| 1900 K | 117.3 lm/W | 2252 lm/m | E | 94 lm/W | 1805.4 lm/m | F | — | — | — |
|---|
| 2300 K | 130.7 lm/W | 2509.9 lm/m | E | 104.7 lm/W | 2010.9 lm/m | F | 84.8 lm/W | 1628.2 lm/m | G |
|---|
| 2700 K | 140.9 lm/W | 2706.2 lm/m | D | 113.7 lm/W | 2182.9 lm/m | E | 92.2 lm/W | 1769.8 lm/m | F |
|---|
| 3000 K | 148.1 lm/W | 2842.6 lm/m | D | 120.1 lm/W | 2306.2 lm/m | E | 97.6 lm/W | 1874.5 lm/m | F |
|---|
| 3500 K | 150.2 lm/W | 2883.7 lm/m | D | 122.5 lm/W | 2351.1 lm/m | E | 100.7 lm/W | 1934.3 lm/m | F |
|---|
| 4000 K | 154.6 lm/W | 2967.8 lm/m | D | 125.1 lm/W | 2401.5 lm/m | E | 103.3 lm/W | 1982.9 lm/m | F |
|---|
| 5000 K | 154.4 lm/W | 2964.1 lm/m | D | 125.1 lm/W | 2401.5 lm/m | E | 103.2 lm/W | 1981.4 lm/m | F |
|---|
| 6500 K | 148.1 lm/W | 2842.6 lm/m | D | 120 lm/W | 2304.4 lm/m | E | 99.6 lm/W | 1912.3 lm/m | F |
|---|
Frequently Asked Questions
What are the key specifications of 7923-PU?
7923-PU: 2835, 128, 24V, 10mm PCB, 3 oz copper FPCB, cuttable 8LEDs/62.5mm, IP68PU, CRI Ra≥80 , Ra≥90 , Ra≥95 , FS. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
Which environments is this marine grade LED strip rated for?
Ingress protection for this model is IP68PU. As a marine grade LED strip it is specified for the duty listed in the datasheet, and DENO can supply alternative coatings, sleeves or IP68 potting for harsher installations.
Can DENO customise this marine grade LED strip for a project?
Yes. DENO manufactures the Marine Grade SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
What makes an LED strip marine grade?
Marine LED strip lights need IP67 or IP68 encapsulation, salt-mist resistant coating, tinned copper conductors and UV stable silicone. These boat LED strip lights are built for continuous saltwater spray and vibration rather than the light splash duty a standard waterproof strip is rated for.
Which LED driver and run length suit #7923-PU?
2835 High Light Efficacy PU LED Strip Light | 10mm | 24V | 128LEDs | 62.5mm/cut | #7923-PU is a constant-voltage 24V product, so pair it with a CE or UL listed 24V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 5m. 5m Single/10m Dual Input power. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.
