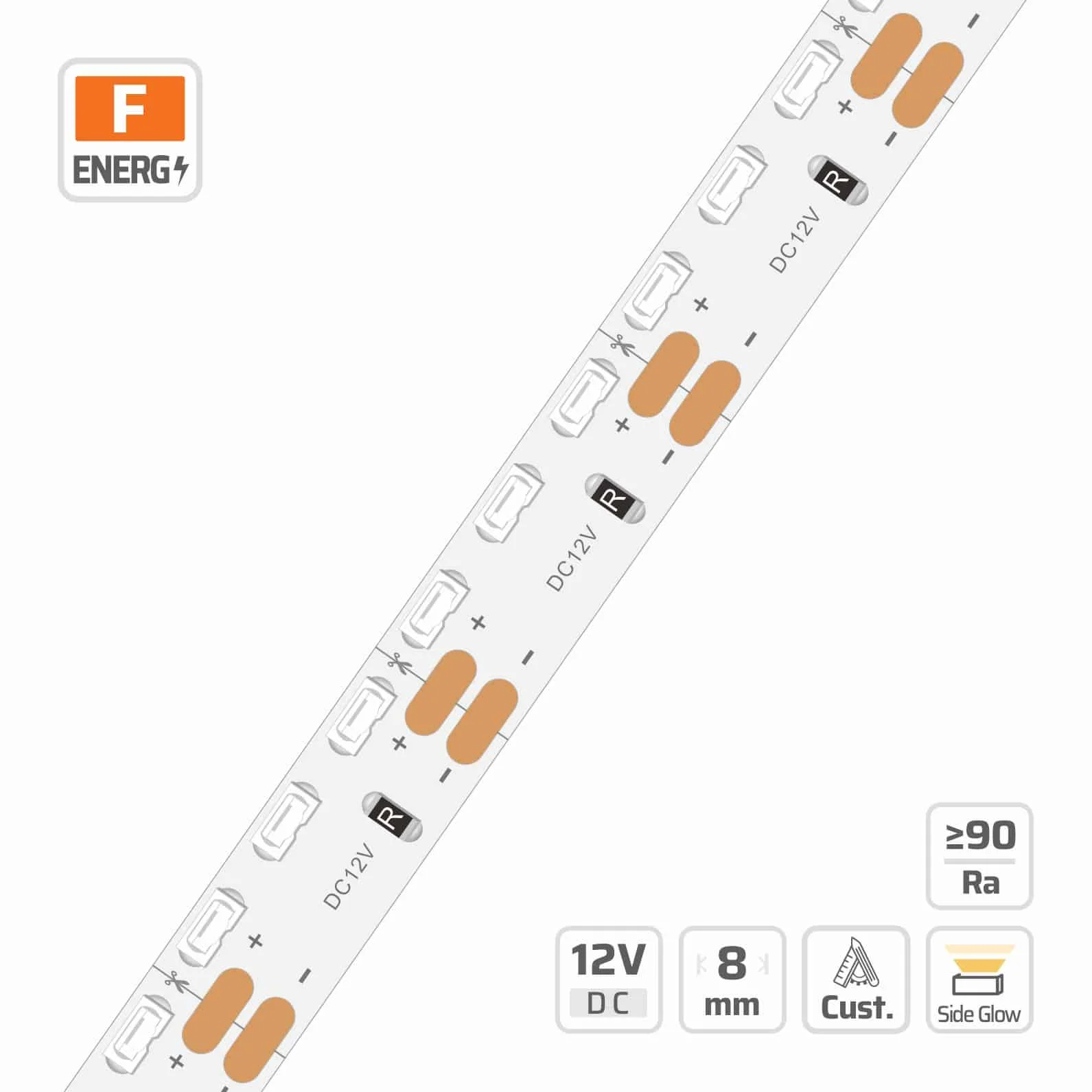

3014 Side View LED Strip Light (#7609)

8mm · 12V · 156LEDs · 19.23cut

Model: 7609

7609 3014 Side View LED Strip Light | 8mm | 12V | 156LEDs | 19.23cut | #7609 — 12V, cuttable every 19.2mm, 8mm FPCB width, 3014 LEDs, 156 LEDs/m, 2700–6500K

Overview

The DENO LED 7609 3014 Side View LED Strip Light offers exceptional flexibility and light output for various commercial and architectural applications. With 156 LEDs per meter and a 12V input, it's perfect for projects requiring subtle yet powerful illumination. Its durable construction, featuring pure copper and 99.9% pure golden wire encapsulation, ensures longevity and consistent performance. Ideal for indirect lighting, cove lighting, and display accents, DENO LED solut...

Description

This side view LED strip light utilizes 156 SMD 3014 chips per meter to deliver a 120-degree lateral beam for precision edge and cove lighting. Operating on constant-voltage 12V power, this dimmable strip allows precise trimming every 19.23mm across its robust 2oz copper PCB. Featuring a minimum bend diameter of 60mm and a maximum 5M continuous run, the flexible board handles operating temperatures from -25°C to 40°C. DENO supplies these 3014 side view LED strips for wholesale project supply with factory-direct OEM manufacturing to match strict commercial lighting specifications.

Specifications

CCT (K)2700–6500K
CRIRa≥90
POWER (W/M)12 W/m
LED QTY156 LEDs/m
PART NODL-F30A78V12-7609-*
SMD TYPE3014
CUTTABLE UNIT3LEDs/19.23mm
DIMMABLEYes
IP RATINGIP20/IP65/IP67
LED PITCH6.41mm
PCB WIDTH8
BEAM ANGLE120°
RUN LENGTH5M
COPPER FOIL2oz
ON OFF TIMES10000（test times）
POWER RANGE3~18W
CIRCUIT TYPEC.V. (Resistor Based)
INPUT VOLTAGE12V
LUMINOUS FLUX1180–1395 lm/m
MIN BEND DIAMETERΦ60mm
OPERATING TEMPERATURE-25~40°C; Tc: 75°C (max)

Applications

  • Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
  • Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
  • Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.

Recommended accessories & compatible parts

  • DL-1215 — 12x15mm Surface Mount LED Channel — Tall U Shape Aluminum Profile: Accepts LED strips up to 8mm wide.
  • DL-1313HX-M — 13x13mm Magnetic Cabinet LED Channel — Tool-Free Corner Aluminum Profile: Accepts LED strips up to 8mm wide.
  • DL-1408 HX — 14x8mm Surface Mount LED Channel — Slim Aluminum Profile for 8mm Strip: Accepts LED strips up to 8mm wide.
  • V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.

Request a quotation for #7609

DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.

  • Warranty: 5 years
  • Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
  • Compliance: CE · UL · RoHS
  • Bonding wire: 99.99% pure gold
  • Copper foil: 99.9% pure copper FPCB

Contact DENO LED engineers · OEM / ODM capability

Photometric Performance — CCT × CRI Efficacy Matrix

Peak measured luminous efficacy: 126.5 lm/W at 4000K, Ra 80, ErP energy class E (Grade DL (2nd Tier) · 9.4W/m).

All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.

Grade DL (2nd Tier) · 9.4W/m

Grade DL (2nd Tier) · 9.4W/m — measured at 9.4 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)Ra 80 — Luminous Efficacy (lm/W)Ra 80 — Luminous Flux (lm/m)Ra 80 — ErP Energy ClassRa 90 — Luminous Efficacy (lm/W)Ra 90 — Luminous Flux (lm/m)Ra 90 — ErP Energy ClassFull Spectrum (Ra 95+) — Luminous Efficacy (lm/W)Full Spectrum (Ra 95+) — Luminous Flux (lm/m)Full Spectrum (Ra 95+) — ErP Energy Class
1800 K96.4 lm/W906.2 lm/mF77 lm/W724.2 lm/mG———
2300 K107.3 lm/W1008.3 lm/mF85.7 lm/W806 lm/mF———
2700 K112.7 lm/W1059.3 lm/mE92.8 lm/W872.5 lm/mF75.2 lm/W706.8 lm/mG
3000 K120.8 lm/W1135.4 lm/mE97.6 lm/W917.7 lm/mF79.4 lm/W746.3 lm/mG
3500 K122.6 lm/W1152.7 lm/mE99.4 lm/W934.1 lm/mF81.9 lm/W769.4 lm/mG
4000 K126.5 lm/W1189.3 lm/mE101.8 lm/W957.2 lm/mF84 lm/W789.7 lm/mG
5000 K126.4 lm/W1188.3 lm/mE101.7 lm/W956.3 lm/mF———
6500 K115.5 lm/W1085.3 lm/mE97.6 lm/W917.7 lm/mF———

Grade DL (2nd Tier) · 12.5W/m

Grade DL (2nd Tier) · 12.5W/m — measured at 12.5 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)Ra 80 — Luminous Efficacy (lm/W)Ra 80 — Luminous Flux (lm/m)Ra 80 — ErP Energy ClassRa 90 — Luminous Efficacy (lm/W)Ra 90 — Luminous Flux (lm/m)Ra 90 — ErP Energy ClassFull Spectrum (Ra 95+) — Luminous Efficacy (lm/W)Full Spectrum (Ra 95+) — Luminous Flux (lm/m)Full Spectrum (Ra 95+) — ErP Energy Class
1800 K94.3 lm/W1179.1 lm/mF75.4 lm/W942.2 lm/mG———
2300 K105 lm/W1311.9 lm/mF83.9 lm/W1048.8 lm/mG———
2700 K110.3 lm/W1378.3 lm/mE90.8 lm/W1135.2 lm/mF73.6 lm/W919.7 lm/mG
3000 K118.2 lm/W1477.3 lm/mE95.5 lm/W1194.1 lm/mF77.7 lm/W971.1 lm/mG
3500 K120 lm/W1499.8 lm/mE97.2 lm/W1215.4 lm/mF80.1 lm/W1001.1 lm/mG
4000 K123.8 lm/W1547.4 lm/mE99.6 lm/W1245.5 lm/mF82.2 lm/W1027.5 lm/mG
5000 K123.7 lm/W1546.2 lm/mE99.5 lm/W1244.2 lm/mF———
6500 K113 lm/W1412.1 lm/mE95.5 lm/W1194.1 lm/mF———

Grade DL (2nd Tier) · 15.6W/m

Grade DL (2nd Tier) · 15.6W/m — measured at 15.6 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)Ra 80 — Luminous Efficacy (lm/W)Ra 80 — Luminous Flux (lm/m)Ra 80 — ErP Energy ClassRa 90 — Luminous Efficacy (lm/W)Ra 90 — Luminous Flux (lm/m)Ra 90 — ErP Energy ClassFull Spectrum (Ra 95+) — Luminous Efficacy (lm/W)Full Spectrum (Ra 95+) — Luminous Flux (lm/m)Full Spectrum (Ra 95+) — ErP Energy Class
1800 K92.3 lm/W1439.8 lm/mF73.8 lm/W1150.6 lm/mG———
2300 K102.7 lm/W1602 lm/mF82.1 lm/W1280.6 lm/mG———
2700 K107.9 lm/W1683.1 lm/mF88.9 lm/W1386.2 lm/mF72 lm/W1123.1 lm/mG
3000 K115.6 lm/W1803.9 lm/mE93.5 lm/W1458.1 lm/mF76 lm/W1185.8 lm/mG
3500 K117.4 lm/W1831.5 lm/mE95.1 lm/W1484.1 lm/mF78.4 lm/W1222.5 lm/mG
4000 K121.1 lm/W1889.6 lm/mE97.5 lm/W1520.9 lm/mF80.4 lm/W1254.6 lm/mG
5000 K121 lm/W1888.1 lm/mE97.4 lm/W1519.3 lm/mF———
6500 K110.5 lm/W1724.4 lm/mE93.5 lm/W1458.1 lm/mF———

High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide

At up to 15.6W/m, 7609 is a high-power SMD LED strip. Above roughly 14.4W/m the tape can no longer shed its own heat through the FPC alone — an aluminum channel is part of the luminaire, not an accessory.

Why high-wattage strips need a heat sink

  • Aluminum conducts heat roughly 30× faster than the plastics, MDF or gypsum a strip is usually stuck to, so a bare high-power run traps heat under the tape.
  • LED lifetime (LM-80 / TM-21) is driven by solder-point temperature Tc. Keeping Tc inside the datasheet limit — DENO strips are rated Tc ≤ 75°C — is what preserves the rated L70 lifetime and colour stability.
  • Never run 14.4W/m or more coiled on the reel, inside a sealed plastic diffuser, or directly on wood, wallpaper or foam.

Sizing rule: FPC width vs channel inner width

  • Channel inner width ≥ FPC width + 2mm. This strip is 8mm wide, so it needs at least 10mm of inner width.
  • The 2mm clearance absorbs extrusion tolerance and lets the tape be seated or replaced without scraping the side walls or the wiring.
  • A frosted or opal PC cover then diffuses the higher lumen output into an even, dot-free line instead of visible hot spots.

Aluminum channels that fit this strip

Recommended LED Channels

Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.

This strip is 8mm wide, so it needs a channel with at least 10mm inner width (8mm + 2mm clearance). Every profile below meets that.

Related models in this series

See every model in SMD LED Strip Series or narrow to 3014. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.

Frequently Asked Questions

What are the common applications for this 3014 side view LED strip light?

This 3014 side view LED strip light is ideal for indirect lighting, cove lighting, display cases, accent lighting, and signage in commercial spaces.

Is this LED strip dimmable and what voltage does it require?

Yes, this 3014 side view LED strip light is fully dimmable, allowing for versatile lighting control, and operates efficiently on a 12V input voltage.

What certifications does DENO LED typically provide for their products?

DENO LED products generally meet international standards, often holding certifications such as CE and RoHS, with UL certification pending for many items.

Can DENO LED accommodate custom lengths or specific project requirements?

DENO LED offers flexible solutions, including custom lengths and specifications, to perfectly match the unique demands of your B2B lighting projects.

What are the key specifications of #7609?

3014 Side View LED Strip Light | 8mm | 12V | 156LEDs | 19.23cut | #7609: 3014 LEDs, 156 LEDs/m, 12V, 8 FPCB, 2oz copper foil, 3~18W power, cut unit 3LEDs/19.23mm. Photometric files, wiring diagrams and test reports are available in the downloads block on this page.
