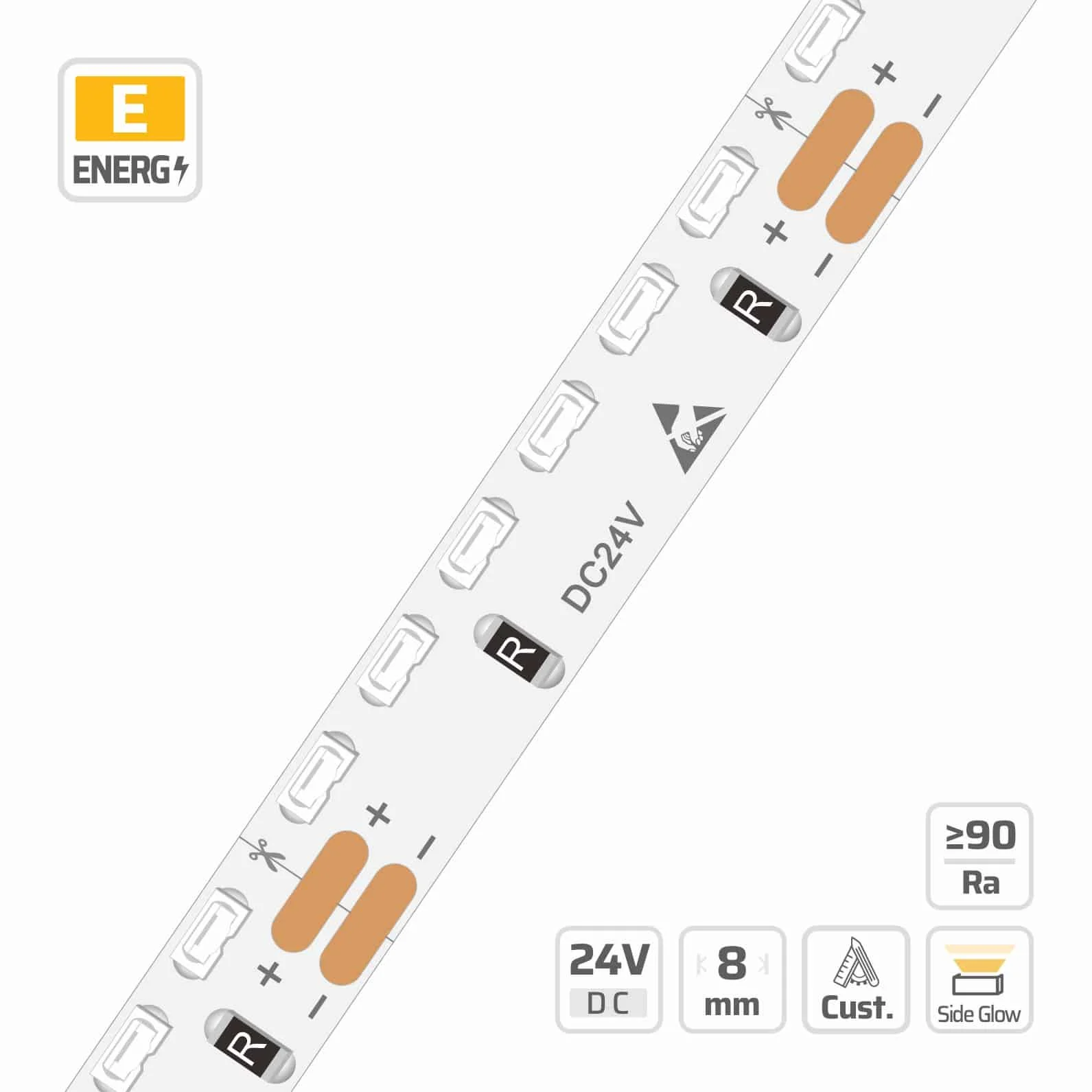

3014 Side View LED Strip Light (#7073)
8mm · 24V · 156LEDs · 38.4cut
Model: 7073
Overview
3014 Side View LED Strip Light | 8mm | 24V | 156LEDs | 38.4cut | #7073 is part of the DENO Side Emitting LED Strips series, engineered around side emitting LED strip. Key specifications: 3014, 156 LEDs/m, 24V, 8 PCB, 2oz copper FPCB, cuttable 6LEDs/38.46mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
This 3014 side view LED strip light features 156 diodes per meter on an 8mm PCB for precise architectural edge lighting. Operating on 24V constant voltage, the flexible strip delivers smooth dimming and allows field trimming every six LEDs or 38.46mm. Engineered with a 2oz copper foil PCB and pure copper frames, the assembly ensures stable thermal dissipation and mechanical reliability. Factory-direct 5M reels support side-emitting 120-degree beam distribution with a minimum bend diameter of 60mm for wholesale project supply. Designed for operating temperatures between -25°C and 40°C, this circuit delivers versatile power configurations from 3W to 19.2W per meter.
Side Emitting Led Strip built for side emitting led strips projects.
Specifications
| CCT (K) | 2700–6500K |
|---|---|
| CRI | Ra≥80 |
| POWER (W/M) | 19.2 W/m |
| LED QTY | 156 LEDs/m |
| PART NO | DL-F34A78V24-7073-* |
| SMD TYPE | 3014 |
| CUTTABLE UNIT | 6LEDs/38.46mm |
| DIMMABLE | Yes |
| IP RATING | IP20/IP65/IP67 |
| LED PITCH | 6.4mm |
| PCB WIDTH | 8 |
| BEAM ANGLE | 120° |
| RUN LENGTH | 5M |
| COPPER FOIL | 2oz |
| ON OFF TIMES | 10000（test times） |
| POWER RANGE | 3~19.2W |
| CIRCUIT TYPE | C.V. (Resistor Based) |
| INPUT VOLTAGE | 24V |
| LUMINOUS FLUX | 1895–2215 lm/m |
| MIN BEND DIAMETER | Φ60mm |
| OPERATING TEMPERATURE | -25~40°C; Tc: 75°C (max) |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
Recommended accessories & compatible parts
- DL-1215 — 12x15mm Surface Mount LED Channel — Tall U Shape Aluminum Profile: Accepts LED strips up to 8mm wide.
- DL-1313HX-M — 13x13mm Magnetic Cabinet LED Channel — Tool-Free Corner Aluminum Profile: Accepts LED strips up to 8mm wide.
- DL-1408 HX — 14x8mm Surface Mount LED Channel — Slim Aluminum Profile for 8mm Strip: Accepts LED strips up to 8mm wide.
- DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.
Request a quotation for #7073
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 107.1 lm/W at 4000K, Ra 80, ErP energy class F (Grade DL (2nd Tier) · 9.4W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 9.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 81.6 lm/W | 767.4 lm/m | G | 65 lm/W | 610.9 lm/m | G | — | — | — |
| 2300 K | 90.8 lm/W | 853.6 lm/m | F | 72.4 lm/W | 680.1 lm/m | G | — | — | — |
| 2700 K | 94.9 lm/W | 891.8 lm/m | F | 78.3 lm/W | 736.3 lm/m | G | 63.5 lm/W | 596.8 lm/m | G |
| 3000 K | 102.1 lm/W | 960 lm/m | F | 82.4 lm/W | 774.4 lm/m | G | 67 lm/W | 630 lm/m | G |
| 3500 K | 103.8 lm/W | 976 lm/m | F | 83.9 lm/W | 788.4 lm/m | G | 69 lm/W | 649 lm/m | G |
| 4000 K | 107.1 lm/W | 1007.1 lm/m | F | 85.9 lm/W | 807.5 lm/m | F | 70.9 lm/W | 666.1 lm/m | G |
| 5000 K | 107 lm/W | 1006.1 lm/m | F | 85.8 lm/W | 806.5 lm/m | F | — | — | — |
| 6500 K | 97.5 lm/W | 916.8 lm/m | F | 82.4 lm/W | 774.4 lm/m | G | — | — | — |
Grade DL (2nd Tier) · 12.5W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 79.9 lm/W | 998.5 lm/m | G | 63.6 lm/W | 794.9 lm/m | G | — | — | — |
| 2300 K | 88.9 lm/W | 1110.7 lm/m | F | 70.8 lm/W | 884.9 lm/m | G | — | — | — |
| 2700 K | 92.8 lm/W | 1160.3 lm/m | F | 76.6 lm/W | 958 lm/m | G | 62.1 lm/W | 776.6 lm/m | G |
| 3000 K | 99.9 lm/W | 1249.1 lm/m | F | 80.6 lm/W | 1007.6 lm/m | G | 65.6 lm/W | 819.7 lm/m | G |
| 3500 K | 101.6 lm/W | 1269.9 lm/m | F | 82.1 lm/W | 1025.9 lm/m | G | 67.6 lm/W | 844.5 lm/m | G |
| 4000 K | 104.8 lm/W | 1310.4 lm/m | F | 84.1 lm/W | 1050.7 lm/m | G | 69.3 lm/W | 866.6 lm/m | G |
| 5000 K | 104.7 lm/W | 1309.1 lm/m | F | 83.9 lm/W | 1049.4 lm/m | G | — | — | — |
| 6500 K | 95.4 lm/W | 1192.9 lm/m | F | 80.6 lm/W | 1007.6 lm/m | G | — | — | — |
Grade DL (2nd Tier) · 15.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 78.2 lm/W | 1219.2 lm/m | G | 62.2 lm/W | 970.6 lm/m | G | — | — | — |
| 2300 K | 86.9 lm/W | 1356.3 lm/m | F | 69.3 lm/W | 1080.6 lm/m | G | — | — | — |
| 2700 K | 90.8 lm/W | 1416.9 lm/m | F | 75 lm/W | 1169.8 lm/m | G | 60.8 lm/W | 948.3 lm/m | G |
| 3000 K | 97.8 lm/W | 1525.3 lm/m | F | 78.9 lm/W | 1230.4 lm/m | G | 64.2 lm/W | 1000.9 lm/m | G |
| 3500 K | 99.4 lm/W | 1550.8 lm/m | F | 80.3 lm/W | 1252.7 lm/m | G | 66.1 lm/W | 1031.2 lm/m | G |
| 4000 K | 102.6 lm/W | 1600.2 lm/m | F | 82.2 lm/W | 1283 lm/m | G | 67.8 lm/W | 1058.3 lm/m | G |
| 5000 K | 102.5 lm/W | 1598.6 lm/m | F | 82.1 lm/W | 1281.4 lm/m | G | — | — | — |
| 6500 K | 93.4 lm/W | 1456.7 lm/m | F | 78.9 lm/W | 1230.4 lm/m | G | — | — | — |
High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide
At up to 15.6W/m, 7073 is a high-power SMD LED strip. Above roughly 14.4W/m the tape can no longer shed its own heat through the FPC alone — an aluminum channel is part of the luminaire, not an accessory.
Why high-wattage strips need a heat sink
- Aluminum conducts heat roughly 30× faster than the plastics, MDF or gypsum a strip is usually stuck to, so a bare high-power run traps heat under the tape.
- LED lifetime (LM-80 / TM-21) is driven by solder-point temperature Tc. Keeping Tc inside the datasheet limit — DENO strips are rated Tc ≤ 75°C — is what preserves the rated L70 lifetime and colour stability.
- Never run 14.4W/m or more coiled on the reel, inside a sealed plastic diffuser, or directly on wood, wallpaper or foam.
Sizing rule: FPC width vs channel inner width
- Channel inner width ≥ FPC width + 2mm. This strip is 8mm wide, so it needs at least 10mm of inner width.
- The 2mm clearance absorbs extrusion tolerance and lets the tape be seated or replaced without scraping the side walls or the wiring.
- A frosted or opal PC cover then diffuses the higher lumen output into an even, dot-free line instead of visible hot spots.
Aluminum channels that fit this strip
- 14x8mm Magnetic LED Channel · fits ≤8mm strip
- 13x13mm Magnetic Cabinet LED Channel · fits ≤8mm strip
- 12x15mm Surface Mount LED Channel · fits ≤8mm strip
- Slim Recessed Aluminum Profile · 8mm PCB · fits ≤8mm strip
- 14.2x9.8mm Recessed LED Channel with Flange · fits ≤8mm strip
- 14x8mm Surface Mount LED Channel · fits ≤8mm strip
Recommended LED Channels
Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.
This strip is 8mm wide, so it needs a channel with at least 10mm inner width (8mm + 2mm clearance). Every profile below meets that.
Related models in this series
- 3014 High Density LED Strip Light (#5590)
- 3014 Classic PU LED Strip Light (#4524-PU)
- 3014 Ultra-Narrow LED Strip Light (#9124)
- 3014 Side View LED Strip Light (#7609)
- 3014 Side View LED Strip Light (#7610)
- 3014 Side View LED Strip Light (#4722)
- 3014 CCT LED Strip Light (#4272)
- 3014 Classic LED Strip Light (#4723)
See every model in SMD LED Strip Series or narrow to 3014. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 7073?
7073: 3014, 156 LEDs/m, 24V, 8 PCB, 2oz copper FPCB, cuttable 6LEDs/38.46mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
What makes the construction of this side emitting LED strip different?
It is built as a side emitting LED strip on 2oz copper FPCB with a cutting unit of 6LEDs/38.46mm and an LED pitch of 6.4mm, so it holds its electrical and mechanical performance where standard strips fail.
Can DENO customise this side emitting LED strip for a project?
Yes. DENO manufactures the Side Emitting LED Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
Where is a side emitting LED strip used?
A side view LED strip fires light out of the edge of the board rather than the face, which suits edge-lit panels, glass shelf edges, handrail slots and shallow reveals where there is no depth to mount a top-firing strip and aim it at the surface.
Which LED driver and run length suit #7073?
3014 Side View LED Strip Light | 8mm | 24V | 156LEDs | 38.4cut | #7073 is a constant-voltage 24V product, so pair it with a CE or UL listed 24V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 5M. 5m Single/10m Dual Input power. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.
