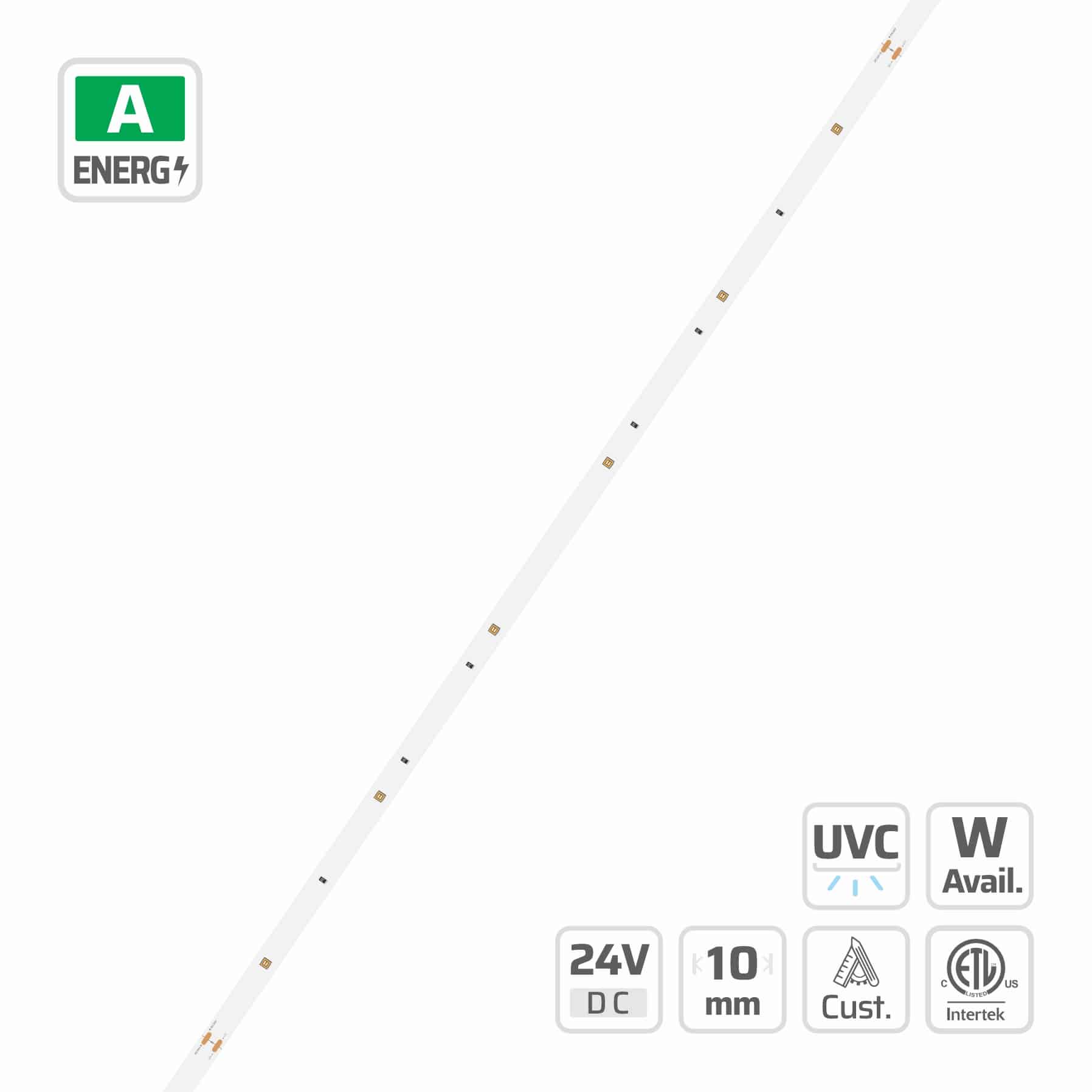

Special LED Strip Light (#6966)
10mm · 24V · 12LEDs · 500mm/cut
Model: 6966
Overview
Special LED Strip Light | 10mm | 24V | 12LEDs | 500mm/cut | #6966 is part of the DENO Special SMD Strips series, engineered around special application LED strip. Key specifications: 3535, 12, 24V, 10 PCB, 2oz copper FPCB, cuttable 6LEDs/500mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
Engineered with 3535 SMD chips emitting a 265-278nm spectrum, this special LED strip light serves targeted disinfection alongside chemical and biological analysis applications. Operating on a safe 24V constant voltage circuit, the robust 10mm wide PCB features 2oz copper foil to ensure stable thermal and electrical performance. This LED strip light provides precise 500mm cutting increments with 6 LEDs per cut section, supporting factory-direct customization up to 5m run lengths. Fully dimmable circuitry supports standard PWM, 0/1-10V, and DALI control protocols, facilitating versatile integration for wholesale project supply and specialized equipment builds.
Special Application Led Strip built for special smd strips projects.
Specifications
| CCT (K) | 2700-6500 |
|---|---|
| CRI | Ra≥80 |
| LED QTY | 12 |
| PART NO | DL-UVC-6966 |
| SMD TYPE | 3535 |
| CUTTABLE UNIT | 6LEDs/500mm |
| DIMMABLE | Yes |
| IP RATING | IP20 |
| LED PITCH | 83.33mm |
| LIFESPAN | 50000 |
| PCB WIDTH | 10 |
| WARRANTY | 5 Years |
| RUN LENGTH | 5m |
| COPPER FOIL | 2oz |
| POWER RANGE | 2.88 W/m |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 24V |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
Recommended accessories & compatible parts
- DL-1003 — 19.1x8mm Surface Mount LED Channel — Dotless Aluminum Profile for 240 LEDs/m Strip: Accepts LED strips up to 10mm wide.
- DL-1103-1 — 16x13mm Surface Mount LED Channel — Aluminum Profile for 10mm LED Strip: Accepts LED strips up to 10mm wide.
- DL-1510 HX-F — 15x9.9mm Recessed LED Channel with Flange — Flush Mount Aluminum Profile: Accepts LED strips up to 10mm wide.
- DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.
Request a quotation for #6966
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Recommended LED Channels
Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.
This strip is 10mm wide, so it needs a channel with at least 12mm inner width (10mm + 2mm clearance). Every profile below meets that.
Related models in this series
See every model in SMD LED Strip Series or narrow to 3535. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 6966?
6966: 3535, 12, 24V, 10 PCB, 2oz copper FPCB, cuttable 6LEDs/500mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
Which environments is this special application LED strip rated for?
Ingress protection for this model is listed in the datasheet. As a special application LED strip it is specified for the duty listed in the datasheet, and DENO can supply alternative coatings, sleeves or IP68 potting for harsher installations.
Can DENO customise this special application LED strip for a project?
Yes. DENO manufactures the Special SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
What can be customised on an OEM LED strip order?
FPCB width and copper weight, LED type and density, CCT and CRI bin, cut interval, reel length, connector and encapsulation can all be specified. As a direct LED strip manufacturer, DENO builds to drawing, including non-standard shapes and project-specific labelling.
Which LED driver and run length suit #6966?
Special LED Strip Light | 10mm | 24V | 12LEDs | 500mm/cut | #6966 is a constant-voltage 24V product, so pair it with a CE or UL listed 24V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 5m. 5m Single/10m Dual Input power. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.
