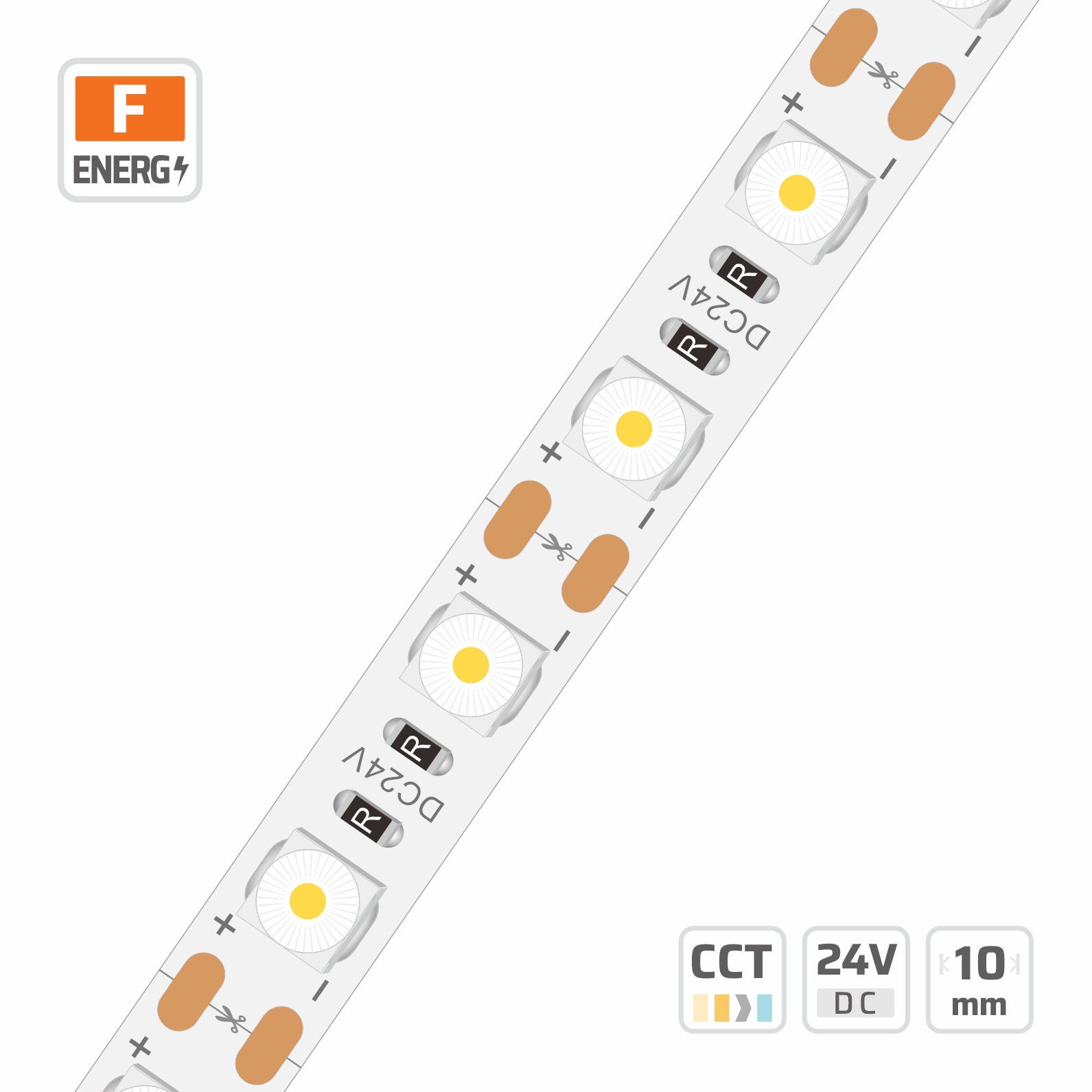

6060 Lenses LED Strip Light (#6678)
10mm · 24V · 60LEDs · 33.33mm/cut
Model: 6678
Overview
6060 Lenses LED Strip Light | 10mm | 24V | 60LEDs | 33.33mm/cut | #6678 is part of the DENO SMD Strips with Lenses series, engineered around LED strip with lens. Key specifications: 6060, 60, 24V, 10 PCB, 2oz copper FPCB, cuttable 2LEDs/33.33mm, IP20. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
This 6060 lenses LED strip light features a wide 160° beam angle and protective silicone encapsulation for uniform architectural lighting distribution. Built on a 10mm wide 2oz copper PCB, the 24V constant voltage circuit delivers dependable thermal conduction and smooth dimmable operation. The high-transmittance silicone encapsulation and large-area bracket heat sink effectively dissipate heat to protect the chips against light decay. Cuttable every two LEDs at 33.33mm intervals, this strip provides flexible lengths ideal for factory-direct wholesale project supply and rapid installation.
Led Strip With Lens built for smd strips with lenses projects.
Specifications
| LED QTY | 60 |
|---|---|
| PART NO | DL-F60A30V24-Lens-6678-* |
| SMD TYPE | 6060 |
| CUTTABLE UNIT | 2LEDs/33.33mm |
| DIMMABLE | Yes |
| IP RATING | IP20 |
| LED PITCH | 16.7mm |
| LIFESPAN | 50000 |
| PCB WIDTH | 10 |
| BEAM ANGLE | 160° |
| RUN LENGTH | 5m |
| COPPER FOIL | 2oz |
| POWER RANGE | 7.2~24W |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 24V |
| OPERATING TEMPERATURE | -20°C ~ +50°C |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
Recommended accessories & compatible parts
- DL-1003 — 19.1x8mm Surface Mount LED Channel — Dotless Aluminum Profile for 240 LEDs/m Strip: Accepts LED strips up to 10mm wide.
- DL-1103-1 — 16x13mm Surface Mount LED Channel — Aluminum Profile for 10mm LED Strip: Accepts LED strips up to 10mm wide.
- DL-1510 HX-F — 15x9.9mm Recessed LED Channel with Flange — Flush Mount Aluminum Profile: Accepts LED strips up to 10mm wide.
- DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.
Request a quotation for #6678
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 108 lm/W at 4000K, Ra 80, ErP energy class F (Grade DL (2nd Tier) · 7.2W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 7.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 82.3 lm/W | 592.4 lm/m | G | 65.5 lm/W | 471.3 lm/m | G | — | — | — |
| 2300 K | 91.6 lm/W | 659.3 lm/m | F | 73 lm/W | 525.5 lm/m | G | — | — | — |
| 2700 K | 95.6 lm/W | 688.4 lm/m | F | 78.9 lm/W | 568 lm/m | G | — | — | — |
| 3000 K | 103 lm/W | 741.9 lm/m | F | 83 lm/W | 597.9 lm/m | G | — | — | — |
| 3500 K | 104.7 lm/W | 753.7 lm/m | F | 84.6 lm/W | 608.9 lm/m | G | — | — | — |
| 4000 K | 108 lm/W | 777.3 lm/m | F | 86.5 lm/W | 623.1 lm/m | F | — | — | — |
| 5000 K | 108 lm/W | 777.3 lm/m | F | 86.5 lm/W | 623.1 lm/m | F | — | — | — |
| 6500 K | 98.3 lm/W | 708.1 lm/m | F | 83 lm/W | 597.9 lm/m | G | — | — | — |
Grade DL (2nd Tier) · 12W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 79.6 lm/W | 954.6 lm/m | G | 63.3 lm/W | 759.4 lm/m | G | — | — | — |
| 2300 K | 88.5 lm/W | 1062.4 lm/m | F | 70.6 lm/W | 846.9 lm/m | G | — | — | — |
| 2700 K | 92.4 lm/W | 1109.3 lm/m | F | 76.3 lm/W | 915.3 lm/m | G | — | — | — |
| 3000 K | 99.6 lm/W | 1195.5 lm/m | F | 80.3 lm/W | 963.5 lm/m | G | — | — | — |
| 3500 K | 101.2 lm/W | 1214.5 lm/m | F | 81.8 lm/W | 981.2 lm/m | G | — | — | — |
| 4000 K | 104.4 lm/W | 1252.5 lm/m | F | 83.7 lm/W | 1004.1 lm/m | G | — | — | — |
| 5000 K | 104.4 lm/W | 1252.5 lm/m | F | 83.7 lm/W | 1004.1 lm/m | G | — | — | — |
| 6500 K | 95.1 lm/W | 1141 lm/m | F | 80.3 lm/W | 963.5 lm/m | G | — | — | — |
Grade DL (2nd Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 78.2 lm/W | 1126.4 lm/m | G | 62.2 lm/W | 896 lm/m | G | — | — | — |
| 2300 K | 87.1 lm/W | 1253.5 lm/m | F | 69.4 lm/W | 999.2 lm/m | G | — | — | — |
| 2700 K | 90.9 lm/W | 1308.9 lm/m | F | 75 lm/W | 1080 lm/m | G | — | — | — |
| 3000 K | 98 lm/W | 1410.6 lm/m | F | 78.9 lm/W | 1136.9 lm/m | G | — | — | — |
| 3500 K | 99.5 lm/W | 1433.1 lm/m | F | 80.4 lm/W | 1157.8 lm/m | G | — | — | — |
| 4000 K | 102.6 lm/W | 1477.9 lm/m | F | 82.3 lm/W | 1184.7 lm/m | G | — | — | — |
| 5000 K | 102.6 lm/W | 1477.9 lm/m | F | 82.3 lm/W | 1184.7 lm/m | G | — | — | — |
| 6500 K | 93.5 lm/W | 1346.3 lm/m | F | 78.9 lm/W | 1136.9 lm/m | G | — | — | — |
Grade DL (2nd Tier) · 19.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 75.6 lm/W | 1452.1 lm/m | G | 60.2 lm/W | 1155.1 lm/m | G | — | — | — |
| 2300 K | 84.2 lm/W | 1616 lm/m | G | 67.1 lm/W | 1288.2 lm/m | G | — | — | — |
| 2700 K | 87.9 lm/W | 1687.3 lm/m | F | 72.5 lm/W | 1392.3 lm/m | G | — | — | — |
| 3000 K | 94.7 lm/W | 1818.5 lm/m | F | 76.3 lm/W | 1465.6 lm/m | G | — | — | — |
| 3500 K | 96.2 lm/W | 1847.4 lm/m | F | 77.7 lm/W | 1492.6 lm/m | G | — | — | — |
| 4000 K | 99.2 lm/W | 1905.2 lm/m | F | 79.5 lm/W | 1527.3 lm/m | G | — | — | — |
| 5000 K | 99.2 lm/W | 1905.2 lm/m | F | 79.5 lm/W | 1527.3 lm/m | G | — | — | — |
| 6500 K | 90.4 lm/W | 1735.5 lm/m | F | 76.3 lm/W | 1465.6 lm/m | G | — | — | — |
High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide
At up to 19.2W/m, 6678 is a high-power SMD LED strip. Above roughly 14.4W/m the tape can no longer shed its own heat through the FPC alone — an aluminum channel is part of the luminaire, not an accessory.
Why high-wattage strips need a heat sink
- Aluminum conducts heat roughly 30× faster than the plastics, MDF or gypsum a strip is usually stuck to, so a bare high-power run traps heat under the tape.
- LED lifetime (LM-80 / TM-21) is driven by solder-point temperature Tc. Keeping Tc inside the datasheet limit — DENO strips are rated Tc ≤ 75°C — is what preserves the rated L70 lifetime and colour stability.
- Never run 14.4W/m or more coiled on the reel, inside a sealed plastic diffuser, or directly on wood, wallpaper or foam.
Sizing rule: FPC width vs channel inner width
- Channel inner width ≥ FPC width + 2mm. This strip is 10mm wide, so it needs at least 12mm of inner width.
- The 2mm clearance absorbs extrusion tolerance and lets the tape be seated or replaced without scraping the side walls or the wiring.
- A frosted or opal PC cover then diffuses the higher lumen output into an even, dot-free line instead of visible hot spots.
Aluminum channels that fit this strip
- 22x12mm Recessed LED Channel with Flange · fits ≤10mm strip
- 20x15mm Wide Surface Mount LED Channel · fits ≤10mm strip
- 17x15mm Surface Mount LED Channel · fits ≤10mm strip
- 15x15mm Magnetic LED Channel · fits ≤10mm strip
- 19.1x8mm Surface Mount LED Channel · fits ≤10mm strip
- 15x15mm 48V Surface Mount LED Channel · fits ≤10mm strip
Recommended LED Channels
Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.
This strip is 10mm wide, so it needs a channel with at least 12mm inner width (10mm + 2mm clearance). Every profile below meets that.
Related models in this series
See every model in SMD LED Strip Series or narrow to 6060. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 6678?
6678: 6060, 60, 24V, 10 PCB, 2oz copper FPCB, cuttable 2LEDs/33.33mm, IP20. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
What makes the construction of this LED strip with lens different?
It is built as a LED strip with lens on 2oz copper FPCB with a cutting unit of 2LEDs/33.33mm and an LED pitch of 16.7mm, so it holds its electrical and mechanical performance where standard strips fail.
Can DENO customise this LED strip with lens for a project?
Yes. DENO manufactures the SMD Strips with Lenses series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
When is a lens LED strip better than a strip with a diffuser?
A diffuser spreads light and loses output, while a lens redirects it. Use a lens LED strip with a 15 or 30 degree beam when light must travel down a tall wall, a deep shelf or a narrow slot, and use asymmetric optics for even wall washing from a close mounting position.
Which LED driver and run length suit #6678?
6060 Lenses LED Strip Light | 10mm | 24V | 60LEDs | 33.33mm/cut | #6678 is a constant-voltage 24V product, so pair it with a CE or UL listed 24V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 5m. 5m Single / 10m Dual Input power. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.
