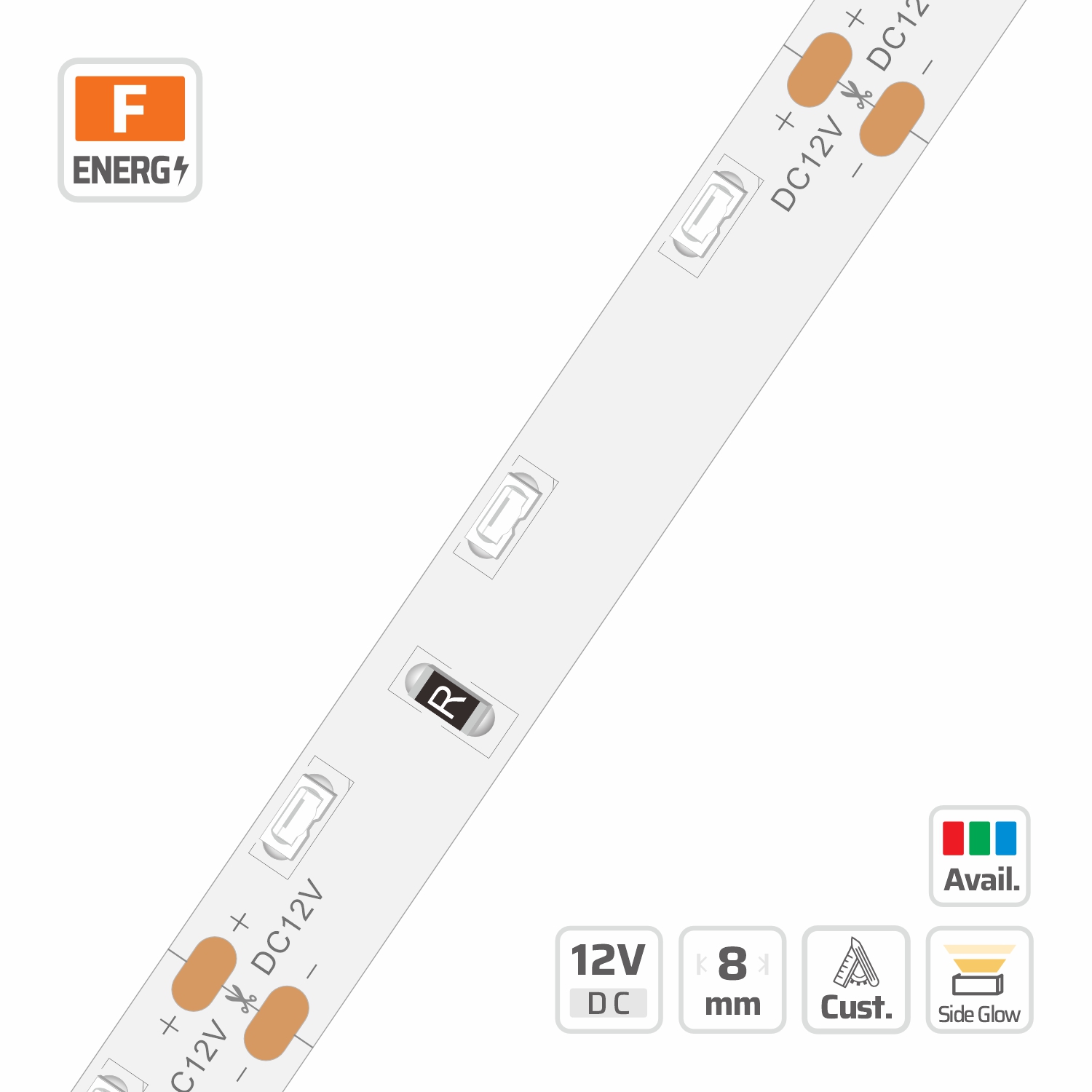

3014 Side View LED Strip Light (#6055)
8mm · 12V · 60LEDs · 50mm/cut
Model: 6055
Overview
3014 Side View LED Strip Light | 8mm | 12V | 60LEDs | 50mm/cut | #6055 is part of the DENO Side Emitting LED Strips series, engineered around side emitting LED strip. Key specifications: 3014, 60, 12V, 8 PCB, 2oz copper FPCB, cuttable 3LEDs/50mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
Engineered with 3014 side-emitting SMD LEDs on an 8mm PCB, this side view LED strip light delivers lateral illumination ideal for architectural cove lighting. Operating on a 12V constant voltage circuit, the dimmable strip offers flexible power consumption from 1.2W to 7.2W with convenient 50mm cutting increments. Built with a 2oz pure copper PCB and golden wire LED encapsulation, the module maintains stable electrical performance across operating temperatures from -25°C to 40°C. DENO provides this 120-degree side-emitting tape in 5m maximum continuous lengths with OEM custom packaging for wholesale project supply.
Side Emitting Led Strip built for side emitting led strips projects.
Specifications
| CCT (K) | 2700–6500K |
|---|---|
| CRI | Ra≥90 |
| POWER (W/M) | 6 W/m |
| LED QTY | 60 |
| PART NO | DL-F34A30V12-6055-* |
| SMD TYPE | 3014 |
| CUTTABLE UNIT | 3LEDs/50mm |
| DIMMABLE | Yes |
| IP RATING | IP20/IP65/IP67 |
| LED PITCH | 16.6mm |
| LIFESPAN | 50000 |
| PCB WIDTH | 8 |
| WARRANTY | 5 Years |
| BEAM ANGLE | 120° |
| RUN LENGTH | 5m |
| COPPER FOIL | 2oz |
| POWER RANGE | 1.2~7.2W |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 12V |
| LUMINOUS FLUX | 580–895 lm/m |
| MIN BEND DIAMETER | 1.2~7.2W |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
Recommended accessories & compatible parts
- DL-1215 — 12x15mm Surface Mount LED Channel — Tall U Shape Aluminum Profile: Accepts LED strips up to 8mm wide.
- DL-1313HX-M — 13x13mm Magnetic Cabinet LED Channel — Tool-Free Corner Aluminum Profile: Accepts LED strips up to 8mm wide.
- DL-1408 HX — 14x8mm Surface Mount LED Channel — Slim Aluminum Profile for 8mm Strip: Accepts LED strips up to 8mm wide.
- V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.
Request a quotation for #6055
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 132.3 lm/W at 4000K, Ra 80, ErP energy class E (Grade DL (2nd Tier) · 4.8W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 4.8W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 100.8 lm/W | 484 lm/m | F | 80.6 lm/W | 386.8 lm/m | G | — | — | — |
| 2300 K | 112.2 lm/W | 538.7 lm/m | E | 89.8 lm/W | 430.8 lm/m | F | 0 lm/W | 0 lm/m | G |
| 2700 K | 118 lm/W | 566.2 lm/m | E | 97.1 lm/W | 466.1 lm/m | F | 78.7 lm/W | 377.6 lm/m | G |
| 3000 K | 126.2 lm/W | 605.9 lm/m | E | 102.2 lm/W | 490.8 lm/m | F | 0 lm/W | 0 lm/m | G |
| 3500 K | 128.2 lm/W | 615.5 lm/m | E | 104.1 lm/W | 499.5 lm/m | F | 0 lm/W | 0 lm/m | G |
| 4000 K | 132.3 lm/W | 634.9 lm/m | E | 106.6 lm/W | 511.6 lm/m | F | 0 lm/W | 0 lm/m | G |
| 5000 K | 132.2 lm/W | 634.4 lm/m | E | 106.5 lm/W | 511.1 lm/m | F | 0 lm/W | 0 lm/m | G |
| 6500 K | 120.8 lm/W | 579.8 lm/m | E | 0 lm/W | 0 lm/m | G | 0 lm/W | 0 lm/m | G |
Grade DL (2nd Tier) · 6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 100 lm/W | 599.9 lm/m | F | 79.9 lm/W | 479.5 lm/m | G | — | — | — |
| 2300 K | 111.3 lm/W | 667.7 lm/m | E | 89 lm/W | 534 lm/m | F | 0 lm/W | 0 lm/m | G |
| 2700 K | 117 lm/W | 701.8 lm/m | E | 96.3 lm/W | 577.8 lm/m | F | 78 lm/W | 468.1 lm/m | G |
| 3000 K | 125.2 lm/W | 751 lm/m | E | 101.4 lm/W | 608.3 lm/m | F | 0 lm/W | 0 lm/m | G |
| 3500 K | 127.2 lm/W | 763 lm/m | E | 103.2 lm/W | 619.1 lm/m | F | 0 lm/W | 0 lm/m | G |
| 4000 K | 131.2 lm/W | 786.9 lm/m | E | 105.7 lm/W | 634.1 lm/m | F | 0 lm/W | 0 lm/m | G |
| 5000 K | 131.1 lm/W | 786.3 lm/m | E | 105.6 lm/W | 633.5 lm/m | F | 0 lm/W | 0 lm/m | G |
| 6500 K | 119.8 lm/W | 718.6 lm/m | E | 0 lm/W | 0 lm/m | G | 0 lm/W | 0 lm/m | G |
Grade DL (2nd Tier) · 7.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 99.2 lm/W | 713.9 lm/m | F | 79.2 lm/W | 570.5 lm/m | G | — | — | — |
| 2300 K | 110.3 lm/W | 794.5 lm/m | E | 88.3 lm/W | 635.4 lm/m | F | 0 lm/W | 0 lm/m | G |
| 2700 K | 116 lm/W | 835.1 lm/m | E | 95.5 lm/W | 687.5 lm/m | F | 77.4 lm/W | 557 lm/m | G |
| 3000 K | 124.1 lm/W | 893.6 lm/m | E | 100.5 lm/W | 723.9 lm/m | F | 0 lm/W | 0 lm/m | G |
| 3500 K | 126.1 lm/W | 907.9 lm/m | E | 102.3 lm/W | 736.7 lm/m | F | 0 lm/W | 0 lm/m | G |
| 4000 K | 130.1 lm/W | 936.4 lm/m | E | 104.8 lm/W | 754.5 lm/m | F | 0 lm/W | 0 lm/m | G |
| 5000 K | 130 lm/W | 935.7 lm/m | E | 104.7 lm/W | 753.8 lm/m | F | 0 lm/W | 0 lm/m | G |
| 6500 K | 118.8 lm/W | 855.1 lm/m | E | 0 lm/W | 0 lm/m | G | 0 lm/W | 0 lm/m | G |
Recommended LED Channels
Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.
This strip is 8mm wide, so it needs a channel with at least 10mm inner width (8mm + 2mm clearance). Every profile below meets that.
Related models in this series
- 3014 High Density LED Strip Light (#5590)
- 3014 Classic PU LED Strip Light (#4524-PU)
- 3014 Ultra-Narrow LED Strip Light (#9124)
- 3014 Side View LED Strip Light (#7609)
- 3014 Side View LED Strip Light (#7610)
- 3014 Side View LED Strip Light (#4722)
- 3014 CCT LED Strip Light (#4272)
- 3014 Classic LED Strip Light (#4723)
See every model in SMD LED Strip Series or narrow to 3014. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 6055?
6055: 3014, 60, 12V, 8 PCB, 2oz copper FPCB, cuttable 3LEDs/50mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
What makes the construction of this side emitting LED strip different?
It is built as a side emitting LED strip on 2oz copper FPCB with a cutting unit of 3LEDs/50mm and an LED pitch of 16.6mm, so it holds its electrical and mechanical performance where standard strips fail.
Can DENO customise this side emitting LED strip for a project?
Yes. DENO manufactures the Side Emitting LED Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
Where is a side emitting LED strip used?
A side view LED strip fires light out of the edge of the board rather than the face, which suits edge-lit panels, glass shelf edges, handrail slots and shallow reveals where there is no depth to mount a top-firing strip and aim it at the surface.
Which LED driver and run length suit #6055?
3014 Side View LED Strip Light | 8mm | 12V | 60LEDs | 50mm/cut | #6055 is a constant-voltage 12V product, so pair it with a CE or UL listed 12V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 5m. 5m Single / 10m Dual Input power. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.
