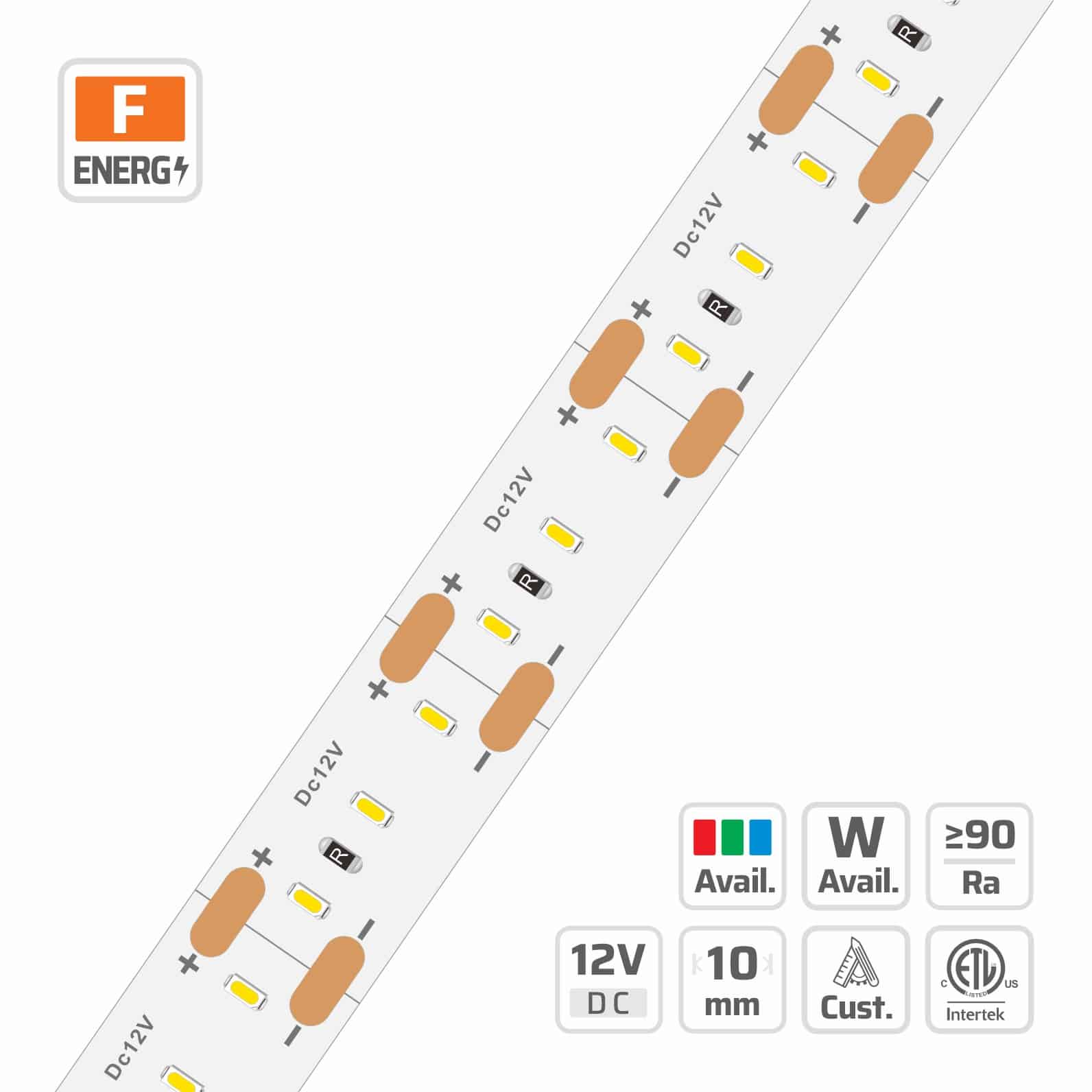

2216 Classic LED Strip Light (#6012)
10mm · 12V · 180LEDs · 16.66cut
Model: 6012
Overview
2216 Classic LED Strip Light | 10mm | 12V | 180LEDs | 16.66cut | #6012 is part of the DENO Classic SMD Strips series, engineered around 24V SMD LED strip lights. Key specifications: 2110, 180 LEDs/m, 12V, 10mm PCB, 2oz copper FPCB, cuttable 3LEDs/16.66mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
This 12V constant voltage LED strip light features 180 LEDs per meter on a 10mm 2oz copper PCB for dependable architectural lighting. A tight 5.5mm LED pitch and 120-degree beam angle deliver smooth light distribution with precise cutting increments every 16.66mm. Engineered with full dimming support and a minimum bend diameter of 60mm, this strip operates reliably in ambient temperatures from -25°C to 40°C. Available in standard 5m maximum run lengths, this 2216 Classic LED strip light provides factory-direct reliability for professional lighting contractors.
24v Smd Led Strip Lights built for classic smd strips projects.
Specifications
| POWER (W/M) | 14.4 W/m |
|---|---|
| LED QTY | 180 LEDs/m |
| PART NO | DL-F21A90V12-6012-* |
| SMD TYPE | 2110 |
| CUTTABLE UNIT | 3LEDs/16.66mm |
| DIMMABLE | Yes |
| IP RATING | IP20 |
| LED PITCH | 5.5mm |
| PCB WIDTH | 10mm |
| BEAM ANGLE | 120° |
| RUN LENGTH | 5M |
| COPPER FOIL | 2oz |
| ON OFF TIMES | 10000（test times） |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 12V |
| LUMINOUS FLUX | 1037–1263 lm/m |
| MIN BEND DIAMETER | Φ60mm |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
Recommended accessories & compatible parts
- DL-1003 — 19.1x8mm Surface Mount LED Channel — Dotless Aluminum Profile for 240 LEDs/m Strip: Accepts LED strips up to 10mm wide.
- DL-1103-1 — 16x13mm Surface Mount LED Channel — Aluminum Profile for 10mm LED Strip: Accepts LED strips up to 10mm wide.
- DL-1510 HX-F — 15x9.9mm Recessed LED Channel with Flange — Flush Mount Aluminum Profile: Accepts LED strips up to 10mm wide.
- V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.
Request a quotation for #6012
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 108.6 lm/W at 4000K, Ra 90, ErP energy class F (Grade DL (2nd Tier) · 7.2W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 7.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 82.1 lm/W | 590.8 lm/m | G | — | — | — |
| 2300 K | — | — | — | 91.4 lm/W | 658.4 lm/m | F | — | — | — |
| 2700 K | — | — | — | 99 lm/W | 712.5 lm/m | F | 80.2 lm/W | 577.3 lm/m | G |
| 3000 K | — | — | — | 104.1 lm/W | 749.4 lm/m | F | 84.7 lm/W | 609.6 lm/m | G |
| 3500 K | — | — | — | 106 lm/W | 762.9 lm/m | F | 87.2 lm/W | 627.6 lm/m | F |
| 4000 K | — | — | — | 108.6 lm/W | 781.7 lm/m | F | 89.6 lm/W | 644.9 lm/m | F |
| 5000 K | — | — | — | 108.5 lm/W | 780.9 lm/m | F | — | — | — |
| 6500 K | — | — | — | 104.1 lm/W | 749.4 lm/m | F | — | — | — |
Grade DL (2nd Tier) · 9W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 81 lm/W | 729.2 lm/m | G | — | — | — |
| 2300 K | — | — | — | 90.3 lm/W | 812.7 lm/m | F | — | — | — |
| 2700 K | — | — | — | 97.7 lm/W | 879.5 lm/m | F | 79.2 lm/W | 712.5 lm/m | G |
| 3000 K | — | — | — | 102.8 lm/W | 924.9 lm/m | F | 83.6 lm/W | 752.4 lm/m | G |
| 3500 K | — | — | — | 104.6 lm/W | 941.6 lm/m | F | 86.1 lm/W | 774.7 lm/m | F |
| 4000 K | — | — | — | 107.2 lm/W | 964.8 lm/m | F | 88.4 lm/W | 796 lm/m | F |
| 5000 K | — | — | — | 107.1 lm/W | 963.9 lm/m | F | — | — | — |
| 6500 K | — | — | — | 102.8 lm/W | 924.9 lm/m | F | — | — | — |
Grade DL (2nd Tier) · 10.8W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 80 lm/W | 864 lm/m | G | — | — | — |
| 2300 K | — | — | — | 89.2 lm/W | 963 lm/m | F | — | — | — |
| 2700 K | — | — | — | 96.5 lm/W | 1042.1 lm/m | F | 78.2 lm/W | 844.3 lm/m | G |
| 3000 K | — | — | — | 101.5 lm/W | 1096 lm/m | F | 82.5 lm/W | 891.5 lm/m | G |
| 3500 K | — | — | — | 103.3 lm/W | 1115.8 lm/m | F | 85 lm/W | 917.9 lm/m | G |
| 4000 K | — | — | — | 105.9 lm/W | 1143.3 lm/m | F | 87.3 lm/W | 943.2 lm/m | F |
| 5000 K | — | — | — | 105.8 lm/W | 1142.2 lm/m | F | — | — | — |
| 6500 K | — | — | — | 101.5 lm/W | 1096 lm/m | F | — | — | — |
Grade DL (2nd Tier) · 13W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 78.8 lm/W | 1024.1 lm/m | G | — | — | — |
| 2300 K | — | — | — | 87.8 lm/W | 1141.4 lm/m | F | — | — | — |
| 2700 K | — | — | — | 95 lm/W | 1235.2 lm/m | F | 77 lm/W | 1000.6 lm/m | G |
| 3000 K | — | — | — | 99.9 lm/W | 1299 lm/m | F | 81.3 lm/W | 1056.7 lm/m | G |
| 3500 K | — | — | — | 101.7 lm/W | 1322.5 lm/m | F | 83.7 lm/W | 1087.9 lm/m | G |
| 4000 K | — | — | — | 104.2 lm/W | 1355 lm/m | F | 86 lm/W | 1117.9 lm/m | F |
| 5000 K | — | — | — | 104.1 lm/W | 1353.7 lm/m | F | — | — | — |
| 6500 K | — | — | — | 99.9 lm/W | 1299 lm/m | F | — | — | — |
Recommended LED Channels
Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.
This strip is 10mm wide, so it needs a channel with at least 12mm inner width (10mm + 2mm clearance). Every profile below meets that.
Related models in this series
- 2110 High Density Ultra-Narrow PU LED Strip Light (#9677-PU)
- 2110 Classic LED Strip Light (#6014)
- 2110 Micro-Cut High Density LED Strip Light (#8651)
- 2110 High Density LED Strip Light (#6016)
- 2110 High Lumen High Density Multi-Line LED Strip Light (#3702)
- 2110 Classic LED Strip Light (#5572)
- 2110 High Density LED Strip Light (#8734)
- 2110 High Density PU LED Strip Light (#5991-PU)
See every model in SMD LED Strip Series or narrow to 2110. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 6012?
6012: 2110, 180 LEDs/m, 12V, 10mm PCB, 2oz copper FPCB, cuttable 3LEDs/16.66mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
How long can a single run of this 24V SMD LED strip lights be?
Maximum single run for this model is 5M. Feeding from both ends or using a mid-point tap halves the effective distance per segment, so a 24V SMD LED strip lights can cover twice that length on one circuit when wired accordingly.
Can DENO customise this 24V SMD LED strip lights for a project?
Yes. DENO manufactures the Classic SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
Which SMD LED strip density should you specify?
For general cove and shelf lighting, 120 LEDs/m on a 24V LED strip is the usual baseline. Move to 180 or 240 LEDs/m when the strip sits close to a diffuser or is seen at a shallow angle, since higher density is what removes visible dots on a 2835 LED strip.
Which LED driver and run length suit #6012?
2216 Classic LED Strip Light | 10mm | 12V | 180LEDs | 16.66cut | #6012 is a constant-voltage 12V product, so pair it with a CE or UL listed 12V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 5M. 5m Single/10m Dual Input power. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.
