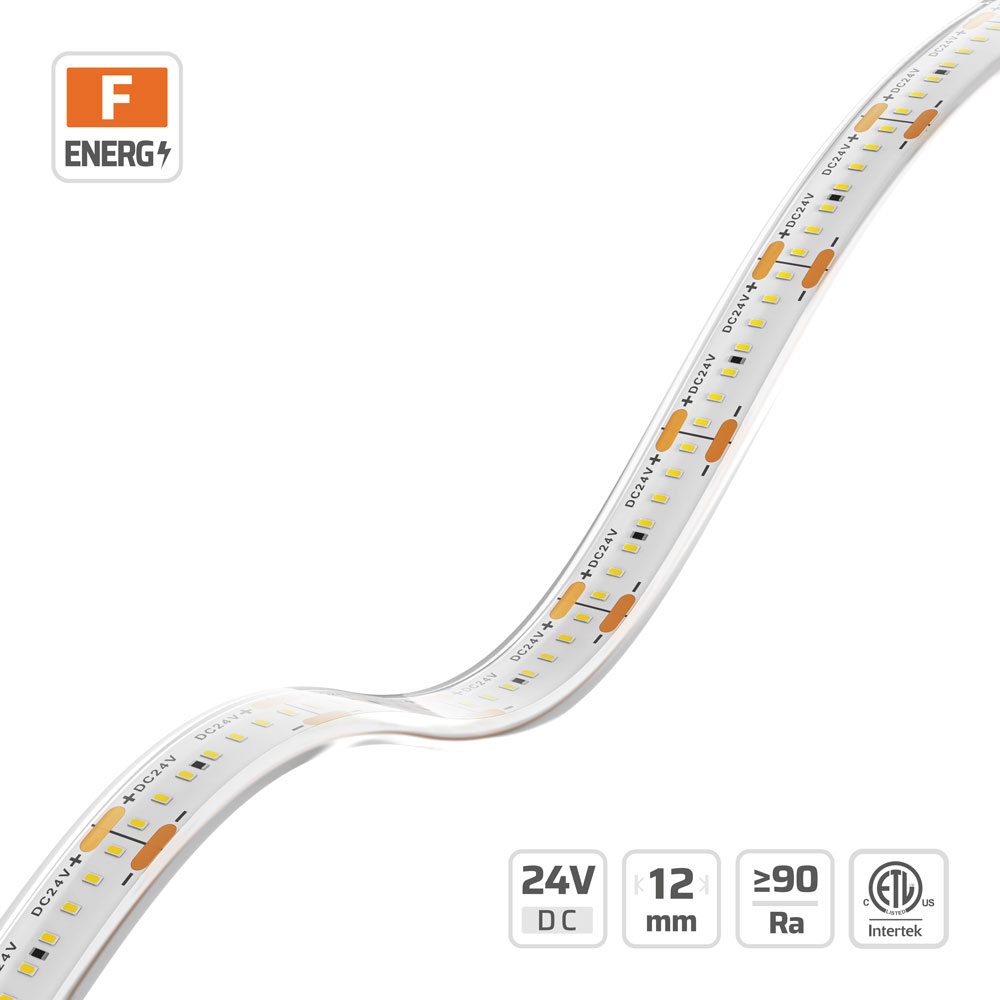

2110 High Density PU LED Strip Light (#5991-PU)
12mm · 24V · 280LEDs · 25cut
Model: 5991-PU
Overview
2110 High Density PU LED Strip Light | 12mm | 24V | 280LEDs | 25cut | #5991-PU is part of the DENO High Density LED Strips series, engineered around ultra high density LED strip. Key specifications: 2110, 280 LEDs/m, 24V, 12mm PCB, 3oz copper FPCB, cuttable 7LEDs/25mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
Engineered with 280 SMD 2110 LEDs per meter on a 12mm 3oz copper PCB, this PU LED strip light delivers uniform, dot-free linear illumination. Advanced polyurethane encapsulation provides superior sealing against water and dust ingress, ensuring dependable UV and thermal resistance in demanding outdoor environments. Operating on 24V constant voltage, this fully dimmable strip features precise 25mm cut intervals to accommodate OEM custom lengths and versatile layouts. A wide 120-degree beam angle ensures smooth light distribution for exterior facade lighting, landscape illumination, and specialized architectural accent installations. DENO provides strict single-bin color matching and factory-direct quality control to support commercial contractors and wholesale project supply needs.
Marine Grade Led Strip built for marine grade smd strips projects.
Specifications
| CCT (K) | 1800–6500K |
|---|---|
| CRI | Ra≥90 |
| POWER (W/M) | 19.2 W/m |
| LED QTY | 280 LEDs/m |
| PART NO | DL-F21D140V24-5991-* |
| SMD TYPE | 2110 |
| CUTTABLE UNIT | 7LEDs/25mm |
| DIMMABLE | Yes |
| IP RATING | IP68 |
| LED PITCH | 3.5mm |
| PCB WIDTH | 12mm |
| BEAM ANGLE | 120° |
| RUN LENGTH | 5M |
| COPPER FOIL | 3oz |
| ON OFF TIMES | 10000 (test times) |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 24V |
| LUMINOUS FLUX | 791–1937 lm/m |
| MIN BEND DIAMETER | Φ60mm |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Facade, landscape & bathroom runs (IP68) — IP68 sealing suits facades, landscape lighting, bathrooms and other locations exposed to rain, splashing or wash-down cleaning.
Recommended accessories & compatible parts
- DL-1201 — 25x14.5mm Wide Surface Mount LED Channel — Aluminum Profile for 12mm Strip: Accepts LED strips up to 12mm wide.
- DL-1202 — 17.3x14.5mm Surface Mount LED Channel — Deep Aluminum Profile for 12mm Strip: Accepts LED strips up to 12mm wide.
- DL-1204 — 25x7mm Wide Slim Surface Mount LED Channel — Dotless Aluminum Profile for 240 LEDs/m: Accepts LED strips up to 12mm wide.
- DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.
Request a quotation for #5991-PU
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 107.6 lm/W at 4000K, Ra 90, ErP energy class F (Grade DL (2nd Tier) · 6W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 81.4 lm/W | 488.4 lm/m | G | — | — | — |
| 2300 K | — | — | — | 90.8 lm/W | 544.6 lm/m | F | — | — | — |
| 2700 K | — | — | — | 98.2 lm/W | 589 lm/m | F | 79.5 lm/W | 477.3 lm/m | G |
| 3000 K | — | — | — | 103.3 lm/W | 619.9 lm/m | F | 84 lm/W | 503.8 lm/m | G |
| 3500 K | — | — | — | 105.2 lm/W | 631 lm/m | F | 86.5 lm/W | 519.3 lm/m | F |
| 4000 K | — | — | — | 107.6 lm/W | 645.8 lm/m | F | 88.9 lm/W | 533.5 lm/m | F |
| 5000 K | — | — | — | 107.6 lm/W | 645.8 lm/m | F | — | — | — |
| 6500 K | — | — | — | 103.2 lm/W | 619.3 lm/m | F | — | — | — |
Grade DL (2nd Tier) · 7.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 80.7 lm/W | 581.2 lm/m | G | — | — | — |
| 2300 K | — | — | — | 90 lm/W | 648 lm/m | F | — | — | — |
| 2700 K | — | — | — | 97.3 lm/W | 700.9 lm/m | F | 78.9 lm/W | 567.9 lm/m | G |
| 3000 K | — | — | — | 102.5 lm/W | 737.7 lm/m | F | 83.3 lm/W | 599.5 lm/m | G |
| 3500 K | — | — | — | 104.3 lm/W | 750.9 lm/m | F | 85.8 lm/W | 617.9 lm/m | F |
| 4000 K | — | — | — | 106.7 lm/W | 768.5 lm/m | F | 88.2 lm/W | 634.8 lm/m | F |
| 5000 K | — | — | — | 106.7 lm/W | 768.5 lm/m | F | — | — | — |
| 6500 K | — | — | — | 102.3 lm/W | 736.9 lm/m | F | — | — | — |
Grade DL (2nd Tier) · 8.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 80 lm/W | 672.3 lm/m | G | — | — | — |
| 2300 K | — | — | — | 89.2 lm/W | 749.7 lm/m | F | — | — | — |
| 2700 K | — | — | — | 96.5 lm/W | 810.9 lm/m | F | 78.2 lm/W | 657 lm/m | G |
| 3000 K | — | — | — | 101.6 lm/W | 853.4 lm/m | F | 82.6 lm/W | 693.6 lm/m | G |
| 3500 K | — | — | — | 103.4 lm/W | 868.7 lm/m | F | 85.1 lm/W | 714.8 lm/m | F |
| 4000 K | — | — | — | 105.8 lm/W | 889.1 lm/m | F | 87.4 lm/W | 734.4 lm/m | F |
| 5000 K | — | — | — | 105.8 lm/W | 889.1 lm/m | F | — | — | — |
| 6500 K | — | — | — | 101.5 lm/W | 852.5 lm/m | F | — | — | — |
Grade DL (2nd Tier) · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 79.4 lm/W | 761.9 lm/m | G | — | — | — |
| 2300 K | — | — | — | 88.5 lm/W | 849.6 lm/m | F | — | — | — |
| 2700 K | — | — | — | 95.7 lm/W | 918.9 lm/m | F | 77.6 lm/W | 744.6 lm/m | G |
| 3000 K | — | — | — | 100.7 lm/W | 967.1 lm/m | F | 81.9 lm/W | 786 lm/m | G |
| 3500 K | — | — | — | 102.5 lm/W | 984.4 lm/m | F | 84.4 lm/W | 810.1 lm/m | G |
| 4000 K | — | — | — | 105 lm/W | 1007.6 lm/m | F | 86.7 lm/W | 832.2 lm/m | F |
| 5000 K | — | — | — | 105 lm/W | 1007.6 lm/m | F | — | — | — |
| 6500 K | — | — | — | 100.6 lm/W | 966.1 lm/m | F | — | — | — |
Recommended LED Channels
Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.
This strip is 12mm wide, so it needs a channel with at least 14mm inner width (12mm + 2mm clearance). Every profile below meets that.
Related models in this series
- 2110 Classic LED Strip Light (#6014)
- 2110 Micro-Cut High Density LED Strip Light (#8651)
- 2110 High Density LED Strip Light (#6016)
- 2110 High Lumen High Density Multi-Line LED Strip Light (#3702)
- 2110 Classic LED Strip Light (#5572)
- 2110 High Density LED Strip Light (#8734)
- 2110 High Density PU LED Strip Light (#5379-PU)
- 2110 High Density Ultra-Narrow PU LED Strip Light (#9677-PU)
See every model in SMD LED Strip Series or narrow to 2110. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 5991-PU?
5991-PU: 2110, 280 LEDs/m, 24V, 12mm PCB, 3oz copper FPCB, cuttable 7LEDs/25mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
How long can a single run of this ultra high density LED strip be?
Maximum single run for this model is 5M. Feeding from both ends or using a mid-point tap halves the effective distance per segment, so a ultra high density LED strip can cover twice that length on one circuit when wired accordingly.
Can DENO customise this ultra high density LED strip for a project?
Yes. DENO manufactures the High Density LED Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
How many LEDs per metre does a dotless LED strip need?
Visible dots depend on LED pitch, diffuser distance and transmittance. Above roughly 480 LEDs/m most diffusers give a continuous line at 10 mm depth, and the 700 LEDs/m high density LED strip stays dot free even behind a shallow, highly transmissive lens.
What makes an LED strip marine grade?
Marine LED strip lights need IP67 or IP68 encapsulation, salt-mist resistant coating, tinned copper conductors and UV stable silicone. These boat LED strip lights are built for continuous saltwater spray and vibration rather than the light splash duty a standard waterproof strip is rated for.
