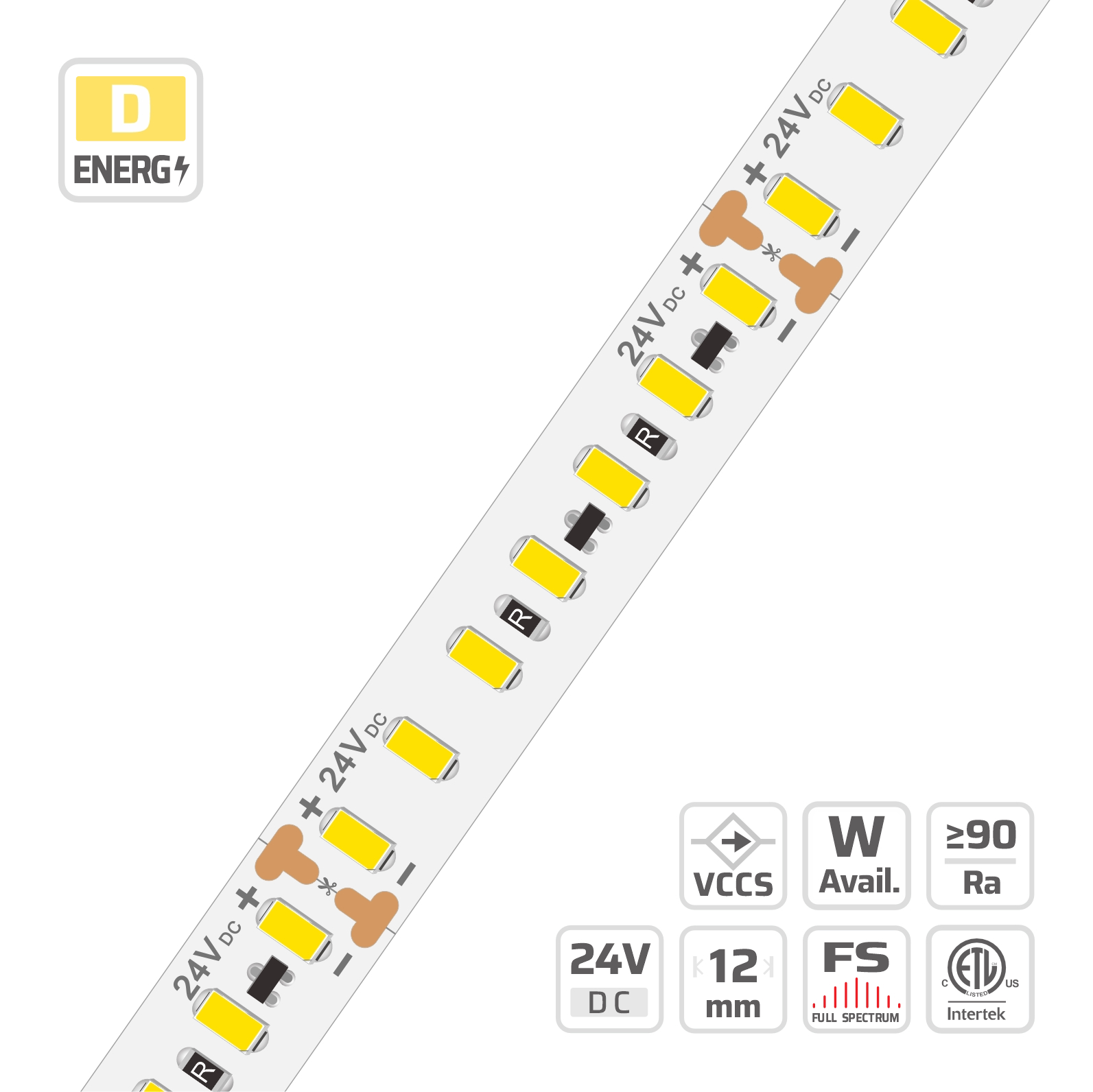

5630 Constant Current High Lumen LED Strip Light (#5780)

12mm · 24V · 126LEDs · 55.5cut

Model: 5780

5780 12mm | 24V | 126LEDs | 55.5cut | #5780 | 5630 Constant Current High Lumen LED Strip Light — 24V, cuttable every 55.6mm, 12mm FPCB width, 5630 LEDs, 126 LEDs/m, 2700-6500

Overview

12mm | 24V | 126LEDs | 55.5cut | #5780 | 5630 Constant Current High Lumen LED Strip Light is part of the DENO High Light Efficacy SMD Strips series, engineered around high efficacy LED strip lights. Key specifications: 5630, 126, 24V, 12 PCB, 2 oz copper FPCB, cuttable 7LEDs/55.55mm, IP20, CRI Ra≥80. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.

Description

The 5630 constant current LED strip light delivers 2600 lm/m luminous flux at 24V for uniform brightness in architectural cove lighting projects. Engineered on a 12mm 2 oz copper PCB with 126 LEDs per meter, this strip is cuttable every 55.55mm for accurate on-site sizing. High color rendering at Ra≥80 and single-bin color consistency under 3 SDCM ensure uniform visual performance across CCTs from 2700K to 6500K. Pure copper lead frames and 99.9% pure golden wire encapsulation provide robust component durability for factory-direct wholesale project supply. Featuring a 120-degree beam angle and smooth dimming compatibility, this IP20 module operates reliably across temperatures from -25°C to 40°C.

Constant Current Ic Led Strip built for c.c. smd strips (ic regulated) projects.

Specifications

CCT (K)2700-6500
CRIRa≥80
SDCM< 3 SDCM (Single Bin)
LED QTY126
PART NODL-F56A63V24-5780-*
SMD TYPE5630
CUTTABLE UNIT7LEDs/55.55mm
DIMMABLEYes
IP RATINGIP20
LED PITCH7.9mm
LIFESPAN50000
PCB WIDTH12
WARRANTY5 Years
BEAM ANGLE120°
RUN LENGTH5m
COPPER FOIL2 oz
ON OFF TIMES10000（test times）
CIRCUIT TYPEC.C.
INPUT VOLTAGE24V
LUMINOUS FLUX2600 lm/m
MIN BEND DIAMETERΦ60mm
OPERATING TEMPERATURE-25~40°C;Tc: 75°C (max)

Applications

  • Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
  • Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
  • Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.

Recommended accessories & compatible parts

  • DL-1201 — 25x14.5mm Wide Surface Mount LED Channel — Aluminum Profile for 12mm Strip: Accepts LED strips up to 12mm wide.
  • DL-1202 — 17.3x14.5mm Surface Mount LED Channel — Deep Aluminum Profile for 12mm Strip: Accepts LED strips up to 12mm wide.
  • DL-1204 — 25x7mm Wide Slim Surface Mount LED Channel — Dotless Aluminum Profile for 240 LEDs/m: Accepts LED strips up to 12mm wide.
  • DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
  • DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
  • DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
  • V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.

Request a quotation for #5780

DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.

  • Warranty: 5 years
  • Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
  • Compliance: CE · UL · RoHS
  • Bonding wire: 99.99% pure gold
  • Copper foil: 99.9% pure copper FPCB

Contact DENO LED engineers · OEM / ODM capability

Photometric Performance — CCT × CRI Efficacy Matrix

Peak measured luminous efficacy: 186 lm/W at 4000K, Ra 80, ErP energy class B (Grade DL (2nd Tier) · 14.4W/m).

All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.

Grade DL (2nd Tier) · 14.4W/m

Grade DL (2nd Tier) · 14.4W/m — measured at 14.4 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)Ra 80 — Luminous Efficacy (lm/W)Ra 80 — Luminous Flux (lm/m)Ra 80 — ErP Energy ClassRa 90 — Luminous Efficacy (lm/W)Ra 90 — Luminous Flux (lm/m)Ra 90 — ErP Energy ClassFull Spectrum (Ra 95+) — Luminous Efficacy (lm/W)Full Spectrum (Ra 95+) — Luminous Flux (lm/m)Full Spectrum (Ra 95+) — ErP Energy Class
1800 K141.7 lm/W2040.1 lm/mD113.7 lm/W1637 lm/mE———
2300 K157.8 lm/W2271.9 lm/mD126.7 lm/W1823.8 lm/mE———
2700 K166.7 lm/W2401.1 lm/mC137 lm/W1973.2 lm/mD111.1 lm/W1599.7 lm/mE
3000 K177.7 lm/W2558.3 lm/mC144.2 lm/W2075.9 lm/mD117.2 lm/W1688.4 lm/mE
3500 K180.3 lm/W2595.6 lm/mC146.8 lm/W2113.2 lm/mD120.8 lm/W1739.7 lm/mE
4000 K186 lm/W2678.1 lm/mB150.3 lm/W2164.6 lm/mD124.1 lm/W1786.4 lm/mE
5000 K185.8 lm/W2675 lm/mB150.2 lm/W2163 lm/mD———
6500 K170.3 lm/W2452.4 lm/mC144 lm/W2074.3 lm/mD———

Grade DL (2nd Tier) · 19.2W/m

Grade DL (2nd Tier) · 19.2W/m — measured at 19.2 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)Ra 80 — Luminous Efficacy (lm/W)Ra 80 — Luminous Flux (lm/m)Ra 80 — ErP Energy ClassRa 90 — Luminous Efficacy (lm/W)Ra 90 — Luminous Flux (lm/m)Ra 90 — ErP Energy ClassFull Spectrum (Ra 95+) — Luminous Efficacy (lm/W)Full Spectrum (Ra 95+) — Luminous Flux (lm/m)Full Spectrum (Ra 95+) — ErP Energy Class
1800 K137 lm/W2629.9 lm/mD109.9 lm/W2110.3 lm/mF———
2300 K152.5 lm/W2928.8 lm/mD122.5 lm/W2351.1 lm/mE———
2700 K161.2 lm/W3095.3 lm/mC132.5 lm/W2543.6 lm/mE107.4 lm/W2062.2 lm/mF
3000 K171.8 lm/W3297.9 lm/mC139.4 lm/W2676 lm/mD113.4 lm/W2176.5 lm/mE
3500 K174.3 lm/W3346.1 lm/mC141.9 lm/W2724.2 lm/mD116.8 lm/W2242.7 lm/mE
4000 K179.8 lm/W3452.4 lm/mC145.3 lm/W2790.4 lm/mD119.9 lm/W2302.9 lm/mE
5000 K179.6 lm/W3448.4 lm/mC145.2 lm/W2788.4 lm/mD———
6500 K164.7 lm/W3161.5 lm/mC139.3 lm/W2674 lm/mD———

Grade DL (2nd Tier) · 25W/m

Grade DL (2nd Tier) · 25W/m — measured at 25 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)Ra 80 — Luminous Efficacy (lm/W)Ra 80 — Luminous Flux (lm/m)Ra 80 — ErP Energy ClassRa 90 — Luminous Efficacy (lm/W)Ra 90 — Luminous Flux (lm/m)Ra 90 — ErP Energy ClassFull Spectrum (Ra 95+) — Luminous Efficacy (lm/W)Full Spectrum (Ra 95+) — Luminous Flux (lm/m)Full Spectrum (Ra 95+) — ErP Energy Class
1800 K131.5 lm/W3287.6 lm/mE105.5 lm/W2638.1 lm/mF———
2300 K146.5 lm/W3661.3 lm/mD117.6 lm/W2939.1 lm/mE———
2700 K154.8 lm/W3869.4 lm/mD127.2 lm/W3179.8 lm/mE103.1 lm/W2578 lm/mF
3000 K164.9 lm/W4122.7 lm/mC133.8 lm/W3345.3 lm/mE108.8 lm/W2720.9 lm/mF
3500 K167.3 lm/W4182.9 lm/mC136.2 lm/W3405.5 lm/mD112.1 lm/W2803.7 lm/mE
4000 K172.6 lm/W4315.8 lm/mC139.5 lm/W3488.3 lm/mD115.2 lm/W2878.9 lm/mE
5000 K172.4 lm/W4310.8 lm/mC139.4 lm/W3485.8 lm/mD———
6500 K158.1 lm/W3952.2 lm/mD133.7 lm/W3342.8 lm/mE———

Grade DL (2nd Tier) · 28.8W/m

Grade DL (2nd Tier) · 28.8W/m — measured at 28.8 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)Ra 80 — Luminous Efficacy (lm/W)Ra 80 — Luminous Flux (lm/m)Ra 80 — ErP Energy ClassRa 90 — Luminous Efficacy (lm/W)Ra 90 — Luminous Flux (lm/m)Ra 90 — ErP Energy ClassFull Spectrum (Ra 95+) — Luminous Efficacy (lm/W)Full Spectrum (Ra 95+) — Luminous Flux (lm/m)Full Spectrum (Ra 95+) — ErP Energy Class
1800 K128 lm/W3687.6 lm/mE102.7 lm/W2959.1 lm/mF———
2300 K142.6 lm/W4106.7 lm/mD114.5 lm/W3296.6 lm/mE———
2700 K150.7 lm/W4340.2 lm/mD123.8 lm/W3566.7 lm/mE100.4 lm/W2891.6 lm/mF
3000 K160.6 lm/W4624.3 lm/mC130.3 lm/W3752.3 lm/mE106 lm/W3051.9 lm/mF
3500 K162.9 lm/W4691.8 lm/mC132.6 lm/W3819.8 lm/mE109.2 lm/W3144.7 lm/mF
4000 K168.1 lm/W4840.9 lm/mC135.9 lm/W3912.6 lm/mD112.1 lm/W3229.1 lm/mE
5000 K167.9 lm/W4835.2 lm/mC135.8 lm/W3909.8 lm/mD———
6500 K153.9 lm/W4433 lm/mD130.2 lm/W3749.5 lm/mE———

High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide

At up to 28.8W/m, 5780 is a high-power SMD LED strip. Above roughly 14.4W/m the tape can no longer shed its own heat through the FPC alone — an aluminum channel is part of the luminaire, not an accessory.

Why high-wattage strips need a heat sink

  • Aluminum conducts heat roughly 30× faster than the plastics, MDF or gypsum a strip is usually stuck to, so a bare high-power run traps heat under the tape.
  • LED lifetime (LM-80 / TM-21) is driven by solder-point temperature Tc. Keeping Tc inside the datasheet limit — DENO strips are rated Tc ≤ 75°C — is what preserves the rated L70 lifetime and colour stability.
  • Never run 14.4W/m or more coiled on the reel, inside a sealed plastic diffuser, or directly on wood, wallpaper or foam.

Sizing rule: FPC width vs channel inner width

  • Channel inner width ≥ FPC width + 2mm. This strip is 12mm wide, so it needs at least 14mm of inner width.
  • The 2mm clearance absorbs extrusion tolerance and lets the tape be seated or replaced without scraping the side walls or the wiring.
  • A frosted or opal PC cover then diffuses the higher lumen output into an even, dot-free line instead of visible hot spots.

Aluminum channels that fit this strip

Recommended LED Channels

Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.

This strip is 12mm wide, so it needs a channel with at least 14mm inner width (12mm + 2mm clearance). Every profile below meets that.

Related models in this series

See every model in SMD LED Strip Series or narrow to 5630. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.

Frequently Asked Questions

What are the key specifications of 5780?

5780: 5630, 126, 24V, 12 PCB, 2 oz copper FPCB, cuttable 7LEDs/55.55mm, IP20, CRI Ra≥80. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.

Which environments is this high efficacy LED strip lights rated for?

Ingress protection for this model is IP20. As a high efficacy LED strip lights it is specified for the duty listed in the datasheet, and DENO can supply alternative coatings, sleeves or IP68 potting for harsher installations.

Can DENO customise this high efficacy LED strip lights for a project?

Yes. DENO manufactures the High Light Efficacy SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.

Does a constant current LED strip really eliminate voltage drop?

Voltage still drops along the copper, but the per-segment constant current IC holds LED current fixed until the local voltage falls below its dropout point. Brightness therefore stays even end to end, and power can be injected at one end, both ends or any mid point of the run.

How much can a high efficacy LED strip cut energy use?

Moving from a typical 100 lm/W strip to a 180 to 200 lm/W high lumen LED strip roughly halves the wattage needed for the same lumen output. Over a long commercial run this also lowers the required driver size and helps the installation reach a better ErP energy class.
