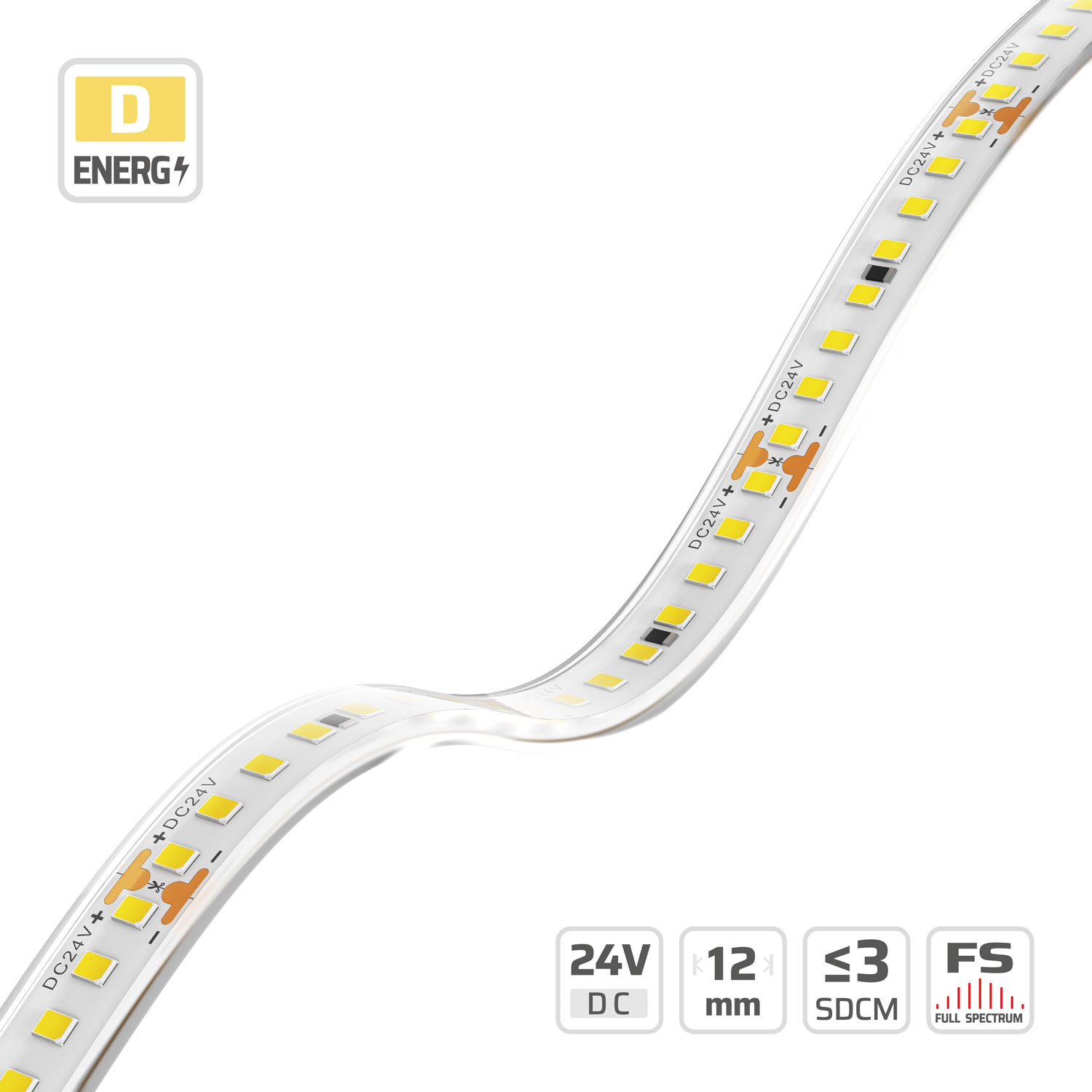

2835 High Light Efficacy High Lumen PU LED Strip Light (#5492-PU)
12mm · 24V · 160LEDs · 50mm/cut
Model: 5492-PU
Overview
2835 High Light Efficacy High Lumen PU LED Strip Light | 12mm | 24V | 160LEDs | 50mm/cut | #5492-PU is part of the DENO Marine Grade SMD Strips series, engineered around marine grade LED strip. Key specifications: 2835, 160, 24V, 10mm PCB, 3 oz copper FPCB, cuttable 8LEDs/50mm, IP68PU, CRI Ra≥80 , Ra≥90 , Ra≥95 , FS. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
2835 High Light Efficacy High Lumen PU LED Strip Light | 12mm | 24V | 160LEDs | 50mm/cut | #5492-PU
High-efficiency LEDs, providing professional linear lighting effect.
PU potting RGB LED Strip utilizes polyurethane potting as a waterproofing method, offering excellent waterproof performance.
PU material is resistant to UV rays, high and low temperatures, ensuring the strip’s durability.
High sealing capability, completely filling gaps to prevent water and dust ingress.
Suitable for a wide range of applications including facade lighting, landscape illumination, pathway lighting, and accentuating cultural landmarks.
We use 99.99% gold wire, large-size chips, and thickened FPCB, backed by a 5-year warranty.
Specifications
| CCT (K) | 1800-6500 |
|---|
| CRI | Ra≥80 , Ra≥90 , Ra≥95 , FS |
|---|
| SDCM | < 3 SDCM (Single Bin) |
|---|
| LED QTY | 160 |
|---|
| PART NO | DL-F28D80V24-5492-PU* |
|---|
| SMD TYPE | 2835 |
|---|
| CUTTABLE UNIT | 8LEDs/50mm |
|---|
| DIMMABLE | Yes |
|---|
| IP RATING | IP68PU |
|---|
| LED PITCH | 6.2mm |
|---|
| LIFESPAN | 50000h |
|---|
| PCB WIDTH | 10mm |
|---|
| WARRANTY | 5 Years |
|---|
| BEAM ANGLE | 120° |
|---|
| LENGTH MAX | 5m |
|---|
| COPPER FOIL | 3 oz |
|---|
| ON OFF TIMES | 10000 (test times) |
|---|
| CIRCUIT TYPE | C.V. |
|---|
| INPUT VOLTAGE | 24V |
|---|
| LUMINOUS FLUX | 1977 lm/m |
|---|
| MIN BEND DIAMETER | Φ60mm |
|---|
| OPERATING TEMPERATURE | -25~40°C;Tc: 75°C (max) |
|---|
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Facade, landscape & bathroom runs (IP68PU) — IP68PU sealing suits facades, landscape lighting, bathrooms and other locations exposed to rain, splashing or wash-down cleaning.
Request a quotation for #5492-PU
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Contact DENO LED engineers · OEM / ODM capability
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 176 lm/W at 4000K, Ra 80, ErP energy class C (Grade DL (2nd Tier) · 9.6W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DN (1st Tier) · 9.6W/m
Grade DN (1st Tier) · 9.6W/m — measured at 9.6 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|
| 1800 K | 128.1 lm/W | 1229.3 lm/m | E | 107.7 lm/W | 1034.4 lm/m | F | — | — | — |
|---|
| 2300 K | 139.7 lm/W | 1340.7 lm/m | E | 120.3 lm/W | 1154.7 lm/m | E | 97.4 lm/W | 935 lm/m | F |
|---|
| 2700 K | 150.5 lm/W | 1445.1 lm/m | D | 130.1 lm/W | 1249.2 lm/m | E | 105.5 lm/W | 1012.5 lm/m | F |
|---|
| 3000 K | 158.1 lm/W | 1517.8 lm/m | D | 137.4 lm/W | 1318.8 lm/m | E | 111.8 lm/W | 1073.2 lm/m | F |
|---|
| 3500 K | 160.4 lm/W | 1539.6 lm/m | D | 140.4 lm/W | 1347.7 lm/m | E | 115.5 lm/W | 1109 lm/m | F |
|---|
| 4000 K | 163.4 lm/W | 1568.5 lm/m | D | 141.2 lm/W | 1355.6 lm/m | E | 116.6 lm/W | 1118.9 lm/m | F |
|---|
| 5000 K | 163.2 lm/W | 1566.5 lm/m | D | 142.1 lm/W | 1364.6 lm/m | E | 117.3 lm/W | 1126.1 lm/m | F |
|---|
| 6500 K | 156.4 lm/W | 1501.8 lm/m | D | 135.8 lm/W | 1303.9 lm/m | E | 112.7 lm/W | 1081.9 lm/m | F |
|---|
Grade DN (1st Tier) · 14.4W/m
Grade DN (1st Tier) · 14.4W/m — measured at 14.4 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|
| 1800 K | 123.8 lm/W | 1782.8 lm/m | E | 104.2 lm/W | 1500.1 lm/m | F | — | — | — |
|---|
| 2300 K | 135 lm/W | 1944.4 lm/m | E | 116.3 lm/W | 1674.7 lm/m | F | 94.2 lm/W | 1356.5 lm/m | F |
|---|
| 2700 K | 145.5 lm/W | 2095.9 lm/m | E | 125.8 lm/W | 1811.7 lm/m | E | 102 lm/W | 1468.4 lm/m | F |
|---|
| 3000 K | 152.9 lm/W | 2201.1 lm/m | D | 132.8 lm/W | 1912.7 lm/m | E | 108.1 lm/W | 1556.4 lm/m | F |
|---|
| 3500 K | 155.1 lm/W | 2232.9 lm/m | D | 135.7 lm/W | 1954.5 lm/m | E | 111.7 lm/W | 1608.3 lm/m | F |
|---|
| 4000 K | 158 lm/W | 2274.7 lm/m | D | 136.5 lm/W | 1966 lm/m | E | 112.7 lm/W | 1622.7 lm/m | F |
|---|
| 5000 K | 157.8 lm/W | 2271.8 lm/m | D | 137.4 lm/W | 1979 lm/m | E | 113.4 lm/W | 1633 lm/m | F |
|---|
| 6500 K | 151.3 lm/W | 2178.1 lm/m | D | 131.3 lm/W | 1891 lm/m | E | 109 lm/W | 1569.6 lm/m | F |
|---|
Grade DN (1st Tier) · 19.2W/m
Grade DN (1st Tier) · 19.2W/m — measured at 19.2 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|
| 1800 K | 119.7 lm/W | 2298.3 lm/m | E | 100.7 lm/W | 1933.9 lm/m | F | — | — | — |
|---|
| 2300 K | 130.6 lm/W | 2506.6 lm/m | E | 112.4 lm/W | 2158.8 lm/m | F | 91.1 lm/W | 1749.1 lm/m | G |
|---|
| 2700 K | 140.7 lm/W | 2701.8 lm/m | E | 121.6 lm/W | 2335.5 lm/m | E | 98.6 lm/W | 1892.9 lm/m | F |
|---|
| 3000 K | 147.8 lm/W | 2837.6 lm/m | D | 128.4 lm/W | 2465.7 lm/m | E | 104.5 lm/W | 2006.4 lm/m | F |
|---|
| 3500 K | 149.9 lm/W | 2878.5 lm/m | D | 131.2 lm/W | 2519.6 lm/m | E | 108 lm/W | 2073.3 lm/m | F |
|---|
| 4000 K | 152.7 lm/W | 2932.4 lm/m | D | 132 lm/W | 2534.5 lm/m | E | 109 lm/W | 2091.9 lm/m | F |
|---|
| 5000 K | 152.5 lm/W | 2928.7 lm/m | D | 132.9 lm/W | 2551.2 lm/m | E | 109.6 lm/W | 2104.3 lm/m | F |
|---|
| 6500 K | 146.2 lm/W | 2807.8 lm/m | D | 127 lm/W | 2437.8 lm/m | E | 105.4 lm/W | 2023.7 lm/m | F |
|---|
Grade DN (1st Tier) · 24W/m
Grade DN (1st Tier) · 24W/m — measured at 24 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|
| 1800 K | 115.7 lm/W | 2777.6 lm/m | F | 97.4 lm/W | 2337.2 lm/m | F | — | — | — |
|---|
| 2300 K | 126.2 lm/W | 3029.3 lm/m | E | 108.7 lm/W | 2609.1 lm/m | F | 88.1 lm/W | 2114.4 lm/m | G |
|---|
| 2700 K | 136.1 lm/W | 3265.3 lm/m | E | 117.6 lm/W | 2822.6 lm/m | F | 95.3 lm/W | 2287.7 lm/m | F |
|---|
| 3000 K | 142.9 lm/W | 3429.3 lm/m | E | 124.2 lm/W | 2979.9 lm/m | E | 101 lm/W | 2424.8 lm/m | F |
|---|
| 3500 K | 144.9 lm/W | 3478.8 lm/m | E | 126.9 lm/W | 3045.1 lm/m | E | 104.4 lm/W | 2505.7 lm/m | F |
|---|
| 4000 K | 147.7 lm/W | 3544 lm/m | D | 127.6 lm/W | 3063 lm/m | E | 105.3 lm/W | 2528.2 lm/m | F |
|---|
| 5000 K | 147.5 lm/W | 3539.5 lm/m | D | 128.5 lm/W | 3083.3 lm/m | E | 106 lm/W | 2544 lm/m | F |
|---|
| 6500 K | 141.4 lm/W | 3393.4 lm/m | E | 122.8 lm/W | 2946.2 lm/m | E | 101.9 lm/W | 2445.6 lm/m | F |
|---|
Grade DN (1st Tier) · 28.8W/m
Grade DN (1st Tier) · 28.8W/m — measured at 28.8 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|
| 1800 K | 111.9 lm/W | 3222.6 lm/m | F | 94.2 lm/W | 2711.6 lm/m | F | — | — | — |
|---|
| 2300 K | 122 lm/W | 3514.7 lm/m | E | 105.1 lm/W | 3027.1 lm/m | F | 85.1 lm/W | 2450.9 lm/m | G |
|---|
| 2700 K | 131.5 lm/W | 3788.4 lm/m | E | 113.7 lm/W | 3274.8 lm/m | F | 92.2 lm/W | 2654.2 lm/m | F |
|---|
| 3000 K | 138.2 lm/W | 3978.8 lm/m | E | 120 lm/W | 3457.3 lm/m | E | 97.7 lm/W | 2813.3 lm/m | F |
|---|
| 3500 K | 140.1 lm/W | 4036.1 lm/m | E | 122.7 lm/W | 3532.9 lm/m | E | 100.9 lm/W | 2907.2 lm/m | F |
|---|
| 4000 K | 142.8 lm/W | 4111.7 lm/m | E | 123.4 lm/W | 3553.8 lm/m | E | 101.8 lm/W | 2933.2 lm/m | F |
|---|
| 5000 K | 142.6 lm/W | 4106.5 lm/m | E | 124.2 lm/W | 3577.2 lm/m | E | 102.5 lm/W | 2952 lm/m | F |
|---|
| 6500 K | 136.7 lm/W | 3937 lm/m | E | 118.7 lm/W | 3418.2 lm/m | F | 98.5 lm/W | 2836.8 lm/m | F |
|---|
Grade KE (3rd Tier) · 9.6W/m
Grade KE (3rd Tier) · 9.6W/m — measured at 9.6 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|
| 1900 K | 133.2 lm/W | 1279.1 lm/m | E | 106.9 lm/W | 1026.4 lm/m | F | — | — | — |
|---|
| 2300 K | 148.6 lm/W | 1426.3 lm/m | D | 119.1 lm/W | 1143.8 lm/m | E | 96.5 lm/W | 926.4 lm/m | F |
|---|
| 2700 K | 160.1 lm/W | 1536.7 lm/m | C | 129.3 lm/W | 1241.3 lm/m | E | 104.7 lm/W | 1005.5 lm/m | F |
|---|
| 3000 K | 168.1 lm/W | 1614.2 lm/m | C | 136.5 lm/W | 1310.9 lm/m | D | 111 lm/W | 1065.2 lm/m | E |
|---|
| 3500 K | 170.6 lm/W | 1638.1 lm/m | C | 139.1 lm/W | 1335.7 lm/m | D | 114.6 lm/W | 1100 lm/m | E |
|---|
| 4000 K | 175.6 lm/W | 1685.8 lm/m | C | 142.1 lm/W | 1364.6 lm/m | D | 117.4 lm/W | 1126.9 lm/m | E |
|---|
| 5000 K | 175.4 lm/W | 1683.9 lm/m | C | 142.1 lm/W | 1364.6 lm/m | D | 117.3 lm/W | 1126.1 lm/m | E |
|---|
| 6500 K | 168.1 lm/W | 1614.2 lm/m | C | 136.4 lm/W | 1309.9 lm/m | D | 113.3 lm/W | 1087.7 lm/m | E |
|---|
Grade KE (3rd Tier) · 14.4W/m
Grade KE (3rd Tier) · 14.4W/m — measured at 14.4 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|
| 1900 K | 128.8 lm/W | 1855 lm/m | E | 103.4 lm/W | 1488.6 lm/m | F | — | — | — |
|---|
| 2300 K | 143.6 lm/W | 2068.4 lm/m | D | 115.2 lm/W | 1658.8 lm/m | E | 93.3 lm/W | 1343.5 lm/m | F |
|---|
| 2700 K | 154.8 lm/W | 2228.6 lm/m | D | 125 lm/W | 1800.2 lm/m | E | 101.3 lm/W | 1458.3 lm/m | F |
|---|
| 3000 K | 162.6 lm/W | 2341.1 lm/m | C | 132 lm/W | 1901.1 lm/m | E | 107.3 lm/W | 1544.8 lm/m | F |
|---|
| 3500 K | 165 lm/W | 2375.7 lm/m | C | 134.5 lm/W | 1937.2 lm/m | E | 110.8 lm/W | 1595.3 lm/m | E |
|---|
| 4000 K | 169.8 lm/W | 2444.9 lm/m | C | 137.4 lm/W | 1979 lm/m | D | 113.5 lm/W | 1634.3 lm/m | E |
|---|
| 5000 K | 169.6 lm/W | 2442 lm/m | C | 137.4 lm/W | 1979 lm/m | D | 113.4 lm/W | 1633 lm/m | E |
|---|
| 6500 K | 162.6 lm/W | 2341.1 lm/m | C | 131.9 lm/W | 1899.7 lm/m | E | 109.5 lm/W | 1576.8 lm/m | F |
|---|
Grade KE (3rd Tier) · 19.2W/m
Grade KE (3rd Tier) · 19.2W/m — measured at 19.2 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|
| 1900 K | 124.5 lm/W | 2391.3 lm/m | E | 99.9 lm/W | 1919 lm/m | F | — | — | — |
|---|
| 2300 K | 138.9 lm/W | 2666.5 lm/m | D | 111.4 lm/W | 2138.4 lm/m | E | 90.2 lm/W | 1731.8 lm/m | F |
|---|
| 2700 K | 149.6 lm/W | 2872.9 lm/m | D | 120.9 lm/W | 2320.6 lm/m | E | 97.9 lm/W | 1879.9 lm/m | F |
|---|
| 3000 K | 157.2 lm/W | 3017.9 lm/m | D | 127.6 lm/W | 2450.8 lm/m | E | 103.7 lm/W | 1991.5 lm/m | F |
|---|
| 3500 K | 159.5 lm/W | 3062.6 lm/m | D | 130.1 lm/W | 2497.3 lm/m | E | 107.1 lm/W | 2056.6 lm/m | F |
|---|
| 4000 K | 164.2 lm/W | 3151.8 lm/m | C | 132.9 lm/W | 2551.2 lm/m | E | 109.7 lm/W | 2106.8 lm/m | F |
|---|
| 5000 K | 164 lm/W | 3148.1 lm/m | C | 132.9 lm/W | 2551.2 lm/m | E | 109.6 lm/W | 2104.3 lm/m | F |
|---|
| 6500 K | 157.2 lm/W | 3017.9 lm/m | D | 127.5 lm/W | 2448.9 lm/m | E | 105.9 lm/W | 2033.3 lm/m | F |
|---|
Grade KE (3rd Tier) · 24W/m
Grade KE (3rd Tier) · 24W/m — measured at 24 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|
| 1900 K | 120.4 lm/W | 2890 lm/m | E | 96.6 lm/W | 2319.2 lm/m | F | — | — | — |
|---|
| 2300 K | 134.3 lm/W | 3222.6 lm/m | E | 107.7 lm/W | 2584.4 lm/m | F | 87.2 lm/W | 2092.8 lm/m | F |
|---|
| 2700 K | 144.7 lm/W | 3472 lm/m | D | 116.9 lm/W | 2804.6 lm/m | E | 94.7 lm/W | 2272 lm/m | F |
|---|
| 3000 K | 152 lm/W | 3647.3 lm/m | D | 123.4 lm/W | 2961.9 lm/m | E | 100.3 lm/W | 2406.8 lm/m | F |
|---|
| 3500 K | 154.2 lm/W | 3701.3 lm/m | D | 125.8 lm/W | 3018.1 lm/m | E | 103.6 lm/W | 2485.5 lm/m | F |
|---|
| 4000 K | 158.7 lm/W | 3809.1 lm/m | D | 128.5 lm/W | 3083.3 lm/m | E | 106.1 lm/W | 2546.2 lm/m | F |
|---|
| 5000 K | 158.5 lm/W | 3804.6 lm/m | D | 128.5 lm/W | 3083.3 lm/m | E | 106 lm/W | 2544 lm/m | F |
|---|
| 6500 K | 152 lm/W | 3647.3 lm/m | D | 123.3 lm/W | 2959.7 lm/m | E | 102.4 lm/W | 2457.6 lm/m | F |
|---|
Grade KE (3rd Tier) · 28.8W/m
Grade KE (3rd Tier) · 28.8W/m — measured at 28.8 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|
| 1900 K | 116.4 lm/W | 3353 lm/m | E | 93.4 lm/W | 2690.8 lm/m | F | — | — | — |
|---|
| 2300 K | 129.8 lm/W | 3738.9 lm/m | E | 104.1 lm/W | 2998.4 lm/m | F | 84.3 lm/W | 2427.8 lm/m | G |
|---|
| 2700 K | 139.9 lm/W | 4028.3 lm/m | D | 113 lm/W | 3253.9 lm/m | E | 91.5 lm/W | 2636 lm/m | F |
|---|
| 3000 K | 146.9 lm/W | 4231.7 lm/m | D | 119.3 lm/W | 3436.4 lm/m | E | 97 lm/W | 2792.4 lm/m | F |
|---|
| 3500 K | 149.1 lm/W | 4294.3 lm/m | D | 121.6 lm/W | 3501.6 lm/m | E | 100.1 lm/W | 2883.7 lm/m | F |
|---|
| 4000 K | 153.5 lm/W | 4419.4 lm/m | D | 124.2 lm/W | 3577.2 lm/m | E | 102.6 lm/W | 2954.1 lm/m | F |
|---|
| 5000 K | 153.3 lm/W | 4414.2 lm/m | D | 124.2 lm/W | 3577.2 lm/m | E | 102.5 lm/W | 2952 lm/m | F |
|---|
| 6500 K | 146.9 lm/W | 4231.7 lm/m | D | 119.2 lm/W | 3433.8 lm/m | E | 99 lm/W | 2851.2 lm/m | F |
|---|
Grade DL (2nd Tier) · 9.6W/m
Grade DL (2nd Tier) · 9.6W/m — measured at 9.6 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|
| 1800 K | 134.2 lm/W | 1288 lm/m | E | 107.5 lm/W | 1032.4 lm/m | F | — | — | — |
|---|
| 2300 K | 149.3 lm/W | 1433.2 lm/m | D | 119.8 lm/W | 1149.8 lm/m | E | 97 lm/W | 931.2 lm/m | F |
|---|
| 2700 K | 157.7 lm/W | 1513.8 lm/m | D | 129.6 lm/W | 1244.2 lm/m | E | 105.1 lm/W | 1008.5 lm/m | F |
|---|
| 3000 K | 168 lm/W | 1613.2 lm/m | C | 136.4 lm/W | 1309.9 lm/m | D | 111 lm/W | 1065.2 lm/m | E |
|---|
| 3500 K | 170.5 lm/W | 1637.1 lm/m | C | 138.8 lm/W | 1332.8 lm/m | D | 114.3 lm/W | 1097 lm/m | E |
|---|
| 4000 K | 176 lm/W | 1689.8 lm/m | C | 142.2 lm/W | 1365.6 lm/m | D | 117.4 lm/W | 1126.9 lm/m | E |
|---|
| 5000 K | 175.8 lm/W | 1687.8 lm/m | C | 142.1 lm/W | 1364.6 lm/m | D | 117.3 lm/W | 1126.1 lm/m | E |
|---|
| 6500 K | 161.1 lm/W | 1546.6 lm/m | C | 136.3 lm/W | 1308.9 lm/m | D | 113.2 lm/W | 1086.7 lm/m | E |
|---|
Grade DL (2nd Tier) · 14.4W/m
Grade DL (2nd Tier) · 14.4W/m — measured at 14.4 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|
| 1800 K | 129.7 lm/W | 1867.9 lm/m | E | 104 lm/W | 1497.2 lm/m | F | — | — | — |
|---|
| 2300 K | 144.3 lm/W | 2078.5 lm/m | D | 115.8 lm/W | 1667.4 lm/m | E | 93.8 lm/W | 1350.7 lm/m | F |
|---|
| 2700 K | 152.5 lm/W | 2195.4 lm/m | D | 125.3 lm/W | 1804.5 lm/m | E | 101.6 lm/W | 1462.6 lm/m | F |
|---|
| 3000 K | 162.5 lm/W | 2339.6 lm/m | C | 131.9 lm/W | 1899.7 lm/m | E | 107.3 lm/W | 1544.8 lm/m | F |
|---|
| 3500 K | 164.9 lm/W | 2374.2 lm/m | C | 134.2 lm/W | 1932.9 lm/m | E | 110.5 lm/W | 1591 lm/m | E |
|---|
| 4000 K | 170.2 lm/W | 2450.7 lm/m | C | 137.5 lm/W | 1980.5 lm/m | D | 113.5 lm/W | 1634.3 lm/m | E |
|---|
| 5000 K | 170 lm/W | 2447.8 lm/m | C | 137.4 lm/W | 1979 lm/m | D | 113.4 lm/W | 1633 lm/m | E |
|---|
| 6500 K | 155.8 lm/W | 2243 lm/m | D | 131.8 lm/W | 1898.2 lm/m | E | 109.4 lm/W | 1575.4 lm/m | F |
|---|
Grade DL (2nd Tier) · 19.2W/m
Grade DL (2nd Tier) · 19.2W/m — measured at 19.2 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|
| 1800 K | 125.4 lm/W | 2408 lm/m | E | 100.5 lm/W | 1930.1 lm/m | F | — | — | — |
|---|
| 2300 K | 139.6 lm/W | 2679.5 lm/m | D | 112 lm/W | 2149.6 lm/m | E | 90.7 lm/W | 1741.4 lm/m | F |
|---|
| 2700 K | 147.4 lm/W | 2830.1 lm/m | D | 121.2 lm/W | 2326.2 lm/m | E | 98.2 lm/W | 1885.5 lm/m | F |
|---|
| 3000 K | 157.1 lm/W | 3016.1 lm/m | D | 127.5 lm/W | 2448.9 lm/m | E | 103.7 lm/W | 1991.5 lm/m | F |
|---|
| 3500 K | 159.4 lm/W | 3060.7 lm/m | D | 129.8 lm/W | 2491.7 lm/m | E | 106.8 lm/W | 2051 lm/m | F |
|---|
| 4000 K | 164.5 lm/W | 3159.2 lm/m | C | 133 lm/W | 2553.1 lm/m | E | 109.7 lm/W | 2106.8 lm/m | F |
|---|
| 5000 K | 164.4 lm/W | 3155.5 lm/m | C | 132.9 lm/W | 2551.2 lm/m | E | 109.6 lm/W | 2104.3 lm/m | F |
|---|
| 6500 K | 150.6 lm/W | 2891.5 lm/m | D | 127.5 lm/W | 2447.1 lm/m | E | 105.8 lm/W | 2031.4 lm/m | F |
|---|
Grade DL (2nd Tier) · 24W/m
Grade DL (2nd Tier) · 24W/m — measured at 24 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|
| 1800 K | 121.3 lm/W | 2910.2 lm/m | E | 97.2 lm/W | 2332.7 lm/m | F | — | — | — |
|---|
| 2300 K | 134.9 lm/W | 3238.3 lm/m | E | 108.2 lm/W | 2597.8 lm/m | F | 87.7 lm/W | 2104.8 lm/m | F |
|---|
| 2700 K | 142.5 lm/W | 3420.4 lm/m | D | 117.1 lm/W | 2811.3 lm/m | E | 94.9 lm/W | 2278.7 lm/m | F |
|---|
| 3000 K | 151.9 lm/W | 3645.1 lm/m | D | 123.3 lm/W | 2959.7 lm/m | E | 100.3 lm/W | 2406.8 lm/m | F |
|---|
| 3500 K | 154.1 lm/W | 3699 lm/m | D | 125.5 lm/W | 3011.3 lm/m | E | 103.3 lm/W | 2478.7 lm/m | F |
|---|
| 4000 K | 159.1 lm/W | 3818.1 lm/m | D | 128.6 lm/W | 3085.5 lm/m | E | 106.1 lm/W | 2546.2 lm/m | F |
|---|
| 5000 K | 158.9 lm/W | 3813.6 lm/m | D | 128.5 lm/W | 3083.3 lm/m | E | 106 lm/W | 2544 lm/m | F |
|---|
| 6500 K | 145.6 lm/W | 3494.5 lm/m | D | 123.2 lm/W | 2957.4 lm/m | E | 102.3 lm/W | 2455.2 lm/m | F |
|---|
Grade DL (2nd Tier) · 28.8W/m
Grade DL (2nd Tier) · 28.8W/m — measured at 28.8 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|
| 1800 K | 117.2 lm/W | 3376.5 lm/m | E | 94 lm/W | 2706.4 lm/m | F | — | — | — |
|---|
| 2300 K | 130.5 lm/W | 3757.1 lm/m | E | 104.7 lm/W | 3014.1 lm/m | F | 84.8 lm/W | 2442.2 lm/m | G |
|---|
| 2700 K | 137.8 lm/W | 3968.3 lm/m | D | 113.3 lm/W | 3261.8 lm/m | E | 91.8 lm/W | 2643.8 lm/m | F |
|---|
| 3000 K | 146.8 lm/W | 4229.1 lm/m | D | 119.2 lm/W | 3433.8 lm/m | E | 97 lm/W | 2792.4 lm/m | F |
|---|
| 3500 K | 149 lm/W | 4291.6 lm/m | D | 121.3 lm/W | 3493.8 lm/m | E | 99.9 lm/W | 2875.9 lm/m | F |
|---|
| 4000 K | 153.8 lm/W | 4429.8 lm/m | D | 124.3 lm/W | 3579.8 lm/m | E | 102.6 lm/W | 2954.1 lm/m | F |
|---|
| 5000 K | 153.6 lm/W | 4424.6 lm/m | D | 124.2 lm/W | 3577.2 lm/m | E | 102.5 lm/W | 2952 lm/m | F |
|---|
| 6500 K | 140.8 lm/W | 4054.4 lm/m | D | 119.1 lm/W | 3431.2 lm/m | E | 98.9 lm/W | 2848.3 lm/m | F |
|---|
Frequently Asked Questions
What are the key specifications of 5492-PU?
5492-PU: 2835, 160, 24V, 10mm PCB, 3 oz copper FPCB, cuttable 8LEDs/50mm, IP68PU, CRI Ra≥80 , Ra≥90 , Ra≥95 , FS. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
Which environments is this marine grade LED strip rated for?
Ingress protection for this model is IP68PU. As a marine grade LED strip it is specified for the duty listed in the datasheet, and DENO can supply alternative coatings, sleeves or IP68 potting for harsher installations.
Can DENO customise this marine grade LED strip for a project?
Yes. DENO manufactures the Marine Grade SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
What makes an LED strip marine grade?
Marine LED strip lights need IP67 or IP68 encapsulation, salt-mist resistant coating, tinned copper conductors and UV stable silicone. These boat LED strip lights are built for continuous saltwater spray and vibration rather than the light splash duty a standard waterproof strip is rated for.
Which LED driver and run length suit #5492-PU?
2835 High Light Efficacy High Lumen PU LED Strip Light | 12mm | 24V | 160LEDs | 50mm/cut | #5492-PU is a constant-voltage 24V product, so pair it with a CE or UL listed 24V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 5m. 5m Single/10m Dual Input power. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.
