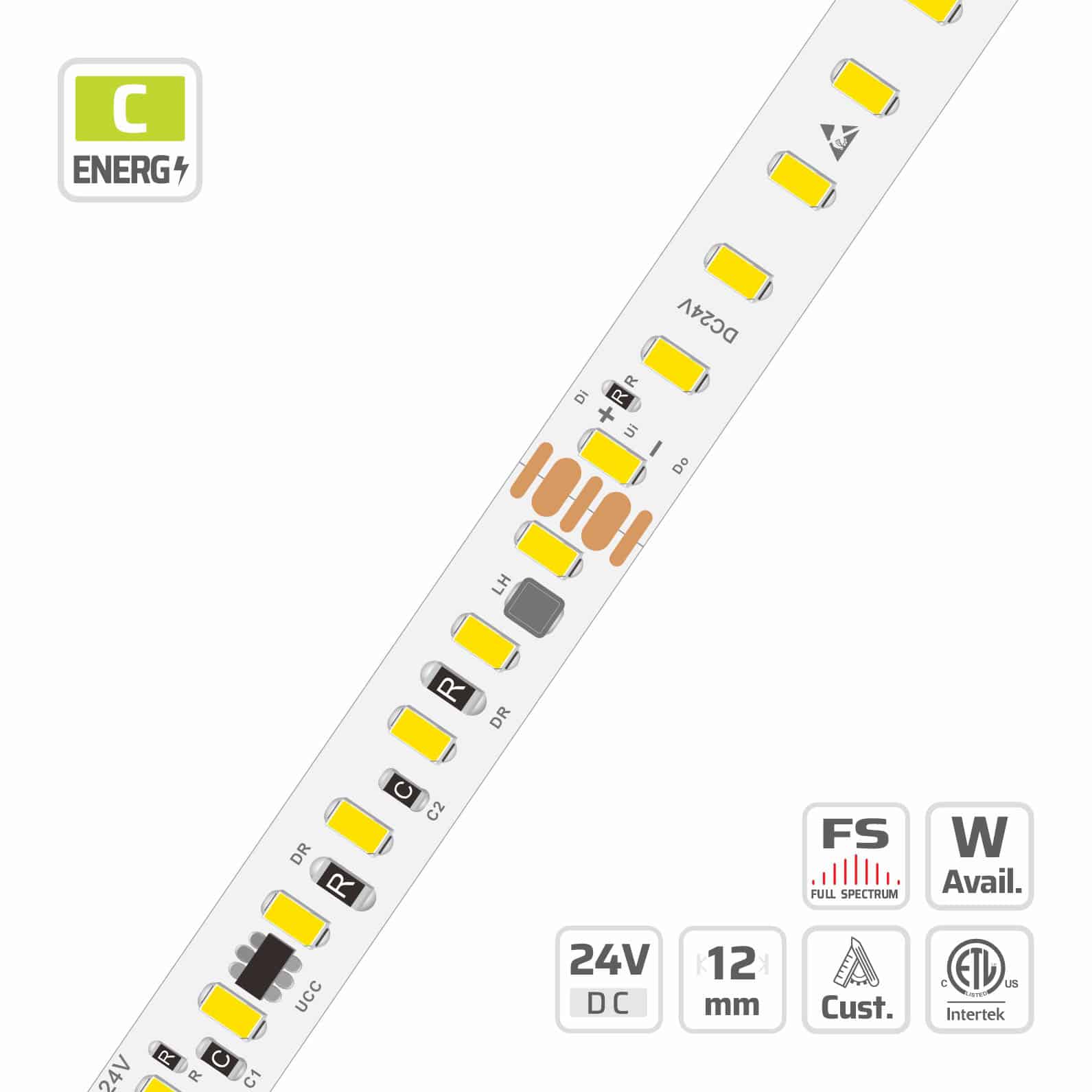

5630 Special High Lumen Long Run LED Strip Light (#4925)
12mm · 24V · 112LEDs · 62.5cut
Model: 4925
Overview
12mm | 24V | 112LEDs | 62.5cut | #4925 | 5630 Special High Lumen Ultra-Long LED Strip Light is part of the DENO DENO WAP SMD Strips series, engineered around WAP waterproof LED strip. Key specifications: 5630, 112LEDs/m, 24V, 12mm PCB, 3oz copper FPCB, cuttable 7LEDs/62.5mm, IP20. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
High-efficiency 5630 SMD LEDs deliver robust illumination across 112 LEDs per meter on a heavy-duty 12mm, 3oz copper PCB for architectural lighting projects. Integrated constant-current circuit engineering supports continuous long runs up to 15 meters on a single feed without noticeable voltage drop. Operating on a 24V DC input, this dimmable IP20 LED strip light features a 120-degree beam angle and precise 62.5mm cut intervals. Designed with a 60mm minimum bend diameter, the flexible tape operates reliably across ambient temperatures from minus 25 to 40 degrees Celsius. DENO provides OEM custom lengths and color temperatures through wholesale project supply to support commercial installations worldwide.
Ultra Long Run Led Strip built for ultra-long smd strips projects.
Specifications
| LED QTY | 112LEDs/m |
|---|---|
| PART NO | DL-F56A56V24-4925-* |
| SMD TYPE | 5630 |
| CUTTABLE UNIT | 7LEDs/62.5mm |
| DIMMABLE | Yes |
| IP RATING | IP20 |
| LED PITCH | 8.9mm |
| LIFESPAN | 50000 |
| PCB WIDTH | 12mm |
| WARRANTY | 5 Years |
| BEAM ANGLE | 120° |
| RUN LENGTH | 15m |
| COPPER FOIL | 3oz |
| ON OFF TIMES | 10000（test times） |
| POWER RANGE | 4~23W |
| CIRCUIT TYPE | C.C. |
| INPUT VOLTAGE | 24V |
| MIN BEND DIAMETER | Φ60mm |
| OPERATING TEMPERATURE | -25~40°C;Tc: 75°C (max) |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Long corridor & warehouse runs — Long single-feed runs on 24V cover corridors, warehouse aisles and facade lines with fewer injection points and fewer power supplies.
Recommended accessories & compatible parts
- DL-1201 — 25x14.5mm Wide Surface Mount LED Channel — Aluminum Profile for 12mm Strip: Accepts LED strips up to 12mm wide.
- DL-1202 — 17.3x14.5mm Surface Mount LED Channel — Deep Aluminum Profile for 12mm Strip: Accepts LED strips up to 12mm wide.
- DL-1204 — 25x7mm Wide Slim Surface Mount LED Channel — Dotless Aluminum Profile for 240 LEDs/m: Accepts LED strips up to 12mm wide.
- DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.
Request a quotation for #4925
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 177.6 lm/W at 4000K, Ra 80, ErP energy class C (Grade DL (2nd Tier) · 11.5W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 11.5W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 135.3 lm/W | 1555.8 lm/m | D | 108.5 lm/W | 1248.2 lm/m | F | — | — | — |
| 2300 K | 150.7 lm/W | 1732.6 lm/m | D | 120.8 lm/W | 1389.6 lm/m | E | — | — | — |
| 2700 K | 159.2 lm/W | 1830.4 lm/m | D | 130.8 lm/W | 1503.9 lm/m | E | 106 lm/W | 1218.7 lm/m | F |
| 3000 K | 169.5 lm/W | 1949.4 lm/m | C | 137.6 lm/W | 1582.9 lm/m | D | 111.9 lm/W | 1287.1 lm/m | E |
| 3500 K | 172.1 lm/W | 1978.9 lm/m | C | 140.1 lm/W | 1611.2 lm/m | D | 115.3 lm/W | 1326 lm/m | E |
| 4000 K | 177.6 lm/W | 2042.6 lm/m | C | 143.5 lm/W | 1650.1 lm/m | D | 118.5 lm/W | 1362.5 lm/m | E |
| 5000 K | 177.4 lm/W | 2040.2 lm/m | C | 143.4 lm/W | 1648.9 lm/m | D | — | — | — |
| 6500 K | 162.5 lm/W | 1869.3 lm/m | C | 137.5 lm/W | 1581.7 lm/m | D | — | — | — |
Grade DL (2nd Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 132.6 lm/W | 1908.8 lm/m | E | 106.3 lm/W | 1531.4 lm/m | F | — | — | — |
| 2300 K | 147.6 lm/W | 2125.7 lm/m | D | 118.4 lm/W | 1704.9 lm/m | E | — | — | — |
| 2700 K | 156 lm/W | 2245.8 lm/m | D | 128.1 lm/W | 1845.2 lm/m | E | 103.8 lm/W | 1495.2 lm/m | F |
| 3000 K | 166.1 lm/W | 2391.8 lm/m | C | 134.9 lm/W | 1942.1 lm/m | E | 109.7 lm/W | 1579.1 lm/m | F |
| 3500 K | 168.6 lm/W | 2428 lm/m | C | 137.3 lm/W | 1976.8 lm/m | D | 113 lm/W | 1626.8 lm/m | E |
| 4000 K | 174 lm/W | 2506.1 lm/m | C | 140.6 lm/W | 2024.5 lm/m | D | 116.1 lm/W | 1671.7 lm/m | E |
| 5000 K | 173.8 lm/W | 2503.2 lm/m | C | 140.5 lm/W | 2023.1 lm/m | D | — | — | — |
| 6500 K | 159.3 lm/W | 2293.5 lm/m | D | 134.8 lm/W | 1940.6 lm/m | E | — | — | — |
Grade DL (2nd Tier) · 19.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 128.2 lm/W | 2460.7 lm/m | E | 102.8 lm/W | 1974.2 lm/m | F | — | — | — |
| 2300 K | 142.7 lm/W | 2740.3 lm/m | D | 114.5 lm/W | 2197.9 lm/m | E | — | — | — |
| 2700 K | 150.8 lm/W | 2895.1 lm/m | D | 123.9 lm/W | 2378.7 lm/m | E | 100.4 lm/W | 1927.6 lm/m | F |
| 3000 K | 160.6 lm/W | 3083.4 lm/m | C | 130.4 lm/W | 2503.6 lm/m | E | 106 lm/W | 2035.7 lm/m | F |
| 3500 K | 163 lm/W | 3130 lm/m | C | 132.7 lm/W | 2548.3 lm/m | E | 109.2 lm/W | 2097.2 lm/m | F |
| 4000 K | 168.3 lm/W | 3230.6 lm/m | C | 135.9 lm/W | 2609.9 lm/m | D | 112.2 lm/W | 2155 lm/m | E |
| 5000 K | 168.1 lm/W | 3226.9 lm/m | C | 135.8 lm/W | 2608 lm/m | D | — | — | — |
| 6500 K | 154 lm/W | 2956.6 lm/m | D | 130.3 lm/W | 2501.7 lm/m | E | — | — | — |
High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide
At up to 19.2W/m, 4925 is a high-power SMD LED strip. Above roughly 14.4W/m the tape can no longer shed its own heat through the FPC alone — an aluminum channel is part of the luminaire, not an accessory.
Why high-wattage strips need a heat sink
- Aluminum conducts heat roughly 30× faster than the plastics, MDF or gypsum a strip is usually stuck to, so a bare high-power run traps heat under the tape.
- LED lifetime (LM-80 / TM-21) is driven by solder-point temperature Tc. Keeping Tc inside the datasheet limit — DENO strips are rated Tc ≤ 75°C — is what preserves the rated L70 lifetime and colour stability.
- Never run 14.4W/m or more coiled on the reel, inside a sealed plastic diffuser, or directly on wood, wallpaper or foam.
Sizing rule: FPC width vs channel inner width
- Channel inner width ≥ FPC width + 2mm. This strip is 12mm wide, so it needs at least 14mm of inner width.
- The 2mm clearance absorbs extrusion tolerance and lets the tape be seated or replaced without scraping the side walls or the wiring.
- A frosted or opal PC cover then diffuses the higher lumen output into an even, dot-free line instead of visible hot spots.
Aluminum channels that fit this strip
- 20x08mm Surface Mount LED Channel · fits ≤12mm strip
- 18x18mm Magnetic LED Channel · fits ≤12mm strip
- 17.3x14.5mm Surface Mount LED Channel · fits ≤12mm strip
- 17.5x7mm Slim Surface Mount LED Channel · fits ≤12mm strip
- Slim Surface Aluminum Profile · 12mm PCB · fits ≤12mm strip
- 25x7mm Wide Slim Surface Mount LED Channel · fits ≤12mm strip
Recommended LED Channels
Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.
This strip is 12mm wide, so it needs a channel with at least 14mm inner width (12mm + 2mm clearance). Every profile below meets that.
Related models in this series
- 5630 High Lumen Classic Multi-Line LED Strip Light (#2351)
- 5630 Classic LED Strip Light (#3834)
- 5630 Tunable CCT High Lumen Multi-Line LED Strip Light (#2771)
- 5630 High Density LED Strip Light (#5325)
- 5630 Classic LED Strip Light (#11323)
- 5630 Tunable CCT High Lumen LED Strip Light (#3406)
- 5630 Classic LED Strip Light (#11664)
- 5630 Classic High Lumen LED Strip Light (#2486)
See every model in SMD LED Strip Series or narrow to 5630. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 4925?
4925: 5630, 112LEDs/m, 24V, 12mm PCB, 3oz copper FPCB, cuttable 7LEDs/62.5mm, IP20. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
Which environments is this WAP waterproof LED strip rated for?
Ingress protection for this model is IP20. As a WAP waterproof LED strip it is specified for the duty listed in the datasheet, and DENO can supply alternative coatings, sleeves or IP68 potting for harsher installations.
Can DENO customise this WAP waterproof LED strip for a project?
Yes. DENO manufactures the DENO WAP SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
What limits how long an LED strip run can be?
Voltage drop and conductor current, not the LED itself. A long run LED strip combines low watts per metre, 2 oz or thicker copper and a higher bus voltage such as 24V, 36V or 48V to reach 20 m or more from one feed while staying inside a 3 percent drop.
Is a coated waterproof LED strip better than a silicone sleeve?
The WAP nano-coating bonds to the board, so the strip keeps its original thickness, bend radius and heat dissipation while reaching IP67. A silicone sleeve adds bulk, traps heat and can yellow, though it remains the right choice for continuous immersion at IP68.
