DENO LED Lighting

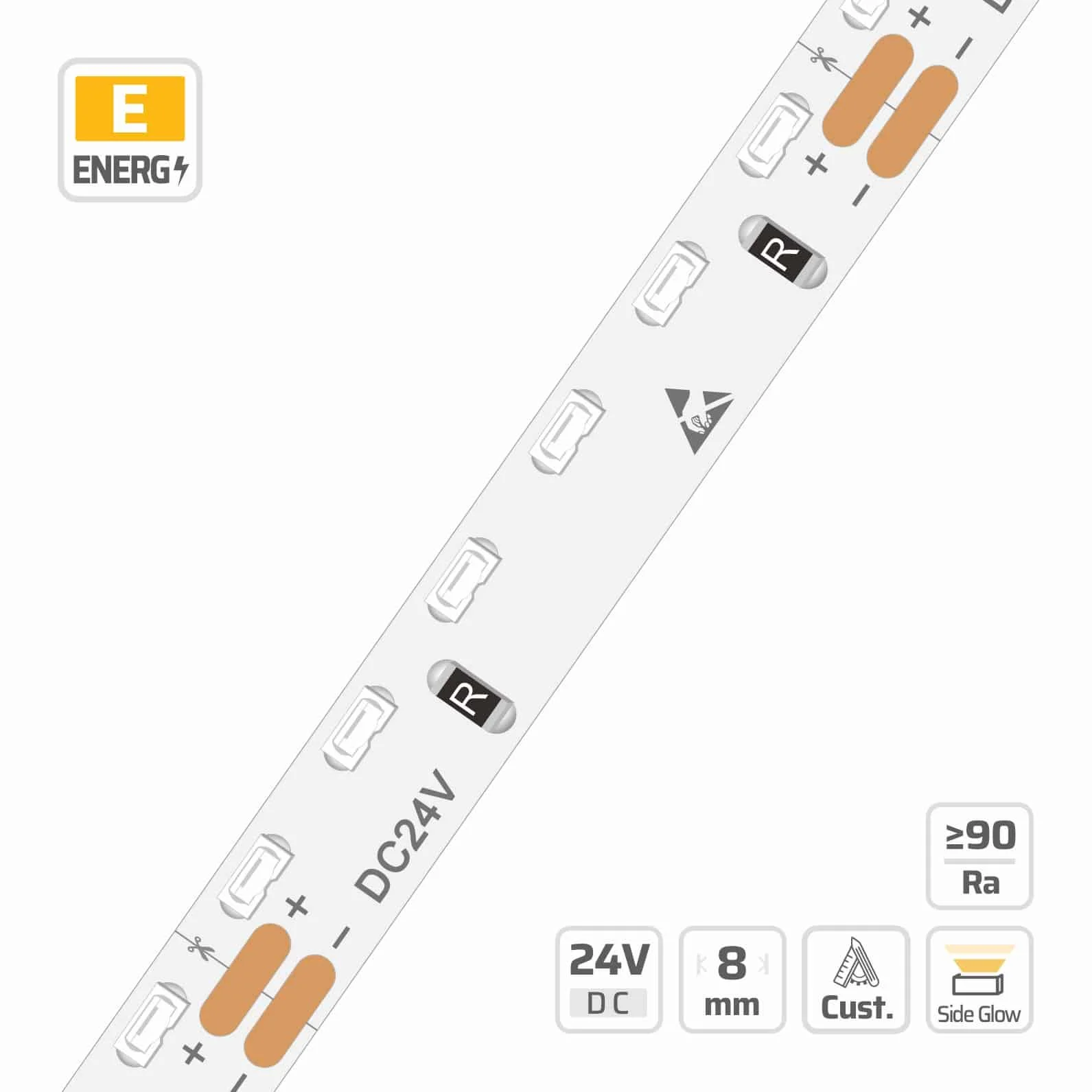

3014 Side View LED Strip Light (#4712)

8mm · 24V · 120LEDs · 50cut

Model: 4712

4712 3014 Side View LED Strip Light | 8mm | 24V | 120LEDs | 50cut | #4712 — 24V, cuttable every 50mm, 8mm FPCB width, 3014 LEDs, 120 LEDs/m, 2700–6500K

Overview

3014 Side View LED Strip Light | 8mm | 24V | 120LEDs | 50cut | #4712 is part of the DENO Side Emitting LED Strips series, engineered around side emitting LED strip. Key specifications: 3014, 120 LEDs/m, 24V, 8 PCB, 2oz copper FPCB, cuttable 6LEDs/50mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.

Description

Featuring 120 LEDs per meter on an 8mm PCB, this 3014 side view LED strip light delivers 120-degree side-emitting illumination for architectural edge lighting. Engineered for 24V constant voltage operation, this dimmable strip is cuttable every 50mm to provide flexible sizing for wholesale project supply. Supporting a 2.4 to 14.4W power range, the strip maintains reliable performance between -25°C and 40°C with a 60mm minimum bend diameter. Supplied in maximum run lengths of 5M, this side view LED strip light is ready for OEM custom packaging and factory-direct project delivery.

Side Emitting Led Strip built for side emitting led strips projects.

Specifications

CCT (K)2700–6500K
CRIRa≥80
POWER (W/M)12 W/m
LED QTY120 LEDs/m
PART NODL-F34A60V24-4712-*
SMD TYPE3014
CUTTABLE UNIT6LEDs/50mm
DIMMABLEYes
IP RATINGIP20/IP65/IP67
LED PITCH8.3mm
PCB WIDTH8
BEAM ANGLE120°
RUN LENGTH5M
COPPER FOIL2oz
ON OFF TIMES10000（test times）
POWER RANGE2.4~14.4W
CIRCUIT TYPEC.V. (Resistor Based)
INPUT VOLTAGE24V
LUMINOUS FLUX1035–1220 lm/m
MIN BEND DIAMETERΦ60mm
OPERATING TEMPERATURE-25~40°C; Tc: 75°C (max)

Applications

  • Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
  • Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
  • Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.

Recommended accessories & compatible parts

  • DL-1215 — 12x15mm Surface Mount LED Channel — Tall U Shape Aluminum Profile: Accepts LED strips up to 8mm wide.
  • DL-1313HX-M — 13x13mm Magnetic Cabinet LED Channel — Tool-Free Corner Aluminum Profile: Accepts LED strips up to 8mm wide.
  • DL-1408 HX — 14x8mm Surface Mount LED Channel — Slim Aluminum Profile for 8mm Strip: Accepts LED strips up to 8mm wide.
  • DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
  • DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
  • DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
  • V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.

Request a quotation for #4712

DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.

  • Warranty: 5 years
  • Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
  • Compliance: CE · UL · RoHS
  • Bonding wire: 99.99% pure gold
  • Copper foil: 99.9% pure copper FPCB

Contact DENO LED engineers · OEM / ODM capability

Photometric Performance — CCT × CRI Efficacy Matrix

Peak measured luminous efficacy: 124.3 lm/W at 4000K, Ra 80, ErP energy class E (Grade DL (2nd Tier) · 4.8W/m).

All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.

Grade DL (2nd Tier) · 4.8W/m

Grade DL (2nd Tier) · 4.8W/m — measured at 4.8 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)Ra 80 — Luminous Efficacy (lm/W)Ra 80 — Luminous Flux (lm/m)Ra 80 — ErP Energy ClassRa 90 — Luminous Efficacy (lm/W)Ra 90 — Luminous Flux (lm/m)Ra 90 — ErP Energy ClassFull Spectrum (Ra 95+) — Luminous Efficacy (lm/W)Full Spectrum (Ra 95+) — Luminous Flux (lm/m)Full Spectrum (Ra 95+) — ErP Energy Class
1800 K94.7 lm/W454.6 lm/mF75.6 lm/W362.7 lm/mG———
2300 K105.3 lm/W505.7 lm/mF84.2 lm/W404.1 lm/mG———
2700 K110.5 lm/W530.4 lm/mE91.1 lm/W437.5 lm/mF73.9 lm/W354.6 lm/mG
3000 K118.6 lm/W569.3 lm/mE95.9 lm/W460.2 lm/mF78 lm/W374.3 lm/mG
3500 K120.5 lm/W578.4 lm/mE97.6 lm/W468.3 lm/mF80.3 lm/W385.4 lm/mG
4000 K124.3 lm/W596.6 lm/mE100 lm/W479.9 lm/mF82.5 lm/W396 lm/mG
5000 K124.2 lm/W596.1 lm/mE99.9 lm/W479.4 lm/mF———
6500 K113.3 lm/W544 lm/mE95.8 lm/W459.7 lm/mF———

Grade DL (2nd Tier) · 9.6W/m

Grade DL (2nd Tier) · 9.6W/m — measured at 9.6 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)Ra 80 — Luminous Efficacy (lm/W)Ra 80 — Luminous Flux (lm/m)Ra 80 — ErP Energy ClassRa 90 — Luminous Efficacy (lm/W)Ra 90 — Luminous Flux (lm/m)Ra 90 — ErP Energy ClassFull Spectrum (Ra 95+) — Luminous Efficacy (lm/W)Full Spectrum (Ra 95+) — Luminous Flux (lm/m)Full Spectrum (Ra 95+) — ErP Energy Class
1800 K91.6 lm/W879.1 lm/mF73.1 lm/W701.3 lm/mG———
2300 K101.9 lm/W977.8 lm/mF81.4 lm/W781.4 lm/mG———
2700 K106.8 lm/W1025.6 lm/mF88.1 lm/W845.9 lm/mF71.4 lm/W685.7 lm/mG
3000 K114.7 lm/W1100.9 lm/mE92.7 lm/W889.9 lm/mF75.4 lm/W723.8 lm/mG
3500 K116.5 lm/W1118.4 lm/mE94.3 lm/W905.5 lm/mF77.6 lm/W745.3 lm/mG
4000 K120.2 lm/W1153.6 lm/mE96.7 lm/W928 lm/mF79.8 lm/W765.8 lm/mG
5000 K120.1 lm/W1152.6 lm/mE96.6 lm/W927 lm/mF———
6500 K109.6 lm/W1052 lm/mF92.6 lm/W888.9 lm/mF———

Grade DL (2nd Tier) · 12W/m

Grade DL (2nd Tier) · 12W/m — measured at 12 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)Ra 80 — Luminous Efficacy (lm/W)Ra 80 — Luminous Flux (lm/m)Ra 80 — ErP Energy ClassRa 90 — Luminous Efficacy (lm/W)Ra 90 — Luminous Flux (lm/m)Ra 90 — ErP Energy ClassFull Spectrum (Ra 95+) — Luminous Efficacy (lm/W)Full Spectrum (Ra 95+) — Luminous Flux (lm/m)Full Spectrum (Ra 95+) — ErP Energy Class
1800 K90 lm/W1080.5 lm/mF71.8 lm/W862 lm/mG———
2300 K100.1 lm/W1201.8 lm/mF80 lm/W960.5 lm/mG———
2700 K105.1 lm/W1260.6 lm/mF86.6 lm/W1039.7 lm/mF70.2 lm/W842.8 lm/mG
3000 K112.8 lm/W1353.1 lm/mE91.1 lm/W1093.7 lm/mF74.1 lm/W889.6 lm/mG
3500 K114.6 lm/W1374.7 lm/mE92.7 lm/W1112.9 lm/mF76.3 lm/W916.1 lm/mG
4000 K118.2 lm/W1417.9 lm/mE95 lm/W1140.6 lm/mF78.4 lm/W941.3 lm/mG
5000 K118.1 lm/W1416.7 lm/mE94.9 lm/W1139.4 lm/mF———
6500 K107.8 lm/W1293 lm/mF91 lm/W1092.5 lm/mF———

Recommended LED Channels

Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.

This strip is 8mm wide, so it needs a channel with at least 10mm inner width (8mm + 2mm clearance). Every profile below meets that.

Related models in this series

See every model in SMD LED Strip Series or narrow to 3014. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.

Frequently Asked Questions

What are the key specifications of 4712?

4712: 3014, 120 LEDs/m, 24V, 8 PCB, 2oz copper FPCB, cuttable 6LEDs/50mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.

What makes the construction of this side emitting LED strip different?

It is built as a side emitting LED strip on 2oz copper FPCB with a cutting unit of 6LEDs/50mm and an LED pitch of 8.3mm, so it holds its electrical and mechanical performance where standard strips fail.

Can DENO customise this side emitting LED strip for a project?

Yes. DENO manufactures the Side Emitting LED Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.

Where is a side emitting LED strip used?

A side view LED strip fires light out of the edge of the board rather than the face, which suits edge-lit panels, glass shelf edges, handrail slots and shallow reveals where there is no depth to mount a top-firing strip and aim it at the surface.

Which LED driver and run length suit #4712?

3014 Side View LED Strip Light | 8mm | 24V | 120LEDs | 50cut | #4712 is a constant-voltage 24V product, so pair it with a CE or UL listed 24V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 5M. 5m Single/10m Dual Input power. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.
