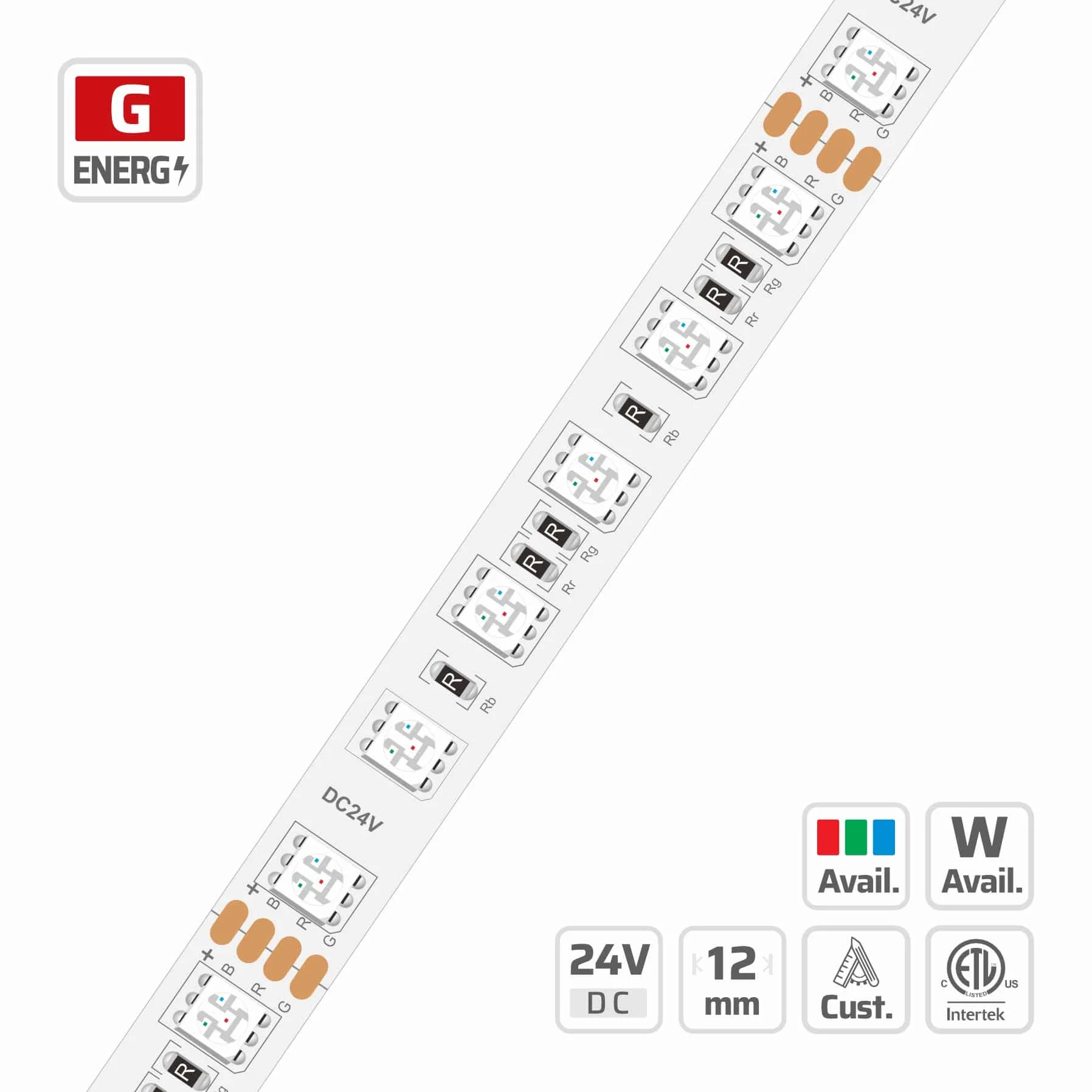

5050 RGB LED Strip Light (#4525)

12mm · 24V · 72LEDs · 83.33mm/cut

Model: 4525

4525 rgb led strip — 24V, cuttable every 83.3mm, 12mm FPCB width, 5050 LEDs, 72 LEDs/m, IP20/IP65/IP67/IP68

Overview

5050 RGB LED Strip Light | 12mm | 24V | 72LEDs | 83.33mm/cut | #4525 is part of the DENO RGB SMD Strips series, engineered around RGB LED strip lights. Key specifications: 5050, 72, 24V, 12 PCB, 2oz copper FPCB, cuttable 6LEDs/83.33mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.

Description

This 24V 5050 RGB LED strip light incorporates 72 LEDs per meter on a 12mm PCB to deliver vibrant multi-color illumination. Engineered with a durable 2oz copper PCB, each constant-voltage strip is precisely cuttable every 83.33mm at six-LED intervals for flexible installations. A wide 120-degree beam angle and fully dimmable circuitry provide uniform color blending for architectural cove lighting and signage backlighting applications. Available for wholesale project supply, DENO manufactures OEM custom configurations and reel lengths up to five meters for professional lighting contractors.

Rgb Led Strip Lights built for rgb smd strips projects.

Specifications

CRI–
POWER (W/M)17.2 W/m
LED QTY72
PART NODL-F50A36V24-4525-*
SMD TYPE5050
CUTTABLE UNIT6LEDs/83.33mm
DIMMABLEYes
IP RATINGIP20/IP65/IP67/IP68
LED PITCH13.88mm
LIFESPAN50000
PCB WIDTH12
WARRANTY5 Years
BEAM ANGLE120°
RUN LENGTH5m
COPPER FOIL2oz
POWER RANGE4.3~17.28W
CIRCUIT TYPEC.V.
INPUT VOLTAGE24V
LUMINOUS FLUX105–875 lm/m
OPERATING TEMPERATURE-25~40°C;Tc：75°C（max）

Applications

  • Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
  • Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
  • Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
  • Gallery & retail colour-critical work (CRI 97+) — Galleries, retail merchandising, showrooms, studios and dental or medical rooms where colour accuracy drives the buying or working decision.
  • Entertainment & media-facade colour scenes — Entertainment venues, media facades, gaming rooms and branded retail installs driven by DMX/SPI or standard RGB controllers.

Recommended accessories & compatible parts

  • DL-1201 — 25x14.5mm Wide Surface Mount LED Channel — Aluminum Profile for 12mm Strip: Accepts LED strips up to 12mm wide.
  • DL-1202 — 17.3x14.5mm Surface Mount LED Channel — Deep Aluminum Profile for 12mm Strip: Accepts LED strips up to 12mm wide.
  • DL-1204 — 25x7mm Wide Slim Surface Mount LED Channel — Dotless Aluminum Profile for 240 LEDs/m: Accepts LED strips up to 12mm wide.
  • DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
  • DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
  • DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.

Request a quotation for #4525

DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.

  • Warranty: 5 years
  • Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
  • Compliance: CE · UL · RoHS
  • Bonding wire: 99.99% pure gold
  • Copper foil: 99.9% pure copper FPCB

Contact DENO LED engineers · OEM / ODM capability

High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide

At up to 17.28W/m, 4525 is a high-power SMD LED strip. Above roughly 14.4W/m the tape can no longer shed its own heat through the FPC alone — an aluminum channel is part of the luminaire, not an accessory.

Why high-wattage strips need a heat sink

  • Aluminum conducts heat roughly 30× faster than the plastics, MDF or gypsum a strip is usually stuck to, so a bare high-power run traps heat under the tape.
  • LED lifetime (LM-80 / TM-21) is driven by solder-point temperature Tc. Keeping Tc inside the datasheet limit — DENO strips are rated Tc ≤ 75°C — is what preserves the rated L70 lifetime and colour stability.
  • Never run 14.4W/m or more coiled on the reel, inside a sealed plastic diffuser, or directly on wood, wallpaper or foam.

Sizing rule: FPC width vs channel inner width

  • Channel inner width ≥ FPC width + 2mm. This strip is 12mm wide, so it needs at least 14mm of inner width.
  • The 2mm clearance absorbs extrusion tolerance and lets the tape be seated or replaced without scraping the side walls or the wiring.
  • A frosted or opal PC cover then diffuses the higher lumen output into an even, dot-free line instead of visible hot spots.

Aluminum channels that fit this strip

Recommended LED Channels

Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.

This strip is 12mm wide, so it needs a channel with at least 14mm inner width (12mm + 2mm clearance). Every profile below meets that.

Related models in this series

See every model in SMD LED Strip Series or narrow to 5050. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.

Frequently Asked Questions

What are the key specifications of 4525?

4525: 5050, 72, 24V, 12 PCB, 2oz copper FPCB, cuttable 6LEDs/83.33mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.

What colour temperatures and CRI options does this RGB LED strip lights offer?

This model is supplied as a RGB LED strip lights with high CRI options and the CCT range listed in the datasheet. DENO bins every batch for colour consistency, and custom CCT or spectrum combinations can be produced for project quantities.

Can DENO customise this RGB LED strip lights for a project?

Yes. DENO manufactures the RGB SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.

Should you choose RGB or RGBW LED strip lights?

RGB LED strip lights mix colour but produce a weak, tinted white. If the installation also needs usable white light for everyday use, choose RGBW or RGBCCT, which adds a dedicated white chip. Pure RGB is best where the strip is only ever a colour accent.

Which LED driver and run length suit #4525?

5050 RGB LED Strip Light | 12mm | 24V | 72LEDs | 83.33mm/cut | #4525 is a constant-voltage 24V product, so pair it with a CE or UL listed 24V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 5m. 5m Single / 10m Dual Input power. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.
