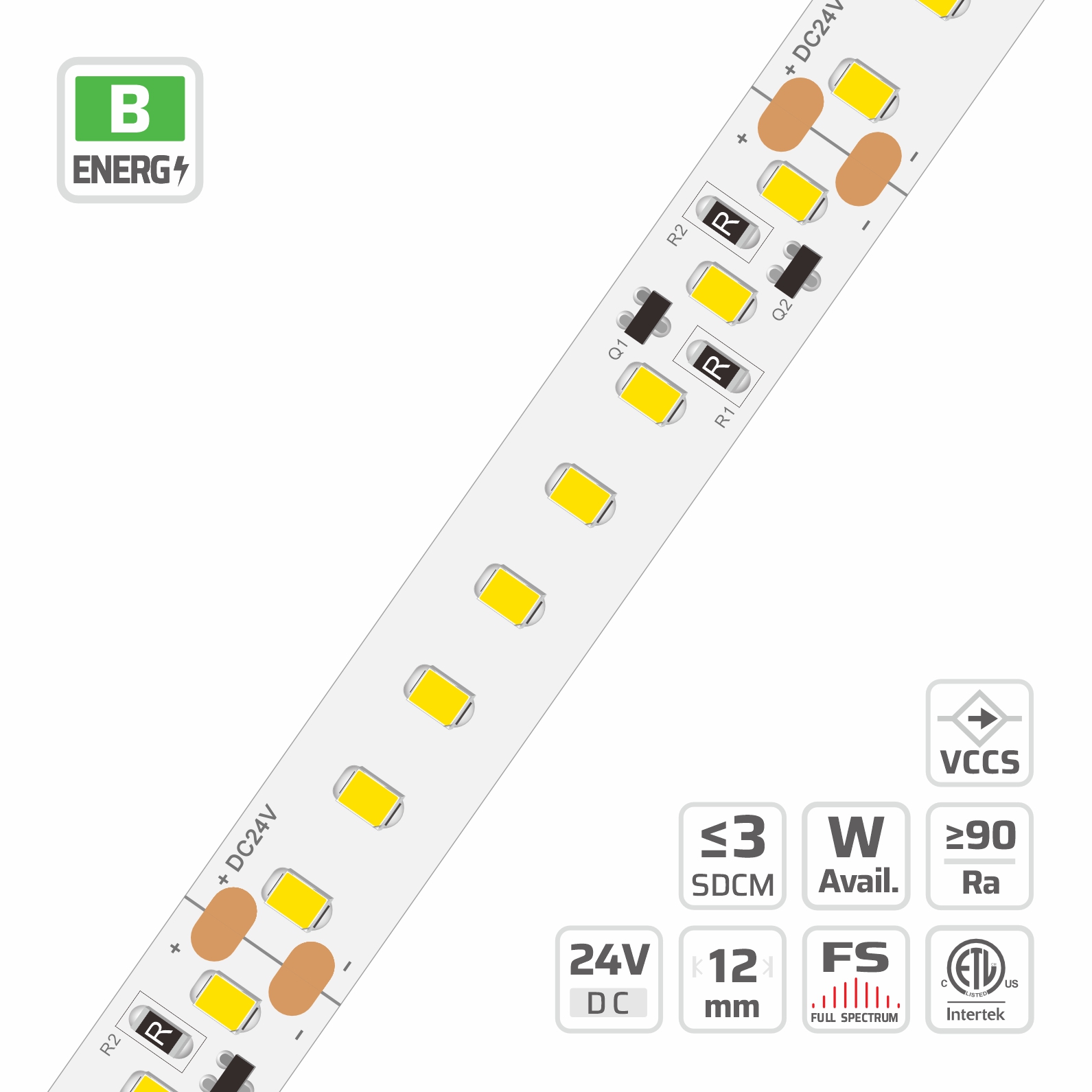

2835 Constant Current High Light Efficacy High Lumen LED Strip Light (#4479)
12mm · 24V · 128LEDs · 62.5cut
Model: 4479
Overview
12mm | 24V | 128LEDs | 62.5cut | #4479 | 2835 Constant Current High Light Efficacy High Lumen LED Strip Light is part of the DENO C.C. SMD Strips (IC Regulated) series, engineered around constant current IC LED strip. Key specifications: 2835, 128 LEDs/m, DC 24V, 12mm PCB, 3 oz copper FPCB, cuttable 8LEDs/62.5mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
Engineered with 128 SMD 2835 LEDs per meter on a 12mm PCB, this high light efficacy LED strip light delivers uniform output for architectural lighting. The linear constant current circuit structure effectively controls voltage drops across 5m run lengths while utilizing a heavy 3 oz copper foil for superior heat dissipation. Operating on DC 24V power, each 62.5mm segment contains 8 LEDs, offering full dimming capabilities and flexible installation intervals. DENO provides factory-direct wholesale project supply with custom power configurations ranging from 3.8W to 23W to meet rigorous commercial requirements.
We use 99.99% gold wire, large-size chips, and thickened FPCB, backed by a 5-year warranty.
Specifications
| LED QTY | 128 LEDs/m |
|---|---|
| PART NO | DL-F28A64V24-4479-* |
| SMD TYPE | 2835 |
| CUTTABLE UNIT | 8LEDs/62.5mm |
| DIMMABLE | Yes |
| IP RATING | IP20 |
| LED PITCH | 7.8mm |
| PCB WIDTH | 12mm |
| BEAM ANGLE | 120° |
| RUN LENGTH | 5m |
| COPPER FOIL | 3 oz |
| POWER RANGE | 3.8~23W |
| CIRCUIT TYPE | C.C. |
| INPUT VOLTAGE | DC 24V |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
Recommended accessories & compatible parts
- DL-1201 — 25x14.5mm Wide Surface Mount LED Channel — Aluminum Profile for 12mm Strip: Accepts LED strips up to 12mm wide.
- DL-1202 — 17.3x14.5mm Surface Mount LED Channel — Deep Aluminum Profile for 12mm Strip: Accepts LED strips up to 12mm wide.
- DL-1204 — 25x7mm Wide Slim Surface Mount LED Channel — Dotless Aluminum Profile for 240 LEDs/m: Accepts LED strips up to 12mm wide.
- DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.
Request a quotation for #4479
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 200.4 lm/W at 4000K, Ra 80, ErP energy class B (Grade DN (1st Tier)).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 150.9 lm/W | 1448.4 lm/m | D | 121.2 lm/W | 1163.6 lm/m | E | — | — | — |
| 2300 K | 168 lm/W | 1613.3 lm/m | C | 135 lm/W | 1296.3 lm/m | D | 109.4 lm/W | 1050.2 lm/m | F |
| 2700 K | 177.9 lm/W | 1707.9 lm/m | C | 146.1 lm/W | 1402.6 lm/m | D | 118.4 lm/W | 1136.3 lm/m | E |
| 3000 K | 189.2 lm/W | 1816.1 lm/m | B | 153.7 lm/W | 1475.7 lm/m | D | 125 lm/W | 1199.7 lm/m | E |
| 3500 K | 191.9 lm/W | 1842.5 lm/m | B | 156.5 lm/W | 1502.1 lm/m | D | 128.7 lm/W | 1235.8 lm/m | E |
| 4000 K | 198 lm/W | 1901 lm/m | B | 160.2 lm/W | 1538.2 lm/m | C | 132.3 lm/W | 1269.9 lm/m | E |
| 5000 K | 197.8 lm/W | 1899.1 lm/m | B | 160.1 lm/W | 1537.2 lm/m | C | 132.1 lm/W | 1268.2 lm/m | E |
| 6500 K | 181.5 lm/W | 1742 lm/m | C | 153.6 lm/W | 1474.8 lm/m | D | 127.5 lm/W | 1224 lm/m | E |
Grade DL (2nd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 144.9 lm/W | 2230.8 lm/m | D | 116.4 lm/W | 1792.1 lm/m | E | — | — | — |
| 2300 K | 161.3 lm/W | 2484.6 lm/m | C | 129.6 lm/W | 1996.4 lm/m | E | 105 lm/W | 1617 lm/m | F |
| 2700 K | 170.8 lm/W | 2630.3 lm/m | C | 140.3 lm/W | 2160.2 lm/m | D | 113.6 lm/W | 1750.1 lm/m | E |
| 3000 K | 181.6 lm/W | 2797.1 lm/m | C | 147.6 lm/W | 2272.8 lm/m | D | 120 lm/W | 1847.7 lm/m | E |
| 3500 K | 184.3 lm/W | 2837.7 lm/m | C | 150.2 lm/W | 2313.4 lm/m | D | 123.6 lm/W | 1903.3 lm/m | E |
| 4000 K | 190.1 lm/W | 2927.8 lm/m | B | 153.8 lm/W | 2369 lm/m | D | 127 lm/W | 1955.9 lm/m | E |
| 5000 K | 189.9 lm/W | 2924.8 lm/m | B | 153.7 lm/W | 2367.5 lm/m | D | 126.8 lm/W | 1952.7 lm/m | E |
| 6500 K | 174.2 lm/W | 2682.9 lm/m | C | 147.5 lm/W | 2271.3 lm/m | D | 122.4 lm/W | 1885 lm/m | E |
Grade DL (2nd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 141 lm/W | 2708 lm/m | D | 113.3 lm/W | 2175.5 lm/m | E | — | — | — |
| 2300 K | 157.1 lm/W | 3016.1 lm/m | D | 126.2 lm/W | 2423.5 lm/m | E | 102.2 lm/W | 1962.2 lm/m | F |
| 2700 K | 166.3 lm/W | 3193 lm/m | C | 136.6 lm/W | 2622.2 lm/m | D | 110.6 lm/W | 2124.4 lm/m | E |
| 3000 K | 176.8 lm/W | 3395.4 lm/m | C | 143.7 lm/W | 2759 lm/m | D | 116.8 lm/W | 2243 lm/m | E |
| 3500 K | 179.4 lm/W | 3444.7 lm/m | C | 146.3 lm/W | 2808.2 lm/m | D | 120.3 lm/W | 2310.4 lm/m | E |
| 4000 K | 185.1 lm/W | 3554.1 lm/m | B | 149.8 lm/W | 2875.7 lm/m | D | 123.7 lm/W | 2374.2 lm/m | E |
| 5000 K | 184.9 lm/W | 3550.4 lm/m | C | 149.7 lm/W | 2873.9 lm/m | D | 123.5 lm/W | 2371.2 lm/m | E |
| 6500 K | 169.6 lm/W | 3256.8 lm/m | C | 143.6 lm/W | 2757.2 lm/m | D | 119.2 lm/W | 2288.6 lm/m | E |
Grade DN (1st Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 157 lm/W | 1506.7 lm/m | D | 132.5 lm/W | 1271.6 lm/m | E | — | — | — |
| 2300 K | 171.2 lm/W | 1643.4 lm/m | C | 147.7 lm/W | 1417.9 lm/m | D | 119.6 lm/W | 1148.2 lm/m | E |
| 2700 K | 184.5 lm/W | 1771.2 lm/m | C | 159.9 lm/W | 1535 lm/m | D | 129.6 lm/W | 1244.2 lm/m | E |
| 3000 K | 193.8 lm/W | 1860 lm/m | B | 168.7 lm/W | 1619.9 lm/m | C | 137.2 lm/W | 1317.4 lm/m | D |
| 3500 K | 196.7 lm/W | 1888.3 lm/m | B | 172.4 lm/W | 1655.1 lm/m | C | 141.9 lm/W | 1362.3 lm/m | D |
| 4000 K | 200.4 lm/W | 1923.4 lm/m | B | 173.4 lm/W | 1664.8 lm/m | C | 143.1 lm/W | 1374 lm/m | D |
| 5000 K | 200.1 lm/W | 1920.5 lm/m | B | 174.5 lm/W | 1675.6 lm/m | C | 144 lm/W | 1382.4 lm/m | E |
| 6500 K | 191.8 lm/W | 1841.5 lm/m | B | 166.8 lm/W | 1601.4 lm/m | C | 138.5 lm/W | 1329.6 lm/m | E |
Grade DN (1st Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 150.7 lm/W | 2320.6 lm/m | D | 127.2 lm/W | 1958.4 lm/m | E | — | — | — |
| 2300 K | 164.3 lm/W | 2531 lm/m | D | 141.8 lm/W | 2183.8 lm/m | E | 114.9 lm/W | 1769.5 lm/m | F |
| 2700 K | 177.1 lm/W | 2727.9 lm/m | C | 153.5 lm/W | 2364.2 lm/m | D | 124.4 lm/W | 1916.3 lm/m | E |
| 3000 K | 186 lm/W | 2864.6 lm/m | C | 162 lm/W | 2494.9 lm/m | D | 131.8 lm/W | 2029 lm/m | E |
| 3500 K | 188.8 lm/W | 2908.2 lm/m | C | 165.5 lm/W | 2549 lm/m | D | 136.2 lm/W | 2098.1 lm/m | E |
| 4000 K | 192.4 lm/W | 2962.3 lm/m | C | 166.5 lm/W | 2564 lm/m | D | 137.4 lm/W | 2116.2 lm/m | E |
| 5000 K | 192.1 lm/W | 2957.8 lm/m | C | 167.6 lm/W | 2580.6 lm/m | D | 138.2 lm/W | 2128.3 lm/m | E |
| 6500 K | 184.2 lm/W | 2836.1 lm/m | C | 160.2 lm/W | 2466.4 lm/m | D | 132.9 lm/W | 2046.7 lm/m | E |
Grade DN (1st Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 146.7 lm/W | 2817 lm/m | D | 123.8 lm/W | 2377.3 lm/m | E | — | — | — |
| 2300 K | 160 lm/W | 3072.4 lm/m | D | 138.1 lm/W | 2650.9 lm/m | E | 111.8 lm/W | 2146.6 lm/m | F |
| 2700 K | 172.5 lm/W | 3311.4 lm/m | D | 149.5 lm/W | 2869.9 lm/m | D | 121.2 lm/W | 2326.2 lm/m | E |
| 3000 K | 181.1 lm/W | 3477.4 lm/m | C | 157.7 lm/W | 3028.6 lm/m | D | 128.3 lm/W | 2463 lm/m | E |
| 3500 K | 183.9 lm/W | 3530.3 lm/m | C | 161.2 lm/W | 3094.3 lm/m | D | 132.7 lm/W | 2546.9 lm/m | E |
| 4000 K | 187.3 lm/W | 3596 lm/m | C | 162.1 lm/W | 3112.5 lm/m | D | 133.8 lm/W | 2568.8 lm/m | E |
| 5000 K | 187 lm/W | 3590.5 lm/m | C | 163.2 lm/W | 3132.6 lm/m | D | 134.6 lm/W | 2584.3 lm/m | E |
| 6500 K | 179.3 lm/W | 3442.8 lm/m | C | 155.9 lm/W | 2993.9 lm/m | D | 129.4 lm/W | 2484.5 lm/m | E |
Grade KE (3rd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 127.4 lm/W | 1223.5 lm/m | E | 102.2 lm/W | 980.9 lm/m | F | — | — | — |
| 2300 K | 142 lm/W | 1363.3 lm/m | D | 113.9 lm/W | 1093.4 lm/m | E | 92.3 lm/W | 886.1 lm/m | F |
| 2700 K | 153.1 lm/W | 1469.9 lm/m | D | 123.6 lm/W | 1186.3 lm/m | E | 100.1 lm/W | 961.4 lm/m | F |
| 3000 K | 160.9 lm/W | 1544.2 lm/m | C | 130.5 lm/W | 1252.8 lm/m | E | 106.2 lm/W | 1019.1 lm/m | F |
| 3500 K | 163.2 lm/W | 1566.7 lm/m | C | 133 lm/W | 1277.2 lm/m | E | 109.5 lm/W | 1051.3 lm/m | F |
| 4000 K | 168 lm/W | 1612.7 lm/m | C | 135.9 lm/W | 1304.6 lm/m | D | 112.2 lm/W | 1076.8 lm/m | E |
| 5000 K | 167.8 lm/W | 1610.7 lm/m | C | 135.9 lm/W | 1304.6 lm/m | D | 112.1 lm/W | 1076.2 lm/m | E |
| 6500 K | 160.8 lm/W | 1543.3 lm/m | C | 130.5 lm/W | 1252.8 lm/m | E | 108.3 lm/W | 1039.7 lm/m | F |
Grade KE (3rd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 122.4 lm/W | 1884.3 lm/m | E | 98.1 lm/W | 1510.7 lm/m | F | — | — | — |
| 2300 K | 136.3 lm/W | 2099.7 lm/m | D | 109.3 lm/W | 1683.9 lm/m | F | 88.6 lm/W | 1364.4 lm/m | F |
| 2700 K | 147 lm/W | 2263.8 lm/m | D | 118.6 lm/W | 1827 lm/m | E | 96.1 lm/W | 1480.6 lm/m | F |
| 3000 K | 154.4 lm/W | 2378.3 lm/m | D | 125.3 lm/W | 1929.5 lm/m | E | 101.9 lm/W | 1569.5 lm/m | F |
| 3500 K | 156.7 lm/W | 2413 lm/m | D | 127.7 lm/W | 1967.1 lm/m | E | 105.1 lm/W | 1619.2 lm/m | F |
| 4000 K | 161.3 lm/W | 2483.7 lm/m | C | 130.5 lm/W | 2009.3 lm/m | E | 107.7 lm/W | 1658.3 lm/m | F |
| 5000 K | 161.1 lm/W | 2480.7 lm/m | C | 130.5 lm/W | 2009.3 lm/m | E | 107.6 lm/W | 1657 lm/m | F |
| 6500 K | 154.3 lm/W | 2376.8 lm/m | D | 125.3 lm/W | 1929.5 lm/m | E | 104 lm/W | 1601.6 lm/m | F |
Grade KE (3rd Tier)
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 119.1 lm/W | 2287.3 lm/m | E | 95.5 lm/W | 1833.9 lm/m | F | — | — | — |
| 2300 K | 132.8 lm/W | 2548.8 lm/m | E | 106.5 lm/W | 2044.2 lm/m | F | 86.2 lm/W | 1655 lm/m | F |
| 2700 K | 143.1 lm/W | 2748.1 lm/m | D | 115.5 lm/W | 2217.9 lm/m | E | 93.6 lm/W | 1797.3 lm/m | F |
| 3000 K | 150.4 lm/W | 2887.1 lm/m | D | 122 lm/W | 2342.2 lm/m | E | 99.2 lm/W | 1905.2 lm/m | F |
| 3500 K | 152.6 lm/W | 2929.1 lm/m | D | 124.4 lm/W | 2387.9 lm/m | E | 102.4 lm/W | 1965.5 lm/m | F |
| 4000 K | 157 lm/W | 3015.1 lm/m | D | 127 lm/W | 2439.1 lm/m | E | 104.8 lm/W | 2013.1 lm/m | F |
| 5000 K | 156.8 lm/W | 3011.4 lm/m | D | 127 lm/W | 2439.1 lm/m | E | 104.8 lm/W | 2012.2 lm/m | F |
| 6500 K | 150.3 lm/W | 2885.2 lm/m | D | 122 lm/W | 2342.2 lm/m | E | 101.3 lm/W | 1945 lm/m | F |
High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide
At up to 19.2W/m, 4479 is a high-power SMD LED strip. Above roughly 14.4W/m the tape can no longer shed its own heat through the FPC alone — an aluminum channel is part of the luminaire, not an accessory.
Why high-wattage strips need a heat sink
- Aluminum conducts heat roughly 30× faster than the plastics, MDF or gypsum a strip is usually stuck to, so a bare high-power run traps heat under the tape.
- LED lifetime (LM-80 / TM-21) is driven by solder-point temperature Tc. Keeping Tc inside the datasheet limit — DENO strips are rated Tc ≤ 75°C — is what preserves the rated L70 lifetime and colour stability.
- Never run 14.4W/m or more coiled on the reel, inside a sealed plastic diffuser, or directly on wood, wallpaper or foam.
Sizing rule: FPC width vs channel inner width
- Channel inner width ≥ FPC width + 2mm. This strip is 12mm wide, so it needs at least 14mm of inner width.
- The 2mm clearance absorbs extrusion tolerance and lets the tape be seated or replaced without scraping the side walls or the wiring.
- A frosted or opal PC cover then diffuses the higher lumen output into an even, dot-free line instead of visible hot spots.
Aluminum channels that fit this strip
- 20x08mm Surface Mount LED Channel · fits ≤12mm strip
- 18x18mm Magnetic LED Channel · fits ≤12mm strip
- 17.3x14.5mm Surface Mount LED Channel · fits ≤12mm strip
- 17.5x7mm Slim Surface Mount LED Channel · fits ≤12mm strip
- Slim Surface Aluminum Profile · 12mm PCB · fits ≤12mm strip
- 25x7mm Wide Slim Surface Mount LED Channel · fits ≤12mm strip
Recommended LED Channels
Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.
This strip is 12mm wide, so it needs a channel with at least 14mm inner width (12mm + 2mm clearance). Every profile below meets that.
Related models in this series
- Roll-to-Roll Long Reel LED Strip Light (#16773)
- 2835 1 SDCM Classic High Consistency LED Strip Light (#2176-B)
- Roll-to-Roll Long Reel LED Strip Light (#16774)
- 2835 1-Step (1 SDCM) High Consistency LED Strip 128LEDs/m (#3015-B)
- Roll-to-Roll Long Reel LED Strip Light (#16776)
- 2835 Roll-to-Roll Long Reel LED Strip Light (#16771)
- Multi-Line Three-Row High-Density LED LED Strip Light (#16706)
- 2835 S-Bend LED Strip High-Efficiency LED Strip Light (#19071)
See every model in SMD LED Strip Series or narrow to 2835. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 4479?
4479: 2835, 128 LEDs/m, DC 24V, 12mm PCB, 3 oz copper FPCB, cuttable 8LEDs/62.5mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
What makes the construction of this constant current IC LED strip different?
It is built as a constant current IC LED strip on 3 oz copper FPCB with a cutting unit of 8LEDs/62.5mm and an LED pitch of 7.8mm, so it holds its electrical and mechanical performance where standard strips fail.
Can DENO customise this constant current IC LED strip for a project?
Yes. DENO manufactures the C.C. SMD Strips (IC Regulated) series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
How much can a high efficacy LED strip cut energy use?
Moving from a typical 100 lm/W strip to a 180 to 200 lm/W high lumen LED strip roughly halves the wattage needed for the same lumen output. Over a long commercial run this also lowers the required driver size and helps the installation reach a better ErP energy class.
Does a constant current LED strip really eliminate voltage drop?
Voltage still drops along the copper, but the per-segment constant current IC holds LED current fixed until the local voltage falls below its dropout point. Brightness therefore stays even end to end, and power can be injected at one end, both ends or any mid point of the run.
