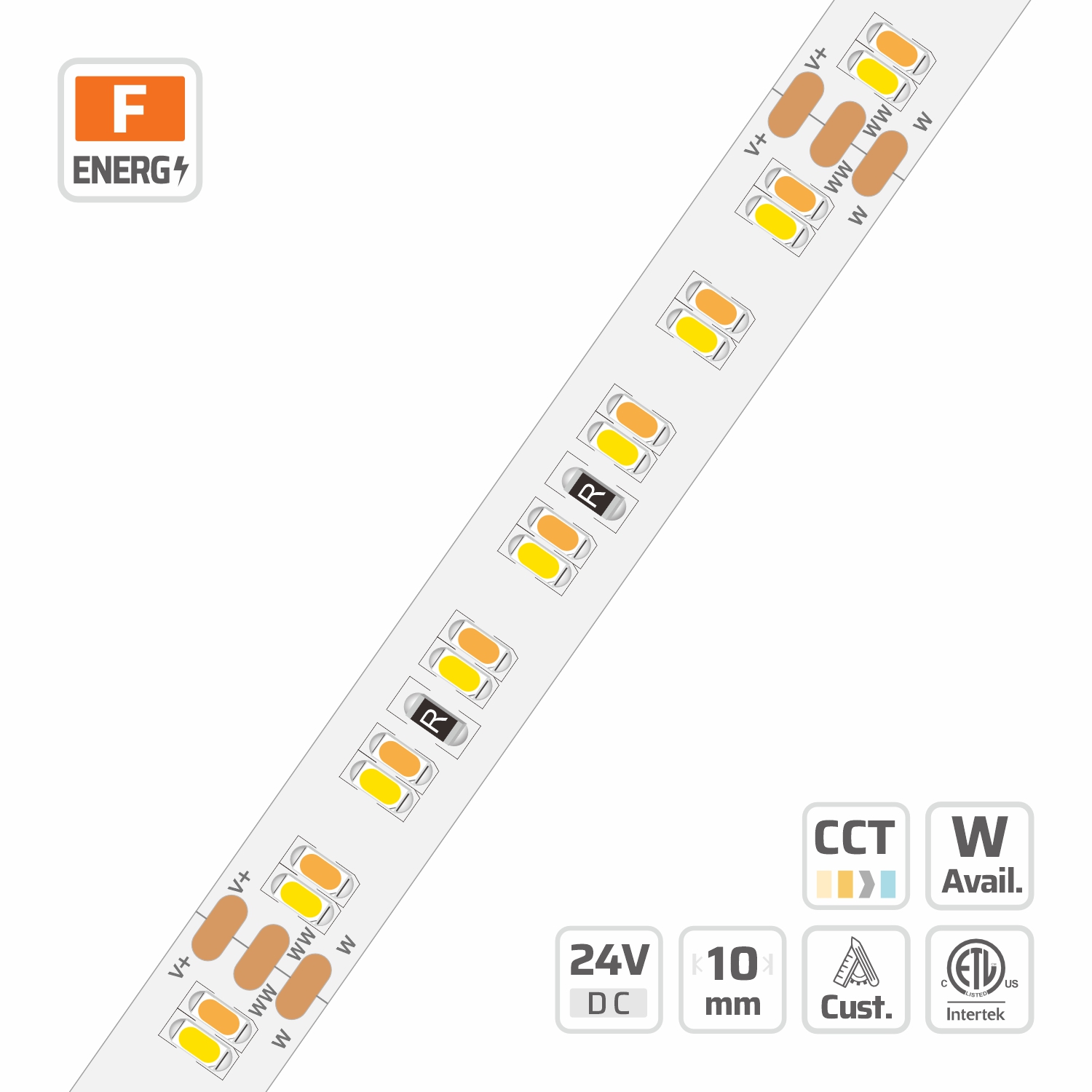

3014 CCT LED Strip Light (#4272)
10mm · 24V · 224LEDs · 62.5mm/cut
Model: 4272
Overview
3014 CCT LED Strip Light | 10mm | 24V | 224LEDs | 62.5mm/cut | #4272 is part of the DENO CCT SMD Strips series, engineered around tunable white LED strip. Key specifications: 3014, 224, 24V, 10 PCB, 2oz copper FPCB, cuttable 14LEDs/62.5mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
3014 CCT LED Strip Light | 10mm | 24V | 224LEDs | 62.5mm/cut | #4272 Strong pure copper LED frame, and diameter>1mm, 99.9%-purity gold wire encapsulation, can reduce damage to the LED in different applications. >50000h lifespan normal CCT tunnable LED strip is outfitted with extremely bright LED chips and strong adhesive backing. Special heat resistant PCB layout, copper layer 3Oz that make sure lower voltage drop and excellent heat dissipation. 3 SDCM one BIN only, these strips are great for providing elegant and discreet lighting.
Tunable White Led Strip built for cct smd strips projects.
Specifications
| LED QTY | 224 |
|---|---|
| PART NO | DL-F34A112V24-4272-* |
| SMD TYPE | 3014 |
| CUTTABLE UNIT | 14LEDs/62.5mm |
| DIMMABLE | Yes |
| LED PITCH | 8.9mm |
| LIFESPAN | 50000 |
| PCB WIDTH | 10 |
| BEAM ANGLE | 120° |
| LENGTH MAX | 5m |
| COPPER FOIL | 2oz |
| POWER RANGE | 12~23W |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 24V |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Hotel & residential tunable-white scenes — Hotel rooms, residential living areas and meeting spaces where warm evening light and neutral daytime light are both required from one fixture.
Request a quotation for #4272
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 179.1 lm/W at 6500K, Ra 80, ErP energy class C (Grade DN (1st Tier) · CCT 3-Anchor · 12W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DN (1st Tier) · CCT 3-Anchor · 12W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 161.4 lm/W | 968.4 lm/m | D | 131.1 lm/W | 786.8 lm/m | E | — | — | — |
| 4000 K | 163 lm/W | 1956.3 lm/m | D | 132.4 lm/W | 1589.2 lm/m | E | — | — | — |
| 6500 K | 179.1 lm/W | 1074.8 lm/m | C | 145.7 lm/W | 874.4 lm/m | E | — | — | — |
Grade DN (1st Tier) · CCT 3-Anchor · 15.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 157.6 lm/W | 1213.5 lm/m | D | 128 lm/W | 985.9 lm/m | E | — | — | — |
| 4000 K | 159.2 lm/W | 2451.4 lm/m | D | 129.3 lm/W | 1991.3 lm/m | E | — | — | — |
| 6500 K | 174.9 lm/W | 1346.8 lm/m | C | 142.3 lm/W | 1095.6 lm/m | E | — | — | — |
Grade DN (1st Tier) · CCT 3-Anchor · 19.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 153.4 lm/W | 1473.1 lm/m | D | 124.7 lm/W | 1196.8 lm/m | E | — | — | — |
| 4000 K | 155 lm/W | 2975.8 lm/m | D | 125.9 lm/W | 2417.3 lm/m | E | — | — | — |
| 6500 K | 170.3 lm/W | 1634.9 lm/m | D | 138.5 lm/W | 1330 lm/m | E | — | — | — |
Grade DL (2nd Tier) · CCT 3-Anchor · 12W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 137.9 lm/W | 827.7 lm/m | D | 111.9 lm/W | 671.4 lm/m | E | — | — | — |
| 4000 K | 139.2 lm/W | 1670.9 lm/m | D | 113 lm/W | 1355.7 lm/m | E | — | — | — |
| 6500 K | 153.1 lm/W | 918.5 lm/m | D | 124.3 lm/W | 746 lm/m | E | — | — | — |
Grade DL (2nd Tier) · CCT 3-Anchor · 15.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 134.7 lm/W | 1037.1 lm/m | E | 109.3 lm/W | 841.2 lm/m | F | — | — | — |
| 4000 K | 136 lm/W | 2093.8 lm/m | D | 110.3 lm/W | 1698.7 lm/m | E | — | — | — |
| 6500 K | 149.5 lm/W | 1150.9 lm/m | D | 121.4 lm/W | 934.7 lm/m | E | — | — | — |
Grade DL (2nd Tier) · CCT 3-Anchor · 19.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 131.1 lm/W | 1259 lm/m | E | 106.4 lm/W | 1021.2 lm/m | F | — | — | — |
| 4000 K | 132.4 lm/W | 2541.6 lm/m | E | 107.4 lm/W | 2062.1 lm/m | F | — | — | — |
| 6500 K | 145.5 lm/W | 1397.1 lm/m | D | 118.2 lm/W | 1134.7 lm/m | E | — | — | — |
Related models in this series
- 3014 Classic LED Strip Light (#4723)
- 3014 Side View LED Strip Light (#7609)
- 3014 Ultra-Narrow LED Strip Light (#9124)
- 3014 High Density LED Strip Light (#5590)
- 3014 CCT LED Strip Light (#11318)
- 3014 Classic PU LED Strip Light (#4524-PU)
- 3014 Side View LED Strip Light (#7610)
- 3014 Classic LED Strip Light (#2416)
See every model in SMD LED Strip Series or narrow to 3014. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 4272?
4272: 3014, 224, 24V, 10 PCB, 2oz copper FPCB, cuttable 14LEDs/62.5mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
What colour temperatures and CRI options does this tunable white LED strip offer?
This model is supplied as a tunable white LED strip with high CRI options and the CCT range listed in the datasheet. DENO bins every batch for colour consistency, and custom CCT or spectrum combinations can be produced for project quantities.
Can DENO customise this tunable white LED strip for a project?
Yes. DENO manufactures the CCT SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
How does a tunable white LED strip mix colour temperature?
Two LED channels, typically 2700K and 6500K, sit on the same FPCB and are dimmed against each other. Mixing the channels sweeps the white point along the black body line while total output stays even, which is how a CCT LED strip supports circadian and human centric lighting schedules.
Which LED driver and run length suit #4272?
3014 CCT LED Strip Light | 10mm | 24V | 224LEDs | 62.5mm/cut | #4272 is a constant-voltage 24V product, so pair it with a CE or UL listed 24V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 5m. 5m Single / 10m Dual Input power. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.
