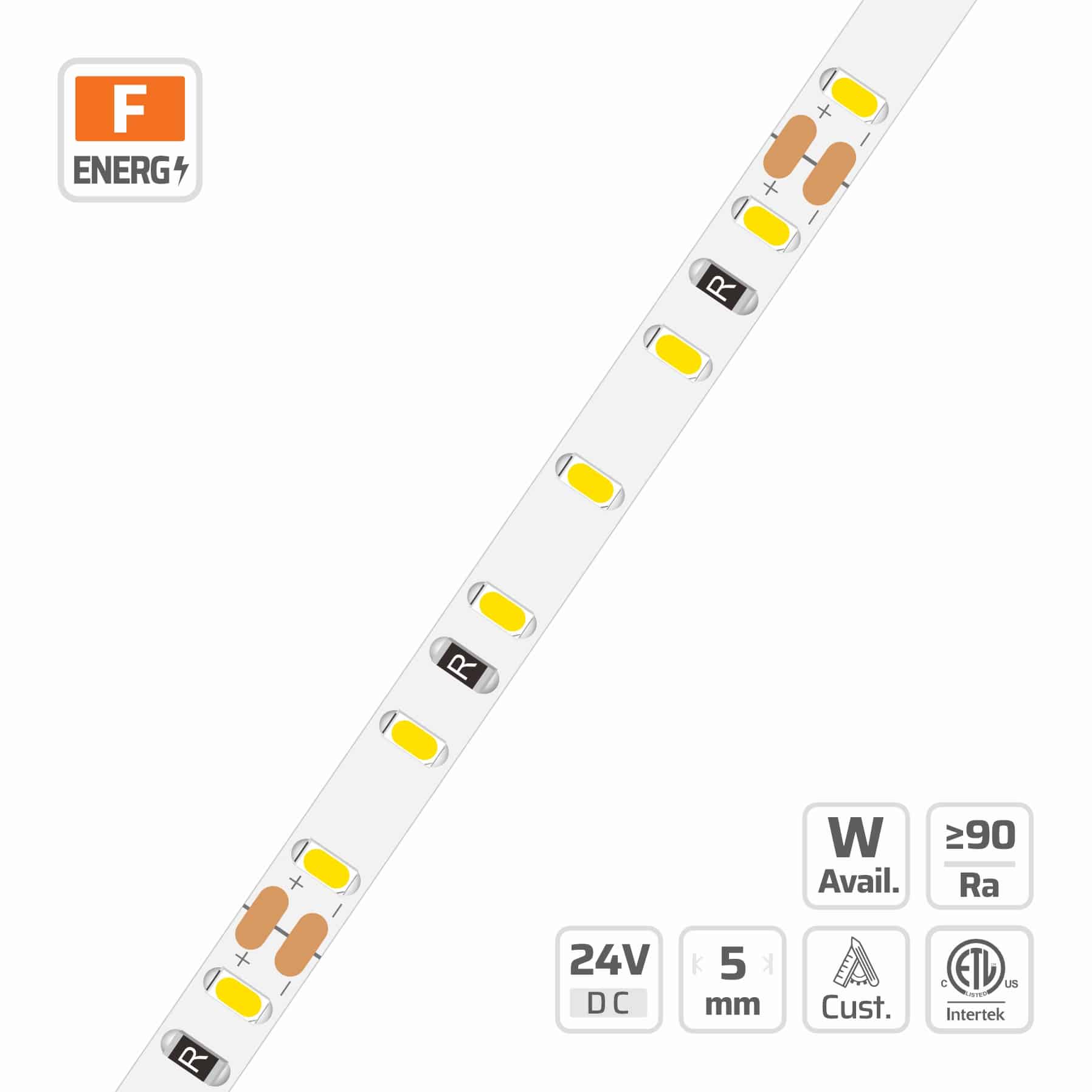

3014 Classic LED Strip Light (#3460U)
5mm · 24V · 120LEDs · 50cut
Model: 3460U
Overview
3014 Classic LED Strip Light | 5mm | 24V | 120LEDs | 50cut | #3460U is part of the DENO Ultra-Narrow SMD Strips series, engineered around ultra narrow LED strip. Key specifications: 3014, 120 LEDs/m, 24V, 5 PCB, 3oz copper FPCB, cuttable 6LEDs/50mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
Built with an ultra-narrow 5mm PCB and 120 LEDs per meter, this 3014 LED strip light fits smoothly into compact cabinet lighting installations. Operating on a 24V constant voltage circuit, the strip features precise 50mm cutting increments to simplify wholesale project supply and customization. Engineered with a 3oz copper foil PCB and pure golden wire encapsulation, this strip ensures durable operation across fluctuating operating temperatures. The classic SMD layout delivers a wide 120-degree beam angle with smooth dimmable output for diverse linear architectural lighting designs. Offering a minimum bend diameter of 60mm and a 5-meter maximum length, this solution supports factory-direct integration and flexible mounting.
24v Smd Led Strip Lights built for classic smd strips projects.
Specifications
| LED QTY | 120 LEDs/m |
|---|---|
| PART NO | DL-F34A60V24-3460U-* |
| SMD TYPE | 3014 |
| CUTTABLE UNIT | 6LEDs/50mm |
| DIMMABLE | Yes |
| IP RATING | IP20 |
| LED PITCH | 8.3mm |
| PCB WIDTH | 5 |
| BEAM ANGLE | 120° |
| RUN LENGTH | 5M |
| COPPER FOIL | 3oz |
| ON OFF TIMES | 10000（test times） |
| POWER RANGE | 2.4~14.4W |
| CIRCUIT TYPE | C.V. (Resistor Based) |
| INPUT VOLTAGE | 24V |
| MIN BEND DIAMETER | Φ60mm |
| OPERATING TEMPERATURE | -25~40°C; Tc: 75°C (max) |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Ultra-narrow 5mm channels & shadow gaps — Fits shadow-gap details, slim profiles and joinery grooves that cannot take a standard 8–10mm strip.
Recommended accessories & compatible parts
- DL-0809HX-F — 8.89x7.79mm Mini Recessed LED Channel with Flange — Trimless Aluminum Profile for 5mm Strip: Accepts LED strips up to 5mm wide.
- DL-0909HX-M — 9x9mm Magnetic LED Channel — Tool-Free Aluminum Profile for Shelf Lighting: Accepts LED strips up to 5mm wide.
- DL-1010HX-V — 10x10mm V Shape Corner LED Channel — 45 Degree Aluminum Profile for Cabinets: Accepts LED strips up to 5mm wide.
- DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.
Request a quotation for #3460U
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 139.3 lm/W at 4000K, Ra 80, ErP energy class E (Grade DN (1st Tier) · 7.2W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 7.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 97.1 lm/W | 699.1 lm/m | F | 77.5 lm/W | 558.2 lm/m | G | — | — | — |
| 2300 K | 108.1 lm/W | 778.1 lm/m | F | 86.3 lm/W | 621.6 lm/m | F | — | — | — |
| 2700 K | 113.5 lm/W | 816.9 lm/m | E | 93.5 lm/W | 673 lm/m | F | 75.8 lm/W | 545.6 lm/m | G |
| 3000 K | 121.5 lm/W | 875 lm/m | E | 98.3 lm/W | 708.1 lm/m | F | 80 lm/W | 576.1 lm/m | G |
| 3500 K | 123.5 lm/W | 889.2 lm/m | E | 100.1 lm/W | 720.7 lm/m | F | 82.4 lm/W | 593.3 lm/m | G |
| 4000 K | 127.4 lm/W | 917.5 lm/m | E | 102.5 lm/W | 737.9 lm/m | F | 84.6 lm/W | 608.9 lm/m | G |
| 5000 K | 127.3 lm/W | 916.7 lm/m | E | 102.5 lm/W | 737.9 lm/m | F | — | — | — |
| 6500 K | 116.2 lm/W | 837 lm/m | E | 98.2 lm/W | 707.3 lm/m | F | — | — | — |
Grade DL (2nd Tier) · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 95.5 lm/W | 916.6 lm/m | F | 76.2 lm/W | 731.9 lm/m | G | — | — | — |
| 2300 K | 106.3 lm/W | 1020.1 lm/m | F | 84.9 lm/W | 814.9 lm/m | G | — | — | — |
| 2700 K | 111.6 lm/W | 1071 lm/m | E | 91.9 lm/W | 882.4 lm/m | F | 74.5 lm/W | 715.3 lm/m | G |
| 3000 K | 119.5 lm/W | 1147.2 lm/m | E | 96.7 lm/W | 928.3 lm/m | F | 78.7 lm/W | 755.3 lm/m | G |
| 3500 K | 121.4 lm/W | 1165.7 lm/m | E | 98.4 lm/W | 944.9 lm/m | F | 81 lm/W | 777.8 lm/m | G |
| 4000 K | 125.3 lm/W | 1202.9 lm/m | E | 100.8 lm/W | 967.4 lm/m | F | 83.2 lm/W | 798.3 lm/m | G |
| 5000 K | 125.2 lm/W | 1201.9 lm/m | E | 100.8 lm/W | 967.4 lm/m | F | — | — | — |
| 6500 K | 114.3 lm/W | 1097.3 lm/m | E | 96.6 lm/W | 927.3 lm/m | F | — | — | — |
Grade DL (2nd Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 92.3 lm/W | 1329.3 lm/m | F | 73.7 lm/W | 1061.4 lm/m | G | — | — | — |
| 2300 K | 102.7 lm/W | 1479.5 lm/m | F | 82.1 lm/W | 1181.9 lm/m | G | — | — | — |
| 2700 K | 107.9 lm/W | 1553.2 lm/m | F | 88.9 lm/W | 1279.7 lm/m | F | 72 lm/W | 1037.3 lm/m | G |
| 3000 K | 115.5 lm/W | 1663.7 lm/m | E | 93.5 lm/W | 1346.3 lm/m | F | 76.1 lm/W | 1095.4 lm/m | G |
| 3500 K | 117.4 lm/W | 1690.6 lm/m | E | 95.2 lm/W | 1370.4 lm/m | F | 78.3 lm/W | 1128 lm/m | G |
| 4000 K | 121.1 lm/W | 1744.5 lm/m | E | 97.4 lm/W | 1402.9 lm/m | F | 80.4 lm/W | 1157.8 lm/m | G |
| 5000 K | 121 lm/W | 1743.1 lm/m | E | 97.4 lm/W | 1402.9 lm/m | F | — | — | — |
| 6500 K | 110.5 lm/W | 1591.4 lm/m | E | 93.4 lm/W | 1344.8 lm/m | F | — | — | — |
Grade DN (1st Tier) · 7.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 109.2 lm/W | 786.3 lm/m | F | 91.7 lm/W | 660.4 lm/m | G | — | — | — |
| 2300 K | 119 lm/W | 857.1 lm/m | E | 102.4 lm/W | 737.1 lm/m | F | — | — | — |
| 2700 K | 128.4 lm/W | 924.2 lm/m | E | 110.8 lm/W | 797.5 lm/m | F | 89.7 lm/W | 646.2 lm/m | G |
| 3000 K | 134.8 lm/W | 970.4 lm/m | E | 117 lm/W | 842.2 lm/m | F | 95.1 lm/W | 684.9 lm/m | F |
| 3500 K | 136.7 lm/W | 984.6 lm/m | E | 119.6 lm/W | 860.8 lm/m | E | 98.3 lm/W | 708.1 lm/m | F |
| 4000 K | 139.3 lm/W | 1003.2 lm/m | E | 120.2 lm/W | 865.3 lm/m | E | 99.2 lm/W | 714 lm/m | F |
| 5000 K | 139.1 lm/W | 1001.7 lm/m | E | 121 lm/W | 871.3 lm/m | E | — | — | — |
| 6500 K | 133.3 lm/W | 960 lm/m | E | 115.6 lm/W | 832.5 lm/m | F | — | — | — |
Grade DN (1st Tier) · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 107.4 lm/W | 1030.9 lm/m | F | 90.2 lm/W | 865.8 lm/m | G | — | — | — |
| 2300 K | 117.1 lm/W | 1123.7 lm/m | F | 100.7 lm/W | 966.4 lm/m | F | — | — | — |
| 2700 K | 126.2 lm/W | 1211.7 lm/m | E | 108.9 lm/W | 1045.5 lm/m | F | 88.2 lm/W | 847.2 lm/m | G |
| 3000 K | 132.5 lm/W | 1272.2 lm/m | E | 115 lm/W | 1104.2 lm/m | F | 93.5 lm/W | 898 lm/m | F |
| 3500 K | 134.5 lm/W | 1290.8 lm/m | E | 117.6 lm/W | 1128.6 lm/m | F | 96.7 lm/W | 928.3 lm/m | F |
| 4000 K | 137 lm/W | 1315.2 lm/m | E | 118.2 lm/W | 1134.5 lm/m | F | 97.5 lm/W | 936.1 lm/m | F |
| 5000 K | 136.8 lm/W | 1313.3 lm/m | E | 119 lm/W | 1142.3 lm/m | E | — | — | — |
| 6500 K | 131.1 lm/W | 1258.6 lm/m | E | 113.7 lm/W | 1091.5 lm/m | F | — | — | — |
Grade DN (1st Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 103.8 lm/W | 1495.1 lm/m | F | 87.2 lm/W | 1255.6 lm/m | G | — | — | — |
| 2300 K | 113.2 lm/W | 1629.7 lm/m | F | 97.3 lm/W | 1401.5 lm/m | F | — | — | — |
| 2700 K | 122 lm/W | 1757.2 lm/m | E | 105.3 lm/W | 1516.3 lm/m | F | 85.3 lm/W | 1228.6 lm/m | G |
| 3000 K | 128.1 lm/W | 1845.1 lm/m | E | 111.2 lm/W | 1601.3 lm/m | F | 90.4 lm/W | 1302.3 lm/m | G |
| 3500 K | 130 lm/W | 1872 lm/m | E | 113.7 lm/W | 1636.8 lm/m | F | 93.5 lm/W | 1346.3 lm/m | F |
| 4000 K | 132.5 lm/W | 1907.4 lm/m | E | 114.3 lm/W | 1645.3 lm/m | F | 94.3 lm/W | 1357.6 lm/m | F |
| 5000 K | 132.3 lm/W | 1904.6 lm/m | E | 115 lm/W | 1656.6 lm/m | F | — | — | — |
| 6500 K | 126.8 lm/W | 1825.3 lm/m | E | 109.9 lm/W | 1582.9 lm/m | F | — | — | — |
High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide
At up to 14.4W/m, 3460U is a high-power SMD LED strip. Above roughly 14.4W/m the tape can no longer shed its own heat through the FPC alone — an aluminum channel is part of the luminaire, not an accessory.
Why high-wattage strips need a heat sink
- Aluminum conducts heat roughly 30× faster than the plastics, MDF or gypsum a strip is usually stuck to, so a bare high-power run traps heat under the tape.
- LED lifetime (LM-80 / TM-21) is driven by solder-point temperature Tc. Keeping Tc inside the datasheet limit — DENO strips are rated Tc ≤ 75°C — is what preserves the rated L70 lifetime and colour stability.
- Never run 14.4W/m or more coiled on the reel, inside a sealed plastic diffuser, or directly on wood, wallpaper or foam.
Sizing rule: FPC width vs channel inner width
- Channel inner width ≥ FPC width + 2mm. This strip is 5mm wide, so it needs at least 7mm of inner width.
- The 2mm clearance absorbs extrusion tolerance and lets the tape be seated or replaced without scraping the side walls or the wiring.
- A frosted or opal PC cover then diffuses the higher lumen output into an even, dot-free line instead of visible hot spots.
Aluminum channels that fit this strip
- 8.89x7.79mm Mini Recessed LED Channel with Flange · fits ≤5mm strip
- 9x9mm Magnetic LED Channel · fits ≤5mm strip
- 10x10mm V Shape Corner LED Channel · fits ≤5mm strip
- 13x13mm V Shape Corner LED Channel · fits ≤5mm strip
- 10x10mm Surface Mount LED Channel · fits ≤6mm strip
- 12x8mm Surface Mount LED Channel · fits ≤6mm strip
Recommended LED Channels
Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.
This strip is 5mm wide, so it needs a channel with at least 7mm inner width (5mm + 2mm clearance). Every profile below meets that.
Related models in this series
- 3014 Classic PU LED Strip Light (#4524-PU)
- 3014 Side View LED Strip Light (#4722)
- 3014 High Density LED Strip Light (#5590)
- 3014 Side View LED Strip Light (#7609)
- 3014 Side View LED Strip Light (#7610)
- 3014 CCT LED Strip Light (#4272)
- 3014 Ultra-Narrow LED Strip Light (#9124)
- 3014 Classic LED Strip Light (#4723)
See every model in SMD LED Strip Series or narrow to 3014. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 3460U?
3460U: 3014, 120 LEDs/m, 24V, 5 PCB, 3oz copper FPCB, cuttable 6LEDs/50mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
How long can a single run of this ultra narrow LED strip be?
Maximum single run for this model is 5M. Feeding from both ends or using a mid-point tap halves the effective distance per segment, so a ultra narrow LED strip can cover twice that length on one circuit when wired accordingly.
Can DENO customise this ultra narrow LED strip for a project?
Yes. DENO manufactures the Ultra-Narrow SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
How narrow can a thin LED strip be?
DENO builds down to a 3 mm wide FPCB. A 3 mm LED strip fits aluminium channels, cabinet reveals, shelf edges and slim architectural slots where an 8 or 10 mm board cannot be hidden, while still carrying 2 oz copper for stable long runs.
Which SMD LED strip density should you specify?
