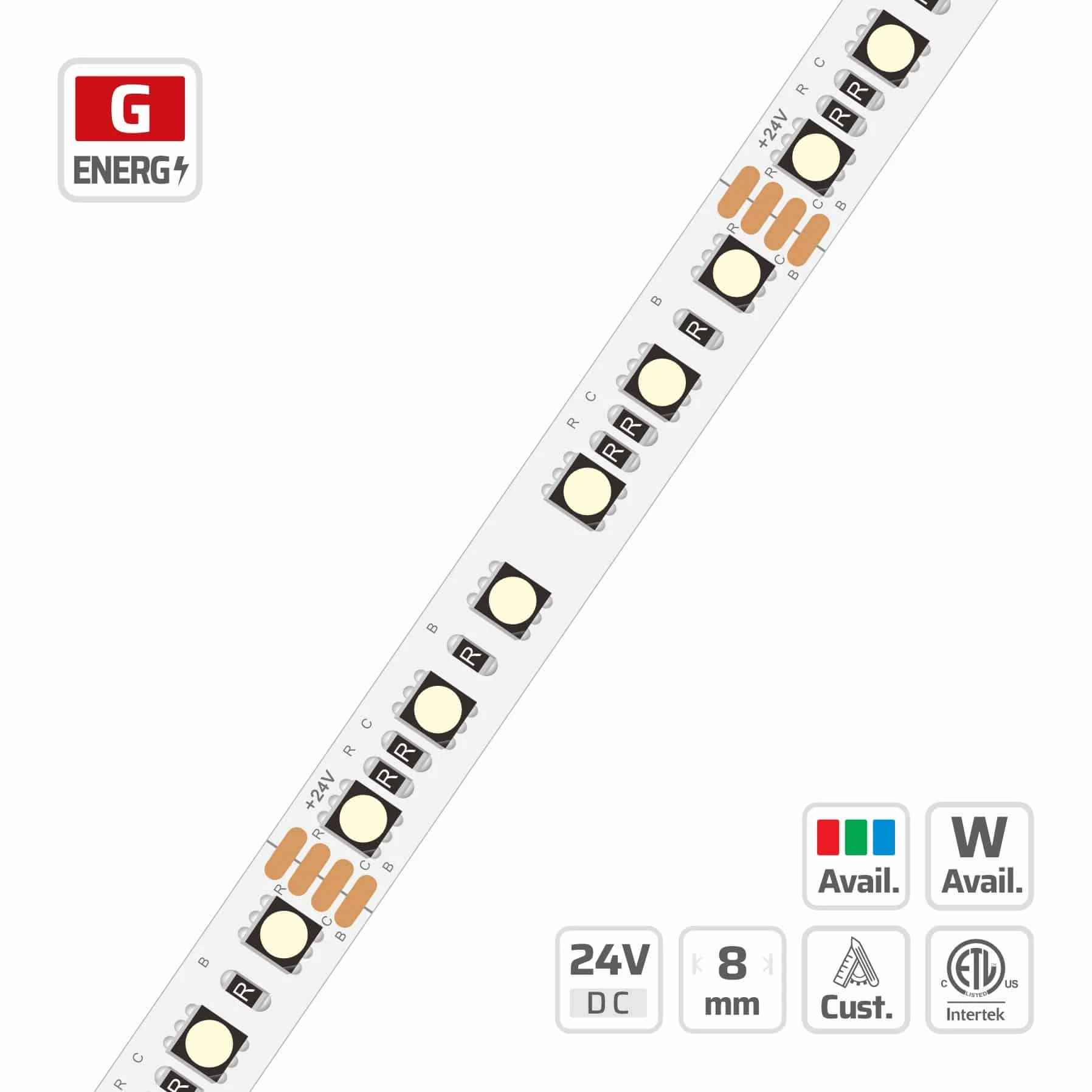

8mm | 24V | 120LEDs | 50mm/cut | #3398 | 3535 RGB LED Strip Light
Model: 3398
Overview
The DENO LED model 3398 is an 8mm 3535 RGB LED strip light, designed for professional B2B lighting applications. Featuring 120 LEDs per meter and a 24V input, it delivers excellent linear illumination and vibrant color. The compact 3.5mm x 3.5mm 3535 RGB package allows for high-density placement on a narrow 8mm PCB, maximizing design flexibility. Constructed with strong pure copper LED frames and 99.9% pure gold wire encapsulation, these strips ensure durability and a long...
Description
8mm | 24V | 120LEDs | 50mm/cut | #3398 | 3535 RGB LED Strip Light Strong pure copper LED frame, and diameter>1mm, 99.9%-purity gold wire encapsulation, can reduce damage to the LED in different applications. RGB 3 chips in 1 LED package 3.5mm*3.5mm, a new product smaller than the SMD5050 package, but with similar brightness. Small package SMD3535 can be placed on a narrow PCB of only 8 mm, high density 120 LED /m, providing excellent linear light, with a wider range of applications.
Specifications
| ledQty | 120 |
|---|---|
| partNo | DL-F3535A60V24-3398-* |
| smdType | 3535 |
| cuttable | 6LEDs/50mm |
| dimmable | Yes |
| ledPitch | 8.3mm |
| lifespan | 50000 |
| pcbWidth | 8 |
| warranty | 5 Years |
| beamAngle | 120° |
| lengthMax | 5m |
| copperFoil | 3oz |
| powerRange | 7.2~19.2W |
| circuitType | CV |
| inputVoltage | 24V |
| operatingTemperature | -25~40°C;Tc：75°C（max） |
Frequently Asked Questions
What are the key advantages of the 3535 RGB LED package in this strip light?
The 3535 RGB package allows for a high-density 120 LEDs/m on a narrow 8mm PCB, providing excellent linear lighting in compact spaces. It offers similar brightness to 5050 packages but in a smaller footprint.
What voltage and power range does the 3398 LED strip require?
This LED strip operates on a 24V input voltage (constant voltage circuit type) and has a power range of 7.2W to 19.2W per meter, depending on the specific configuration and controller.
Is this LED strip suitable for outdoor or high-temperature environments?
The operating temperature range is -25°C to 40°C, with a maximum case temperature (Tc) of 75°C. For specific IP ratings for outdoor use, please consult DENO LED sales representatives.
Can this RGB LED strip be cut and customized for specific project lengths?
Yes, model 3398 is cuttable every 50mm, allowing for precise customization to fit various project lengths up to a maximum run of 5 meters per single feed.
