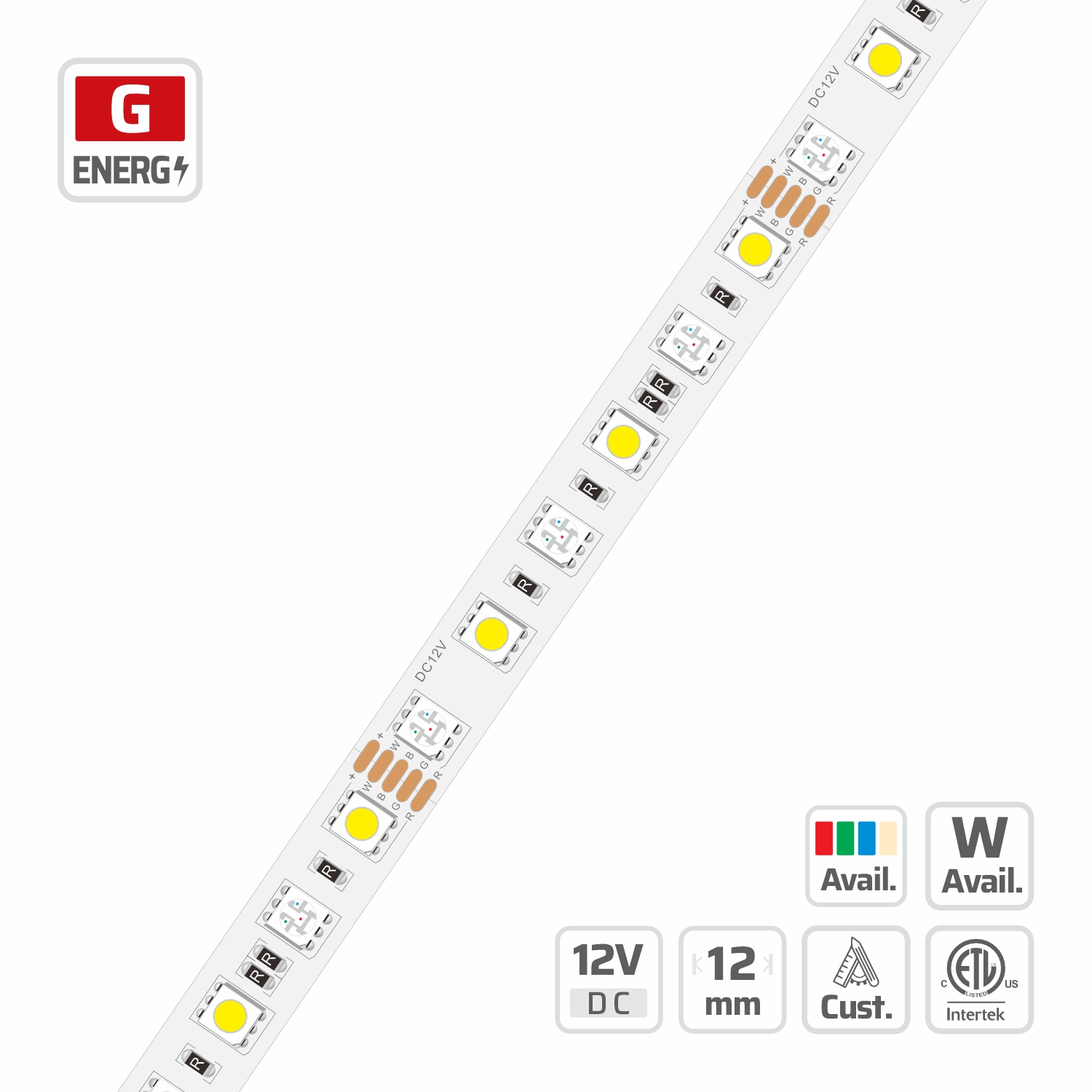

5050 RGBW LED Strip Light (#3097)
12mm · 12V · 72LEDs · 83.33mm/cut
Model: 3097
Overview
5050 RGBW LED Strip Light | 12mm | 12V | 72LEDs | 83.33mm/cut | #3097 is part of the DENO RGBW SMD Strips series, engineered around RGBW LED strip lights. Key specifications: 5050, 72, 12V, 12 PCB, 2oz copper FPCB, cuttable 6LEDs/83.33mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
This 5050 RGBW LED strip light integrates four-in-one chips to produce rich dynamic colors and smooth pastel tones for architectural lighting projects. Built on a 12mm wide 2oz copper PCB, the 12V constant voltage circuit ensures stable electrical performance across runs up to 5 meters. Featuring 72 LEDs per meter with a wide 120-degree beam angle, the tape is cuttable every 83.33mm for precise on-site installation. High-grade 5050 SMD LEDs with robust copper lead frames deliver reliable full-range dimming across dynamic commercial installations. Factory-direct manufacturing supports wholesale project supply with consistent binning tailored for OEM partners and lighting contractors.
Rgbw Led Strip Lights built for rgbw smd strips projects.
Specifications
| CCT (K) | 3000K |
|---|---|
| CRI | Ra≥80 |
| POWER (W/M) | 14.4 W/m |
| LED QTY | 72 |
| PART NO | DL-F50A36V12-3097-* |
| SMD TYPE | 5050 |
| CUTTABLE UNIT | 6LEDs/83.33mm |
| DIMMABLE | Yes |
| IP RATING | IP20/IP65/IP67/IP68 |
| LED PITCH | 13.88mm |
| LIFESPAN | 50000 |
| PCB WIDTH | 12 |
| WARRANTY | 5 Years |
| BEAM ANGLE | 120° |
| RUN LENGTH | 5m |
| COPPER FOIL | 2oz |
| POWER RANGE | 5.8~17.2W |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 12V |
| LUMINOUS FLUX | 55–1105 lm/m |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Entertainment & media-facade colour scenes — Entertainment venues, media facades, gaming rooms and branded retail installs driven by DMX/SPI or standard RGB controllers.
Recommended accessories & compatible parts
- DL-1201 — 25x14.5mm Wide Surface Mount LED Channel — Aluminum Profile for 12mm Strip: Accepts LED strips up to 12mm wide.
- DL-1202 — 17.3x14.5mm Surface Mount LED Channel — Deep Aluminum Profile for 12mm Strip: Accepts LED strips up to 12mm wide.
- DL-1204 — 25x7mm Wide Slim Surface Mount LED Channel — Dotless Aluminum Profile for 240 LEDs/m: Accepts LED strips up to 12mm wide.
- V4 — 12-48VDC 4-Channel * 5A RF+Push Dimming RGBW Controller | V4: Matched by input voltage range and colour channels.
Request a quotation for #3097
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide
At up to 17.2W/m, 3097 is a high-power SMD LED strip. Above roughly 14.4W/m the tape can no longer shed its own heat through the FPC alone — an aluminum channel is part of the luminaire, not an accessory.
Why high-wattage strips need a heat sink
- Aluminum conducts heat roughly 30× faster than the plastics, MDF or gypsum a strip is usually stuck to, so a bare high-power run traps heat under the tape.
- LED lifetime (LM-80 / TM-21) is driven by solder-point temperature Tc. Keeping Tc inside the datasheet limit — DENO strips are rated Tc ≤ 75°C — is what preserves the rated L70 lifetime and colour stability.
- Never run 14.4W/m or more coiled on the reel, inside a sealed plastic diffuser, or directly on wood, wallpaper or foam.
Sizing rule: FPC width vs channel inner width
- Channel inner width ≥ FPC width + 2mm. This strip is 12mm wide, so it needs at least 14mm of inner width.
- The 2mm clearance absorbs extrusion tolerance and lets the tape be seated or replaced without scraping the side walls or the wiring.
- A frosted or opal PC cover then diffuses the higher lumen output into an even, dot-free line instead of visible hot spots.
Aluminum channels that fit this strip
- 20x08mm Surface Mount LED Channel · fits ≤12mm strip
- 18x18mm Magnetic LED Channel · fits ≤12mm strip
- 17.3x14.5mm Surface Mount LED Channel · fits ≤12mm strip
- 17.5x7mm Slim Surface Mount LED Channel · fits ≤12mm strip
- Slim Surface Aluminum Profile · 12mm PCB · fits ≤12mm strip
- 25x7mm Wide Slim Surface Mount LED Channel · fits ≤12mm strip
Recommended LED Channels
Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.
This strip is 12mm wide, so it needs a channel with at least 14mm inner width (12mm + 2mm clearance). Every profile below meets that.
Related models in this series
- 5050 RGBW LED Strip Light (#16937)
- 5050 RGBWW LED Strip Light (#11341)
- Super Bright 5050 RGB LED Strip Light (#2496)
- 5050 RGBW LED Strip Light (#7828)
- 5050 RGB LED Strip Light (#16936)
- 5050 RGBW LED Strip Light (#2432)
- 5050 RGBW PU LED Strip Light (#5326-PU)
- 5050 RGB LED Strip Light (#1495)
See every model in SMD LED Strip Series or narrow to 5050. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 3097?
3097: 5050, 72, 12V, 12 PCB, 2oz copper FPCB, cuttable 6LEDs/83.33mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
What colour temperatures and CRI options does this RGBW LED strip lights offer?
This model is supplied as a RGBW LED strip lights with high CRI options and the CCT range listed in the datasheet. DENO bins every batch for colour consistency, and custom CCT or spectrum combinations can be produced for project quantities.
Can DENO customise this RGBW LED strip lights for a project?
Yes. DENO manufactures the RGBW SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
What does the W channel add on an RGBW LED strip?
The fourth chip is a real white LED, so the strip delivers a clean 2700K to 6500K white at full efficacy instead of the pale tint produced by mixing red, green and blue. RGBCCT versions add a second white channel for tunable white control alongside colour.
Which LED driver and run length suit #3097?
5050 RGBW LED Strip Light | 12mm | 12V | 72LEDs | 83.33mm/cut | #3097 is a constant-voltage 12V product, so pair it with a CE or UL listed 12V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 5m. 5m Single / 10m Dual Input power. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.
