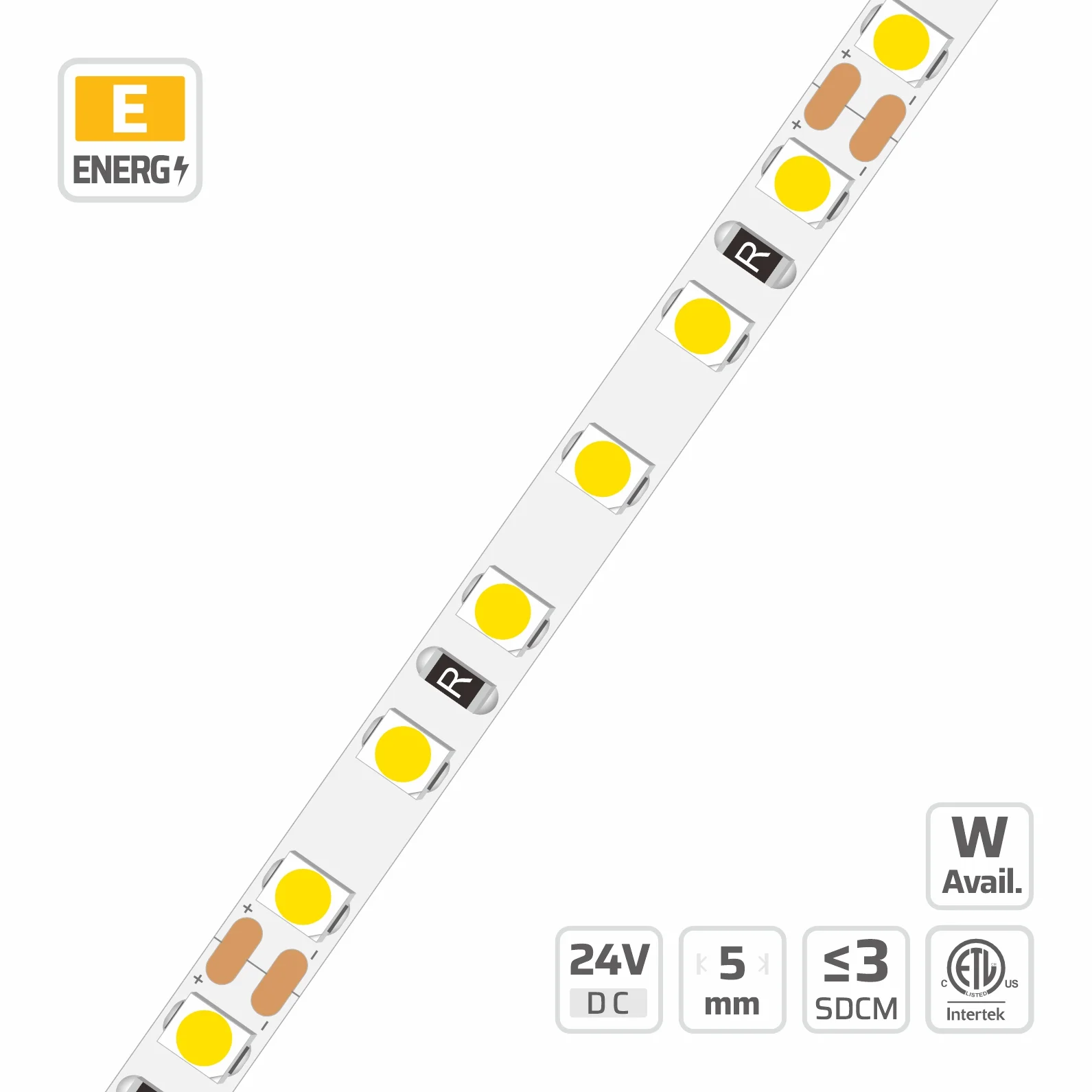

3528 Ultra-Narrow LED Strip Light (#2664)
5mm · 24V · 120LEDs · 50cut
Model: 2664
Overview
3528 Ultra-Narrow LED Strip Light | 5mm | 24V | 120LEDs | 50cut | #2664 is part of the DENO Ultra-Narrow SMD Strips series, engineered around ultra narrow LED strip. Key specifications: 3528, 120, 24V, 5mm PCB, 3 oz copper FPCB, cuttable 6LEDs/50mm, IP20/IP65/IP67/IP68, CRI Ra≥80. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
5mm | 24V | 120LEDs | 50cut | #2664 | 3528 Ultra-Narrow LED Strip Light Adopt pure copper strong LED frame,99.9% purity diameter> 1 mm pure golden wire encapsulation, can reduce the LED damage in different applications.
Ultra Narrow Led Strip built for ultra-narrow smd strips projects.
Specifications
| CCT (K) | 2700-6500 |
|---|---|
| CRI | Ra≥80 |
| SDCM | < 3 SDCM (Single Bin) |
| LED QTY | 120 |
| PART NO | DL-F35A60V24-2664-* |
| SMD TYPE | 3528 |
| CUTTABLE UNIT | 6LEDs/50mm |
| DIMMABLE | Yes |
| IP RATING | IP20/IP65/IP67/IP68 |
| LED PITCH | 8.3mm |
| LIFESPAN | 50000 |
| PCB WIDTH | 5mm |
| WARRANTY | 5 Years |
| BEAM ANGLE | 120° |
| LENGTH MAX | 5m |
| COPPER FOIL | 3 oz |
| ON OFF TIMES | 10000（test times） |
| POWER RANGE | 2.4~14.4W |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 24V |
| LUMINOUS FLUX | 1110 lm/m |
| MIN BEND DIAMETER | Φ60mm |
| OPERATING TEMPERATURE | -25~40°C;Tc: 75°C (max) |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Ultra-narrow 5mm channels & shadow gaps — Fits shadow-gap details, slim profiles and joinery grooves that cannot take a standard 8–10mm strip.
Request a quotation for #2664
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 121.4 lm/W at 4000K, Ra 80, ErP energy class E (Grade DL (2nd Tier) · 4.8W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 4.8W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 92.6 lm/W | 444.3 lm/m | F | 73.8 lm/W | 354.3 lm/m | G | — | — | — |
| 2300 K | 103 lm/W | 494.3 lm/m | F | 82.3 lm/W | 394.8 lm/m | G | — | — | — |
| 2700 K | 108 lm/W | 518.5 lm/m | F | 89.1 lm/W | 427.5 lm/m | F | 72.2 lm/W | 346.4 lm/m | G |
| 3000 K | 115.9 lm/W | 556.1 lm/m | E | 93.7 lm/W | 449.8 lm/m | F | 76.2 lm/W | 365.6 lm/m | G |
| 3500 K | 117.7 lm/W | 565 lm/m | E | 95.4 lm/W | 457.7 lm/m | F | 78.4 lm/W | 376.5 lm/m | G |
| 4000 K | 121.4 lm/W | 582.9 lm/m | E | 97.6 lm/W | 468.6 lm/m | F | 80.6 lm/W | 386.9 lm/m | G |
| 5000 K | 121.3 lm/W | 582.4 lm/m | E | 97.6 lm/W | 468.6 lm/m | F | — | — | — |
| 6500 K | 110.8 lm/W | 531.9 lm/m | E | 93.6 lm/W | 449.3 lm/m | F | — | — | — |
Grade DL (2nd Tier) · 7.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 91 lm/W | 655.3 lm/m | F | 72.6 lm/W | 522.5 lm/m | G | — | — | — |
| 2300 K | 101.3 lm/W | 729 lm/m | F | 80.9 lm/W | 582.4 lm/m | G | — | — | — |
| 2700 K | 106.2 lm/W | 764.8 lm/m | F | 87.6 lm/W | 630.5 lm/m | F | 71 lm/W | 510.8 lm/m | G |
| 3000 K | 113.9 lm/W | 820.3 lm/m | E | 92.1 lm/W | 663.4 lm/m | F | 74.9 lm/W | 539.3 lm/m | G |
| 3500 K | 115.8 lm/W | 833.4 lm/m | E | 93.8 lm/W | 675 lm/m | F | 77.1 lm/W | 555.4 lm/m | G |
| 4000 K | 119.4 lm/W | 859.7 lm/m | E | 96 lm/W | 691.1 lm/m | F | 79.3 lm/W | 570.7 lm/m | G |
| 5000 K | 119.3 lm/W | 858.9 lm/m | E | 96 lm/W | 691.1 lm/m | F | — | — | — |
| 6500 K | 109 lm/W | 784.5 lm/m | F | 92 lm/W | 662.6 lm/m | F | — | — | — |
Grade DL (2nd Tier) · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 89.5 lm/W | 859.2 lm/m | F | 71.4 lm/W | 685 lm/m | G | — | — | — |
| 2300 K | 99.6 lm/W | 955.8 lm/m | F | 79.5 lm/W | 763.5 lm/m | G | — | — | — |
| 2700 K | 104.4 lm/W | 1002.7 lm/m | F | 86.1 lm/W | 826.6 lm/m | F | 69.8 lm/W | 669.7 lm/m | G |
| 3000 K | 112 lm/W | 1075.4 lm/m | E | 90.6 lm/W | 869.7 lm/m | F | 73.7 lm/W | 707.1 lm/m | G |
| 3500 K | 113.8 lm/W | 1092.6 lm/m | E | 92.2 lm/W | 885 lm/m | F | 75.8 lm/W | 728.1 lm/m | G |
| 4000 K | 117.4 lm/W | 1127.1 lm/m | E | 94.4 lm/W | 906.1 lm/m | F | 77.9 lm/W | 748.2 lm/m | G |
| 5000 K | 117.3 lm/W | 1126.1 lm/m | E | 94.4 lm/W | 906.1 lm/m | F | — | — | — |
| 6500 K | 107.1 lm/W | 1028.5 lm/m | F | 90.5 lm/W | 868.7 lm/m | F | — | — | — |
Related models in this series
- 3528 Classic LED Strip Light (#7332)
- 3528 Long Run LED Strip Light (#4991)
- 3528 CCT LED Strip Light (#5588)
- 3528 Classic LED Strip Light (#2305)
- 3528 Classic LED Strip Light (#7229)
- 3528 Classic LED Strip Light (#6774)
- 3528 Classic LED Strip Light (#11120)
- 3528 Classic LED Strip Light (#2519)
See every model in SMD LED Strip Series or narrow to 3528. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 2664?
2664: 3528, 120, 24V, 5mm PCB, 3 oz copper FPCB, cuttable 6LEDs/50mm, IP20/IP65/IP67/IP68, CRI Ra≥80. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
How long can a single run of this ultra narrow LED strip be?
Maximum single run for this model is 5m. Feeding from both ends or using a mid-point tap halves the effective distance per segment, so a ultra narrow LED strip can cover twice that length on one circuit when wired accordingly.
Can DENO customise this ultra narrow LED strip for a project?
Yes. DENO manufactures the Ultra-Narrow SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
How narrow can a thin LED strip be?
DENO builds down to a 3 mm wide FPCB. A 3 mm LED strip fits aluminium channels, cabinet reveals, shelf edges and slim architectural slots where an 8 or 10 mm board cannot be hidden, while still carrying 2 oz copper for stable long runs.
Which LED driver and run length suit #2664?
5mm | 24V | 120LEDs | 50cut | #2664 | 3528 Ultra-Narrow LED Strip Light is a constant-voltage 24V product, so pair it with a CE or UL listed 24V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 5m. 5m Single/10m Dual Input power. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.
Ultra Narrow LED Strip — Buyer Questions
How narrow can a 3mm LED strip be?
DENO's ultra-narrow boards start at 3 mm PCB width, with 4 mm, 5 mm, 6 mm and 8 mm as standard steps. A 3 mm strip fits inside slim aluminium reveals, glass-edge details and joinery grooves that will not accept the usual 8–10 mm tape.
Is a narrow LED strip less bright?
Not necessarily, but it has less copper for heat spreading, so output per metre is limited by thermal design rather than by the LEDs. DENO specifies 2 oz copper on 3–5 mm boards and recommends an aluminium profile; typical usable output is 6–14 W/m depending on width and density.
Can a 3mm LED strip still be high density?
Yes. Micro packages such as 1808, 2110 and 2216 allow 240–480 LEDs/m on a 3–5 mm board, so a narrow reveal can still be dot-free behind a shallow diffuser. Above that density the width usually has to grow to 8 mm for thermal reasons.
- Series ultra narrow LED strip series
- Related series high density LED strip boards from 240 LEDs/m
- Related series narrow SCOB LED strip for a fully dotless line
- Product 7332 high density narrow LED strip
How tightly does a narrow LED strip bend?
A 3–5 mm board bends to a much tighter radius than standard tape and can be curved along its length without stressing the copper. For horizontal curves and corners, an S-bend layout removes the need to cut and solder at each turn.
What is the cut unit on an ultra-narrow LED strip?
Cut intervals typically run from 12.5 mm to 50 mm depending on voltage and density, and micro-cut versions shorten this further for exact millwork lengths. Ask for the cut unit in the quote — it decides how closely the finished run matches the drawing.
