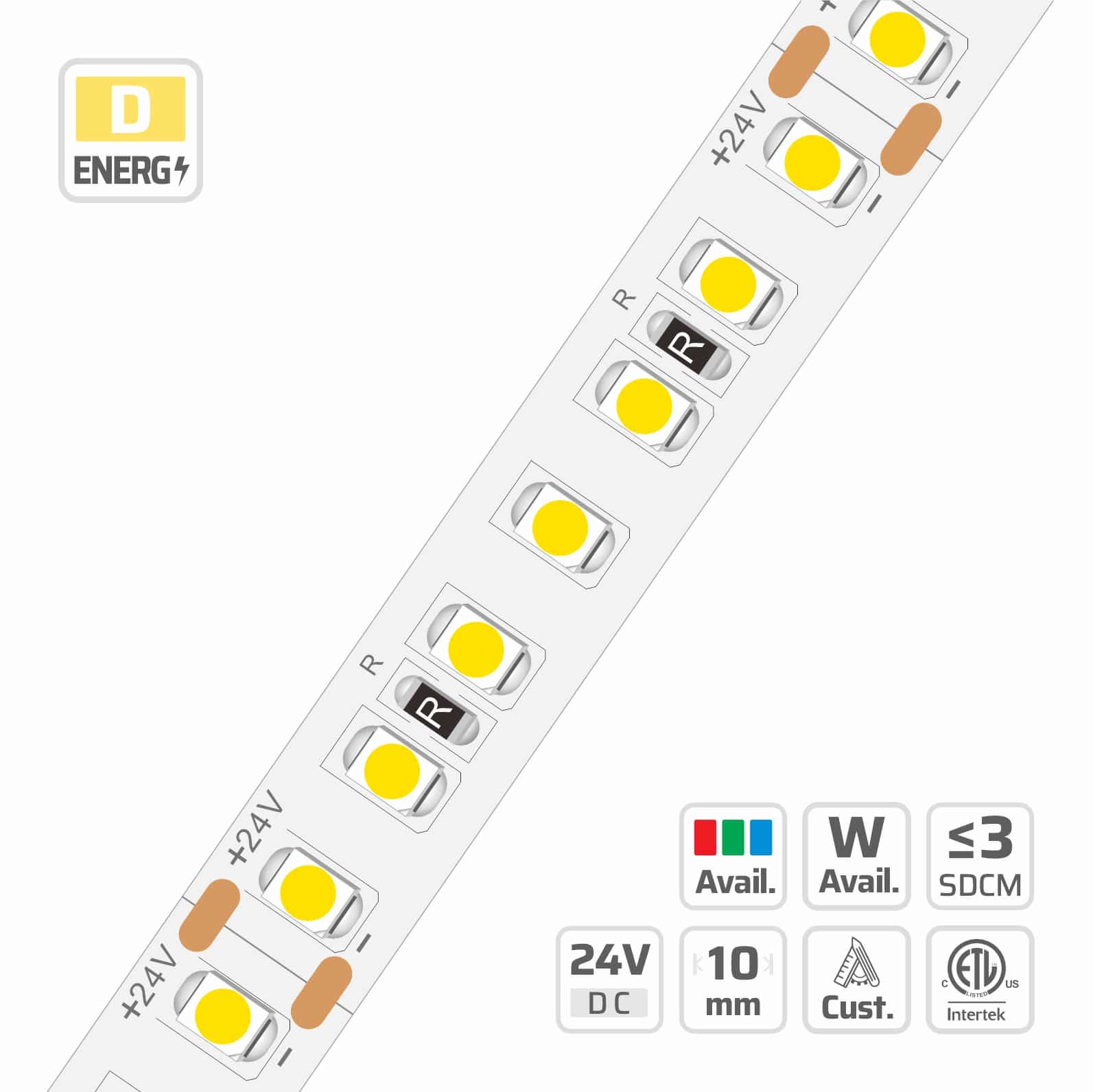

10mm | 24V | 140LEDs | 50cut | #2519 | 3528 Classic LED Strip Light
Model: 2519
Overview
The DENO LED model 2519 is a high-performance 3528 Classic LED Strip Light, engineered for robust commercial applications. Operating at 24V with 140 LEDs per meter on a 10mm PCB, it offers excellent brightness and flexibility. Its pure copper strong LED frame and 99.9% pure golden wire encapsulation ensure durability and reduce LED damage. With a cuttable length of 50mm, it provides design versatility. Ideal for architectural lighting, retail displays, and hospitality, this...
Description
10mm | 24V | 140LEDs | 50cut | #2519 | 3528 Classic LED Strip Light Adopt pure copper strong LED frame,99.9% purity diameter> 1 mm pure golden wire encapsulation, can reduce the LED damage in different applications.
Specifications
| ledQty | 140 LEDs/m |
|---|---|
| partNo | DL-F35A70V24-2519-* |
| smdType | 3528 |
| cuttable | 7LEDs/50mm |
| dimmable | Yes |
| ledPitch | 7.1mm |
| pcbWidth | 10mm |
| beamAngle | 120° |
| lengthMax | 5m |
| copperFoil | 2 oz |
| onOffTimes | 10000（test times） |
| circuitType | C.V. |
| inputVoltage | 24V |
| minBendDiameter | Φ60mm |
| operatingTemperature | -25~40°C;Tc: 75°C (max) |
Frequently Asked Questions
What are the common applications for the 2519 3528 LED strip?
This 24V 3528 LED strip is ideal for commercial installations, including cove lighting, under-cabinet lighting, retail display illumination, and architectural accent lighting in various B2B environments due to its high density and flexibility.
Is this LED strip dimmable and what type of dimmer is recommended?
Yes, the 2519 LED strip is fully dimmable. We recommend using a compatible 24V PWM (Pulse Width Modulation) dimmer for optimal performance and smooth brightness control in commercial settings, ensuring longevity.
What is the maximum continuous run length for the 2519 LED strip without voltage drop?
The maximum recommended continuous run for the 2519 model is 5 meters. For longer installations, it's best to power each section independently or use appropriate wiring and power injection to maintain consistent brightness along the strip.
