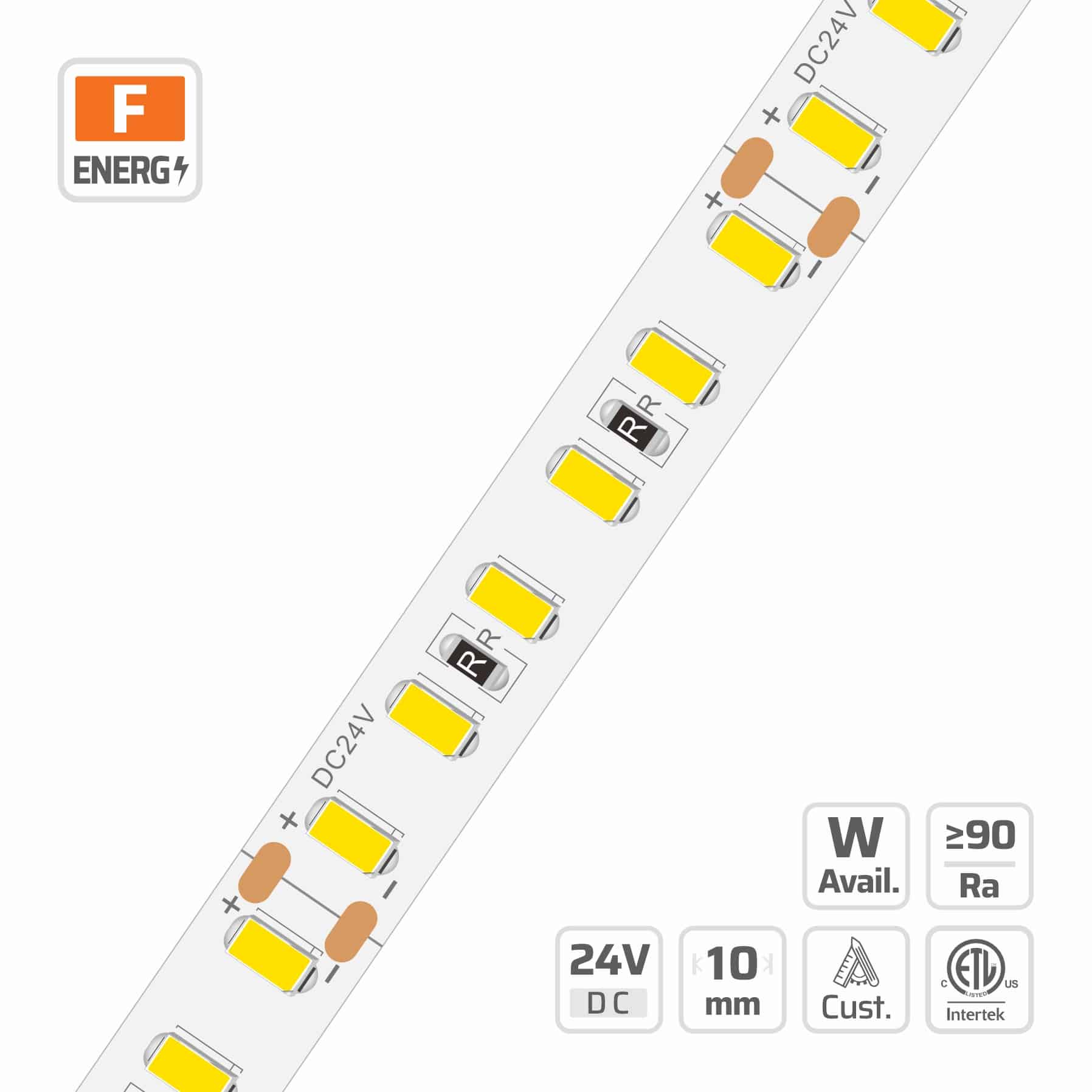

10mm | 24V | 120LEDs | 50cut | #2486 | 5630 Classic High Lumen LED Strip Light
Model: 2486
Overview
The DENO LED 2486 model is a robust 5630 Classic High Lumen LED Strip Light, engineered for superior brightness and reliability in professional B2B installations. Featuring 120 LEDs per meter on a 10mm PCB with 2oz copper, it delivers an impressive 2400 lm/m at 24V. Its pure copper strong LED frame and 99.9% pure golden wire encapsulation ensure reduced LED damage and extended lifespan of 50,000 hours. With Ra≥80 CRI and <3 SDCM, it provides excellent color reproduction and...
Description
10mm | 24V | 120LEDs | 50cut | #2486 | 5630 Classic High Lumen LED Strip Light Adopt pure copper strong LED frame,99.9% purity diameter> 1 mm pure golden wire encapsulation, can reduce the LED damage in different applications.
Specifications
| cct | 2700-6500 |
|---|---|
| cri | Ra≥80 |
| sdcm | < 3 SDCM (Single Bin) |
| ledQty | 120 |
| partNo | DL-F56A60V24-2486-* |
| smdType | 5630 |
| cuttable | 6LEDs/50mm |
| dimmable | Yes |
| ipRating | IP20 |
| ledPitch | 8.3mm |
| lifespan | 50000 |
| pcbWidth | 10 |
| warranty | 5 Years |
| beamAngle | 120° |
| lengthMax | 5m |
| copperFoil | 2 oz |
| onOffTimes | 10000（test times） |
| circuitType | CV |
| inputVoltage | 24V |
| luminousFlux | 2400 lm/m |
| minBendDiameter | Φ60mm |
| operatingTemperature | -25~40°C;Tc: 75°C (max) |
Frequently Asked Questions
What are the key technical specifications of the 2486 LED strip?
The 2486 LED strip features 5630 SMD LEDs, 24V input, 120 LEDs/m, Ra≥80 CRI, <3 SDCM, 2400 lm/m luminous flux, and IP20 rating for dry indoor use.
Can this LED strip be dimmed and what dimming solutions are compatible?
Yes, the 2486 LED strip is dimmable. It is compatible with standard 24V constant voltage LED dimmers and control systems for seamless light adjustment.
What is the certified lifespan and warranty for this product?
This LED strip has a certified lifespan of 50,000 hours and comes with a 5-year warranty, ensuring long-term reliability for commercial applications.
Is customization or bulk ordering available for the 2486 model?
Yes, DENO LED offers customization options for specific project needs and competitive pricing for bulk orders of the 2486 LED strip. Contact our sales team for details.
