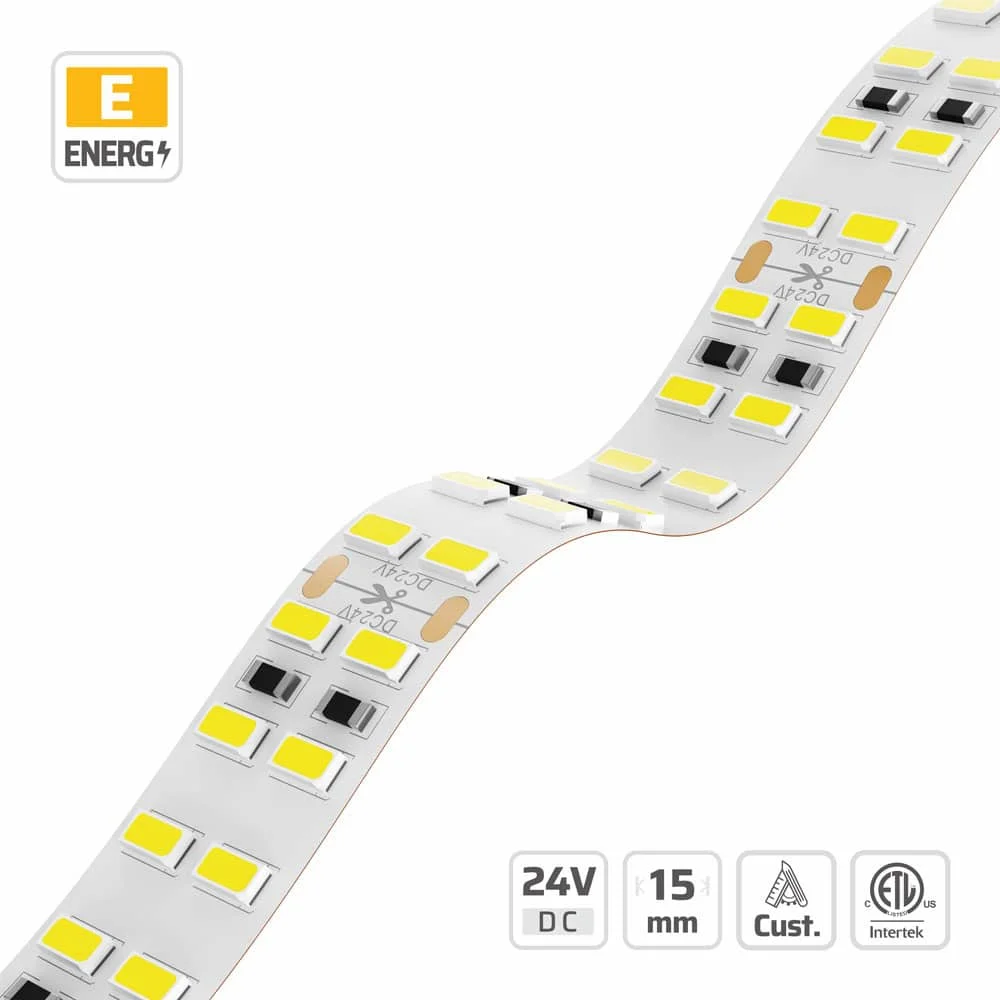

5630 High Lumen Classic Multi-Line LED Strip Light (#2351)
15mm · 24V · 240LEDs · 50cut
Model: 2351
Overview
15mm | 24V | 240LEDs | 50cut | #2351 | 5630 High Lumen Classic Multi-Line LED Strip Light is part of the DENO Classic SMD Strips series, engineered around 24V SMD LED strip lights. Key specifications: 5630, 240, 24V, 15 PCB, 3 oz copper FPCB, cuttable 12LEDs/50mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
Engineered with a wide 15mm 3 oz copper PCB, this 24V multi-line LED strip light delivers efficient heat dissipation across a standard 5m maximum length. The constant voltage circuit is dimmable and features 240 LEDs spaced at an 8.3mm pitch with precise 50mm cutting increments for flexible commercial fitment. Available for wholesale project supply, this versatile strip light offers a wide 120-degree beam angle and operates across a 4W to 28.8W power range.
24v Smd Led Strip Lights built for classic smd strips projects.
Specifications
| CCT (K) | 2700–6500K |
|---|---|
| CRI | Ra≥80 |
| POWER (W/M) | 38.4 W/m |
| LED QTY | 240 |
| PART NO | DL-F56A120V24-2351-* |
| SMD TYPE | 5630 |
| CUTTABLE UNIT | 12LEDs/50mm |
| DIMMABLE | Yes |
| IP RATING | IP20/IP65/IP67/IP68 |
| LED PITCH | 8.3mm |
| LIFESPAN | 50000 |
| PCB WIDTH | 15 |
| BEAM ANGLE | 120° |
| RUN LENGTH | 5m |
| COPPER FOIL | 3 oz |
| POWER RANGE | 4~28.8W |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 24V |
| LUMINOUS FLUX | 4220–4875 lm/m |
| OPERATING TEMPERATURE | -25~40°C;Tc: 75°C (max) |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
Recommended accessories & compatible parts
- DL-2001 — 30x9.7mm Ultra-Slim Surface LED Channel — Low Profile Aluminum Strip Housing: Accepts LED strips up to 15mm wide.
- DL-2002 — 20x02mm Ultra-Slim Surface LED Channel — Flat Aluminum LED Strip Profile: Accepts LED strips up to 15mm wide.
- DL-2010 — 20x10mm Wide Surface Mount LED Channel — Dotless Aluminum Profile for 240 LEDs/m: Accepts LED strips up to 15mm wide.
- DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.
Request a quotation for #2351
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 144.7 lm/W at 4000K, Ra 80, ErP energy class D (Grade DL (2nd Tier) · 14.4W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 110.2 lm/W | 1587 lm/m | E | 88.2 lm/W | 1269.6 lm/m | F | — | — | — |
| 2300 K | 122.7 lm/W | 1766.8 lm/m | E | 98.2 lm/W | 1414.7 lm/m | F | — | — | — |
| 2700 K | 129.1 lm/W | 1859 lm/m | E | 106.3 lm/W | 1531.1 lm/m | F | 86.2 lm/W | 1240.9 lm/m | F |
| 3000 K | 138.1 lm/W | 1989 lm/m | D | 111.9 lm/W | 1611.2 lm/m | E | 91 lm/W | 1310.4 lm/m | F |
| 3500 K | 140.2 lm/W | 2019.2 lm/m | D | 113.9 lm/W | 1639.9 lm/m | E | 93.7 lm/W | 1349.7 lm/m | F |
| 4000 K | 144.7 lm/W | 2084.2 lm/m | D | 116.6 lm/W | 1679.2 lm/m | E | 96.2 lm/W | 1386 lm/m | F |
| 5000 K | 144.5 lm/W | 2081.2 lm/m | D | 116.5 lm/W | 1677.7 lm/m | E | — | — | — |
| 6500 K | 132.2 lm/W | 1904.4 lm/m | E | 111.8 lm/W | 1609.7 lm/m | E | — | — | — |
Grade DL (2nd Tier) · 19.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 106.6 lm/W | 2045.8 lm/m | F | 85.2 lm/W | 1636.7 lm/m | F | — | — | — |
| 2300 K | 118.6 lm/W | 2277.7 lm/m | E | 95 lm/W | 1823.7 lm/m | F | — | — | — |
| 2700 K | 124.8 lm/W | 2396.5 lm/m | E | 102.8 lm/W | 1973.7 lm/m | F | 83.3 lm/W | 1599.6 lm/m | G |
| 3000 K | 133.5 lm/W | 2564.1 lm/m | E | 108.2 lm/W | 2077 lm/m | F | 88 lm/W | 1689.3 lm/m | F |
| 3500 K | 135.6 lm/W | 2603.1 lm/m | D | 110.1 lm/W | 2114 lm/m | E | 90.6 lm/W | 1739.9 lm/m | F |
| 4000 K | 139.9 lm/W | 2686.8 lm/m | D | 112.7 lm/W | 2164.7 lm/m | E | 93.1 lm/W | 1786.7 lm/m | F |
| 5000 K | 139.7 lm/W | 2682.9 lm/m | D | 112.6 lm/W | 2162.7 lm/m | E | — | — | — |
| 6500 K | 127.9 lm/W | 2455 lm/m | E | 108.1 lm/W | 2075 lm/m | F | — | — | — |
Grade DL (2nd Tier) · 21.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 104.8 lm/W | 2263.1 lm/m | F | 83.8 lm/W | 1810.5 lm/m | G | — | — | — |
| 2300 K | 116.6 lm/W | 2519.5 lm/m | E | 93.4 lm/W | 2017.4 lm/m | F | — | — | — |
| 2700 K | 122.7 lm/W | 2651 lm/m | E | 101.1 lm/W | 2183.3 lm/m | F | 81.9 lm/W | 1769.5 lm/m | G |
| 3000 K | 131.3 lm/W | 2836.4 lm/m | E | 106.4 lm/W | 2297.6 lm/m | F | 86.5 lm/W | 1868.6 lm/m | F |
| 3500 K | 133.3 lm/W | 2879.5 lm/m | E | 108.3 lm/W | 2338.5 lm/m | F | 89.1 lm/W | 1924.7 lm/m | F |
| 4000 K | 137.6 lm/W | 2972.2 lm/m | D | 110.9 lm/W | 2394.5 lm/m | E | 91.5 lm/W | 1976.4 lm/m | F |
| 5000 K | 137.4 lm/W | 2967.9 lm/m | D | 110.8 lm/W | 2392.4 lm/m | E | — | — | — |
| 6500 K | 125.7 lm/W | 2715.7 lm/m | E | 106.3 lm/W | 2295.4 lm/m | F | — | — | — |
Grade DL (2nd Tier) · 28.8W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 99.6 lm/W | 2868.6 lm/m | F | 79.7 lm/W | 2294.9 lm/m | G | — | — | — |
| 2300 K | 110.9 lm/W | 3193.7 lm/m | E | 88.8 lm/W | 2557.2 lm/m | F | — | — | — |
| 2700 K | 116.7 lm/W | 3360.4 lm/m | E | 96.1 lm/W | 2767.5 lm/m | F | 77.9 lm/W | 2243 lm/m | G |
| 3000 K | 124.8 lm/W | 3595.3 lm/m | E | 101.1 lm/W | 2912.3 lm/m | F | 82.2 lm/W | 2368.6 lm/m | G |
| 3500 K | 126.7 lm/W | 3650 lm/m | E | 102.9 lm/W | 2964.2 lm/m | F | 84.7 lm/W | 2439.7 lm/m | G |
| 4000 K | 130.8 lm/W | 3767.4 lm/m | E | 105.4 lm/W | 3035.3 lm/m | F | 87 lm/W | 2505.2 lm/m | F |
| 5000 K | 130.6 lm/W | 3762 lm/m | E | 105.3 lm/W | 3032.5 lm/m | F | — | — | — |
| 6500 K | 119.5 lm/W | 3442.3 lm/m | E | 101 lm/W | 2909.6 lm/m | F | — | — | — |
High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide
At up to 28.8W/m, 2351 is a high-power SMD LED strip. Above roughly 14.4W/m the tape can no longer shed its own heat through the FPC alone — an aluminum channel is part of the luminaire, not an accessory.
Why high-wattage strips need a heat sink
- Aluminum conducts heat roughly 30× faster than the plastics, MDF or gypsum a strip is usually stuck to, so a bare high-power run traps heat under the tape.
- LED lifetime (LM-80 / TM-21) is driven by solder-point temperature Tc. Keeping Tc inside the datasheet limit — DENO strips are rated Tc ≤ 75°C — is what preserves the rated L70 lifetime and colour stability.
- Never run 14.4W/m or more coiled on the reel, inside a sealed plastic diffuser, or directly on wood, wallpaper or foam.
Sizing rule: FPC width vs channel inner width
- Channel inner width ≥ FPC width + 2mm. This strip is 15mm wide, so it needs at least 17mm of inner width.
- The 2mm clearance absorbs extrusion tolerance and lets the tape be seated or replaced without scraping the side walls or the wiring.
- A frosted or opal PC cover then diffuses the higher lumen output into an even, dot-free line instead of visible hot spots.
Aluminum channels that fit this strip
- 20x10mm Wide Surface Mount LED Channel · fits ≤15mm strip
- 30x9.7mm Ultra-Slim Surface LED Channel · fits ≤15mm strip
- 20x02mm Ultra-Slim Surface LED Channel · fits ≤15mm strip
- 20x30mm Wide Deep LED Channel · fits ≤15mm strip
- 20x07mm 48V Surface Mount LED Channel · fits ≤17mm strip
- 20x05mm 48V Surface Mount LED Channel · fits ≤17mm strip
Recommended LED Channels
Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.
This strip is 15mm wide, so it needs a channel with at least 17mm inner width (15mm + 2mm clearance). Every profile below meets that.
Related models in this series
- 5630 Classic LED Strip Light (#3834)
- 5630 Tunable CCT High Lumen Multi-Line LED Strip Light (#2771)
- 5630 High Density LED Strip Light (#5325)
- 5630 Classic LED Strip Light (#11323)
- 5630 Tunable CCT High Lumen LED Strip Light (#3406)
- 5630 Special High Lumen Long Run LED Strip Light (#4925)
- 5630 Classic LED Strip Light (#11664)
- 5630 Classic High Lumen LED Strip Light (#2486)
See every model in SMD LED Strip Series or narrow to 5630. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 2351?
2351: 5630, 240, 24V, 15 PCB, 3 oz copper FPCB, cuttable 12LEDs/50mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
How long can a single run of this 24V SMD LED strip lights be?
Maximum single run for this model is 5m. Feeding from both ends or using a mid-point tap halves the effective distance per segment, so a 24V SMD LED strip lights can cover twice that length on one circuit when wired accordingly.
Can DENO customise this 24V SMD LED strip lights for a project?
Yes. DENO manufactures the Classic SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
Which SMD LED strip density should you specify?
For general cove and shelf lighting, 120 LEDs/m on a 24V LED strip is the usual baseline. Move to 180 or 240 LEDs/m when the strip sits close to a diffuser or is seen at a shallow angle, since higher density is what removes visible dots on a 2835 LED strip.
Which LED driver and run length suit #2351?
15mm | 24V | 240LEDs | 50cut | #2351 | 5630 High Lumen Classic Multi-Line LED Strip Light is a constant-voltage 24V product, so pair it with a CE or UL listed 24V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 5m. 5m Single/10m Dual Input power. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.
