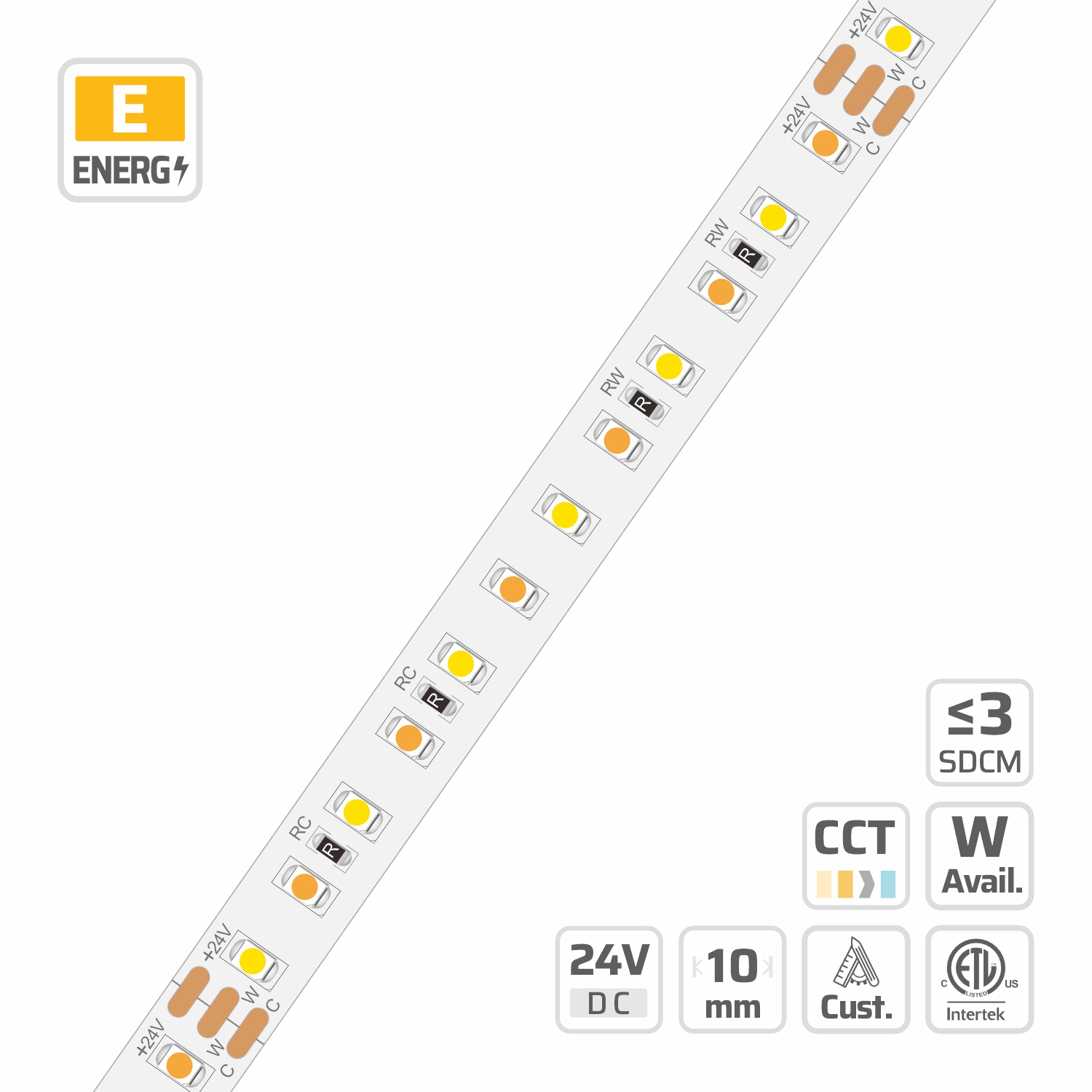

3528 CCT LED Strip Light (#2311)
10mm · 24V · 120LEDs · 100mm/cut
Model: 2311
Overview
3528 CCT LED Strip Light | 10mm | 24V | 120LEDs | 100mm/cut | #2311 is part of the DENO CCT SMD Strips series, engineered around tunable white LED strip. Key specifications: 3528, 120, 24V, 10 PCB, 3oz copper FPCB, cuttable 12LEDs/100mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
This tunable white 3528 CCT LED strip light features 120 LEDs on a 10mm PCB, delivering seamless color adjustment for architectural lighting. Operating on constant voltage 24V DC with 4.8 to 9.6W power range, this dimmable strip supports stable performance across lengths up to 5m. Engineered with robust 3oz copper foil and pure copper LED frames with golden wire encapsulation to ensure reliable thermal dissipation and durability. Precise cutting intervals of 100mm with an 8.3mm LED pitch and 120-degree beam angle allow accurate field sizing and uniform light distribution. Available for wholesale project supply, the strip provides dependable operation across ambient working temperatures ranging from -20°C to +50°C.
Tunable White Led Strip built for cct smd strips projects.
Specifications
| CCT (K) | 2700–6500K |
|---|---|
| CRI | Ra≥80 |
| POWER (W/M) | 9.6 W/m |
| LED QTY | 120 |
| PART NO | DL-F35A60V24-2311-* |
| SMD TYPE | 3528 |
| CUTTABLE UNIT | 12LEDs/100mm |
| DIMMABLE | Yes |
| IP RATING | IP20/IP65/IP67/IP68 |
| LED PITCH | 8.3mm |
| LIFESPAN | 50000 |
| PCB WIDTH | 10 |
| WARRANTY | 5 Years |
| BEAM ANGLE | 120° |
| RUN LENGTH | 5m |
| COPPER FOIL | 3oz |
| POWER RANGE | 4.8~9.6W |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 24V |
| LUMINOUS FLUX | 405–905 lm/m |
| OPERATING TEMPERATURE | -20°C ~ +50°C |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Hotel & residential tunable-white scenes — Hotel rooms, residential living areas and meeting spaces where warm evening light and neutral daytime light are both required from one fixture.
Recommended accessories & compatible parts
- DL-1003 — 19.1x8mm Surface Mount LED Channel — Dotless Aluminum Profile for 240 LEDs/m Strip: Accepts LED strips up to 10mm wide.
- DL-1103-1 — 16x13mm Surface Mount LED Channel — Aluminum Profile for 10mm LED Strip: Accepts LED strips up to 10mm wide.
- DL-1510 HX-F — 15x9.9mm Recessed LED Channel with Flange — Flush Mount Aluminum Profile: Accepts LED strips up to 10mm wide.
- DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- V2 — 12-24VDC 2-Channel * 5A Color Temperature Controller | V2: Matched by input voltage range and colour channels.
Request a quotation for #2311
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 115.2 lm/W at 6500K, Ra 80, ErP energy class E (Grade DL (2nd Tier) · CCT 3-Anchor · 4.8W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · CCT 3-Anchor · 4.8W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 103.8 lm/W | 249.1 lm/m | F | 83.9 lm/W | 201.4 lm/m | G | 65.4 lm/W | 157 lm/m | G |
| 4000 K | 104.8 lm/W | 503.1 lm/m | F | 84.7 lm/W | 406.8 lm/m | G | 66.1 lm/W | 317.4 lm/m | G |
| 6500 K | 115.2 lm/W | 276.4 lm/m | E | 93.2 lm/W | 223.8 lm/m | F | 72.7 lm/W | 174.6 lm/m | G |
Grade DL (2nd Tier) · CCT 3-Anchor · 7.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 102.1 lm/W | 367.4 lm/m | F | 82.5 lm/W | 297.1 lm/m | G | 64.3 lm/W | 231.5 lm/m | G |
| 4000 K | 103.1 lm/W | 742.1 lm/m | F | 83.3 lm/W | 600 lm/m | G | 65 lm/W | 468.1 lm/m | G |
| 6500 K | 113.2 lm/W | 407.7 lm/m | E | 91.7 lm/W | 330 lm/m | F | 71.5 lm/W | 257.5 lm/m | G |
Grade DL (2nd Tier) · CCT 3-Anchor · 9.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 2700 K | 100.3 lm/W | 481.7 lm/m | F | 81.1 lm/W | 389.5 lm/m | G | 63.2 lm/W | 303.5 lm/m | G |
| 4000 K | 101.3 lm/W | 972.9 lm/m | F | 81.9 lm/W | 786.6 lm/m | G | 63.9 lm/W | 613.7 lm/m | G |
| 6500 K | 111.4 lm/W | 534.5 lm/m | E | 90.1 lm/W | 432.7 lm/m | F | 70.3 lm/W | 337.6 lm/m | G |
Recommended LED Channels
Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.
This strip is 10mm wide, so it needs a channel with at least 12mm inner width (10mm + 2mm clearance). Every profile below meets that.
Related models in this series
- 3528 Classic LED Strip Light (#2175)
- 3528 Long Run LED Strip Light (#4991)
- 3528 Classic LED Strip Light (#2269)
- 3528 Classic LED Strip Light (#0010)
- 3528 Classic LED Strip Light (#11120)
- 3528 Classic LED Strip Light (#2519)
- 3528 High Density Micro-Cut LED Strip Light (#2714)
- 3528 Ultra-Narrow LED Strip Light (#2664)
See every model in SMD LED Strip Series or narrow to 3528. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 2311?
2311: 3528, 120, 24V, 10 PCB, 3oz copper FPCB, cuttable 12LEDs/100mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
What colour temperatures and CRI options does this tunable white LED strip offer?
This model is supplied as a tunable white LED strip with high CRI options and the CCT range listed in the datasheet. DENO bins every batch for colour consistency, and custom CCT or spectrum combinations can be produced for project quantities.
Can DENO customise this tunable white LED strip for a project?
Yes. DENO manufactures the CCT SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
How does a tunable white LED strip mix colour temperature?
Two LED channels, typically 2700K and 6500K, sit on the same FPCB and are dimmed against each other. Mixing the channels sweeps the white point along the black body line while total output stays even, which is how a CCT LED strip supports circadian and human centric lighting schedules.
Which LED driver and run length suit #2311?
3528 CCT LED Strip Light | 10mm | 24V | 120LEDs | 100mm/cut | #2311 is a constant-voltage 24V product, so pair it with a CE or UL listed 24V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 5m. 5m Single / 10m Dual Input power. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.
