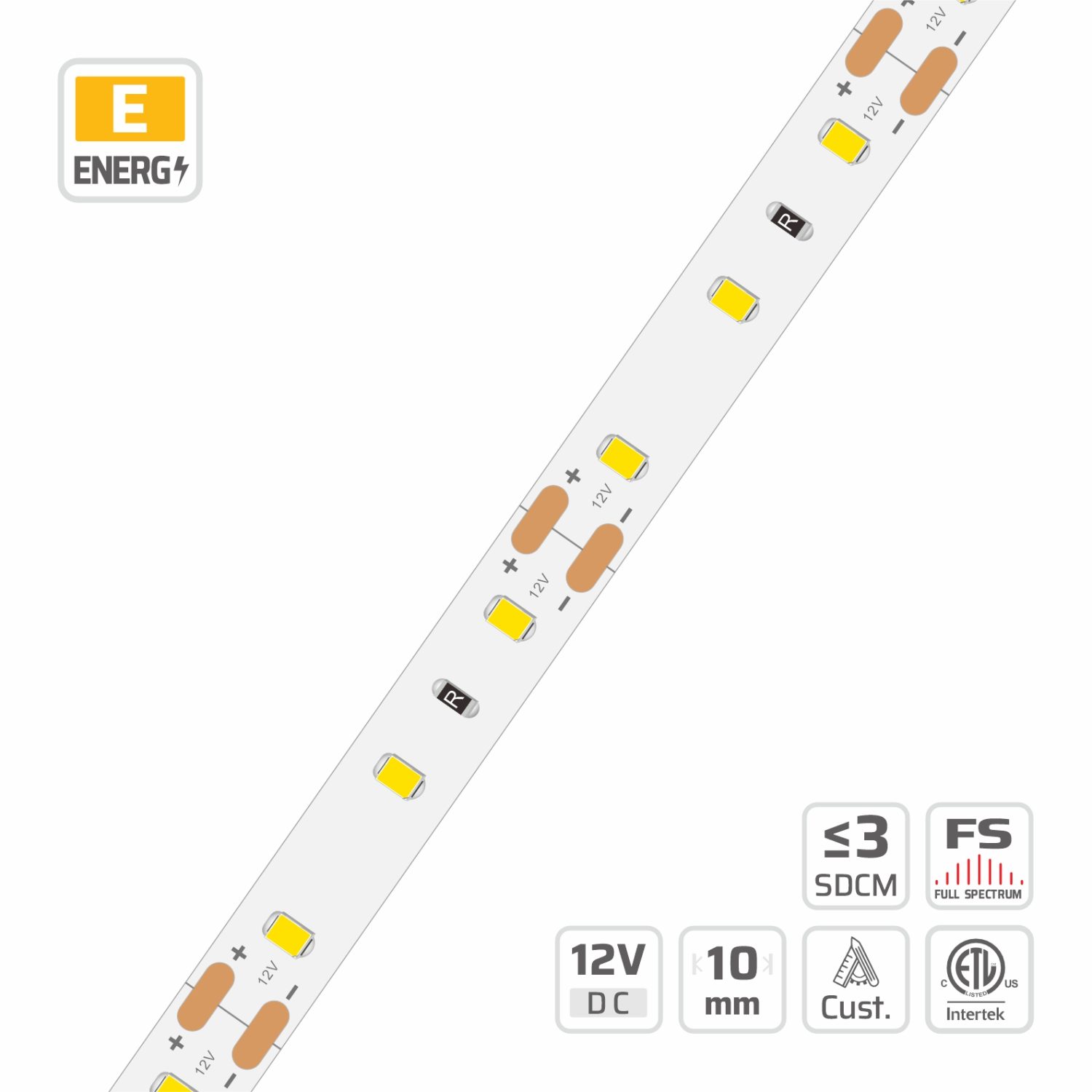

2835 Classic LED Strip Light (#2303)

10mm · 12V · 60LEDs · 50mm/cut

Model: 2303

Overview

2835 Classic LED Strip Light | 10mm | 12V | 60LEDs | 50mm/cut | #2303 is part of the DENO Classic SMD Strips series, engineered around 24V SMD LED strip lights. Key specifications: 2835, 60 LEDs/m, DC 12V, 10mm PCB, 3oz copper FPCB, cuttable 3LEDs/50mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.

Description

2835 Classic LED Strip Light | 10mm | 12V | 60LEDs | 50mm/cut | #2303 Strong pure copper LED frame, and diameter>1mm, 99.9%-purity gold wire encapsulation, can reduce damage to the LED in different applications. High brightness SMD2835 LED Strips is outfitted with extremely bright LED chips and strong adhesive backing. Special heat resistant PCB layout, copper layer 3Oz that make sure lower voltage drop and excellent heat dissipation. 3 SDCM 1 BIN , these strips are great for providing elegant and discreet lighting.

24v Smd Led Strip Lights built for classic smd strips projects.

Specifications

LED QTY	60 LEDs/m
PART NO	DL-F28A30V12-2303-*
SMD TYPE	2835
CUTTABLE UNIT	3LEDs/50mm
DIMMABLE	Yes
LED PITCH	16.6mm
PCB WIDTH	10mm
BEAM ANGLE	120°
LENGTH MAX	5m
COPPER FOIL	3oz
POWER RANGE	2.4~14.4W
CIRCUIT TYPE	C.V.
INPUT VOLTAGE	DC 12V

Applications

Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.

Request a quotation for #2303

DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.

Warranty: 5 years
Compliance: CE · UL · RoHS
Bonding wire: 99.99% pure gold
Copper foil: 99.9% pure copper FPCB

Contact DENO LED engineers · OEM / ODM capability

Photometric Performance — CCT × CRI Efficacy Matrix

Peak measured luminous efficacy: 162.3 lm/W at 4000K, Ra 80, ErP energy class D (Grade DN (1st Tier)).

All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.

Grade DL (2nd Tier)

Grade DL (2nd Tier) — measured at 6 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	116 lm/W	696 lm/m	E	92.8 lm/W	556.8 lm/m	F	—	—	—
2300 K	129.1 lm/W	774.7 lm/m	E	103.4 lm/W	620.5 lm/m	F	83.8 lm/W	502.8 lm/m	G
2700 K	136.1 lm/W	816.5 lm/m	D	111.9 lm/W	671.7 lm/m	E	90.7 lm/W	544.3 lm/m	F
3000 K	145.3 lm/W	872.1 lm/m	D	117.8 lm/W	706.6 lm/m	E	95.8 lm/W	574.9 lm/m	F
3500 K	147.5 lm/W	885.2 lm/m	D	119.9 lm/W	719.1 lm/m	E	98.6 lm/W	591.8 lm/m	F
4000 K	152.2 lm/W	913.3 lm/m	D	122.8 lm/W	736.6 lm/m	E	101.3 lm/W	608 lm/m	F
5000 K	152.1 lm/W	912.7 lm/m	D	122.7 lm/W	736 lm/m	E	101.2 lm/W	607.2 lm/m	F
6500 K	139.2 lm/W	835.2 lm/m	D	117.7 lm/W	706 lm/m	E	97.7 lm/W	586.2 lm/m	F

Grade DL (2nd Tier)

Grade DL (2nd Tier) — measured at 7.2 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	115 lm/W	828.2 lm/m	E	92 lm/W	662.6 lm/m	F	—	—	—
2300 K	128 lm/W	921.8 lm/m	E	102.5 lm/W	738.4 lm/m	F	83.1 lm/W	598.3 lm/m	G
2700 K	134.9 lm/W	971.6 lm/m	E	111 lm/W	799.3 lm/m	E	90 lm/W	647.7 lm/m	F
3000 K	144.1 lm/W	1037.7 lm/m	D	116.8 lm/W	840.9 lm/m	E	95 lm/W	684.1 lm/m	F
3500 K	146.3 lm/W	1053.3 lm/m	D	118.8 lm/W	855.7 lm/m	E	97.8 lm/W	704.2 lm/m	F
4000 K	150.9 lm/W	1086.7 lm/m	D	121.7 lm/W	876.5 lm/m	E	100.5 lm/W	723.5 lm/m	F
5000 K	150.8 lm/W	1086 lm/m	D	121.6 lm/W	875.8 lm/m	E	100.3 lm/W	722.2 lm/m	F
6500 K	138 lm/W	993.9 lm/m	D	116.7 lm/W	840.1 lm/m	E	96.8 lm/W	697 lm/m	F

Grade DL (2nd Tier)

Grade DL (2nd Tier) — measured at 9.6 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	113.1 lm/W	1085.8 lm/m	E	90.5 lm/W	868.7 lm/m	F	—	—	—
2300 K	125.9 lm/W	1208.6 lm/m	E	100.8 lm/W	968 lm/m	F	81.7 lm/W	784.3 lm/m	G
2700 K	132.7 lm/W	1273.8 lm/m	E	109.2 lm/W	1047.9 lm/m	F	88.5 lm/W	849.2 lm/m	F
3000 K	141.7 lm/W	1360.5 lm/m	D	114.8 lm/W	1102.4 lm/m	E	93.4 lm/W	896.9 lm/m	F
3500 K	143.8 lm/W	1380.9 lm/m	D	116.9 lm/W	1121.9 lm/m	E	96.2 lm/W	923.2 lm/m	F
4000 K	148.4 lm/W	1424.8 lm/m	D	119.7 lm/W	1149.2 lm/m	E	98.8 lm/W	948.5 lm/m	F
5000 K	148.3 lm/W	1423.8 lm/m	D	119.6 lm/W	1148.2 lm/m	E	98.7 lm/W	947.5 lm/m	F
6500 K	135.7 lm/W	1303 lm/m	D	114.7 lm/W	1101.4 lm/m	E	95.2 lm/W	913.9 lm/m	F

Grade DL (2nd Tier)

Grade DL (2nd Tier) — measured at 10.8 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	112.2 lm/W	1211.3 lm/m	E	89.7 lm/W	969.1 lm/m	F	—	—	—
2300 K	124.8 lm/W	1348.2 lm/m	E	100 lm/W	1079.9 lm/m	F	81 lm/W	874.8 lm/m	G
2700 K	131.6 lm/W	1421 lm/m	E	108.2 lm/W	1169 lm/m	F	87.7 lm/W	947.3 lm/m	F
3000 K	140.5 lm/W	1517.7 lm/m	D	113.9 lm/W	1229.8 lm/m	E	92.6 lm/W	1000.6 lm/m	F
3500 K	142.6 lm/W	1540.5 lm/m	D	115.9 lm/W	1251.5 lm/m	E	95.4 lm/W	1029.9 lm/m	F
4000 K	147.2 lm/W	1589.4 lm/m	D	118.7 lm/W	1281.9 lm/m	E	98 lm/W	1058.1 lm/m	F
5000 K	147.1 lm/W	1588.3 lm/m	D	118.6 lm/W	1280.9 lm/m	E	97.8 lm/W	1056.2 lm/m	F
6500 K	134.6 lm/W	1453.6 lm/m	E	113.8 lm/W	1228.7 lm/m	E	94.4 lm/W	1019.5 lm/m	F

Grade DL (2nd Tier)

Grade DL (2nd Tier) — measured at 12 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	111.2 lm/W	1334.6 lm/m	E	89 lm/W	1067.7 lm/m	F	—	—	—
2300 K	123.8 lm/W	1485.4 lm/m	E	99.1 lm/W	1189.8 lm/m	F	80.3 lm/W	963.6 lm/m	G
2700 K	130.5 lm/W	1565.6 lm/m	E	107.3 lm/W	1287.9 lm/m	F	87 lm/W	1043.8 lm/m	F
3000 K	139.3 lm/W	1672.2 lm/m	D	112.9 lm/W	1355 lm/m	E	91.9 lm/W	1102.4 lm/m	F
3500 K	141.4 lm/W	1697.3 lm/m	D	114.9 lm/W	1378.9 lm/m	E	94.6 lm/W	1134.7 lm/m	F
4000 K	145.9 lm/W	1751.2 lm/m	D	117.7 lm/W	1412.4 lm/m	E	97.2 lm/W	1165.8 lm/m	F
5000 K	145.8 lm/W	1750 lm/m	D	117.6 lm/W	1411.2 lm/m	E	97 lm/W	1164 lm/m	F
6500 K	133.5 lm/W	1601.5 lm/m	E	112.8 lm/W	1353.8 lm/m	E	93.6 lm/W	1123.2 lm/m	F

Grade DN (1st Tier)

Grade DN (1st Tier) — measured at 6 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	127.2 lm/W	763.5 lm/m	E	107.1 lm/W	642.4 lm/m	F	—	—	—
2300 K	138.7 lm/W	832.1 lm/m	E	119.4 lm/W	716.6 lm/m	E	96.7 lm/W	580.2 lm/m	F
2700 K	149.5 lm/W	897 lm/m	D	129.3 lm/W	775.9 lm/m	E	104.8 lm/W	628.6 lm/m	F
3000 K	157 lm/W	942 lm/m	D	136.5 lm/W	819 lm/m	E	111 lm/W	666.1 lm/m	F
3500 K	159.4 lm/W	956.3 lm/m	D	139.5 lm/W	837.1 lm/m	E	114.8 lm/W	688.5 lm/m	F
4000 K	162.3 lm/W	973.8 lm/m	D	140.2 lm/W	841.5 lm/m	E	115.8 lm/W	694.8 lm/m	F
5000 K	162.1 lm/W	972.6 lm/m	D	141.2 lm/W	847.1 lm/m	E	116.5 lm/W	699 lm/m	F
6500 K	155.4 lm/W	932.6 lm/m	D	134.9 lm/W	809.7 lm/m	E	112 lm/W	672 lm/m	F

Grade DN (1st Tier)

Grade DN (1st Tier) — measured at 7.2 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	126.2 lm/W	908.5 lm/m	E	106.2 lm/W	764.4 lm/m	F	—	—	—
2300 K	137.5 lm/W	990.2 lm/m	E	118.4 lm/W	852.7 lm/m	F	95.9 lm/W	690.5 lm/m	F
2700 K	148.3 lm/W	1067.4 lm/m	D	128.2 lm/W	923.3 lm/m	E	103.9 lm/W	748 lm/m	F
3000 K	155.7 lm/W	1120.9 lm/m	D	135.4 lm/W	974.6 lm/m	E	110.1 lm/W	792.6 lm/m	F
3500 K	158.1 lm/W	1138 lm/m	D	138.3 lm/W	996.1 lm/m	E	113.8 lm/W	819.3 lm/m	F
4000 K	160.9 lm/W	1158.8 lm/m	D	139.1 lm/W	1001.3 lm/m	E	114.8 lm/W	826.7 lm/m	F
5000 K	160.7 lm/W	1157.3 lm/m	D	140 lm/W	1008 lm/m	E	115.5 lm/W	831.6 lm/m	F
6500 K	154.1 lm/W	1109.8 lm/m	D	133.8 lm/W	963.4 lm/m	E	111.1 lm/W	799.9 lm/m	F

Grade DN (1st Tier)

Grade DN (1st Tier) — measured at 9.6 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	124.1 lm/W	1191 lm/m	E	104.4 lm/W	1002.1 lm/m	F	—	—	—
2300 K	135.2 lm/W	1298.2 lm/m	E	116.5 lm/W	1118 lm/m	F	94.3 lm/W	905.3 lm/m	F
2700 K	145.8 lm/W	1399.4 lm/m	E	126.1 lm/W	1210.5 lm/m	E	102.2 lm/W	980.7 lm/m	F
3000 K	153.1 lm/W	1469.5 lm/m	D	133.1 lm/W	1277.7 lm/m	E	108.2 lm/W	1039.1 lm/m	F
3500 K	155.4 lm/W	1491.9 lm/m	D	136 lm/W	1305.9 lm/m	E	111.9 lm/W	1074.2 lm/m	F
4000 K	158.3 lm/W	1519.2 lm/m	D	136.7 lm/W	1312.8 lm/m	E	112.9 lm/W	1083.9 lm/m	F
5000 K	158 lm/W	1517.3 lm/m	D	137.7 lm/W	1321.5 lm/m	E	113.6 lm/W	1090.6 lm/m	F
6500 K	151.6 lm/W	1454.9 lm/m	D	131.6 lm/W	1263.1 lm/m	E	109.2 lm/W	1048.3 lm/m	F

Grade DN (1st Tier)

Grade DN (1st Tier) — measured at 10.8 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	123 lm/W	1328.7 lm/m	E	103.5 lm/W	1117.9 lm/m	F	—	—	—
2300 K	134.1 lm/W	1448.2 lm/m	E	115.5 lm/W	1247.2 lm/m	F	93.5 lm/W	1009.8 lm/m	F
2700 K	144.6 lm/W	1561.1 lm/m	E	125 lm/W	1350.4 lm/m	E	101.3 lm/W	1094 lm/m	F
3000 K	151.8 lm/W	1639.4 lm/m	D	132 lm/W	1425.3 lm/m	E	107.3 lm/W	1159.2 lm/m	F
3500 K	154.1 lm/W	1664.4 lm/m	D	134.9 lm/W	1456.9 lm/m	E	111 lm/W	1198.3 lm/m	F
4000 K	156.9 lm/W	1694.8 lm/m	D	135.6 lm/W	1464.5 lm/m	E	112 lm/W	1209.2 lm/m	F
5000 K	156.7 lm/W	1692.6 lm/m	D	136.5 lm/W	1474.2 lm/m	E	112.6 lm/W	1216.1 lm/m	F
6500 K	150.3 lm/W	1623.1 lm/m	D	130.5 lm/W	1409 lm/m	E	108.3 lm/W	1169.6 lm/m	F

Grade DN (1st Tier)

Grade DN (1st Tier) — measured at 12 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1800 K	122 lm/W	1463.9 lm/m	E	102.6 lm/W	1231.7 lm/m	F	—	—	—
2300 K	133 lm/W	1595.6 lm/m	E	114.5 lm/W	1374.1 lm/m	F	92.8 lm/W	1113.6 lm/m	F
2700 K	143.3 lm/W	1720 lm/m	E	124 lm/W	1487.8 lm/m	E	100.4 lm/W	1205.3 lm/m	F
3000 K	150.5 lm/W	1806.2 lm/m	D	130.9 lm/W	1570.4 lm/m	E	106.4 lm/W	1277.2 lm/m	F
3500 K	152.8 lm/W	1833.8 lm/m	D	133.8 lm/W	1605.1 lm/m	E	110 lm/W	1320.3 lm/m	F
4000 K	155.6 lm/W	1867.3 lm/m	D	134.5 lm/W	1613.5 lm/m	E	111 lm/W	1332.2 lm/m	F
5000 K	155.4 lm/W	1864.9 lm/m	D	135.4 lm/W	1624.3 lm/m	E	111.7 lm/W	1340.4 lm/m	F
6500 K	149 lm/W	1788.3 lm/m	D	129.4 lm/W	1552.5 lm/m	E	107.4 lm/W	1288.8 lm/m	F

Grade KE (3rd Tier)

Grade KE (3rd Tier) — measured at 6 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1900 K	95 lm/W	569.9 lm/m	F	75.8 lm/W	455.1 lm/m	G	—	—	—
2300 K	105.9 lm/W	635.5 lm/m	F	84.6 lm/W	507.5 lm/m	G	68.5 lm/W	411 lm/m	G
2700 K	114.1 lm/W	684.8 lm/m	E	91.8 lm/W	550.6 lm/m	F	74.4 lm/W	446.3 lm/m	G
3000 K	119.9 lm/W	719.1 lm/m	E	97 lm/W	581.8 lm/m	F	78.9 lm/W	473.2 lm/m	G
3500 K	121.6 lm/W	729.7 lm/m	E	98.8 lm/W	593 lm/m	F	81.4 lm/W	488.2 lm/m	G
4000 K	125.3 lm/W	751.6 lm/m	E	101 lm/W	606.1 lm/m	F	83.3 lm/W	500 lm/m	G
5000 K	125.1 lm/W	750.3 lm/m	E	100.9 lm/W	605.5 lm/m	F	83.3 lm/W	499.8 lm/m	G
6500 K	119.9 lm/W	719.1 lm/m	E	97 lm/W	581.8 lm/m	F	80.5 lm/W	483 lm/m	G

Grade KE (3rd Tier)

Grade KE (3rd Tier) — measured at 7.2 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1900 K	94.2 lm/W	678.2 lm/m	F	75.2 lm/W	541.5 lm/m	G	—	—	—
2300 K	105 lm/W	756.2 lm/m	F	83.9 lm/W	603.9 lm/m	G	67.9 lm/W	488.9 lm/m	G
2700 K	113.2 lm/W	814.9 lm/m	E	91 lm/W	655.2 lm/m	F	73.8 lm/W	531.1 lm/m	G
3000 K	118.8 lm/W	855.7 lm/m	E	96.2 lm/W	692.3 lm/m	F	78.2 lm/W	563.1 lm/m	G
3500 K	120.6 lm/W	868.3 lm/m	E	98 lm/W	705.7 lm/m	F	80.7 lm/W	580.9 lm/m	G
4000 K	124.2 lm/W	894.3 lm/m	E	100.2 lm/W	721.3 lm/m	F	82.6 lm/W	595 lm/m	G
5000 K	124 lm/W	892.9 lm/m	E	100.1 lm/W	720.5 lm/m	F	82.6 lm/W	594.7 lm/m	G
6500 K	118.8 lm/W	855.7 lm/m	E	96.2 lm/W	692.3 lm/m	F	79.8 lm/W	574.6 lm/m	G

Grade KE (3rd Tier)

Grade KE (3rd Tier) — measured at 9.6 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1900 K	92.6 lm/W	889.1 lm/m	F	74 lm/W	709.9 lm/m	G	—	—	—
2300 K	103.3 lm/W	991.4 lm/m	F	82.5 lm/W	791.7 lm/m	G	66.8 lm/W	641.3 lm/m	G
2700 K	111.3 lm/W	1068.3 lm/m	E	89.5 lm/W	858.9 lm/m	F	72.5 lm/W	696.3 lm/m	G
3000 K	116.9 lm/W	1121.9 lm/m	E	94.5 lm/W	907.6 lm/m	F	76.9 lm/W	738.2 lm/m	G
3500 K	118.6 lm/W	1138.4 lm/m	E	96.4 lm/W	925.2 lm/m	F	79.3 lm/W	761.6 lm/m	G
4000 K	122.1 lm/W	1172.5 lm/m	E	98.5 lm/W	945.6 lm/m	F	81.3 lm/W	780.1 lm/m	G
5000 K	121.9 lm/W	1170.6 lm/m	E	98.4 lm/W	944.6 lm/m	F	81.2 lm/W	779.5 lm/m	G
6500 K	116.9 lm/W	1121.9 lm/m	E	94.5 lm/W	907.6 lm/m	F	78.5 lm/W	753.6 lm/m	G

Grade KE (3rd Tier)

Grade KE (3rd Tier) — measured at 10.8 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1900 K	91.8 lm/W	991.9 lm/m	F	73.3 lm/W	792 lm/m	G	—	—	—
2300 K	102.4 lm/W	1105.9 lm/m	F	81.8 lm/W	883.2 lm/m	G	66.2 lm/W	715 lm/m	G
2700 K	110.3 lm/W	1191.8 lm/m	E	88.7 lm/W	958.2 lm/m	F	71.9 lm/W	776.8 lm/m	G
3000 K	115.9 lm/W	1251.5 lm/m	E	93.8 lm/W	1012.5 lm/m	F	76.2 lm/W	823.5 lm/m	G
3500 K	117.6 lm/W	1270 lm/m	E	95.6 lm/W	1032.1 lm/m	F	78.7 lm/W	849.6 lm/m	G
4000 K	121.1 lm/W	1308 lm/m	E	97.7 lm/W	1054.9 lm/m	F	80.6 lm/W	870.2 lm/m	G
5000 K	120.9 lm/W	1305.8 lm/m	E	97.6 lm/W	1053.8 lm/m	F	80.5 lm/W	869.4 lm/m	G
6500 K	115.9 lm/W	1251.5 lm/m	E	93.8 lm/W	1012.5 lm/m	F	77.8 lm/W	840.2 lm/m	G

Grade KE (3rd Tier)

Grade KE (3rd Tier) — measured at 12 W/m: luminous efficacy (lm/W), luminous flux (lm/m) and ErP energy class per CCT and CRI grade.
CCT (K)	Ra 80 — Luminous Efficacy (lm/W)	Ra 80 — Luminous Flux (lm/m)	Ra 80 — ErP Energy Class	Ra 90 — Luminous Efficacy (lm/W)	Ra 90 — Luminous Flux (lm/m)	Ra 90 — ErP Energy Class	Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W)	Full Spectrum (Ra 95+) — Luminous Flux (lm/m)	Full Spectrum (Ra 95+) — ErP Energy Class
1900 K	91.1 lm/W	1092.8 lm/m	F	72.7 lm/W	872.6 lm/m	G	—	—	—
2300 K	101.5 lm/W	1218.5 lm/m	F	81.1 lm/W	973.1 lm/m	G	65.7 lm/W	788.4 lm/m	G
2700 K	109.4 lm/W	1313.1 lm/m	F	88 lm/W	1055.7 lm/m	F	71.3 lm/W	855.8 lm/m	G
3000 K	114.9 lm/W	1378.9 lm/m	E	93 lm/W	1115.6 lm/m	F	75.6 lm/W	907.3 lm/m	G
3500 K	116.6 lm/W	1399.3 lm/m	E	94.8 lm/W	1137.1 lm/m	F	78 lm/W	936 lm/m	G
4000 K	120.1 lm/W	1441.2 lm/m	E	96.9 lm/W	1162.3 lm/m	F	79.9 lm/W	958.8 lm/m	G
5000 K	119.9 lm/W	1438.8 lm/m	E	96.8 lm/W	1161.1 lm/m	F	79.8 lm/W	957.6 lm/m	G
6500 K	114.9 lm/W	1378.9 lm/m	E	93 lm/W	1115.6 lm/m	F	77.2 lm/W	926.4 lm/m	G

Related models in this series

See every model in SMD LED Strip Series or narrow to 2835. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.

Frequently Asked Questions

What are the key specifications of 2303?

2303: 2835, 60 LEDs/m, DC 12V, 10mm PCB, 3oz copper FPCB, cuttable 3LEDs/50mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.

How long can a single run of this 24V SMD LED strip lights be?

Maximum single run for this model is 5m. Feeding from both ends or using a mid-point tap halves the effective distance per segment, so a 24V SMD LED strip lights can cover twice that length on one circuit when wired accordingly.

Can DENO customise this 24V SMD LED strip lights for a project?

Yes. DENO manufactures the Classic SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.

Which SMD LED strip density should you specify?

For general cove and shelf lighting, 120 LEDs/m on a 24V LED strip is the usual baseline. Move to 180 or 240 LEDs/m when the strip sits close to a diffuser or is seen at a shallow angle, since higher density is what removes visible dots on a 2835 LED strip.

Which LED driver and run length suit #2303?

2835 Classic LED Strip Light | 10mm | 12V | 60LEDs | 50mm/cut | #2303 is a constant-voltage DC 12V product, so pair it with a CE or UL listed DC 12V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 5m. 5m Single/10m Dual Input power. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.
