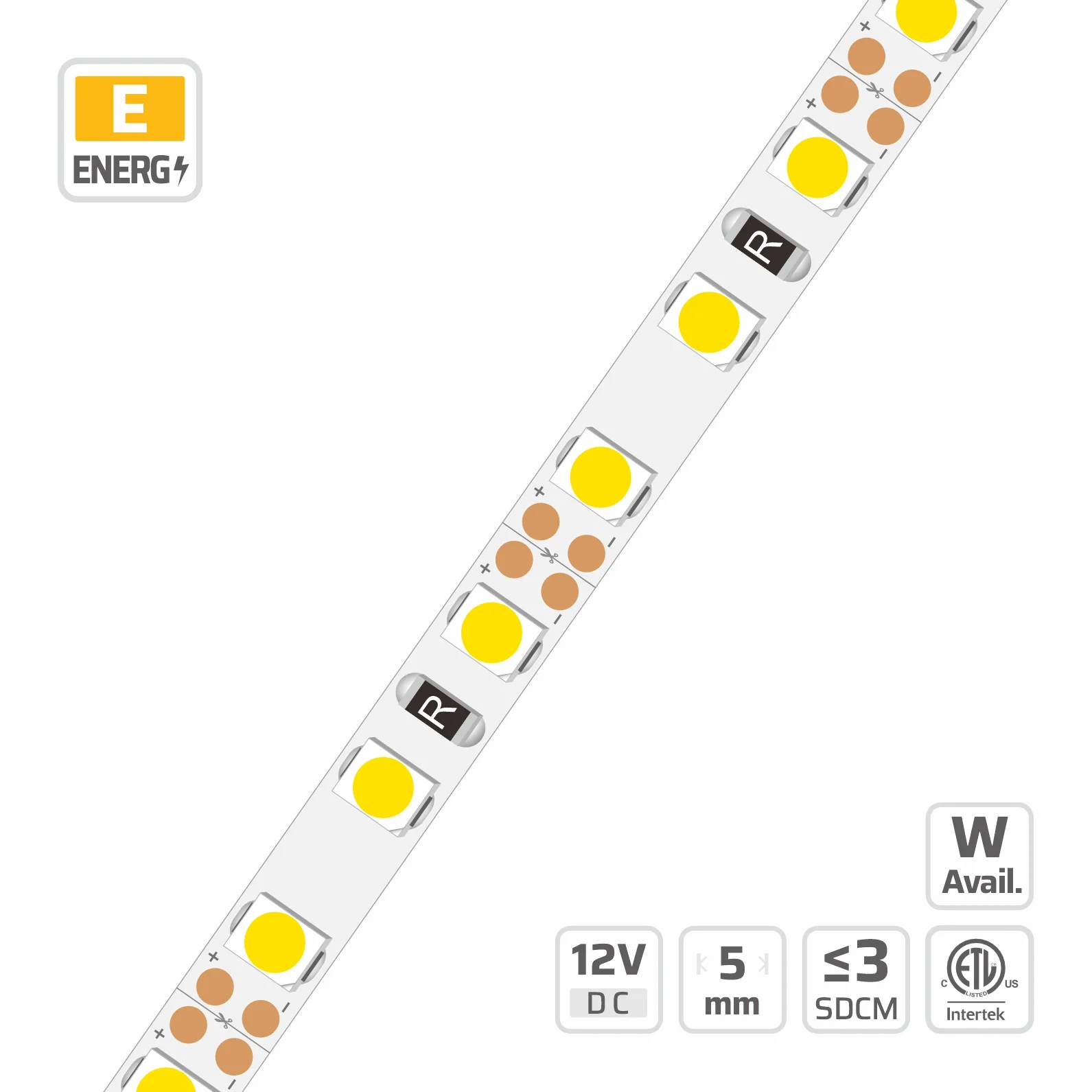

3528 Ultra-Narrow LED Strip Light (#2298)
5mm · 12V · 120LEDs · 25cut
Model: 2298
Overview
3528 Ultra-Narrow LED Strip Light | 5mm | 12V | 120LEDs | 25cut | #2298 is part of the DENO Ultra-Narrow SMD Strips series, engineered around ultra narrow LED strip. Key specifications: 3528, 120, 12V, 5mm PCB, 3 oz copper FPCB, cuttable 3LEDs/25mm, IP20/IP65/IP67/IP68, CRI Ra≥80. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
This ultra-narrow 5mm PCB 3528 LED strip light is engineered for precision architectural accenting and tight cabinet lighting installations. Operating on 12V constant voltage, the flexible strip features a 25mm cutting unit with 120 LEDs per meter for seamless illumination. Featuring high color consistency under 3 SDCM and Ra 80 or higher, it delivers up to 1040 lumens per meter across 2700K to 6500K. Heavy 3 oz copper foil paired with pure copper frames and 99.9% pure golden wire encapsulation ensures reliable thermal dissipation. Available in IP20 through IP68 ingress protection ratings, we support factory-direct wholesale project supply with fully dimmable performance.
Ultra Narrow Led Strip built for ultra-narrow smd strips projects.
Specifications
| CCT (K) | 2700-6500 |
|---|---|
| CRI | Ra≥80 |
| SDCM | < 3 SDCM (Single Bin) |
| POWER (W/M) | 9.6 W/m |
| LED QTY | 120 |
| PART NO | DL-F35A60V12-2298-* |
| SMD TYPE | 3528 |
| CUTTABLE UNIT | 3LEDs/25mm |
| DIMMABLE | Yes |
| IP RATING | IP20/IP65/IP67/IP68 |
| LED PITCH | 8.3mm |
| LIFESPAN | 50000 |
| PCB WIDTH | 5mm |
| WARRANTY | 5 Years |
| BEAM ANGLE | 120° |
| RUN LENGTH | 5m |
| COPPER FOIL | 3 oz |
| ON OFF TIMES | 10000（test times） |
| POWER RANGE | 2.4~14.4W |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 12V |
| LUMINOUS FLUX | 1040 lm/m |
| MIN BEND DIAMETER | Φ60mm |
| OPERATING TEMPERATURE | -25~40°C;Tc: 75°C (max) |
