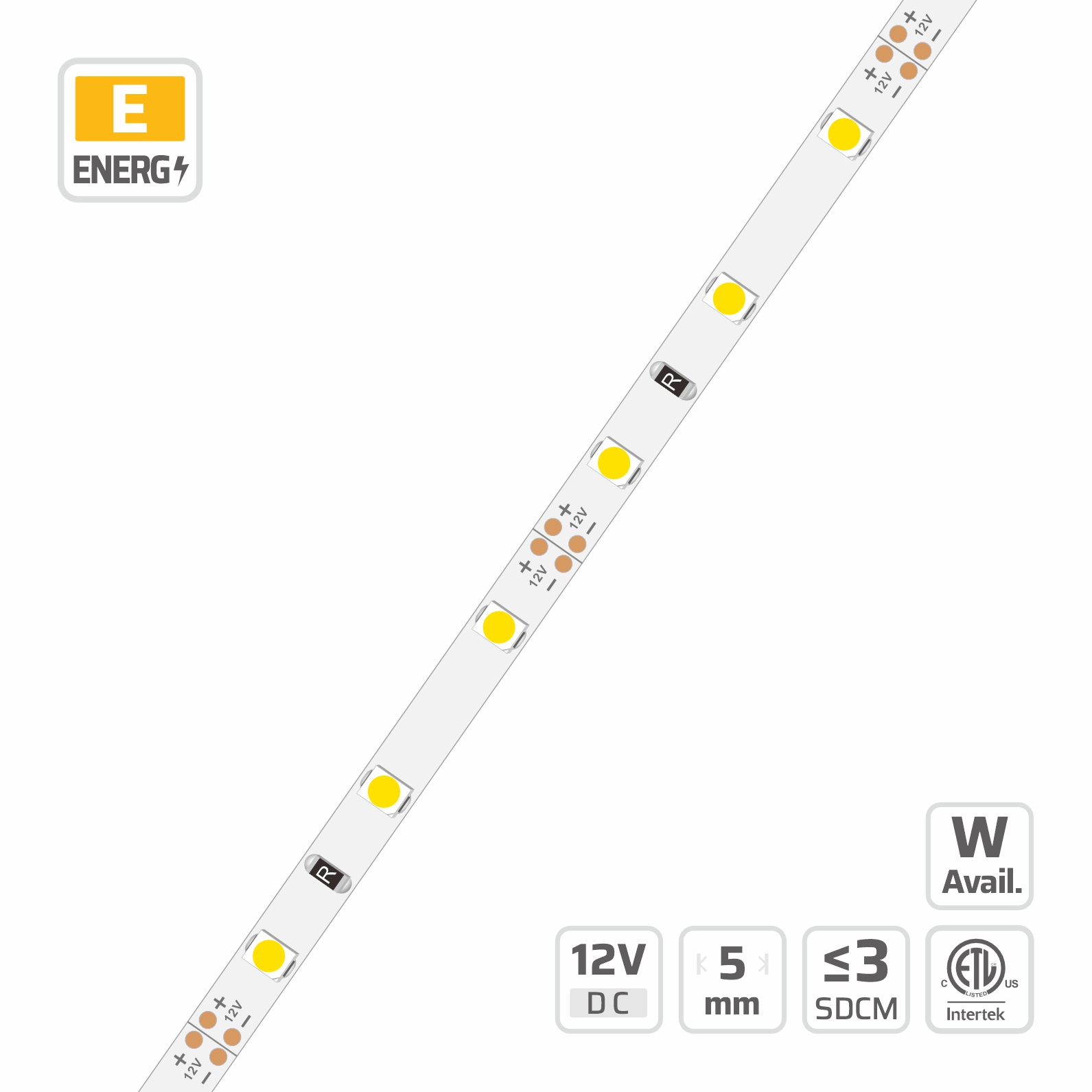

3528 Ultra-Narrow LED Strip Light (#2296)
5mm · 12V · 60LEDs · 50cut
Model: 2296
Overview
3528 Ultra-Narrow LED Strip Light | 5mm | 12V | 60LEDs | 50cut | #2296 is part of the DENO Ultra-Narrow SMD Strips series, engineered around ultra narrow LED strip. Key specifications: 3528, 60, 12V, 5 PCB, 2 oz copper FPCB, cuttable 3LEDs/50mm, IP20, CRI Ra≥80. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
5mm | 12V | 60LEDs | 50cut | #2296 | 3528 Ultra-Narrow LED Strip Light Adopt pure copper strong LED frame,99.9% purity diameter> 1 mm pure golden wire encapsulation, can reduce the LED damage in different applications.
Ultra Narrow Led Strip built for ultra-narrow smd strips projects.
Specifications
| CCT (K) | 2700-6500 |
|---|---|
| CRI | Ra≥80 |
| SDCM | < 3 SDCM (Single Bin) |
| LED QTY | 60 |
| PART NO | DL-F35A30V12-2296-* |
| SMD TYPE | 3528 |
| CUTTABLE UNIT | 3LEDs/50mm |
| DIMMABLE | Yes |
| IP RATING | IP20 |
| LED PITCH | 16.6mm |
| LIFESPAN | 50000 |
| PCB WIDTH | 5 |
| WARRANTY | 5 Years |
| BEAM ANGLE | 120° |
| LENGTH MAX | 5m |
| COPPER FOIL | 2 oz |
| ON OFF TIMES | 10000（test times） |
| POWER RANGE | 1.2~7.2W |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 12V |
| LUMINOUS FLUX | 480 lm/m |
| MIN BEND DIAMETER | Φ60mm |
| OPERATING TEMPERATURE | -25~40°C;Tc: 75°C (max) |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Ultra-narrow 5mm channels & shadow gaps — Fits shadow-gap details, slim profiles and joinery grooves that cannot take a standard 8–10mm strip.
Request a quotation for #2296
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 116.5 lm/W at 4000K, Ra 80, ErP energy class E (Grade DL (2nd Tier) · 2.4W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 2.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 88.8 lm/W | 213.1 lm/m | F | 70.8 lm/W | 169.9 lm/m | G | — | — | — |
| 2300 K | 98.9 lm/W | 237.2 lm/m | F | 78.9 lm/W | 189.4 lm/m | G | — | — | — |
| 2700 K | 103.5 lm/W | 248.5 lm/m | F | 85.4 lm/W | 205 lm/m | F | 69.2 lm/W | 166 lm/m | G |
| 3000 K | 111.2 lm/W | 266.8 lm/m | E | 89.9 lm/W | 215.8 lm/m | F | 73.1 lm/W | 175.5 lm/m | G |
| 3500 K | 113 lm/W | 271.2 lm/m | E | 91.4 lm/W | 219.4 lm/m | F | 75.3 lm/W | 180.6 lm/m | G |
| 4000 K | 116.5 lm/W | 279.7 lm/m | E | 93.7 lm/W | 224.8 lm/m | F | 77.3 lm/W | 185.5 lm/m | G |
| 5000 K | 116.4 lm/W | 279.5 lm/m | E | 93.6 lm/W | 224.6 lm/m | F | — | — | — |
| 6500 K | 106.3 lm/W | 255.1 lm/m | F | 89.8 lm/W | 215.5 lm/m | F | — | — | — |
Grade DL (2nd Tier) · 3.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 88 lm/W | 316.9 lm/m | F | 70.2 lm/W | 252.7 lm/m | G | — | — | — |
| 2300 K | 98 lm/W | 352.9 lm/m | F | 78.3 lm/W | 281.7 lm/m | G | — | — | — |
| 2700 K | 102.7 lm/W | 369.6 lm/m | F | 84.7 lm/W | 305 lm/m | G | 68.6 lm/W | 246.9 lm/m | G |
| 3000 K | 110.2 lm/W | 396.8 lm/m | E | 89.1 lm/W | 320.9 lm/m | F | 72.5 lm/W | 261 lm/m | G |
| 3500 K | 112 lm/W | 403.3 lm/m | E | 90.7 lm/W | 326.4 lm/m | F | 74.6 lm/W | 268.7 lm/m | G |
| 4000 K | 115.6 lm/W | 416.1 lm/m | E | 92.9 lm/W | 334.4 lm/m | F | 76.6 lm/W | 275.9 lm/m | G |
| 5000 K | 115.5 lm/W | 415.7 lm/m | E | 92.8 lm/W | 334 lm/m | F | — | — | — |
| 6500 K | 105.4 lm/W | 379.4 lm/m | F | 89 lm/W | 320.6 lm/m | F | — | — | — |
Grade DL (2nd Tier) · 4.8W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 87.3 lm/W | 419.2 lm/m | F | 69.6 lm/W | 334.3 lm/m | G | — | — | — |
| 2300 K | 97.2 lm/W | 466.4 lm/m | F | 77.6 lm/W | 372.5 lm/m | G | — | — | — |
| 2700 K | 101.8 lm/W | 488.8 lm/m | F | 84 lm/W | 403 lm/m | G | 68 lm/W | 326.6 lm/m | G |
| 3000 K | 109.3 lm/W | 524.9 lm/m | F | 88.4 lm/W | 424.1 lm/m | F | 71.9 lm/W | 344.9 lm/m | G |
| 3500 K | 111.1 lm/W | 533.1 lm/m | E | 89.9 lm/W | 431.7 lm/m | F | 74 lm/W | 355.3 lm/m | G |
| 4000 K | 114.6 lm/W | 550.1 lm/m | E | 92.1 lm/W | 442.1 lm/m | F | 76 lm/W | 364.9 lm/m | G |
| 5000 K | 114.5 lm/W | 549.6 lm/m | E | 92 lm/W | 441.8 lm/m | F | — | — | — |
| 6500 K | 104.5 lm/W | 501.7 lm/m | F | 88.3 lm/W | 423.8 lm/m | F | — | — | — |
