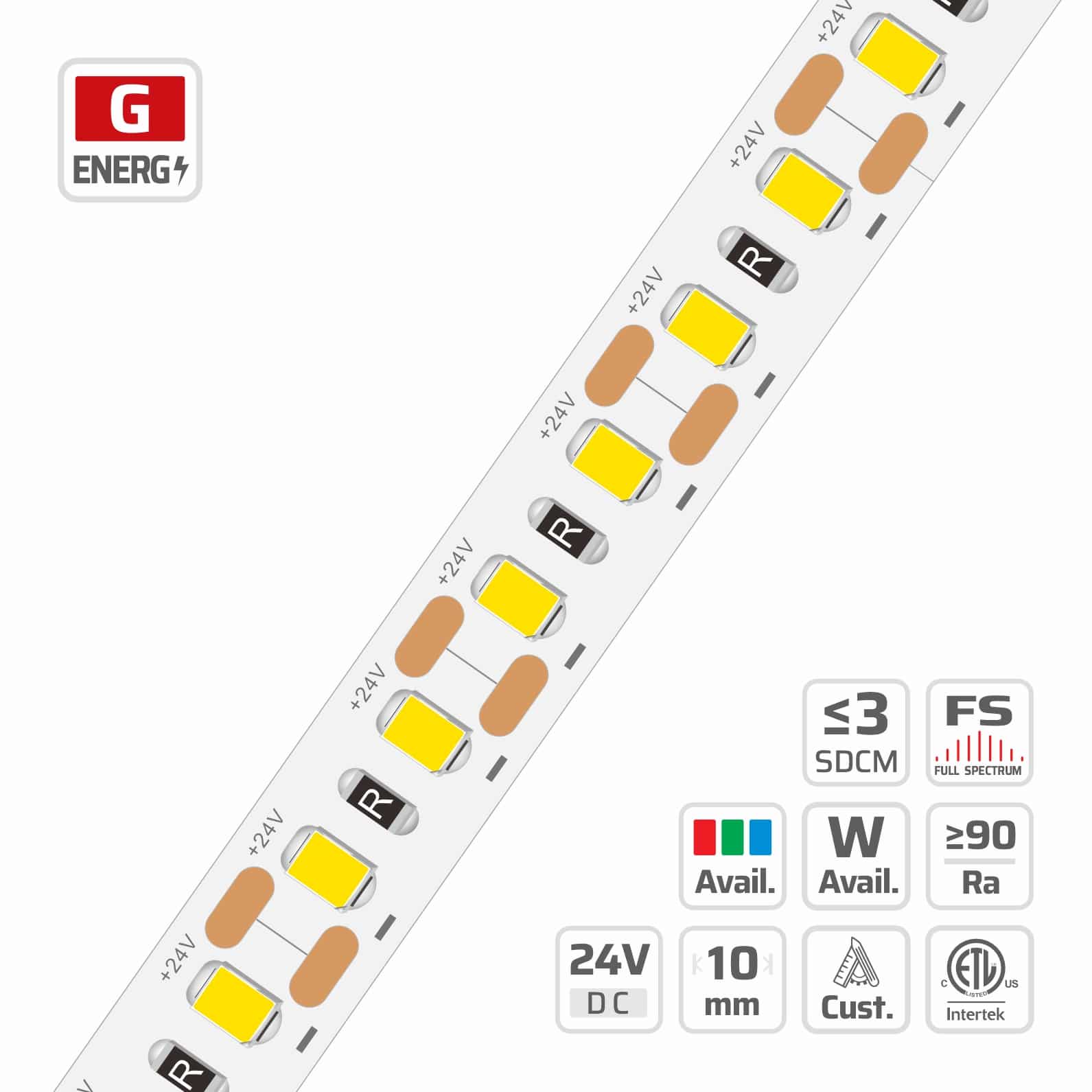

2835 Classic LED Strip Light (#2065)
10mm · 24V · 120LEDs · 16.66mm/cut
Model: 2065
Overview
10mm | 24V | 120LEDs | 16.66mm/cut | #2065 | 2835 Classic LED Strip Light is part of the DENO Micro-Cut SMD Strips series, engineered around micro cut LED strip. Key specifications: 2835, 120LEDs/m, DC 24V, 10 mm PCB, 3oz copper FPCB, cuttable 2LEDs/16.66mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
This 2835 LED strip light features a 10mm 3oz copper PCB engineered for superior heat dissipation in architectural lighting installations. Operating on a constant voltage DC 24V circuit, the flexible strip provides short 16.66mm cut points with two LEDs per unit. Delivering an energy efficiency of up to 78 lm/W, the 120 LEDs per meter layout ensures uniform output across a 120 degree beam angle. Continuous 5m run lengths maintain uniform illumination without brightness drop while supporting full dimming capabilities for tailored intensity control. Optimized for wholesale project supply, this low voltage lighting solution performs reliably across ambient operating temperatures ranging from -25°C to 40°C.
We use 99.99% gold wire, large-size chips, and thickened FPCB, backed by a 5-year warranty.
Specifications
| LED QTY | 120LEDs/m |
|---|---|
| PART NO | DL-F28A60V24-2065-* |
| SMD TYPE | 2835 |
| CUTTABLE UNIT | 2LEDs/16.66mm |
| DIMMABLE | Yes |
| IP RATING | IP20 |
| LED PITCH | 8.33mm |
| PCB WIDTH | 10 mm |
| BEAM ANGLE | 120° |
| RUN LENGTH | 5m |
| COPPER FOIL | 3oz |
| ON OFF TIMES | 10000（test times） |
| POWER RANGE | 7.2~24W |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | DC 24V |
| MIN BEND DIAMETER | Φ60mm |
| OPERATING TEMPERATURE | -25~40°C;Tc：75°C（max） |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
Recommended accessories & compatible parts
- DL-1003 — 19.1x8mm Surface Mount LED Channel — Dotless Aluminum Profile for 240 LEDs/m Strip: Accepts LED strips up to 10mm wide.
- DL-1103-1 — 16x13mm Surface Mount LED Channel — Aluminum Profile for 10mm LED Strip: Accepts LED strips up to 10mm wide.
- DL-1510 HX-F — 15x9.9mm Recessed LED Channel with Flange — Flush Mount Aluminum Profile: Accepts LED strips up to 10mm wide.
- DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.
Request a quotation for #2065
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 91.4 lm/W at 4000K, Ra 80, ErP energy class G (Grade DN (1st Tier) · 7.2W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 7.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 57.5 lm/W | 413.8 lm/m | G | 45.4 lm/W | 327 lm/m | G | — | — | — |
| 2300 K | 63.9 lm/W | 460.1 lm/m | G | 50.6 lm/W | 364.4 lm/m | G | 41 lm/W | 295.2 lm/m | G |
| 2700 K | 66 lm/W | 475.1 lm/m | G | 54.8 lm/W | 394.3 lm/m | G | 44.4 lm/W | 319.5 lm/m | G |
| 3000 K | 71.9 lm/W | 517.8 lm/m | G | 57.7 lm/W | 415.3 lm/m | G | 46.9 lm/W | 337.4 lm/m | G |
| 3500 K | 73.2 lm/W | 526.7 lm/m | G | 58.6 lm/W | 422 lm/m | G | 48.3 lm/W | 347.9 lm/m | G |
| 4000 K | 75.4 lm/W | 543.2 lm/m | G | 60.1 lm/W | 432.5 lm/m | G | 49.6 lm/W | 356.9 lm/m | G |
| 5000 K | 75.4 lm/W | 543.2 lm/m | G | 60.1 lm/W | 432.5 lm/m | G | 49.6 lm/W | 357.1 lm/m | G |
| 6500 K | 68.4 lm/W | 492.3 lm/m | G | 57.6 lm/W | 414.5 lm/m | G | 47.8 lm/W | 344.2 lm/m | G |
Grade DL (2nd Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 54.6 lm/W | 786.7 lm/m | G | 43.2 lm/W | 621.7 lm/m | G | — | — | — |
| 2300 K | 60.8 lm/W | 874.9 lm/m | G | 48.1 lm/W | 692.8 lm/m | G | 39 lm/W | 561.6 lm/m | G |
| 2700 K | 62.7 lm/W | 903.4 lm/m | G | 52.1 lm/W | 749.7 lm/m | G | 42.2 lm/W | 607.5 lm/m | G |
| 3000 K | 68.4 lm/W | 984.4 lm/m | G | 54.8 lm/W | 789.5 lm/m | G | 44.6 lm/W | 641.6 lm/m | G |
| 3500 K | 69.5 lm/W | 1001.5 lm/m | G | 55.7 lm/W | 802.3 lm/m | G | 45.9 lm/W | 661.5 lm/m | G |
| 4000 K | 71.7 lm/W | 1032.8 lm/m | G | 57.1 lm/W | 822.3 lm/m | G | 47.1 lm/W | 678.6 lm/m | G |
| 5000 K | 71.7 lm/W | 1032.8 lm/m | G | 57.1 lm/W | 822.3 lm/m | G | 47.1 lm/W | 678.2 lm/m | G |
| 6500 K | 65 lm/W | 936.1 lm/m | G | 54.7 lm/W | 788.1 lm/m | G | 45.4 lm/W | 653.8 lm/m | G |
Grade DL (2nd Tier) · 21.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 51.9 lm/W | 1121.9 lm/m | G | 41 lm/W | 886.5 lm/m | G | — | — | — |
| 2300 K | 57.8 lm/W | 1247.6 lm/m | G | 45.7 lm/W | 988 lm/m | G | 37 lm/W | 799.2 lm/m | G |
| 2700 K | 59.6 lm/W | 1288.2 lm/m | G | 49.5 lm/W | 1069.1 lm/m | G | 40.1 lm/W | 866.2 lm/m | G |
| 3000 K | 65 lm/W | 1403.8 lm/m | G | 52.1 lm/W | 1125.9 lm/m | G | 42.4 lm/W | 914.9 lm/m | G |
| 3500 K | 66.1 lm/W | 1428.2 lm/m | G | 53 lm/W | 1144.2 lm/m | G | 43.7 lm/W | 943.3 lm/m | G |
| 4000 K | 68.2 lm/W | 1472.8 lm/m | G | 54.3 lm/W | 1172.6 lm/m | G | 44.8 lm/W | 967.7 lm/m | G |
| 5000 K | 68.2 lm/W | 1472.8 lm/m | G | 54.3 lm/W | 1172.6 lm/m | G | 44.8 lm/W | 967.7 lm/m | G |
| 6500 K | 61.8 lm/W | 1334.9 lm/m | G | 52 lm/W | 1123.9 lm/m | G | 43.2 lm/W | 933.1 lm/m | G |
Grade KE (3rd Tier) · 7.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 36.9 lm/W | 265.6 lm/m | G | 28.8 lm/W | 207.3 lm/m | G | — | — | — |
| 2300 K | 41.2 lm/W | 296.3 lm/m | G | 32.1 lm/W | 231.2 lm/m | G | 26 lm/W | 187.2 lm/m | G |
| 2700 K | 44.4 lm/W | 319.5 lm/m | G | 34.7 lm/W | 249.9 lm/m | G | 28.2 lm/W | 202.8 lm/m | G |
| 3000 K | 46.6 lm/W | 335.2 lm/m | G | 36.9 lm/W | 265.6 lm/m | G | 30 lm/W | 216.2 lm/m | G |
| 3500 K | 47.3 lm/W | 340.4 lm/m | G | 37.6 lm/W | 270.8 lm/m | G | 31 lm/W | 223 lm/m | G |
| 4000 K | 48.6 lm/W | 350.2 lm/m | G | 38.4 lm/W | 276.8 lm/m | G | 31.7 lm/W | 228.2 lm/m | G |
| 5000 K | 48.5 lm/W | 349.4 lm/m | G | 38.4 lm/W | 276.8 lm/m | G | 31.7 lm/W | 228.2 lm/m | G |
| 6500 K | 46.6 lm/W | 335.2 lm/m | G | 36.9 lm/W | 265.6 lm/m | G | 30.6 lm/W | 220.3 lm/m | G |
Grade KE (3rd Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 35.1 lm/W | 505 lm/m | G | 27.4 lm/W | 394.1 lm/m | G | — | — | — |
| 2300 K | 39.1 lm/W | 563.4 lm/m | G | 30.5 lm/W | 439.6 lm/m | G | 24.7 lm/W | 355.7 lm/m | G |
| 2700 K | 42.2 lm/W | 607.5 lm/m | G | 33 lm/W | 475.2 lm/m | G | 26.8 lm/W | 385.5 lm/m | G |
| 3000 K | 44.3 lm/W | 637.3 lm/m | G | 35.1 lm/W | 505 lm/m | G | 28.6 lm/W | 411.1 lm/m | G |
| 3500 K | 45 lm/W | 647.3 lm/m | G | 35.8 lm/W | 515 lm/m | G | 29.4 lm/W | 423.9 lm/m | G |
| 4000 K | 46.2 lm/W | 665.8 lm/m | G | 36.6 lm/W | 526.4 lm/m | G | 30.1 lm/W | 433.9 lm/m | G |
| 5000 K | 46.1 lm/W | 664.4 lm/m | G | 36.6 lm/W | 526.4 lm/m | G | 30.2 lm/W | 434.9 lm/m | G |
| 6500 K | 44.3 lm/W | 637.3 lm/m | G | 35.1 lm/W | 505 lm/m | G | 29.1 lm/W | 419 lm/m | G |
Grade KE (3rd Tier) · 21.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 33.3 lm/W | 720.2 lm/m | G | 26 lm/W | 561.9 lm/m | G | — | — | — |
| 2300 K | 37.2 lm/W | 803.4 lm/m | G | 29 lm/W | 626.9 lm/m | G | 23.5 lm/W | 507.6 lm/m | G |
| 2700 K | 40.1 lm/W | 866.2 lm/m | G | 31.4 lm/W | 677.6 lm/m | G | 25.5 lm/W | 549.8 lm/m | G |
| 3000 K | 42.1 lm/W | 908.8 lm/m | G | 33.3 lm/W | 720.2 lm/m | G | 27.1 lm/W | 586.3 lm/m | G |
| 3500 K | 42.7 lm/W | 923 lm/m | G | 34 lm/W | 734.4 lm/m | G | 28 lm/W | 604.5 lm/m | G |
| 4000 K | 44 lm/W | 949.4 lm/m | G | 34.8 lm/W | 750.6 lm/m | G | 28.6 lm/W | 618.7 lm/m | G |
| 5000 K | 43.9 lm/W | 947.4 lm/m | G | 34.8 lm/W | 750.6 lm/m | G | 28.7 lm/W | 619.9 lm/m | G |
| 6500 K | 42.1 lm/W | 908.8 lm/m | G | 33.3 lm/W | 720.2 lm/m | G | 27.7 lm/W | 598.3 lm/m | G |
Grade DN (1st Tier) · 7.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 71.7 lm/W | 516.3 lm/m | G | 59.9 lm/W | 431 lm/m | G | — | — | — |
| 2300 K | 78.1 lm/W | 562.6 lm/m | G | 66.8 lm/W | 481.1 lm/m | G | 54.1 lm/W | 389.5 lm/m | G |
| 2700 K | 84.3 lm/W | 606.8 lm/m | G | 72.2 lm/W | 520 lm/m | G | 58.5 lm/W | 421.2 lm/m | G |
| 3000 K | 88.5 lm/W | 637.5 lm/m | G | 76.4 lm/W | 549.9 lm/m | G | 62.1 lm/W | 447.4 lm/m | G |
| 3500 K | 89.8 lm/W | 646.4 lm/m | G | 78 lm/W | 561.9 lm/m | G | 64.2 lm/W | 462.4 lm/m | G |
| 4000 K | 91.4 lm/W | 658.4 lm/m | G | 78.5 lm/W | 564.9 lm/m | G | 64.7 lm/W | 466.1 lm/m | G |
| 5000 K | 91.3 lm/W | 657.7 lm/m | G | 79 lm/W | 568.6 lm/m | G | 65.2 lm/W | 469.4 lm/m | G |
| 6500 K | 87.6 lm/W | 630.7 lm/m | G | 75.4 lm/W | 543.2 lm/m | G | 62.6 lm/W | 450.7 lm/m | G |
Grade DN (1st Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 68.2 lm/W | 981.6 lm/m | G | 56.9 lm/W | 819.4 lm/m | G | — | — | — |
| 2300 K | 74.3 lm/W | 1069.8 lm/m | G | 63.5 lm/W | 914.7 lm/m | G | 51.5 lm/W | 741.6 lm/m | G |
| 2700 K | 80.1 lm/W | 1153.7 lm/m | G | 68.7 lm/W | 988.7 lm/m | G | 55.6 lm/W | 800.9 lm/m | G |
| 3000 K | 84.2 lm/W | 1212.1 lm/m | G | 72.6 lm/W | 1045.6 lm/m | G | 59.1 lm/W | 850.7 lm/m | G |
| 3500 K | 85.4 lm/W | 1229.1 lm/m | G | 74.2 lm/W | 1068.4 lm/m | G | 61.1 lm/W | 879.2 lm/m | G |
| 4000 K | 86.9 lm/W | 1251.9 lm/m | G | 74.6 lm/W | 1074.1 lm/m | G | 61.5 lm/W | 886.3 lm/m | G |
| 5000 K | 86.8 lm/W | 1250.5 lm/m | G | 75.1 lm/W | 1081.2 lm/m | G | 61.9 lm/W | 891.4 lm/m | G |
| 6500 K | 83.3 lm/W | 1199.3 lm/m | G | 71.7 lm/W | 1032.8 lm/m | G | 59.5 lm/W | 856.8 lm/m | G |
Grade DN (1st Tier) · 21.6W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 64.8 lm/W | 1399.8 lm/m | G | 54.1 lm/W | 1168.5 lm/m | G | — | — | — |
| 2300 K | 70.6 lm/W | 1525.6 lm/m | G | 60.4 lm/W | 1304.4 lm/m | G | 48.9 lm/W | 1056.2 lm/m | G |
| 2700 K | 76.2 lm/W | 1645.2 lm/m | G | 65.3 lm/W | 1409.9 lm/m | G | 52.9 lm/W | 1142.1 lm/m | G |
| 3000 K | 80 lm/W | 1728.4 lm/m | G | 69 lm/W | 1491.1 lm/m | G | 56.2 lm/W | 1213.1 lm/m | G |
| 3500 K | 81.1 lm/W | 1752.8 lm/m | G | 70.5 lm/W | 1523.5 lm/m | G | 58 lm/W | 1253.7 lm/m | G |
| 4000 K | 82.6 lm/W | 1785.2 lm/m | G | 70.9 lm/W | 1531.6 lm/m | G | 58.5 lm/W | 1263.9 lm/m | G |
| 5000 K | 82.6 lm/W | 1783.2 lm/m | G | 71.4 lm/W | 1541.8 lm/m | G | 58.9 lm/W | 1272.2 lm/m | G |
| 6500 K | 79.2 lm/W | 1710.2 lm/m | G | 68.2 lm/W | 1472.8 lm/m | G | 56.6 lm/W | 1222.6 lm/m | G |
High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide
At up to 21.6W/m, 2065 is a high-power SMD LED strip. Above roughly 14.4W/m the tape can no longer shed its own heat through the FPC alone — an aluminum channel is part of the luminaire, not an accessory.
Why high-wattage strips need a heat sink
- Aluminum conducts heat roughly 30× faster than the plastics, MDF or gypsum a strip is usually stuck to, so a bare high-power run traps heat under the tape.
- LED lifetime (LM-80 / TM-21) is driven by solder-point temperature Tc. Keeping Tc inside the datasheet limit — DENO strips are rated Tc ≤ 75°C — is what preserves the rated L70 lifetime and colour stability.
- Never run 14.4W/m or more coiled on the reel, inside a sealed plastic diffuser, or directly on wood, wallpaper or foam.
Sizing rule: FPC width vs channel inner width
- Channel inner width ≥ FPC width + 2mm. This strip is 10mm wide, so it needs at least 12mm of inner width.
- The 2mm clearance absorbs extrusion tolerance and lets the tape be seated or replaced without scraping the side walls or the wiring.
- A frosted or opal PC cover then diffuses the higher lumen output into an even, dot-free line instead of visible hot spots.
Aluminum channels that fit this strip
- 22x12mm Recessed LED Channel with Flange · fits ≤10mm strip
- 20x15mm Wide Surface Mount LED Channel · fits ≤10mm strip
- 17x15mm Surface Mount LED Channel · fits ≤10mm strip
- 15x15mm Magnetic LED Channel · fits ≤10mm strip
- 19.1x8mm Surface Mount LED Channel · fits ≤10mm strip
- 15x15mm 48V Surface Mount LED Channel · fits ≤10mm strip
Recommended LED Channels
Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.
This strip is 10mm wide, so it needs a channel with at least 12mm inner width (10mm + 2mm clearance). Every profile below meets that.
Related models in this series
- 2216 High Density Micro-Cut LED Strip Light (#4831)
- 2216 Micro-Cut RGB LED Strip Light (#14840)
- 2216 High-Density Micro-SMD LED Strip Light (#14157-N)
See every model in SMD LED Strip Series or narrow to Micro Cut. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 2065?
2065: 2835, 120LEDs/m, DC 24V, 10 mm PCB, 3oz copper FPCB, cuttable 2LEDs/16.66mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
What makes the construction of this micro cut LED strip different?
It is built as a micro cut LED strip on 3oz copper FPCB with a cutting unit of 2LEDs/16.66mm and an LED pitch of 8.33mm, so it holds its electrical and mechanical performance where standard strips fail.
Can DENO customise this micro cut LED strip for a project?
Yes. DENO manufactures the Micro-Cut SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
How short can you cut a micro-cut LED strip?
Cut points come as close as 12.5 mm, against 50 to 100 mm on a conventional cuttable LED strip. Short segments matter in cabinets, stair nosings, signage letters and display cases where a standard cut interval would leave a dark gap at the end of the run.
Which SMD LED strip density should you specify?
For general cove and shelf lighting, 120 LEDs/m on a 24V LED strip is the usual baseline. Move to 180 or 240 LEDs/m when the strip sits close to a diffuser or is seen at a shallow angle, since higher density is what removes visible dots on a 2835 LED strip.
