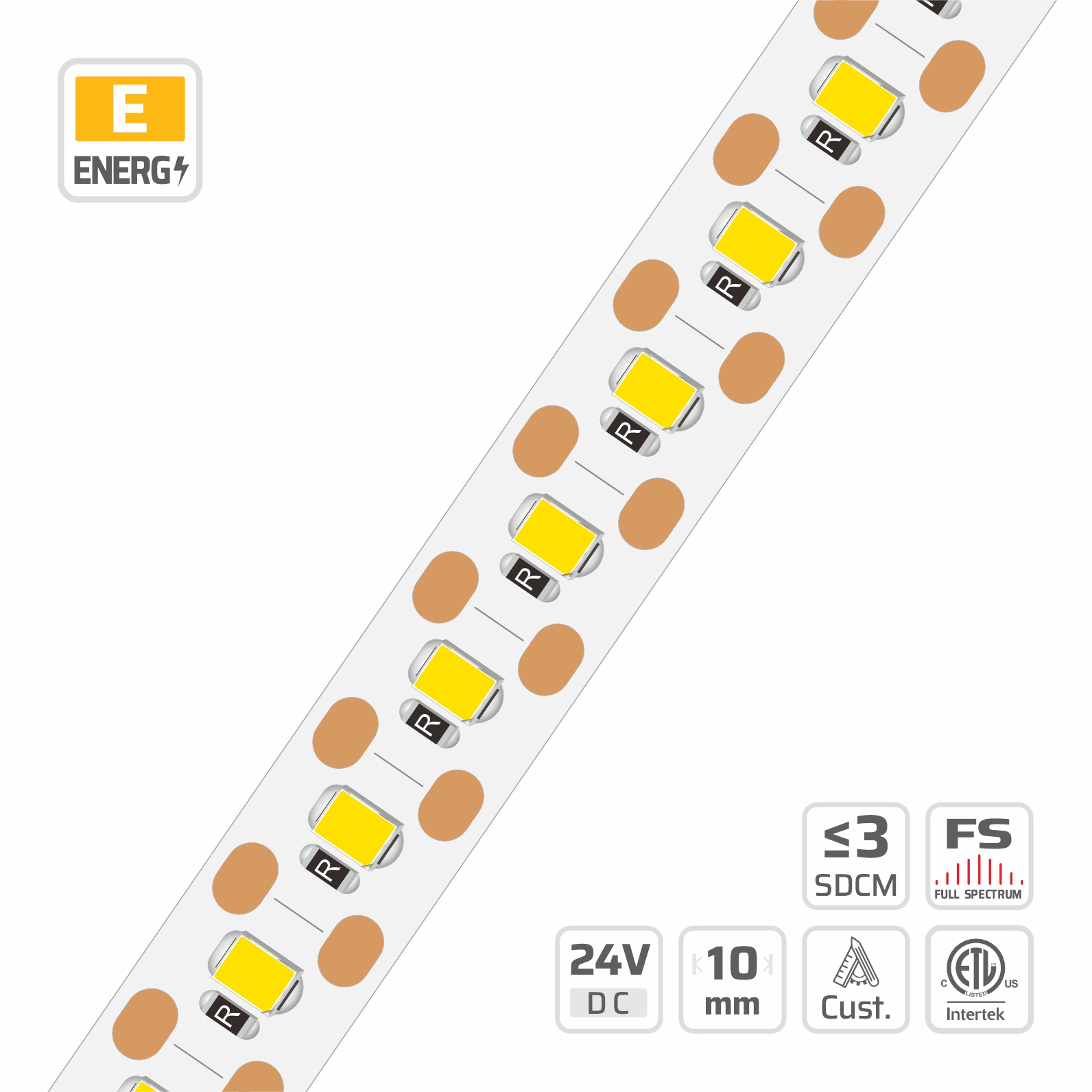

2835 Micro-Cut LED Strip Light (#2063)
10mm · 24V · 120LEDs · 8.3mm/cut
Model: 2063
Overview
10mm | 24V | 120LEDs | 8.3mm/cut | #2063 | 2835 Micro-Cut LED Strip Light is part of the DENO Micro-Cut SMD Strips series, engineered around micro cut LED strip. Key specifications: 2835, 120 LEDs/m, DC 24V, 10mm PCB, 3oz copper FPCB, cuttable 1LED/8.33mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
Engineered with a precise single-LED micro-cut interval of 8.33mm, this 2835 LED strip light ensures exact sizing for bespoke cabinet lighting. The robust 10mm PCB utilizes 3oz copper foil and a constant voltage 24V DC circuit design to support reliable thermal management. Premium SMD 2835 diodes feature 99.9% purity gold wire encapsulation and pure copper frames to minimize component damage across installations. This fully dimmable linear module outputs a wide 120-degree beam angle across continuous runs of up to 5 meters. Featuring high-density 120 LEDs per meter, our factory provides wholesale project supply and OEM custom configurations for professional contractors.
We use 99.99% gold wire, large-size chips, and thickened FPCB, backed by a 5-year warranty.
Specifications
| LED QTY | 120 LEDs/m |
|---|---|
| PART NO | DL-F28A60V24-2063-* |
| SMD TYPE | 2835 |
| CUTTABLE UNIT | 1LED/8.33mm |
| DIMMABLE | Yes |
| IP RATING | IP20 |
| LED PITCH | 8.3mm |
| PCB WIDTH | 10mm |
| BEAM ANGLE | 120° |
| RUN LENGTH | 5m |
| COPPER FOIL | 3oz |
| POWER RANGE | 4.8~28.8W |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | DC 24V |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
Recommended accessories & compatible parts
- DL-1003 — 19.1x8mm Surface Mount LED Channel — Dotless Aluminum Profile for 240 LEDs/m Strip: Accepts LED strips up to 10mm wide.
- DL-1103-1 — 16x13mm Surface Mount LED Channel — Aluminum Profile for 10mm LED Strip: Accepts LED strips up to 10mm wide.
- DL-1510 HX-F — 15x9.9mm Recessed LED Channel with Flange — Flush Mount Aluminum Profile: Accepts LED strips up to 10mm wide.
- DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.
Request a quotation for #2063
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 195.2 lm/W at 4000K, Ra 80, ErP energy class C (Grade DN (1st Tier) · 7W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 7W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 142.8 lm/W | 999.7 lm/m | D | 114.6 lm/W | 802.1 lm/m | E | — | — | — |
| 2300 K | 159 lm/W | 1113.2 lm/m | D | 127.6 lm/W | 893.5 lm/m | E | 103.4 lm/W | 723.8 lm/m | F |
| 2700 K | 168.2 lm/W | 1177.4 lm/m | C | 138.2 lm/W | 967.3 lm/m | D | 112 lm/W | 783.7 lm/m | E |
| 3000 K | 179 lm/W | 1253.3 lm/m | C | 145.3 lm/W | 1017.4 lm/m | D | 118.3 lm/W | 827.9 lm/m | E |
| 3500 K | 181.7 lm/W | 1271.7 lm/m | C | 148 lm/W | 1035.8 lm/m | D | 121.8 lm/W | 852.3 lm/m | E |
| 4000 K | 187.5 lm/W | 1312.3 lm/m | B | 151.6 lm/W | 1060.9 lm/m | D | 125.1 lm/W | 875.8 lm/m | E |
| 5000 K | 187.3 lm/W | 1310.8 lm/m | B | 151.5 lm/W | 1060.2 lm/m | D | 124.9 lm/W | 874.3 lm/m | E |
| 6500 K | 171.7 lm/W | 1201.7 lm/m | C | 145.3 lm/W | 1017.4 lm/m | D | 120.6 lm/W | 844.2 lm/m | E |
Grade DL (2nd Tier) · 10W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 139.8 lm/W | 1398.4 lm/m | D | 112.2 lm/W | 1122 lm/m | E | — | — | — |
| 2300 K | 155.7 lm/W | 1557.2 lm/m | D | 125 lm/W | 1249.9 lm/m | E | 101.2 lm/W | 1012 lm/m | F |
| 2700 K | 164.7 lm/W | 1646.9 lm/m | C | 135.3 lm/W | 1353 lm/m | D | 109.6 lm/W | 1096.2 lm/m | F |
| 3000 K | 175.3 lm/W | 1753.1 lm/m | C | 142.3 lm/W | 1423.1 lm/m | D | 115.8 lm/W | 1158.1 lm/m | E |
| 3500 K | 177.9 lm/W | 1778.9 lm/m | C | 144.9 lm/W | 1448.9 lm/m | D | 119.2 lm/W | 1192.1 lm/m | E |
| 4000 K | 183.6 lm/W | 1835.6 lm/m | C | 148.4 lm/W | 1484 lm/m | D | 122.5 lm/W | 1225.1 lm/m | E |
| 5000 K | 183.4 lm/W | 1833.6 lm/m | C | 148.3 lm/W | 1482.9 lm/m | D | 122.3 lm/W | 1223 lm/m | E |
| 6500 K | 168.1 lm/W | 1680.9 lm/m | C | 142.3 lm/W | 1423.1 lm/m | D | 118.1 lm/W | 1181 lm/m | E |
Grade DL (2nd Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 135.6 lm/W | 1952.4 lm/m | D | 108.8 lm/W | 1566.5 lm/m | F | — | — | — |
| 2300 K | 151 lm/W | 2174.1 lm/m | D | 121.2 lm/W | 1745 lm/m | E | 98.2 lm/W | 1414.1 lm/m | F |
| 2700 K | 159.7 lm/W | 2299.4 lm/m | D | 131.2 lm/W | 1889 lm/m | E | 106.3 lm/W | 1530.5 lm/m | F |
| 3000 K | 170 lm/W | 2447.7 lm/m | C | 138 lm/W | 1986.9 lm/m | D | 112.3 lm/W | 1616.9 lm/m | E |
| 3500 K | 172.5 lm/W | 2483.7 lm/m | C | 140.5 lm/W | 2022.9 lm/m | D | 115.6 lm/W | 1664.4 lm/m | E |
| 4000 K | 178 lm/W | 2562.8 lm/m | C | 143.9 lm/W | 2071.9 lm/m | D | 118.8 lm/W | 1710.5 lm/m | E |
| 5000 K | 177.8 lm/W | 2560 lm/m | C | 143.8 lm/W | 2070.4 lm/m | D | 118.6 lm/W | 1707.8 lm/m | E |
| 6500 K | 163 lm/W | 2346.9 lm/m | C | 138 lm/W | 1986.9 lm/m | D | 114.5 lm/W | 1648.8 lm/m | E |
Grade DL (2nd Tier) · 21W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 129.4 lm/W | 2718.2 lm/m | E | 103.9 lm/W | 2181 lm/m | F | — | — | — |
| 2300 K | 144.1 lm/W | 3026.9 lm/m | D | 115.7 lm/W | 2429.6 lm/m | E | 93.7 lm/W | 1967.7 lm/m | F |
| 2700 K | 152.4 lm/W | 3201.3 lm/m | D | 125.2 lm/W | 2630 lm/m | E | 101.5 lm/W | 2130.9 lm/m | F |
| 3000 K | 162.3 lm/W | 3407.8 lm/m | C | 131.7 lm/W | 2766.3 lm/m | E | 107.2 lm/W | 2251.1 lm/m | F |
| 3500 K | 164.7 lm/W | 3457.9 lm/m | C | 134.1 lm/W | 2816.4 lm/m | E | 110.3 lm/W | 2317.3 lm/m | E |
| 4000 K | 169.9 lm/W | 3568.2 lm/m | C | 137.4 lm/W | 2884.6 lm/m | D | 113.4 lm/W | 2381.4 lm/m | E |
| 5000 K | 169.7 lm/W | 3564.1 lm/m | C | 137.3 lm/W | 2882.6 lm/m | D | 113.2 lm/W | 2377.2 lm/m | E |
| 6500 K | 155.6 lm/W | 3267.5 lm/m | D | 131.7 lm/W | 2766.3 lm/m | E | 109.3 lm/W | 2295.3 lm/m | F |
Grade DN (1st Tier) · 7W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 152.9 lm/W | 1070.5 lm/m | D | 128.9 lm/W | 902.4 lm/m | E | — | — | — |
| 2300 K | 166.7 lm/W | 1167.1 lm/m | D | 143.9 lm/W | 1007.1 lm/m | E | 116.5 lm/W | 815.5 lm/m | F |
| 2700 K | 179.7 lm/W | 1257.7 lm/m | C | 155.7 lm/W | 1089.6 lm/m | D | 126.2 lm/W | 883.2 lm/m | E |
| 3000 K | 188.7 lm/W | 1321.1 lm/m | C | 164.3 lm/W | 1150.1 lm/m | D | 133.7 lm/W | 935.6 lm/m | E |
| 3500 K | 191.6 lm/W | 1341.1 lm/m | C | 167.9 lm/W | 1175.2 lm/m | D | 138.2 lm/W | 967.3 lm/m | E |
| 4000 K | 195.2 lm/W | 1366.1 lm/m | C | 168.8 lm/W | 1181.8 lm/m | D | 139.3 lm/W | 975.4 lm/m | E |
| 5000 K | 194.8 lm/W | 1363.9 lm/m | C | 169.9 lm/W | 1189.2 lm/m | D | 140.2 lm/W | 981.4 lm/m | E |
| 6500 K | 186.8 lm/W | 1307.9 lm/m | C | 162.4 lm/W | 1136.8 lm/m | D | 134.8 lm/W | 943.6 lm/m | E |
Grade DN (1st Tier) · 10W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 149.7 lm/W | 1497.4 lm/m | D | 126.2 lm/W | 1262.2 lm/m | E | — | — | — |
| 2300 K | 163.2 lm/W | 1632.5 lm/m | D | 140.9 lm/W | 1408.7 lm/m | E | 114.1 lm/W | 1141 lm/m | F |
| 2700 K | 175.9 lm/W | 1759.3 lm/m | C | 152.4 lm/W | 1524.2 lm/m | D | 123.5 lm/W | 1235.4 lm/m | E |
| 3000 K | 184.8 lm/W | 1848 lm/m | C | 160.9 lm/W | 1608.7 lm/m | D | 130.9 lm/W | 1308.7 lm/m | E |
| 3500 K | 187.6 lm/W | 1875.8 lm/m | C | 164.4 lm/W | 1643.8 lm/m | D | 135.3 lm/W | 1353 lm/m | E |
| 4000 K | 191.1 lm/W | 1910.9 lm/m | C | 165.3 lm/W | 1653.1 lm/m | D | 136.4 lm/W | 1364.3 lm/m | E |
| 5000 K | 190.8 lm/W | 1907.8 lm/m | C | 166.3 lm/W | 1663.4 lm/m | D | 137.2 lm/W | 1372 lm/m | E |
| 6500 K | 182.9 lm/W | 1829.4 lm/m | C | 159 lm/W | 1590.2 lm/m | D | 132 lm/W | 1320 lm/m | E |
Grade DN (1st Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 145.2 lm/W | 2090.6 lm/m | E | 122.4 lm/W | 1762.3 lm/m | E | — | — | — |
| 2300 K | 158.3 lm/W | 2279.2 lm/m | D | 136.6 lm/W | 1966.8 lm/m | E | 110.6 lm/W | 1592.6 lm/m | F |
| 2700 K | 170.6 lm/W | 2456.3 lm/m | D | 147.8 lm/W | 2128 lm/m | D | 119.8 lm/W | 1724.9 lm/m | E |
| 3000 K | 179.2 lm/W | 2580.1 lm/m | C | 156 lm/W | 2246.1 lm/m | D | 126.9 lm/W | 1827.1 lm/m | E |
| 3500 K | 181.9 lm/W | 2619 lm/m | C | 159.4 lm/W | 2295 lm/m | D | 131.2 lm/W | 1889 lm/m | E |
| 4000 K | 185.3 lm/W | 2667.9 lm/m | C | 160.3 lm/W | 2308 lm/m | D | 132.3 lm/W | 1904.9 lm/m | E |
| 5000 K | 185 lm/W | 2663.6 lm/m | C | 161.3 lm/W | 2322.4 lm/m | D | 133.1 lm/W | 1916.6 lm/m | E |
| 6500 K | 177.4 lm/W | 2554.2 lm/m | C | 154.2 lm/W | 2220.2 lm/m | D | 128 lm/W | 1843.2 lm/m | E |
Grade DN (1st Tier) · 21W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | 138.6 lm/W | 2910.6 lm/m | E | 116.8 lm/W | 2453.6 lm/m | F | — | — | — |
| 2300 K | 151.1 lm/W | 3173.2 lm/m | D | 130.4 lm/W | 2738.3 lm/m | E | 105.6 lm/W | 2217.6 lm/m | F |
| 2700 K | 162.8 lm/W | 3419.8 lm/m | D | 141.1 lm/W | 2962.8 lm/m | E | 114.4 lm/W | 2401.5 lm/m | F |
| 3000 K | 171.1 lm/W | 3592.2 lm/m | D | 148.9 lm/W | 3127.1 lm/m | D | 121.1 lm/W | 2543.8 lm/m | E |
| 3500 K | 173.6 lm/W | 3646.3 lm/m | C | 152.2 lm/W | 3195.3 lm/m | D | 125.2 lm/W | 2630 lm/m | E |
| 4000 K | 176.9 lm/W | 3714.5 lm/m | C | 153 lm/W | 3213.3 lm/m | D | 126.3 lm/W | 2652.1 lm/m | E |
| 5000 K | 176.6 lm/W | 3708.5 lm/m | C | 154 lm/W | 3233.4 lm/m | D | 127 lm/W | 2667 lm/m | E |
| 6500 K | 169.3 lm/W | 3556.1 lm/m | D | 147.2 lm/W | 3091.1 lm/m | D | 122.2 lm/W | 2566.2 lm/m | E |
Grade KE (3rd Tier) · 7W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 121.4 lm/W | 850 lm/m | E | 97.3 lm/W | 681.2 lm/m | F | — | — | — |
| 2300 K | 135.3 lm/W | 947.4 lm/m | D | 108.4 lm/W | 758.6 lm/m | F | 87.8 lm/W | 614.6 lm/m | F |
| 2700 K | 145.9 lm/W | 1021.1 lm/m | D | 117.6 lm/W | 823.5 lm/m | E | 95.3 lm/W | 667.2 lm/m | F |
| 3000 K | 153.2 lm/W | 1072.7 lm/m | D | 124.3 lm/W | 870 lm/m | E | 101.1 lm/W | 707.8 lm/m | F |
| 3500 K | 155.6 lm/W | 1088.9 lm/m | D | 126.7 lm/W | 886.9 lm/m | E | 104.3 lm/W | 729.9 lm/m | F |
| 4000 K | 160.1 lm/W | 1120.6 lm/m | C | 129.4 lm/W | 906.1 lm/m | E | 106.8 lm/W | 747.6 lm/m | F |
| 5000 K | 159.9 lm/W | 1119.1 lm/m | D | 129.4 lm/W | 906.1 lm/m | E | 106.8 lm/W | 747.6 lm/m | F |
| 6500 K | 153.2 lm/W | 1072.7 lm/m | D | 124.3 lm/W | 870 lm/m | E | 103.2 lm/W | 722.4 lm/m | F |
Grade KE (3rd Tier) · 10W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 118.9 lm/W | 1189 lm/m | E | 95.3 lm/W | 952.9 lm/m | F | — | — | — |
| 2300 K | 132.5 lm/W | 1325.2 lm/m | E | 106.1 lm/W | 1061.2 lm/m | F | 86 lm/W | 860 lm/m | F |
| 2700 K | 142.8 lm/W | 1428.3 lm/m | D | 115.2 lm/W | 1151.9 lm/m | E | 93.3 lm/W | 933.3 lm/m | F |
| 3000 K | 150 lm/W | 1500.5 lm/m | D | 121.7 lm/W | 1216.9 lm/m | E | 99 lm/W | 990 lm/m | F |
| 3500 K | 152.3 lm/W | 1523.2 lm/m | D | 124.1 lm/W | 1240.6 lm/m | E | 102.1 lm/W | 1020.9 lm/m | F |
| 4000 K | 156.7 lm/W | 1567.5 lm/m | D | 126.7 lm/W | 1267.4 lm/m | E | 104.6 lm/W | 1045.7 lm/m | F |
| 5000 K | 156.5 lm/W | 1565.4 lm/m | D | 126.7 lm/W | 1267.4 lm/m | E | 104.6 lm/W | 1046 lm/m | F |
| 6500 K | 150 lm/W | 1500.5 lm/m | D | 121.7 lm/W | 1216.9 lm/m | E | 101 lm/W | 1010 lm/m | F |
Grade KE (3rd Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 115.3 lm/W | 1660.1 lm/m | E | 92.4 lm/W | 1330.4 lm/m | F | — | — | — |
| 2300 K | 128.5 lm/W | 1850.1 lm/m | E | 102.9 lm/W | 1481.6 lm/m | F | 83.3 lm/W | 1199.5 lm/m | G |
| 2700 K | 138.5 lm/W | 1994.1 lm/m | D | 111.7 lm/W | 1608.3 lm/m | E | 90.5 lm/W | 1303 lm/m | F |
| 3000 K | 145.5 lm/W | 2094.9 lm/m | D | 118 lm/W | 1699 lm/m | E | 96 lm/W | 1382.2 lm/m | F |
| 3500 K | 147.7 lm/W | 2126.6 lm/m | D | 120.3 lm/W | 1732.1 lm/m | E | 99 lm/W | 1425.4 lm/m | F |
| 4000 K | 152 lm/W | 2188.5 lm/m | D | 122.9 lm/W | 1769.5 lm/m | E | 101.4 lm/W | 1460 lm/m | F |
| 5000 K | 151.8 lm/W | 2185.6 lm/m | D | 122.9 lm/W | 1769.5 lm/m | E | 101.4 lm/W | 1460.2 lm/m | F |
| 6500 K | 145.5 lm/W | 2094.9 lm/m | D | 118 lm/W | 1699 lm/m | E | 97.9 lm/W | 1409.8 lm/m | F |
Grade KE (3rd Tier) · 21W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1900 K | 110.1 lm/W | 2311.3 lm/m | E | 88.2 lm/W | 1852.2 lm/m | F | — | — | — |
| 2300 K | 122.7 lm/W | 2575.9 lm/m | E | 98.2 lm/W | 2062.7 lm/m | F | 79.6 lm/W | 1671.6 lm/m | G |
| 2700 K | 132.2 lm/W | 2776.3 lm/m | E | 106.6 lm/W | 2239.1 lm/m | F | 86.4 lm/W | 1814.1 lm/m | F |
| 3000 K | 138.9 lm/W | 2916.7 lm/m | D | 112.6 lm/W | 2365.4 lm/m | E | 91.6 lm/W | 1924.4 lm/m | F |
| 3500 K | 141 lm/W | 2960.8 lm/m | D | 114.8 lm/W | 2411.5 lm/m | E | 94.5 lm/W | 1984.5 lm/m | F |
| 4000 K | 145.1 lm/W | 3047 lm/m | D | 117.3 lm/W | 2463.6 lm/m | E | 96.8 lm/W | 2032.6 lm/m | F |
| 5000 K | 144.9 lm/W | 3043 lm/m | D | 117.3 lm/W | 2463.6 lm/m | E | 96.8 lm/W | 2032.8 lm/m | F |
| 6500 K | 138.9 lm/W | 2916.7 lm/m | D | 112.6 lm/W | 2365.4 lm/m | E | 93.5 lm/W | 1963.5 lm/m | F |
High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide
At up to 21W/m, 2063 is a high-power SMD LED strip. Above roughly 14.4W/m the tape can no longer shed its own heat through the FPC alone — an aluminum channel is part of the luminaire, not an accessory.
Why high-wattage strips need a heat sink
- Aluminum conducts heat roughly 30× faster than the plastics, MDF or gypsum a strip is usually stuck to, so a bare high-power run traps heat under the tape.
- LED lifetime (LM-80 / TM-21) is driven by solder-point temperature Tc. Keeping Tc inside the datasheet limit — DENO strips are rated Tc ≤ 75°C — is what preserves the rated L70 lifetime and colour stability.
- Never run 14.4W/m or more coiled on the reel, inside a sealed plastic diffuser, or directly on wood, wallpaper or foam.
Sizing rule: FPC width vs channel inner width
- Channel inner width ≥ FPC width + 2mm. This strip is 10mm wide, so it needs at least 12mm of inner width.
- The 2mm clearance absorbs extrusion tolerance and lets the tape be seated or replaced without scraping the side walls or the wiring.
- A frosted or opal PC cover then diffuses the higher lumen output into an even, dot-free line instead of visible hot spots.
Aluminum channels that fit this strip
- 22x12mm Recessed LED Channel with Flange · fits ≤10mm strip
- 20x15mm Wide Surface Mount LED Channel · fits ≤10mm strip
- 17x15mm Surface Mount LED Channel · fits ≤10mm strip
- 15x15mm Magnetic LED Channel · fits ≤10mm strip
- 19.1x8mm Surface Mount LED Channel · fits ≤10mm strip
- 15x15mm 48V Surface Mount LED Channel · fits ≤10mm strip
Recommended LED Channels
Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.
This strip is 10mm wide, so it needs a channel with at least 12mm inner width (10mm + 2mm clearance). Every profile below meets that.
Related models in this series
- Roll-to-Roll Long Reel LED Strip Light (#16773)
- 2835 1 SDCM Classic High Consistency LED Strip Light (#2176-B)
- Roll-to-Roll Long Reel LED Strip Light (#16774)
- 2835 1-Step (1 SDCM) High Consistency LED Strip 128LEDs/m (#3015-B)
- Roll-to-Roll Long Reel LED Strip Light (#16776)
- 2835 Roll-to-Roll Long Reel LED Strip Light (#16771)
- Multi-Line Three-Row High-Density LED LED Strip Light (#16706)
- 2835 S-Bend LED Strip High-Efficiency LED Strip Light (#19071)
See every model in SMD LED Strip Series or narrow to 2835. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 2063?
2063: 2835, 120 LEDs/m, DC 24V, 10mm PCB, 3oz copper FPCB, cuttable 1LED/8.33mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
What makes the construction of this micro cut LED strip different?
It is built as a micro cut LED strip on 3oz copper FPCB with a cutting unit of 1LED/8.33mm and an LED pitch of 8.3mm, so it holds its electrical and mechanical performance where standard strips fail.
Can DENO customise this micro cut LED strip for a project?
Yes. DENO manufactures the Micro-Cut SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
How short can you cut a micro-cut LED strip?
Cut points come as close as 12.5 mm, against 50 to 100 mm on a conventional cuttable LED strip. Short segments matter in cabinets, stair nosings, signage letters and display cases where a standard cut interval would leave a dark gap at the end of the run.
Which LED driver and run length suit #2063?
10mm | 24V | 120LEDs | 8.3mm/cut | #2063 | 2835 Micro-Cut LED Strip Light is a constant-voltage DC 24V product, so pair it with a CE or UL listed DC 24V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 5m. 5m Single / 10m Dual Input power. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.
