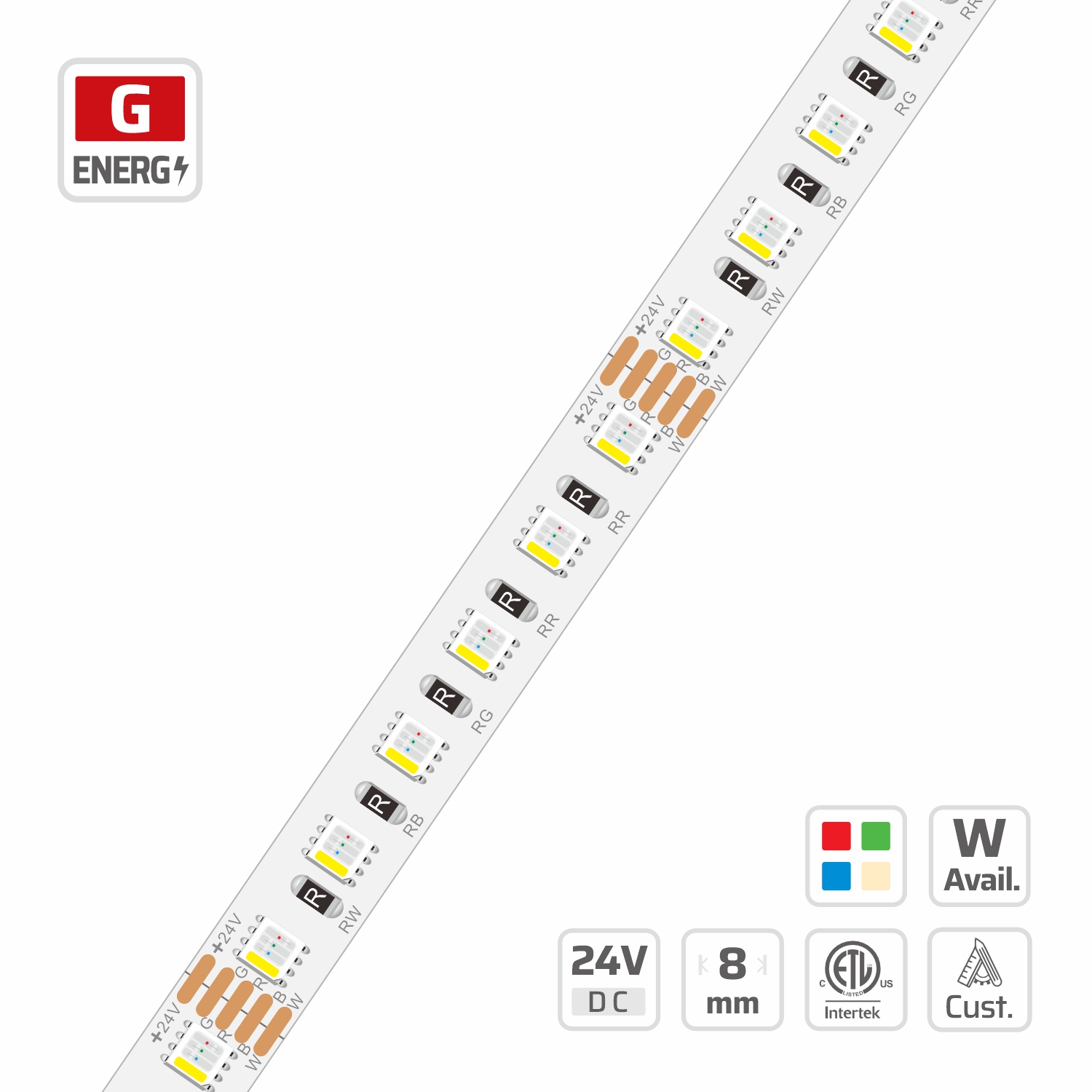

3535 RGBW LED Strip Light (#20481)

8mm · 24V · 120LEDs · 50mm/cut

Model: 20481

20481 rgbw led strip — 24V, cuttable every 50mm, 8mm FPCB width, 3535 LEDs, 120 LEDs/m

Overview

3535 RGBW LED Strip Light | 8mm | 24V | 120LEDs | 50mm/cut | #20481 is part of the DENO RGBW SMD Strips series, engineered around RGBW LED strip lights. Key specifications: 3535, 120, DC 24V, 8mm PCB, 3oz copper FPCB, cuttable 6LEDs/50mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.

Description

3535 RGBW LED Strip Light | 8mm | 24V | 120LEDs | 50mm/cut | #20481 Mixes RGBW 4 chip in 1 LED, with tunable fucntion combine. Up to 4 billion colors to choose from. With the addition of white light, much brighter colors and a softer pastel range are produced to satisfy the exacting color requirements of any lighting design. Special heat resistant PCB layout, copper layer 3Oz that make sure lower voltage drop and excellent heat dissipation. This color-changing linear LED light is perfect for transforming any room into a place for parties and special events, and adding drama to display cases, shop windows, restaurants or bars.

Rgbw Led Strip Lights built for rgbw smd strips projects.

Specifications

LED QTY120
PART NODL-F35A60V24-20481
SMD TYPE3535
CUTTABLE UNIT6LEDs/50mm
DIMMABLEYes
LED PITCH8.333mm
PCB WIDTH8mm
LENGTH MAX5m
COPPER FOIL3oz
POWER RANGE9.6~23W
CIRCUIT TYPEC.V.
INPUT VOLTAGEDC 24V

Frequently Asked Questions

What are the key specifications of 20481?

20481: 3535, 120, DC 24V, 8mm PCB, 3oz copper FPCB, cuttable 6LEDs/50mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.

What colour temperatures and CRI options does this RGBW LED strip lights offer?

This model is supplied as a RGBW LED strip lights with high CRI options and the CCT range listed in the datasheet. DENO bins every batch for colour consistency, and custom CCT or spectrum combinations can be produced for project quantities.

Can DENO customise this RGBW LED strip lights for a project?

Yes. DENO manufactures the RGBW SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.

What does the W channel add on an RGBW LED strip?

The fourth chip is a real white LED, so the strip delivers a clean 2700K to 6500K white at full efficacy instead of the pale tint produced by mixing red, green and blue. RGBCCT versions add a second white channel for tunable white control alongside colour.

RGBW LED Strip — Buyer Questions

What is an RGBW LED strip?

An RGBW LED strip carries a fourth, dedicated white die alongside the red, green and blue ones. The colour channels handle scenes and accents while the white channel delivers real architectural light — 2700K to 6500K at Ra 90+ — so one run covers both jobs instead of mixing a bluish pseudo-white from RGB alone.

How do you connect and wire an RGBW LED strip?

RGBW tape is a five-pin constant-voltage load: one shared V+ and four PWM negatives (R, G, B, W). Match the pin order printed on the board to the decoder, keep the run on a single controller output, and wire multiple runs in parallel from the driver — never in series, which starves the far run and shifts its colour.

Should I use 12V or 24V RGBW LED strip lights?

24V is the default for architectural work — at equal wattage it draws half the current, so a feed reaches 5–10 m before the white channel visibly warms and the colour mix drifts. 12V is kept for short cabinet, furniture and vehicle runs where the controller is 12V-native. For anything past 10 m, use a mid-feed or constant-current build.

What is the difference between 10mm and 12mm RGBW LED strips?

Width follows the package and the copper. A 10 mm board fits standard slim profiles and suits 4-in-1 packages such as 5050 RGBW; 12 mm gives room for wider copper pours or side-by-side RGB + white dies, which raises usable output and lowers junction temperature. DENO builds both, and narrower 8 mm versions where the channel demands it.

What are the brightest RGBW LED tape light options?

Output is set by die count and thermal headroom, not by the controller. DENO's high-output colour builds reach 24 W/m with 2 oz copper on 12 mm boards; 4-in-1 packages keep the four channels on one optical centre, while separate RGB + white layouts trade a small colour-mixing penalty for more white lumens.

Can I order a custom RGBW or RGB+CCT LED strip?

Yes. Channel layout (RGBW, RGBWW, RGB+CCT five-channel), white CCT and CRI, LED density, PCB width from 8 mm, copper weight, cut unit, IP class and connector are all configurable. DENO is the manufacturer, so a non-standard colour build is tooled from an existing FPCB stack-up instead of being quoted as a new product line.
