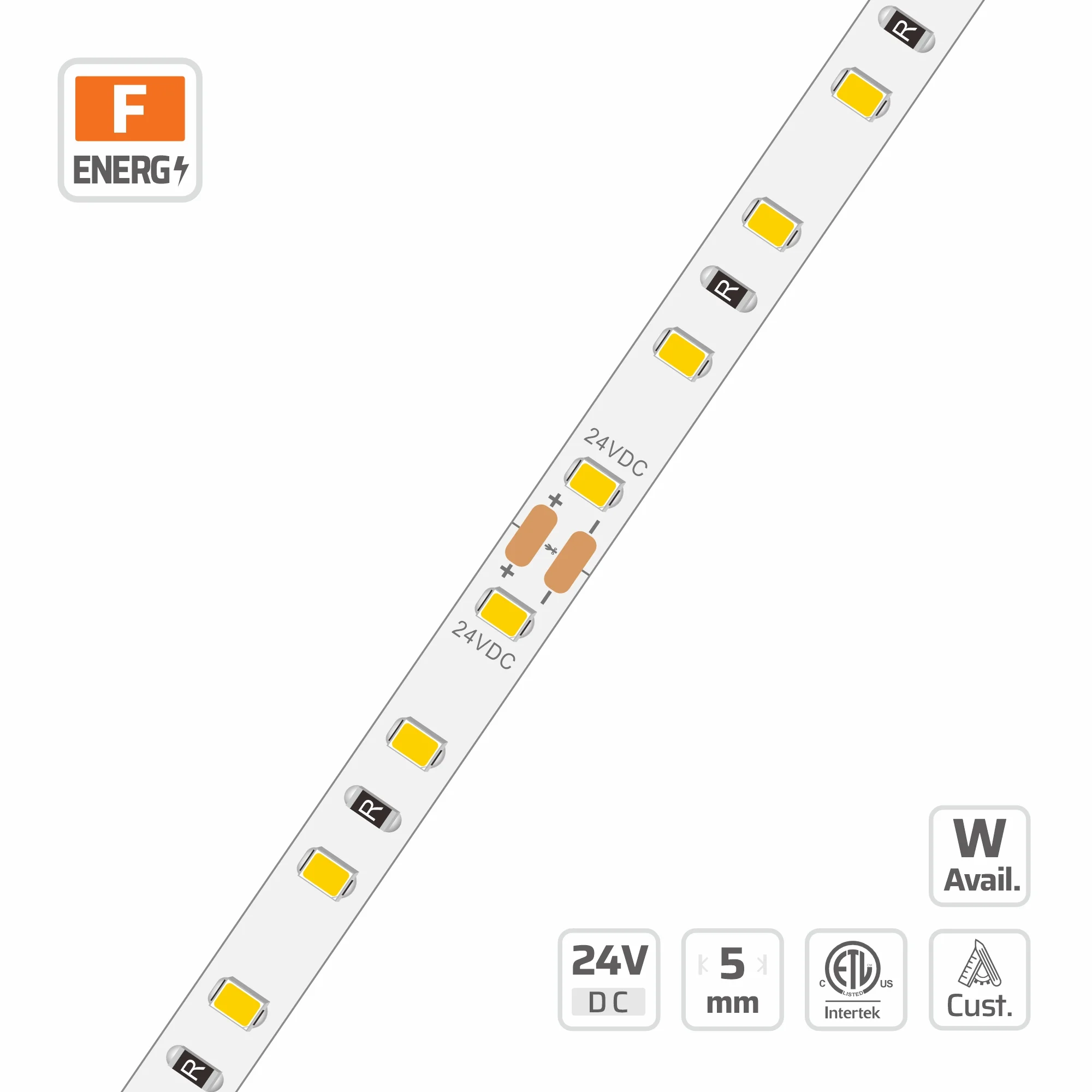

2216 Ultra Narrow CV LED Strip Light (#16798)
5mm · 24V · 120LEDs · 50mm/cut
Model: 16798
Overview
5mm | 24V | 120LEDs | 50mm/cut | #16798 | 2216 Ultra Narrow CV LED Strip Light is part of the DENO Ultra-Narrow SMD Strips series, engineered around ultra narrow LED strip. Key specifications: 2216, 120 LEDs/m, 24V, 5mm PCB, 2oz copper FPCB, cuttable 6LEDs/50mm. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
Engineered with an ultra-narrow 5mm PCB and 120 LEDs per meter, this 2216 LED strip light fits tight installation spaces. Powered by a 24V constant voltage input, the circuit supports smooth dimming control via PWM, DALI, and 0-10V protocols. Designed with a robust 2oz copper foil substrate, the tape features cuttable segments every 50mm up to 5m runs. A wide 120-degree beam angle delivers clean, uniform output ideal for commercial lighting, display showcases, and architectural lighting accents. DENO provides factory-direct wholesale project supply with OEM custom configurations to meet specialized contractor and engineering requirements.
Ultra Narrow Led Strip built for ultra-narrow smd strips projects.
Specifications
| CCT (K) | 1800–6500K |
|---|---|
| CRI | Ra≥90 |
| POWER (W/M) | 9.6 W/m |
| LED QTY | 120 LEDs/m |
| PART NO | DL-F22A60V24-16798-* |
| SMD TYPE | 2216 |
| CUTTABLE UNIT | 6LEDs/50mm |
| DIMMABLE | Yes |
| IP RATING | IP20 |
| LED PITCH | 8.333mm |
| PCB WIDTH | 5mm |
| BEAM ANGLE | 120° |
| RUN LENGTH | 5m |
| COPPER FOIL | 2oz |
| POWER RANGE | 2.4~14.4W |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 24V |
| LUMINOUS FLUX | 681–922 lm/m |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Ultra-narrow 5mm channels & shadow gaps — Fits shadow-gap details, slim profiles and joinery grooves that cannot take a standard 8–10mm strip.
Recommended accessories & compatible parts
- DL-0809HX-F — 8.89x7.79mm Mini Recessed LED Channel with Flange — Trimless Aluminum Profile for 5mm Strip: Accepts LED strips up to 5mm wide.
- DL-0909HX-M — 9x9mm Magnetic LED Channel — Tool-Free Aluminum Profile for Shelf Lighting: Accepts LED strips up to 5mm wide.
- DL-1010HX-V — 10x10mm V Shape Corner LED Channel — 45 Degree Aluminum Profile for Cabinets: Accepts LED strips up to 5mm wide.
- DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.
Request a quotation for #16798
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 99.1 lm/W at 4000K, Ra 90, ErP energy class F (Grade DL (2nd Tier) · 4.8W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 4.8W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 75 lm/W | 359.9 lm/m | G | — | — | — |
| 2300 K | — | — | — | 83.6 lm/W | 401.2 lm/m | G | — | — | — |
| 2700 K | — | — | — | 90.4 lm/W | 434 lm/m | F | 73.2 lm/W | 351.4 lm/m | G |
| 3000 K | — | — | — | 95.2 lm/W | 456.8 lm/m | F | 77.4 lm/W | 371.3 lm/m | G |
| 3500 K | — | — | — | 96.8 lm/W | 464.8 lm/m | F | 79.6 lm/W | 382.3 lm/m | G |
| 4000 K | — | — | — | 99.1 lm/W | 475.7 lm/m | F | 81.8 lm/W | 392.7 lm/m | G |
| 5000 K | — | — | — | 99.1 lm/W | 475.7 lm/m | F | — | — | — |
| 6500 K | — | — | — | 95.1 lm/W | 456.3 lm/m | F | — | — | — |
Grade DL (2nd Tier) · 7.2W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 73.7 lm/W | 530.8 lm/m | G | — | — | — |
| 2300 K | — | — | — | 82.2 lm/W | 591.7 lm/m | G | — | — | — |
| 2700 K | — | — | — | 88.9 lm/W | 640.1 lm/m | F | 72 lm/W | 518.3 lm/m | G |
| 3000 K | — | — | — | 93.6 lm/W | 673.8 lm/m | F | 76.1 lm/W | 547.7 lm/m | G |
| 3500 K | — | — | — | 95.2 lm/W | 685.5 lm/m | F | 78.3 lm/W | 563.8 lm/m | G |
| 4000 K | — | — | — | 97.5 lm/W | 701.6 lm/m | F | 80.4 lm/W | 579.2 lm/m | G |
| 5000 K | — | — | — | 97.5 lm/W | 701.6 lm/m | F | — | — | — |
| 6500 K | — | — | — | 93.5 lm/W | 673 lm/m | F | — | — | — |
Grade DL (2nd Tier) · 12W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 71.3 lm/W | 855.4 lm/m | G | — | — | — |
| 2300 K | — | — | — | 79.5 lm/W | 953.4 lm/m | G | — | — | — |
| 2700 K | — | — | — | 85.9 lm/W | 1031.4 lm/m | F | 69.6 lm/W | 835.3 lm/m | G |
| 3000 K | — | — | — | 90.5 lm/W | 1085.7 lm/m | F | 73.5 lm/W | 882.5 lm/m | G |
| 3500 K | — | — | — | 92.1 lm/W | 1104.6 lm/m | F | 75.7 lm/W | 908.5 lm/m | G |
| 4000 K | — | — | — | 94.2 lm/W | 1130.6 lm/m | F | 77.8 lm/W | 933.3 lm/m | G |
| 5000 K | — | — | — | 94.2 lm/W | 1130.6 lm/m | F | — | — | — |
| 6500 K | — | — | — | 90.4 lm/W | 1084.6 lm/m | F | — | — | — |
Grade DL (2nd Tier) · 14.4W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 70.1 lm/W | 1009.3 lm/m | G | — | — | — |
| 2300 K | — | — | — | 78.1 lm/W | 1125 lm/m | G | — | — | — |
| 2700 K | — | — | — | 84.5 lm/W | 1217 lm/m | G | 68.4 lm/W | 985.6 lm/m | G |
| 3000 K | — | — | — | 89 lm/W | 1281.1 lm/m | F | 72.3 lm/W | 1041.3 lm/m | G |
| 3500 K | — | — | — | 90.5 lm/W | 1303.4 lm/m | F | 74.4 lm/W | 1072 lm/m | G |
| 4000 K | — | — | — | 92.6 lm/W | 1334.1 lm/m | F | 76.5 lm/W | 1101.3 lm/m | G |
| 5000 K | — | — | — | 92.6 lm/W | 1334.1 lm/m | F | — | — | — |
| 6500 K | — | — | — | 88.9 lm/W | 1279.7 lm/m | F | — | — | — |
High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide
At up to 14.4W/m, 16798 is a high-power SMD LED strip. Above roughly 14.4W/m the tape can no longer shed its own heat through the FPC alone — an aluminum channel is part of the luminaire, not an accessory.
Why high-wattage strips need a heat sink
- Aluminum conducts heat roughly 30× faster than the plastics, MDF or gypsum a strip is usually stuck to, so a bare high-power run traps heat under the tape.
- LED lifetime (LM-80 / TM-21) is driven by solder-point temperature Tc. Keeping Tc inside the datasheet limit — DENO strips are rated Tc ≤ 75°C — is what preserves the rated L70 lifetime and colour stability.
- Never run 14.4W/m or more coiled on the reel, inside a sealed plastic diffuser, or directly on wood, wallpaper or foam.
Sizing rule: FPC width vs channel inner width
- Channel inner width ≥ FPC width + 2mm. This strip is 5mm wide, so it needs at least 7mm of inner width.
- The 2mm clearance absorbs extrusion tolerance and lets the tape be seated or replaced without scraping the side walls or the wiring.
- A frosted or opal PC cover then diffuses the higher lumen output into an even, dot-free line instead of visible hot spots.
Aluminum channels that fit this strip
- 8.89x7.79mm Mini Recessed LED Channel with Flange · fits ≤5mm strip
- 9x9mm Magnetic LED Channel · fits ≤5mm strip
- 10x10mm V Shape Corner LED Channel · fits ≤5mm strip
- 13x13mm V Shape Corner LED Channel · fits ≤5mm strip
- 10x10mm Surface Mount LED Channel · fits ≤6mm strip
- 12x8mm Surface Mount LED Channel · fits ≤6mm strip
Recommended LED Channels
Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.
This strip is 5mm wide, so it needs a channel with at least 7mm inner width (5mm + 2mm clearance). Every profile below meets that.
Related models in this series
- 2216 High Density LED Strip Light (#17000-N)
- 2216 Constant Current High Lumen High Density High Light Efficacy LED Strip Light (#9426)
- 2216 Single-Color LED Strip Light (#15926-N)
- 2216 Dim-to-warm LED Ultra-Narrow strip light (#17254)
- 2216 Dim-to-warm High density LED Strip Light (#14207-N)
- Classic Series PU LED Light Strips (#1688 PU)
- 2216 Ultra-high density mini cutting LED Strip Light (#14158-N)
- PU LED Light Strips (#2783-PU)
See every model in SMD LED Strip Series or narrow to 2216. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 16798?
16798: 2216, 120 LEDs/m, 24V, 5mm PCB, 2oz copper FPCB, cuttable 6LEDs/50mm. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
How long can a single run of this ultra narrow LED strip be?
Maximum single run for this model is 5m. Feeding from both ends or using a mid-point tap halves the effective distance per segment, so a ultra narrow LED strip can cover twice that length on one circuit when wired accordingly.
Can DENO customise this ultra narrow LED strip for a project?
Yes. DENO manufactures the Ultra-Narrow SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
How narrow can a thin LED strip be?
DENO builds down to a 3 mm wide FPCB. A 3 mm LED strip fits aluminium channels, cabinet reveals, shelf edges and slim architectural slots where an 8 or 10 mm board cannot be hidden, while still carrying 2 oz copper for stable long runs.
Which LED driver and run length suit #16798?
5mm | 24V | 120LEDs | 50mm/cut | #16798 | 2216 Ultra Narrow CV LED Strip Light is a constant-voltage 24V product, so pair it with a CE or UL listed 24V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 5m. 5m Single/10m Dual Input power Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.
