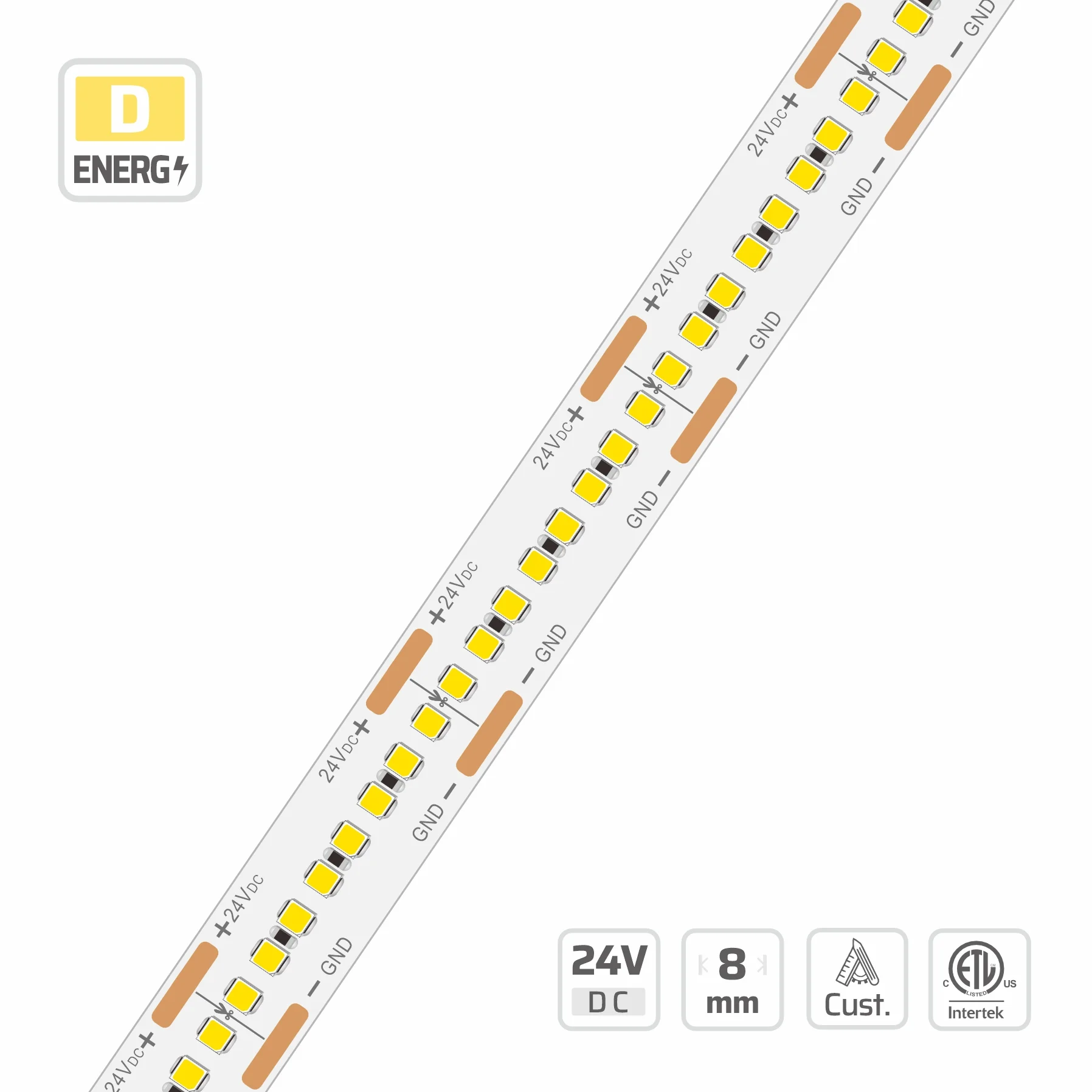

1515 LED Strip Light (#16614-N)
8mm · 24V · 384LEDs · 15W · 20.83cut
Model: 16614-N
Overview
1515 LED Strip Light | 8mm | 24V | 384LEDs | 15W | 20.83cut | #16614-N is part of the DENO High Density LED Strips series, engineered around ultra high density LED strip. Key specifications: 1515, 384LEDs/m, 24V, 8mm PCB, 3oz copper FPCB, cuttable 20.83mm, IP20/IP65/IP67/IP68, CRI Ra≥90. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
Engineered with 384 high-density 1515 SMD LEDs per meter on an 8mm PCB, this LED strip light delivers continuous, uniform illumination. Built with a heavy 3oz copper PCB and Ra≥90 color rendering, it ensures optimal thermal management and vivid color accuracy for premium installations. Operating on a 24V constant voltage circuit with precise 20.83mm cut points, the strip supports versatile dimming systems including PWM, DALI, and 0-10V. Available in IP20 to IP68 protection ratings, this tape is ideal for demanding architectural lighting, retail displays, and commercial cove applications. DENO provides factory-direct OEM custom lengths, tailored color temperatures from 1800K to 6500K, and dedicated wholesale project supply.
Ultra High Density Led Strip built for high-density smd strips projects.
Specifications
| CCT (K) | 1800-6500 |
|---|---|
| CRI | Ra≥90 |
| POWER (W/M) | 15 W/m |
| LED QTY | 384LEDs/m |
| PART NO | DL-F15A192V24-16614-N-* |
| SMD TYPE | 1515 |
| CUTTABLE UNIT | 20.83mm |
| DIMMABLE | Yes |
| IP RATING | IP20/IP65/IP67/IP68 |
| LED PITCH | 2.605mm |
| LIFESPAN | 50000 |
| PCB WIDTH | 8mm |
| WARRANTY | 3 Years |
| BEAM ANGLE | 120° |
| RUN LENGTH | 5m |
| COPPER FOIL | 3oz |
| POWER RANGE | 5~23W |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 24V |
| LUMINOUS FLUX | 640-2652 lm/m |
| OPERATING TEMPERATURE | -25~40°C; Tc: 75°C (max) |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
Recommended accessories & compatible parts
- DL-1215 — 12x15mm Surface Mount LED Channel — Tall U Shape Aluminum Profile: Accepts LED strips up to 8mm wide.
- DL-1313HX-M — 13x13mm Magnetic Cabinet LED Channel — Tool-Free Corner Aluminum Profile: Accepts LED strips up to 8mm wide.
- DL-1408 HX — 14x8mm Surface Mount LED Channel — Slim Aluminum Profile for 8mm Strip: Accepts LED strips up to 8mm wide.
- DN-PSU-100 — 24V 100W Class-2 LED Driver · High Efficiency: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-150 — 24V 150W Class-2 LED Driver · Premium: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- DN-PSU-60 — 24V 60W Class-2 LED Driver · Constant Voltage: Matches the 24V DC input of this strip; size the driver with at least 20% headroom over total load.
- V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.
Request a quotation for #16614-N
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
Photometric Performance — CCT × CRI Efficacy Matrix
Peak measured luminous efficacy: 142.1 lm/W at 4000K, Ra 90, ErP energy class D (Grade DL (2nd Tier) · 12W/m).
All values are measured at the stated power density and ambient 25 °C, reported as luminous efficacy in lumens per watt (lm/W), luminous flux per metre (lm/m) and the corresponding EU ErP (2019/2015) energy class.
Grade DL (2nd Tier) · 12W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 107.4 lm/W | 1289.4 lm/m | F | — | — | — |
| 2300 K | — | — | — | 119.7 lm/W | 1436.5 lm/m | E | — | — | — |
| 2700 K | — | — | — | 129.5 lm/W | 1554.1 lm/m | E | — | — | — |
| 3000 K | — | — | — | 136.3 lm/W | 1635 lm/m | D | — | — | — |
| 3500 K | — | — | — | 138.7 lm/W | 1664.4 lm/m | D | — | — | — |
| 4000 K | — | — | — | 142.1 lm/W | 1704.9 lm/m | D | — | — | — |
| 5000 K | — | — | — | 142 lm/W | 1703.6 lm/m | D | — | — | — |
| 6500 K | — | — | — | 136.1 lm/W | 1633.8 lm/m | D | — | — | — |
Grade DL (2nd Tier) · 15W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 105.2 lm/W | 1578.1 lm/m | F | — | — | — |
| 2300 K | — | — | — | 117.2 lm/W | 1758.1 lm/m | E | — | — | — |
| 2700 K | — | — | — | 126.8 lm/W | 1902.1 lm/m | E | — | — | — |
| 3000 K | — | — | — | 133.4 lm/W | 2001.1 lm/m | E | — | — | — |
| 3500 K | — | — | — | 135.8 lm/W | 2037.1 lm/m | D | — | — | — |
| 4000 K | — | — | — | 139.1 lm/W | 2086.6 lm/m | D | — | — | — |
| 5000 K | — | — | — | 139 lm/W | 2085.1 lm/m | D | — | — | — |
| 6500 K | — | — | — | 133.3 lm/W | 1999.6 lm/m | E | — | — | — |
Grade DL (2nd Tier) · 19W/m
| CCT (K) | Ra 80 — Luminous Efficacy (lm/W) | Ra 80 — Luminous Flux (lm/m) | Ra 80 — ErP Energy Class | Ra 90 — Luminous Efficacy (lm/W) | Ra 90 — Luminous Flux (lm/m) | Ra 90 — ErP Energy Class | Full Spectrum (Ra 95+) — Luminous Efficacy (lm/W) | Full Spectrum (Ra 95+) — Luminous Flux (lm/m) | Full Spectrum (Ra 95+) — ErP Energy Class |
|---|---|---|---|---|---|---|---|---|---|
| 1800 K | — | — | — | 102.3 lm/W | 1943.6 lm/m | F | — | — | — |
| 2300 K | — | — | — | 114 lm/W | 2165.3 lm/m | E | — | — | — |
| 2700 K | — | — | — | 123.3 lm/W | 2342.6 lm/m | E | — | — | — |
| 3000 K | — | — | — | 129.7 lm/W | 2464.5 lm/m | E | — | — | — |
| 3500 K | — | — | — | 132 lm/W | 2508.9 lm/m | E | — | — | — |
| 4000 K | — | — | — | 135.3 lm/W | 2569.9 lm/m | D | — | — | — |
| 5000 K | — | — | — | 135.2 lm/W | 2568 lm/m | D | — | — | — |
| 6500 K | — | — | — | 129.6 lm/W | 2462.7 lm/m | E | — | — | — |
High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide
At up to 19W/m, 16614-N is a high-power SMD LED strip. Above roughly 14.4W/m the tape can no longer shed its own heat through the FPC alone — an aluminum channel is part of the luminaire, not an accessory.
Why high-wattage strips need a heat sink
- Aluminum conducts heat roughly 30× faster than the plastics, MDF or gypsum a strip is usually stuck to, so a bare high-power run traps heat under the tape.
- LED lifetime (LM-80 / TM-21) is driven by solder-point temperature Tc. Keeping Tc inside the datasheet limit — DENO strips are rated Tc ≤ 75°C — is what preserves the rated L70 lifetime and colour stability.
- Never run 14.4W/m or more coiled on the reel, inside a sealed plastic diffuser, or directly on wood, wallpaper or foam.
Sizing rule: FPC width vs channel inner width
- Channel inner width ≥ FPC width + 2mm. This strip is 8mm wide, so it needs at least 10mm of inner width.
- The 2mm clearance absorbs extrusion tolerance and lets the tape be seated or replaced without scraping the side walls or the wiring.
- A frosted or opal PC cover then diffuses the higher lumen output into an even, dot-free line instead of visible hot spots.
Aluminum channels that fit this strip
- 14x8mm Magnetic LED Channel · fits ≤8mm strip
- 13x13mm Magnetic Cabinet LED Channel · fits ≤8mm strip
- 12x15mm Surface Mount LED Channel · fits ≤8mm strip
- Slim Recessed Aluminum Profile · 8mm PCB · fits ≤8mm strip
- 14.2x9.8mm Recessed LED Channel with Flange · fits ≤8mm strip
- 14x8mm Surface Mount LED Channel · fits ≤8mm strip
Recommended LED Channels
Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.
This strip is 8mm wide, so it needs a channel with at least 10mm inner width (8mm + 2mm clearance). Every profile below meets that.
Related models in this series
- 1515 CCT Tunable LED Strip Light (#16828-N)
- 1515 2-Row 45° High Density LED Strip Light (#18241)
- Multi-Line 5-Row High-Density LED LED Strip Light (#16710)
- 1515 Ultra Narrow Blue LED Strip Light (#16440)
- 1515 High Density LED Strip Light (#16662-N)
- 1515 White Chasing Flow LED Strip Light (#16673-N)
See every model in SMD LED Strip Series or narrow to 1515. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 16614-N?
16614-N: 1515, 384LEDs/m, 24V, 8mm PCB, 3oz copper FPCB, cuttable 20.83mm, IP20/IP65/IP67/IP68, CRI Ra≥90. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
How long can a single run of this ultra high density LED strip be?
Maximum single run for this model is 5m. Feeding from both ends or using a mid-point tap halves the effective distance per segment, so a ultra high density LED strip can cover twice that length on one circuit when wired accordingly.
Can DENO customise this ultra high density LED strip for a project?
Yes. DENO manufactures the High Density LED Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
How many LEDs per metre does a dotless LED strip need?
Visible dots depend on LED pitch, diffuser distance and transmittance. Above roughly 480 LEDs/m most diffusers give a continuous line at 10 mm depth, and the 700 LEDs/m high density LED strip stays dot free even behind a shallow, highly transmissive lens.
Which LED driver and run length suit #16614-N?
1515 LED Strip Light | 8mm | 24V | 384LEDs | 15W | 20.83cut | #16614-N is a constant-voltage 24V product, so pair it with a CE or UL listed 24V constant-voltage LED driver rated about 20% above the connected load. Maximum single run is 5m. 5m Single / 10m Dual Input power. Feeding from both ends or mid-feeding halves the copper distance and roughly quarters the voltage drop.
