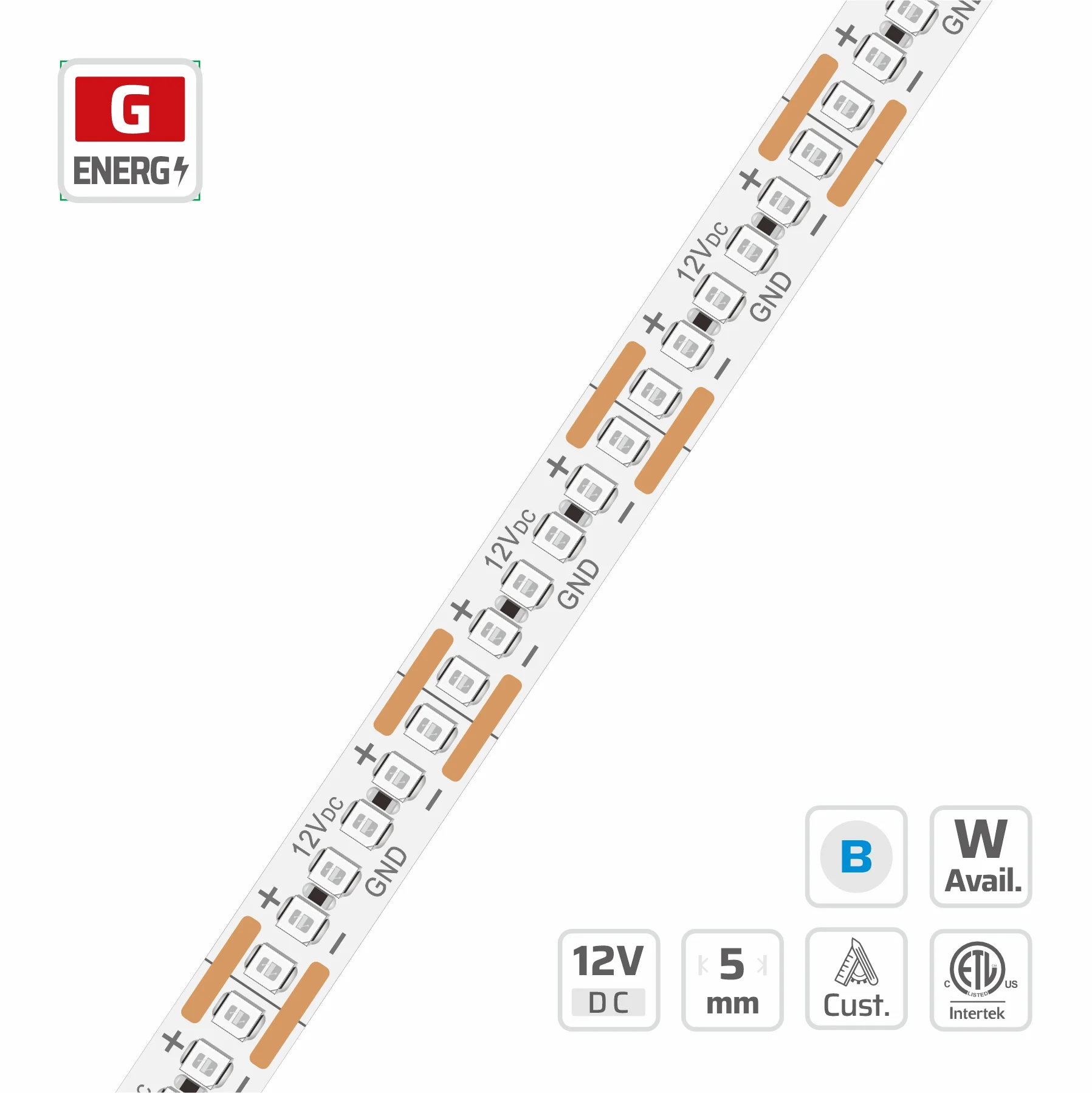

1515 Ultra Narrow Blue LED Strip Light (#16440)
5mm · 12V · 420LEDs · 15W · 14.283cut
Model: 16440
Overview
5mm | 12V | 420LEDs | 15W | 14.283cut | #16440 | 1515 Ultra Narrow Blue LED Strip Light is part of the DENO Micro-Cut SMD Strips series, engineered around micro cut LED strip. Key specifications: 1515, 420LEDs/m, 12V, 5mm PCB, 3oz copper FPCB, cuttable 6LEDs/14.285mm, IP20/IP65/IP67/IP68, CRI Ra≥80. Every reel is produced on DENO's roll-to-roll line with 99.9% pure copper FPCB and ships CE, UL and RoHS compliant for architectural, retail and hospitality projects. OEM and ODM configurations of length, colour temperature and waterproofing are available on request.
Description
Ultra-narrow 5mm PCB engineered with high-density 1515 SMD chips delivers continuous blue LED strip light output for tight architectural lighting installations. Featuring 420 LEDs per meter and a precise 14.285mm cut unit, this constant voltage strip ensures seamless integration and flexible onsite sizing. Full dimming compatibility with standard PWM, DALI, and 0-10V control systems allows precise blue illumination management across diverse commercial spaces. Available with IP20 to IP68 environmental protection ratings to support OEM custom lengths and factory-direct wholesale project supply requirements.
Ultra Narrow Led Strip built for ultra-narrow smd strips projects.
Specifications
| CCT (K) | 2700-6500 |
|---|---|
| CRI | Ra≥80 |
| SDCM | < 3 SDCM (Single Bin) |
| POWER (W/M) | 15 W/m |
| LED QTY | 420LEDs/m |
| PART NO | DL-F15A210V12-16440-* |
| SMD TYPE | 1515 |
| CUTTABLE UNIT | 6LEDs/14.285mm |
| DIMMABLE | Yes |
| IP RATING | IP20/IP65/IP67/IP68 |
| LED PITCH | 2.381mm |
| LIFESPAN | 50000 |
| PCB WIDTH | 5mm |
| WARRANTY | 3 Years |
| BEAM ANGLE | 120° |
| RUN LENGTH | 5M |
| COPPER FOIL | 3oz |
| POWER RANGE | 4.2~14.4W |
| CIRCUIT TYPE | C.V. |
| INPUT VOLTAGE | 12V |
| LUMINOUS FLUX | 266 lm/m |
| OPERATING TEMPERATURE | -25~40°C; Tc: 75°C (max) |
Applications
- Cove, wall-wash & perimeter lighting — Coves, recesses, wall-wash details and ceiling perimeters where a continuous, uniform line of light is required.
- Showroom & hospitality display lighting — Shelving, display cases, reception desks and signage backlighting in shops, showrooms and hospitality spaces.
- Kitchen & wardrobe under-cabinet lighting — Kitchen, wardrobe and furniture task lighting where the strip stays hidden and only the light is seen.
- Ultra-narrow 5mm channels & shadow gaps — Fits shadow-gap details, slim profiles and joinery grooves that cannot take a standard 8–10mm strip.
Recommended accessories & compatible parts
- DL-0809HX-F — 8.89x7.79mm Mini Recessed LED Channel with Flange — Trimless Aluminum Profile for 5mm Strip: Accepts LED strips up to 5mm wide.
- DL-0909HX-M — 9x9mm Magnetic LED Channel — Tool-Free Aluminum Profile for Shelf Lighting: Accepts LED strips up to 5mm wide.
- DL-1010HX-V — 10x10mm V Shape Corner LED Channel — 45 Degree Aluminum Profile for Cabinets: Accepts LED strips up to 5mm wide.
- V1 — 5-36VDC 1-Channel * 8A RF+Push Dimming Controller | V1: Matched by input voltage range and colour channels.
Request a quotation for #16440
DENO LED is a Shenzhen-based LED strip manufacturer with its own Foshan production base. Send the run length, voltage, CCT/CRI and IP rating you need and our engineering team replies with a specification sheet, wiring plan and price — OEM/ODM and fully custom builds included.
- Warranty: 5 years
- Lead time: standard boards: samples from 1 working day · custom: 3–5 working days · new FPCB: 1–3 weeks · production 1–2 weeks after sample approval
- Compliance: CE · UL · RoHS
- Bonding wire: 99.99% pure gold
- Copper foil: 99.9% pure copper FPCB
High-Power LED Strip: Heat Dissipation & Aluminum Channel Guide
At up to 14.4W/m, 16440 is a high-power SMD LED strip. Above roughly 14.4W/m the tape can no longer shed its own heat through the FPC alone — an aluminum channel is part of the luminaire, not an accessory.
Why high-wattage strips need a heat sink
- Aluminum conducts heat roughly 30× faster than the plastics, MDF or gypsum a strip is usually stuck to, so a bare high-power run traps heat under the tape.
- LED lifetime (LM-80 / TM-21) is driven by solder-point temperature Tc. Keeping Tc inside the datasheet limit — DENO strips are rated Tc ≤ 75°C — is what preserves the rated L70 lifetime and colour stability.
- Never run 14.4W/m or more coiled on the reel, inside a sealed plastic diffuser, or directly on wood, wallpaper or foam.
Sizing rule: FPC width vs channel inner width
- Channel inner width ≥ FPC width + 2mm. This strip is 5mm wide, so it needs at least 7mm of inner width.
- The 2mm clearance absorbs extrusion tolerance and lets the tape be seated or replaced without scraping the side walls or the wiring.
- A frosted or opal PC cover then diffuses the higher lumen output into an even, dot-free line instead of visible hot spots.
Aluminum channels that fit this strip
- 8.89x7.79mm Mini Recessed LED Channel with Flange · fits ≤5mm strip
- 9x9mm Magnetic LED Channel · fits ≤5mm strip
- 10x10mm V Shape Corner LED Channel · fits ≤5mm strip
- 13x13mm V Shape Corner LED Channel · fits ≤5mm strip
- 10x10mm Surface Mount LED Channel · fits ≤6mm strip
- 12x8mm Surface Mount LED Channel · fits ≤6mm strip
Recommended LED Channels
Mount this LED strip in a DENO LED aluminum profile for heat dissipation, physical protection and diffused, dot-free output.
This strip is 5mm wide, so it needs a channel with at least 7mm inner width (5mm + 2mm clearance). Every profile below meets that.
Related models in this series
- 1515 LED Strip Light (#16614-N)
- 1515 CCT Tunable LED Strip Light (#16828-N)
- 1515 2-Row 45° High Density LED Strip Light (#18241)
- Multi-Line 5-Row High-Density LED LED Strip Light (#16710)
- 1515 High Density LED Strip Light (#16662-N)
- 1515 White Chasing Flow LED Strip Light (#16673-N)
See every model in SMD LED Strip Series or narrow to 1515. Compare wattage, lumen output and run length in the ProCalc parameter library, or request OEM/ODM pricing on the custom manufacturing page.
Frequently Asked Questions
What are the key specifications of 16440?
16440: 1515, 420LEDs/m, 12V, 5mm PCB, 3oz copper FPCB, cuttable 6LEDs/14.285mm, IP20/IP65/IP67/IP68, CRI Ra≥80. Full photometric data, wiring diagrams and test reports are available in the downloads section of this page.
What makes the construction of this micro cut LED strip different?
It is built as a micro cut LED strip on 3oz copper FPCB with a cutting unit of 6LEDs/14.285mm and an LED pitch of 2.381mm, so it holds its electrical and mechanical performance where standard strips fail.
Can DENO customise this micro cut LED strip for a project?
Yes. DENO manufactures the Micro-Cut SMD Strips series as an OEM and ODM supplier: reel length, colour temperature, CRI grade, PCB width, waterproofing and private labelling can all be specified. Request a quote for lead time and project pricing.
How short can you cut a micro-cut LED strip?
Cut points come as close as 12.5 mm, against 50 to 100 mm on a conventional cuttable LED strip. Short segments matter in cabinets, stair nosings, signage letters and display cases where a standard cut interval would leave a dark gap at the end of the run.
How narrow can a thin LED strip be?
DENO builds down to a 3 mm wide FPCB. A 3 mm LED strip fits aluminium channels, cabinet reveals, shelf edges and slim architectural slots where an 8 or 10 mm board cannot be hidden, while still carrying 2 oz copper for stable long runs.
