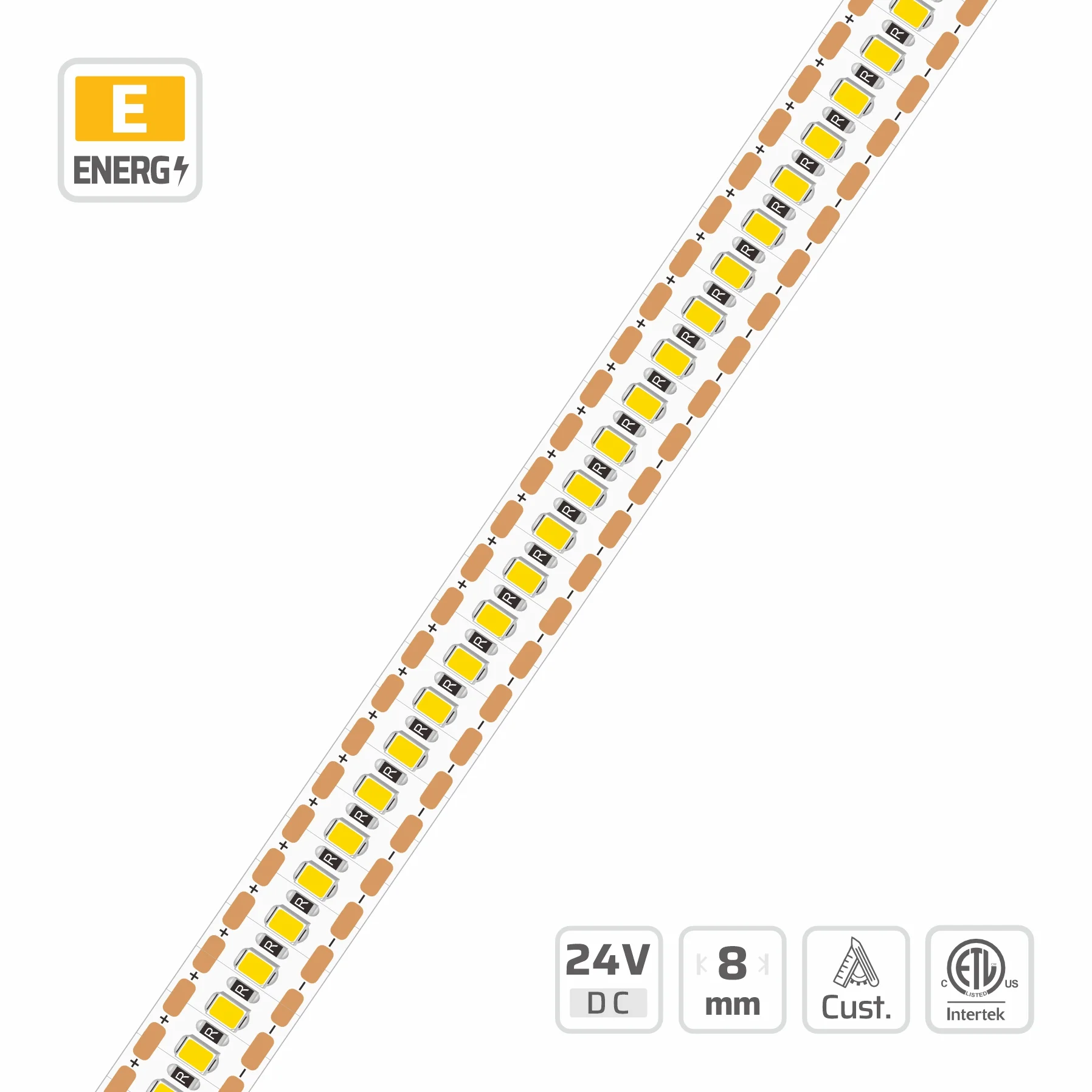

8mm | 24V | 300LEDs | 3.333mm/cut | #14159-N | 2216 Ultra-Dense Micro SMD LED Strip
Model: 14159-N
Overview
The DENO LED 14159-N 2216 Ultra-Dense Micro SMD LED Strip is a robust lighting solution designed for professional B2B applications. With 300 LEDs/m and a minimal cuttable length of 3.333mm, it offers unparalleled versatility for intricate designs and seamless light lines. Its thicker PCB and built-in chip protection ensure superior heat dissipation and higher power availability (5-19.2W). Wide CCT options from 1800K to 7500K and customizable full spectrum cater to diverse p...
Description
8mm | 24V | 300LEDs | 3.333mm/cut | #14159-N | 2216 Ultra-Dense Micro SMD LED Strip With thicker PCB, better for heat dissipation, keep the good consitent brightness from begin to end. With built-in chip protection stents, make it higher power available. Special power is customizable. Wide CCT range for option from 1800K~7500K. Customizable full spectrum, 120° view angel high color efficiency. Mini cutting length only one LED 3.3mm, no dark-area installation. No need extra covers. Perfect for area with low clearance or reflective surfaces to eliminate spot-glare.
Specifications
| ledQty | 300 LEDs/m |
|---|---|
| partNo | DL-F22A150V24-14159-N-* |
| smdType | 2216 |
| cuttable | 1LED/3.333mm |
| dimmable | Yes |
| ledPitch | 3.333mm |
| pcbWidth | 8mm |
| beamAngle | 120° |
| lengthMax | 5m |
| copperFoil | 3oz |
| powerRange | 5~19.2W |
| circuitType | C.V. |
| inputVoltage | 24V |
Frequently Asked Questions
What is the maximum continuous length for the 14159-N LED strip?
This 2216 micro smd led strip has a maximum continuous length of 5 meters, ensuring consistent performance for various installations.
Can the CCT of the 14159-N LED strip be customized?
Yes, DENO LED offers a wide CCT range from 1800K to 7500K and customizable full spectrum options to meet specific project needs.
What certifications does the DENO LED 14159-N series hold?
All DENO LED products, including the 14159-N, comply with relevant international certifications for quality and safety.
Is the 14159-N LED strip dimmable and what are its power requirements?
Yes, it is dimmable and operates at 24V input, with a power range of 5~19.2W, allowing for flexible lighting control.
